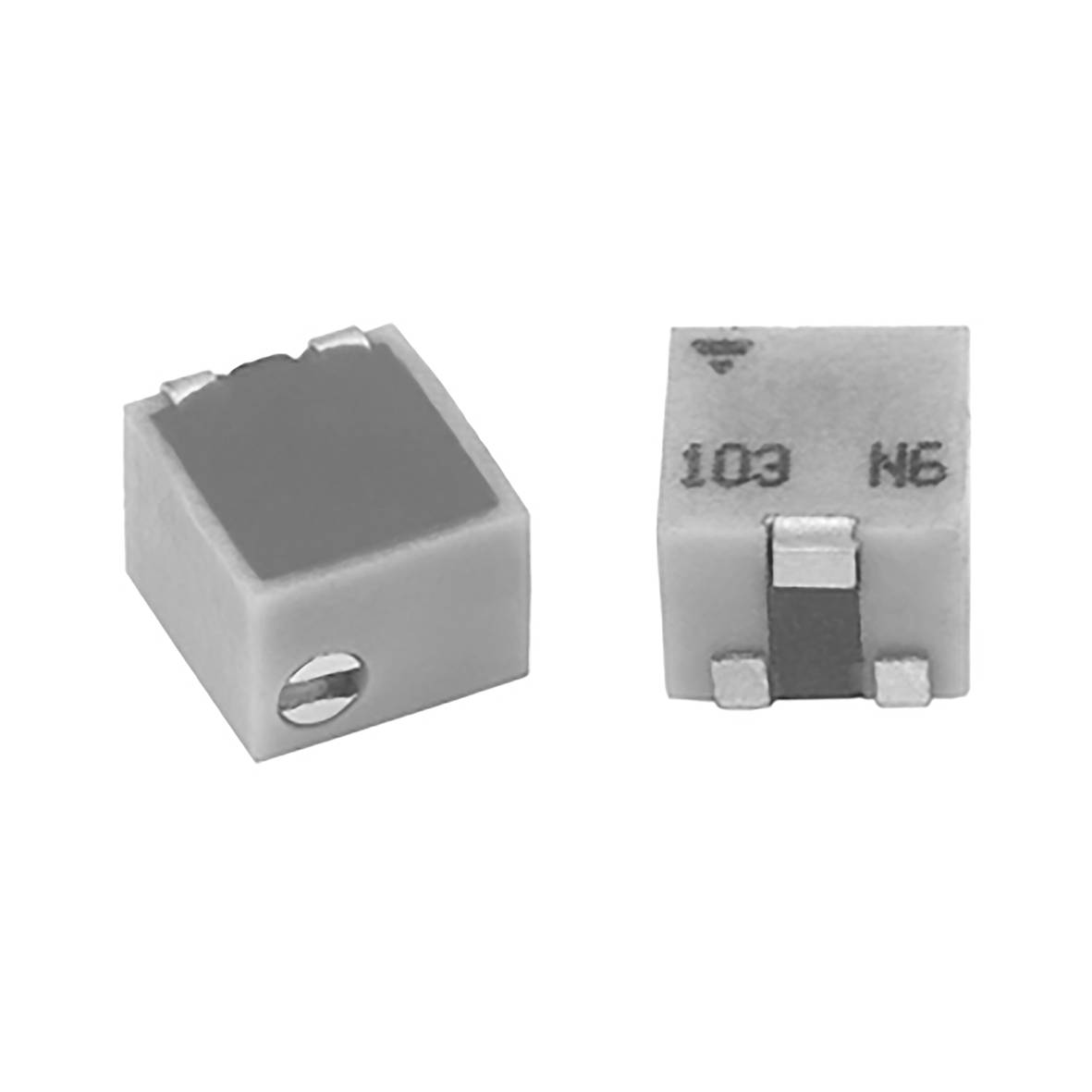

Vishay TSM4YJ103KR05 Cermet trimmer linear 0.25 W 10 kΩ 11 ° 15 ° 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Cermet trimmer
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.25 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Highlights & Details
Vishay SMD-Cermet spindle trimmer 10K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series TSM4
- Design: Vertical
- Delivery type: Belt
- Axle: Slot
- Resistance value 10 kOhm
- Resistance unit: KOhm
- Resistance value_1: 10
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 0.25 W
- Max. OPERATING VOLTAGE (DC) 50 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- Max voltage 300 V
- Breakdown voltage (RMS) 600 V
- Forward current, max. 5 mA
- Temperature coefficient, typ.: 100 ppm/°
- Insulation resistance 100 MOhm
- Lifetime: 200 cycles
- Climate category: 55/125/56
- Operating force 1.8 Ncm
- Confirmation: From above
- Rotational speed, mechanical 15°
- Speed, electrical: 11 °
- Packaging type
Tape
- Product type
Cermet trimmer
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.25 W
- Cut-off voltage
300 V
- Electrical angle
11°
- Mechanical angle
15°
- Max. temperature
125 °C
- Tolerance ±
10 %
- Width
3.5 mm
- Height
5.3 mm
- Dim
(L x W x H) 4.8 x 3.5 x 5.3 mm
- Content
1 pc(s)
- Type
TSM4YJ103KR05
- RoHS-compliant
Yes
- Length
4.8 mm
Documents & Downloads
Datasheet
Datasheet 3523636 Vishay TSM4YJ103KR05 Cermet trimmer linear 0.25 W 10 kΩ 11 ° 15 ° 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3523636 Vishay TSM4YJ103KR05 Cermet trimmer linear 0.25 W 10 kΩ 11 ° 15 ° 1 pc(s) Tape
Description
SMD-Cermet-spindle trimmer TSM4YJ
This text is machine translated.
This text is machine translated.
Features
- • SMD cermet spindle trimmer
- • Industrial quality
- • Nominal power 0.25W at 85°C.
- • Tests according to CECC 41000 or IEC 60393-1
- • Small size for optimum packing density
