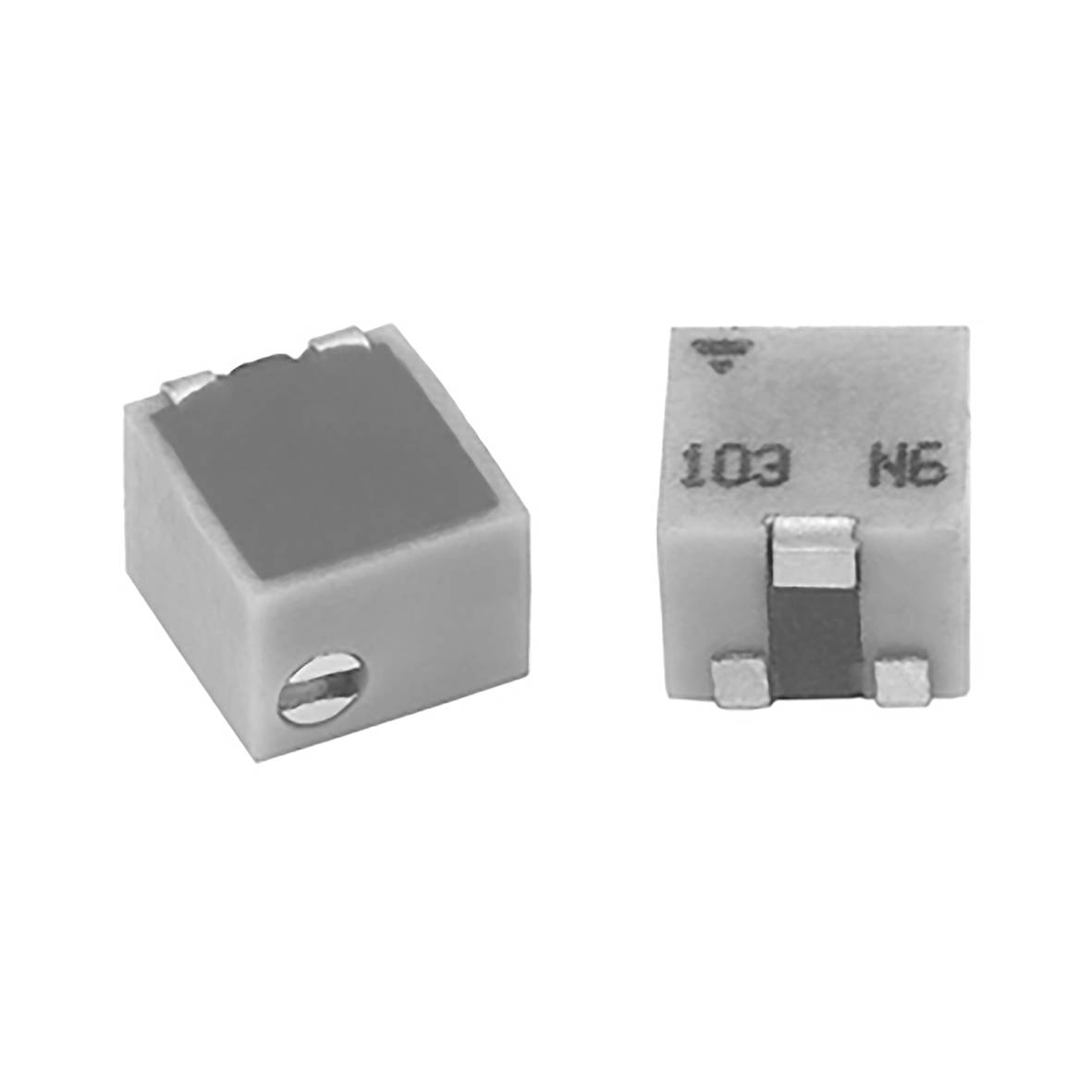

Vishay TSM4YJ501KR05 Cermet trimmer linear 0.25 W 500 Ω 1 pc(s)
Part number:
Item no:
Product type
Cermet trimmer
Resistance
500 Ω
Resistance characteristic
linear
Power rating
0.25 W
Cut-off voltage
300 V
Datasheet (PDF)
Highlights & Details
Vishay SMD-Cermet spindle trimmer 500R
Our service for you
Technical specifications
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series TSM4
- Design: Vertical
- Delivery type: Belt
- Weight: 0.28 g
- Axle: Slot
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 0.25 W
- Max. OPERATING VOLTAGE (DC) 11.2 V DC
- Max. OPERATING VOLTAGE (AC) 11.2 V AC
- Max voltage 300 V
- Breakdown voltage (RMS) 600 V
- Forward current, max. 22 mA
- Temperature coefficient, typ.: 100 ppm/°
- Lifetime: 200 cycles
- Climate category: 55/125/56
- Operating force 1.8 Ncm
- Confirmation: From above
- Rotational speed, mechanical 15°
- Speed, electrical: 11 °
- Product type
Cermet trimmer
- Resistance
500 Ω
- Resistance characteristic
linear
- Power rating
0.25 W
- Cut-off voltage
300 V
- Tolerance ±
10 %
- Width
3.5 mm
- Height
5.3 mm
- Dim
(L x W x H) 4.8 x 3.5 x 5.3 mm
- Content
1 pc(s)
- Type
TSM4YJ501KR05
- RoHS-compliant
Yes
- Length
4.8 mm
- Operating temperature (max.)
150 °C
- Operating temperature (min.)
65 °C
- Insulation resistance
100 MΩ
- Certification marks
CECC41000
Documents & Downloads
Datasheet
Datasheet 3465172 Vishay TSM4YJ501KR05 Cermet trimmer linear 0.25 W 500 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465172 Vishay TSM4YJ501KR05 Cermet trimmer linear 0.25 W 500 Ω 1 pc(s)
Description
SMD-Cermet-spindle trimmer TSM4YJ
This text is machine translated.
This text is machine translated.
Features
- • SMD cermet spindle trimmer
- • Industrial quality
- • Nominal power 0.25W at 85°C.
- • Tests according to CECC 41000 or IEC 60393-1
- • Small size for optimum packing density
