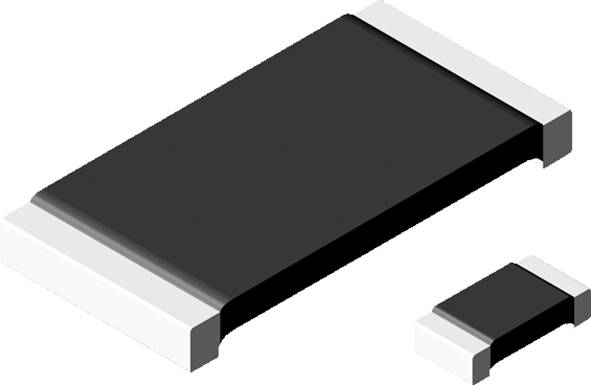

Vishay WSL1206R0150FEA SMD resistor 0.015 Ω SMD 1206 0.25 W 1 % 20 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
1206
Resistance
0.015 Ω
Power rating
0.25 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-resistor 1206 0.25W 1% R015 belt
Our service for you
Technical specifications
- Application: For current measurement and pulse applications
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series WSL1206
- Design 1206
- Delivery type: Belt
- Weight: 0.0162 g
- Solder-able 260°C / 10s
- Resistance tolerance: ±1 %
- Rated output: 0.25 W
- Load reduction: Linear from 70°C to 170°C (0W)
- Temperature coefficient, max. 20 ppm/°
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
1206
- Resistance
0.015 Ω
- Power rating
0.25 W
- Tolerance ±
1 %
- Temperature coefficient
20 ppm/°C
- Length
3.2 mm
- Width
1.6 mm
- Height
0.635 mm
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 1.6 x 0.635 mm
- RoHS-compliant
Yes
- Type
WSL1206R0150FEA
- Operating temperature (max.)
170 °C
- Operating temperature (min.)
65 °C
Documents & Downloads
Datasheet
Datasheet 3465097 Vishay WSL1206R0150FEA SMD resistor 0.015 Ω SMD 1206 0.25 W 1 % 20 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465097 Vishay WSL1206R0150FEA SMD resistor 0.015 Ω SMD 1206 0.25 W 1 % 20 ppm/°C 1 pc(s) Tape
Description
SMD High-load-wire resistance type WSL
This text is machine translated.
This text is machine translated.
Features
- • Power metal strip SMD resistor
- • Low self inductance
- • Welded construction
- • Very good frequency response
- • AEC-Q200 qualified (flame retardation tests may not apply to some resistance technologies)
