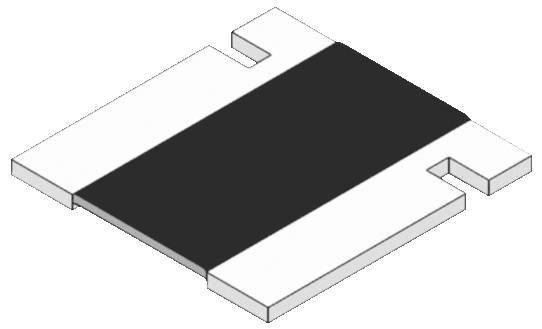

Vishay WSL3637R0100FEA SMD resistor 0.01 Ω SMD 3637 3 W 1 % 50 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
3637
Resistance
0.01 Ω
Power rating
3 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-resistance 3637 3W 1% R010 belt
Our service for you
Technical specifications
- Ideal for all types of current detection, voltage division and pulse applications
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series WSL3637
- Design 3637
- Delivery type: Belt
- Weight: 0.2743 g
- Solder-able 260°C / 10s
- Resistance tolerance: ±1 %
- Rated output: 3 W
- Load reduction: Linear from 70°C to 170°C (0W)
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
3637
- Resistance
0.01 Ω
- Power rating
3 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/°C
- Length
9.4 mm
- Width
9.14 mm
- Height
0.635 mm
- Content
1 pc(s)
- Dim
(L x W x H) 9.4 x 9.14 x 0.635 mm
- RoHS-compliant
Yes
- Type
WSL3637R0100FEA
- Operating temperature (max.)
170 °C
- Operating temperature (min.)
65 °C
Documents & Downloads
Datasheet
Datasheet 3465100 Vishay WSL3637R0100FEA SMD resistor 0.01 Ω SMD 3637 3 W 1 % 50 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465100 Vishay WSL3637R0100FEA SMD resistor 0.01 Ω SMD 3637 3 W 1 % 50 ppm/°C 1 pc(s) Tape
Description
SMD High-load-wire resistance type WSL Vie
This text is machine translated.
This text is machine translated.
Features
- • Power metal strip SMD resistor
- • 4-port design
- • Low self inductance
- • Fully welded construction
- • Sulfur resistance through a design that is insensitive even in sulfur-rich environments
- • Solid nickel-chrome alloy resistor with low TCR (< 20 ppm/°C)
- • Very good frequency response
- • AEC-Q200 certified (flame retardation tests may not apply to some resistance technologies)
