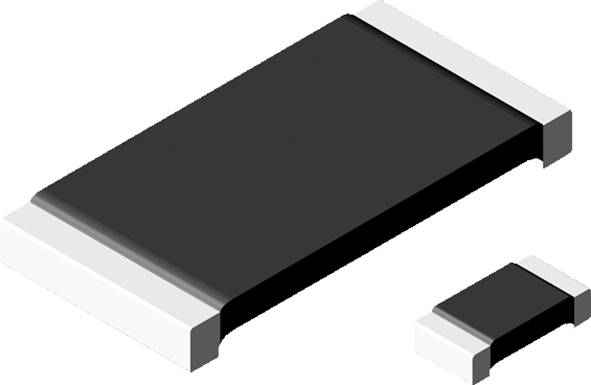

Vishay WSLT2512R1000FEB SMD resistor 0.1 Ω SMD 2512 1 W 1 % 75 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
2512
Resistance
0.1 Ω
Power rating
1 W
Datasheet (PDF)
Highlights & Details
Vishay SMD-resistor 2512 1W 1% R100 belt
Our service for you
Technical specifications
- Application: Ideal for all types of current measurement, voltage division and pulse applications, including switching and linear power supplies, instruments and power amplifiers
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series WSLT2512
- Design 2512
- Delivery type: Belt
- Weight: 0.0636 g
- Solder-able 260°C / 10s
- Resistance tolerance: ±1 %
- Rated output: 1 W
- Load reduction: Linear from 70°C to 275°C (0W)
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
2512
- Resistance
0.1 Ω
- Power rating
1 W
- Tolerance ±
1 %
- Temperature coefficient
75 ppm/°C
- Length
6.35 mm
- Width
3.18 mm
- Height
0.635 mm
- Content
1 pc(s)
- Dim
(L x W x H) 6.35 x 3.18 x 0.635 mm
- RoHS-compliant
Yes
- Type
WSLT2512R1000FEB
- Operating temperature (max.)
275 °C
- Operating temperature (min.)
65 °C
Documents & Downloads
Datasheet
Datasheet 3465101 Vishay WSLT2512R1000FEB SMD resistor 0.1 Ω SMD 2512 1 W 1 % 75 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465101 Vishay WSLT2512R1000FEB SMD resistor 0.1 Ω SMD 2512 1 W 1 % 75 ppm/°C 1 pc(s) Tape
Description
SMD High-load wire resistance type WSLT
This text is machine translated.
This text is machine translated.
Features
- • Power metal strip SMD resistor
- • High Temperature: Operating temperature up to 275°C
- • Proprietary processing method for extremely low resistance values
- • Sulfur resistance through a design that is insensitive even in sulfur-rich environments
- • Specially selected and stabilized materials allow performance reduction at high temperatures (up to +275°C)
- • Solid nickel-chrome alloy resistor with low TCR (< 20 ppm/°C)
- • Very low inductance (< 5 nH)
- • Excellent frequency response up to 50 MHz
- • Low thermal EMF (< 3 μV/°C)
- • AEC-Q200 certified (flame retardation tests may not apply to some resistance technologies)
