Vision VISION EIN PAAR WEISSE WANDLAUTSPRECHERP Wall speaker 13.34 cm 5.25 inch 50 W 1 pc(s)
EAN:
Part number:
Item no:
Vision SP-1800 50W White speaker
Highlights & Details
- RMS capacity:50 W
- Max. load (W):50 W
- 5.25 inch
- 89 dB
Technical specifications
- Included accessories: 2 x wall bracket
- Colour: White
- Woofer: 5.25″
- Mid-range speaker: 1″
- Tweeter: 0.5″
- Product type
Wall speaker
- Type
2 x 3-way wall speakers
- RMS capacity
50 W
- Max. load
50 W
- Speaker size (cm)
13.34 cm
- Speaker size (inch)
5.25 inch
- Interfaces
Screw terminals
- Impedance
8 Ω
- Max. sound pressure
89 dB
- Frequency range
80 - 20000 Hz
- Dim
(W x H x D) 18 x 24.4 x 17.4 mm
- Weight
4.2 kg
- Content
1 pc(s)
- Width
18 mm
- Height
24.4 mm
- Depth
17.4 mm
- Cable length
0 mm
- Version
Connection cable
- Factory colour
White
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1874828 Vision VISION EIN PAAR WEISSE WANDLAUTSPRECHERP Wall speaker 13.34 cm 5.25 inch 50 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1874828 Vision VISION EIN PAAR WEISSE WANDLAUTSPRECHERP Wall speaker 13.34 cm 5.25 inch 50 W 1 pc(s)
Description

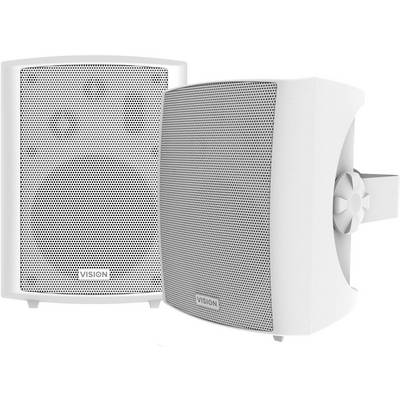

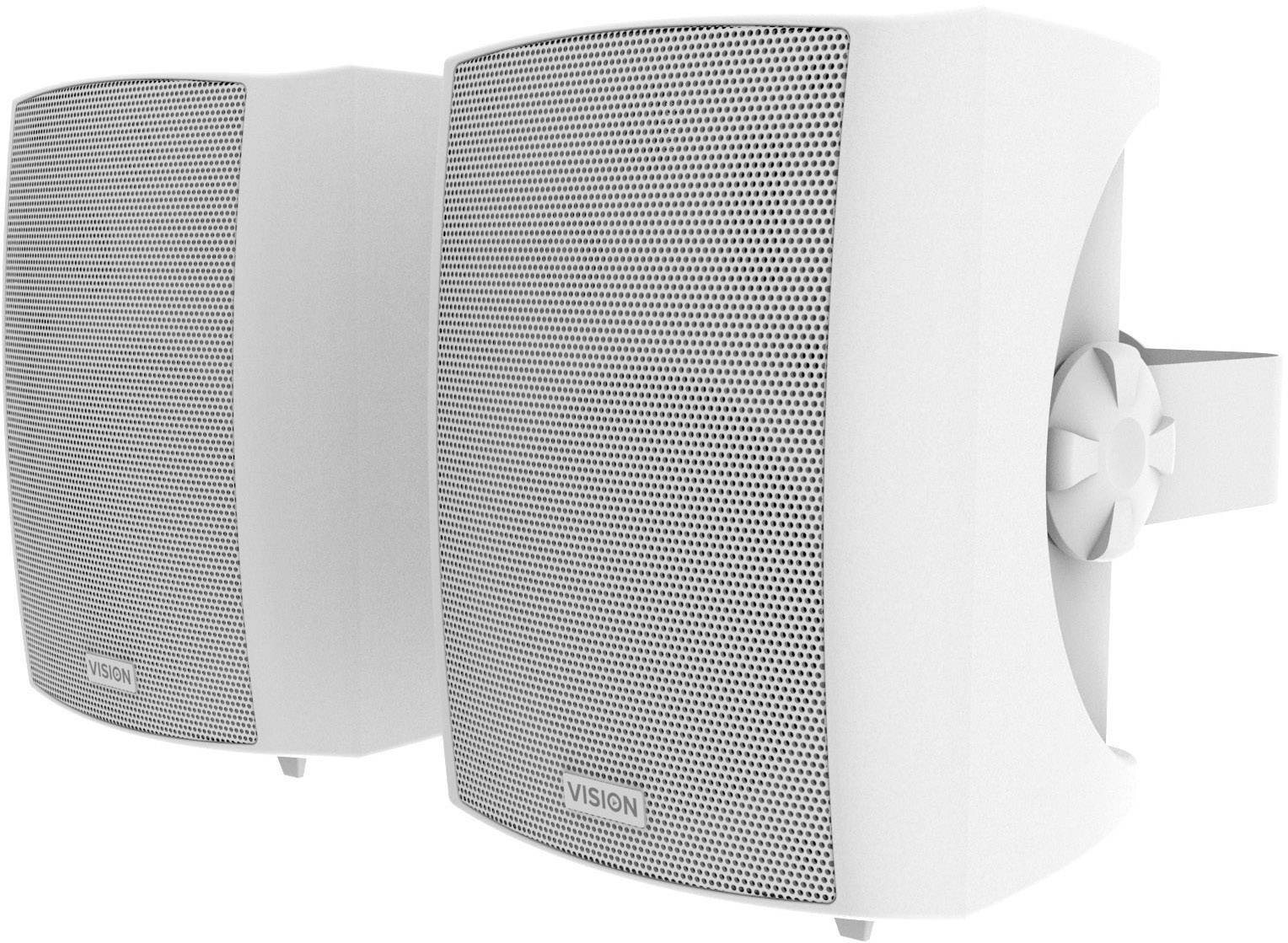

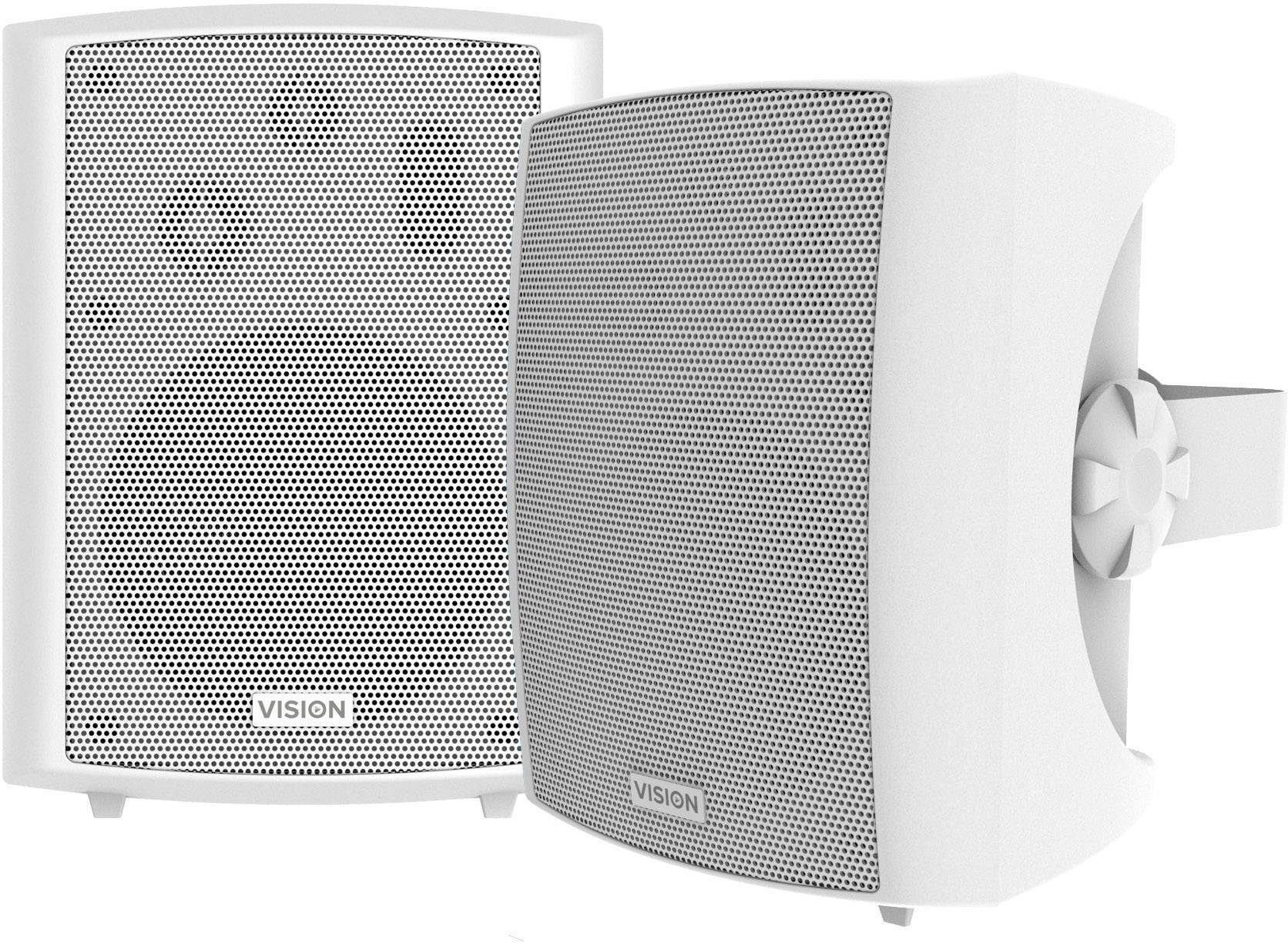

Designed for wall mounting, the SP-1800 speakers from Vision are easy to install, look great and deliver powerful, rich sound.
They are 240 mm high and equipped with a 5.25-inch woofer. Thus, they are the most common size for conference rooms, classrooms and boardrooms.
Three way
The speakers use three drivers, i.e. Low-frequency, mid-range and tweeter drivers. If a single driver is to reproduce as wide a frequency spectrum as possible, this is always possible only under compromises. However, if you divide the sound spectrum into three ranges, each driver only has to produce a limited frequency spectrum, which results in less distortion and a clearer sound.
Bass reflex
The bass reflex opening enables a larger deflection of the woofer, so that it can reproduce lower frequencies. The bass is amplified by the phase-delayed movement of the air from the rear side of the woofer to the front side.
Stable grid
A metal grillee protects the drivers from physical damage.
Resistant coating
The structural lacquer is made of robust ABS-plastic and withstands the stresses in professional use.
Professional AV applications
In smaller to medium presentation environments, broad dispersion is usually more important than feedback management for microphones, so no horns are used.

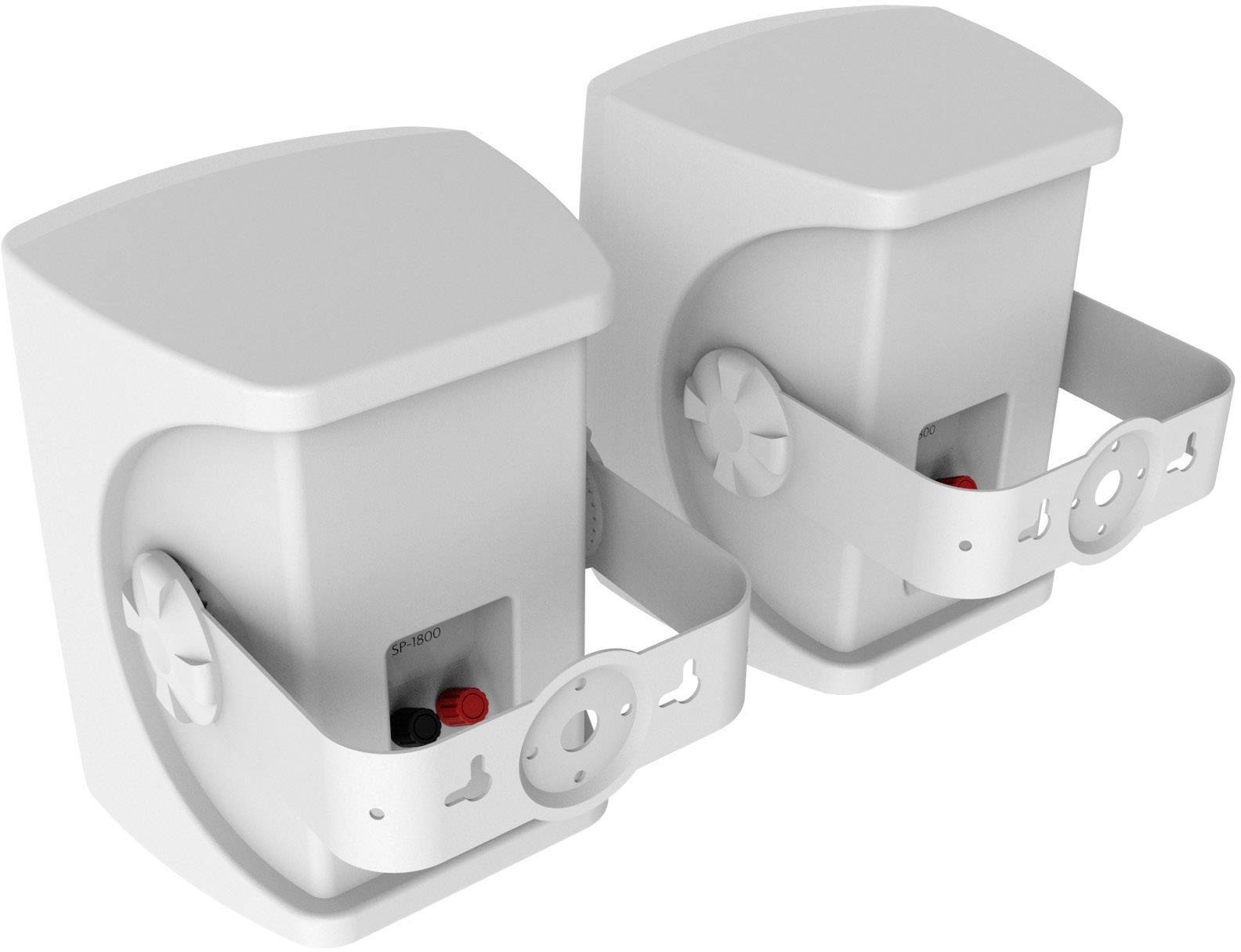

Horizontal wall bracket in C-shape
The adjustable brackets enable an angle of inclination of up or down depending on 30º Alternatively, the loudspeakers can also be used without holder and placed on a shelf.
Conseil
These are passive loudspeakers, i.e. no amplifier is integrated. They must therefore be used with an external amplifier.
This text is machine translated.
