Buy VOC meter PCE Instruments PCE-EM 880 Humidity, Temperature, VOC, Particulate matter USB interface, Thermometer

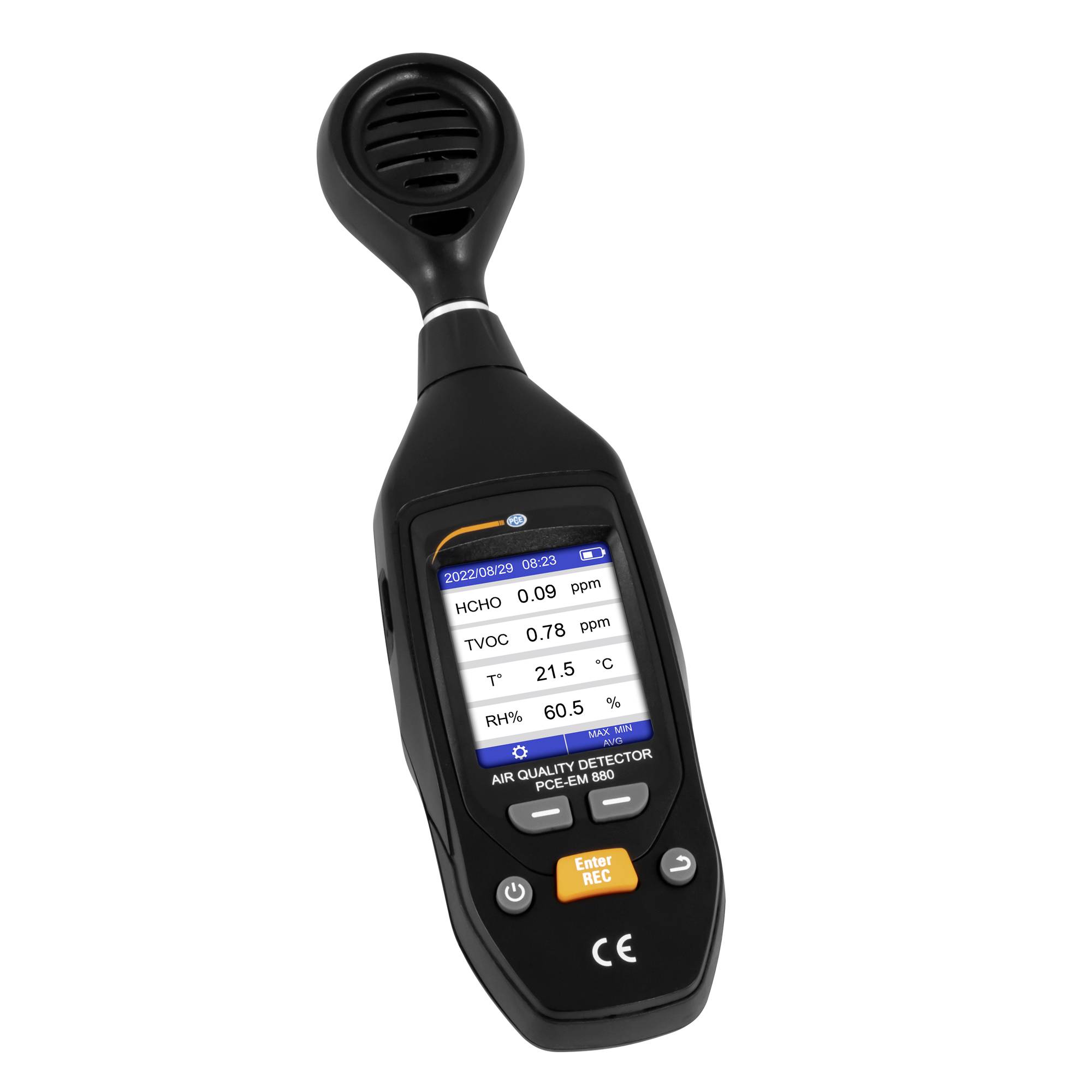

Handheld air quality detector with probe head and screen showing HCHO 0.09 ppm, TVOC 0.78 ppm, temperature 21.5°C, and humidity 60.5%.<br>

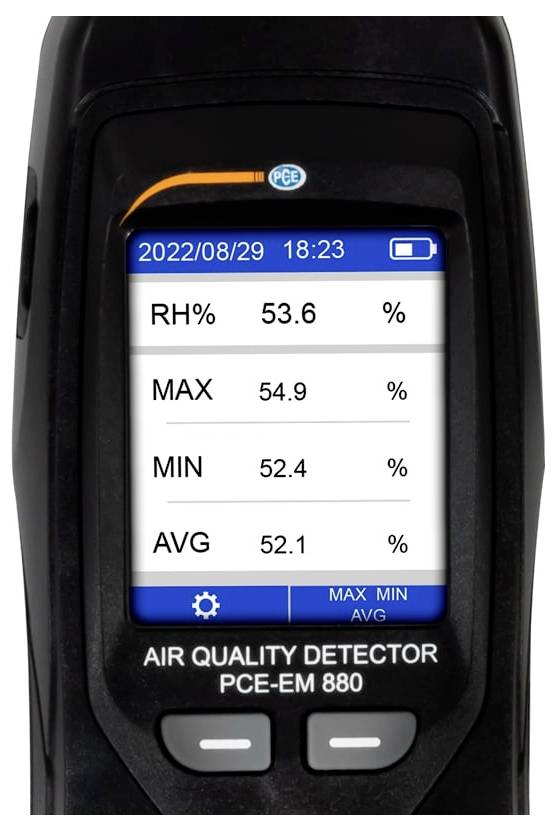

Portable PCE-EM 880 air quality detector screen showing humidity RH% 53.6%, with max 54.9%, min 52.4%, and avg 52.1% at 2022/08/29 18:23.

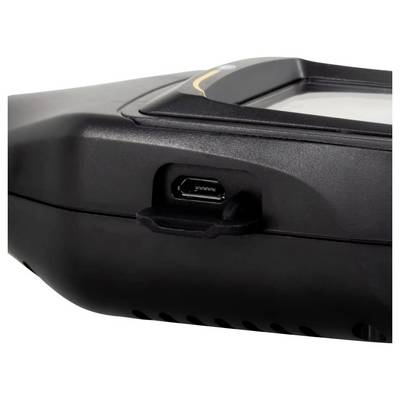

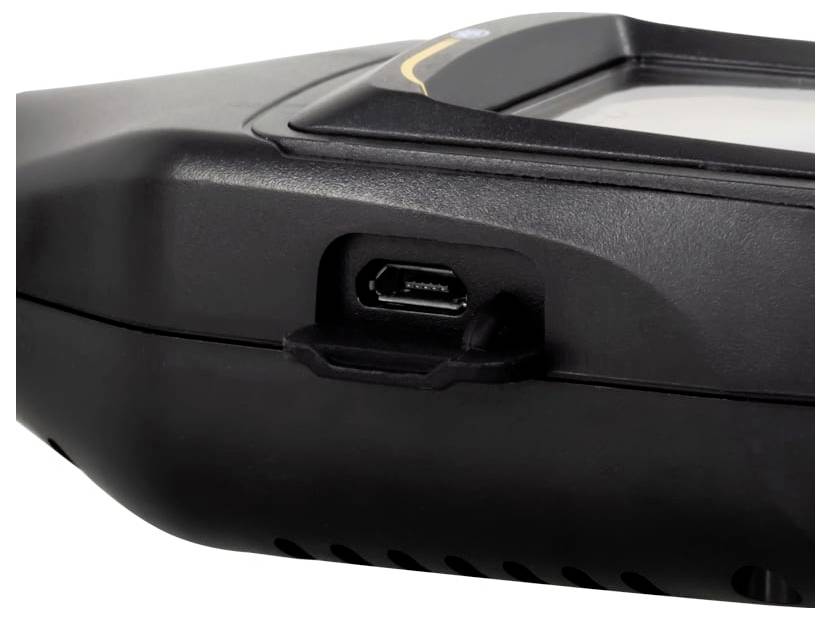

Close-up of a black device casing showing a recessed micro-USB charging port on the side.<br>

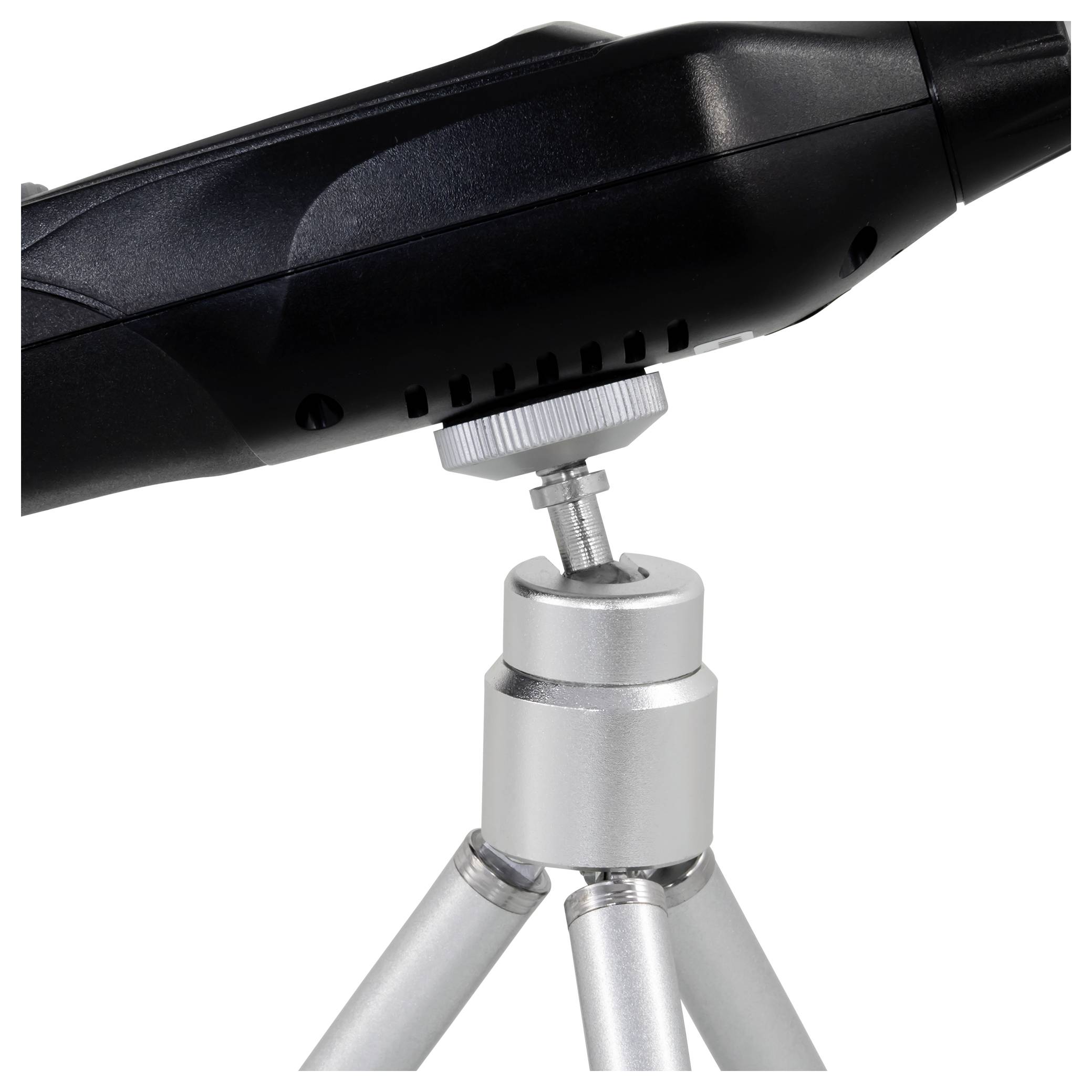

Close-up of a black device mounted on a silver tripod head with an adjustable screw clamp.

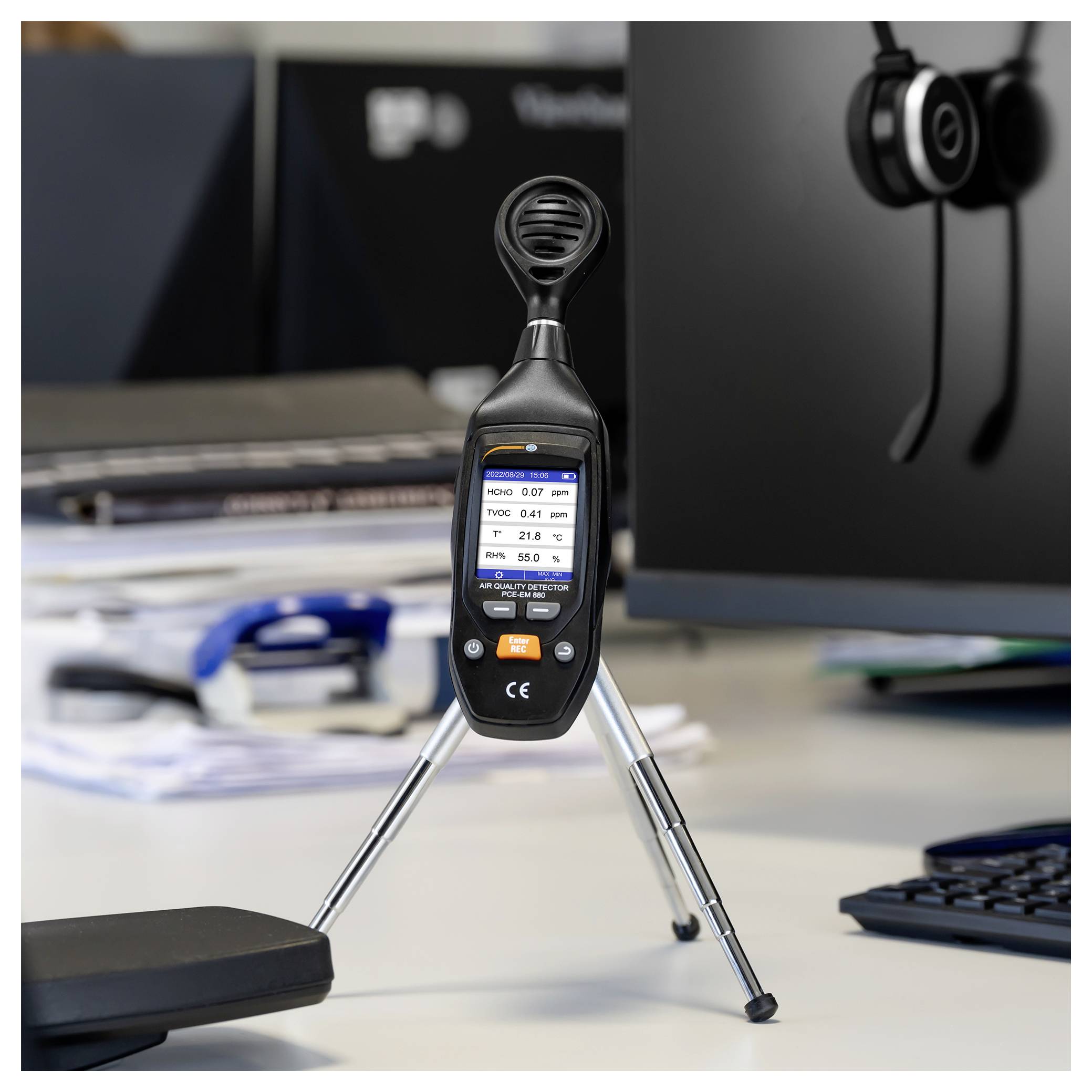

A handheld air-quality meter on a tripod displays measurement readings on its screen in a desk office setting.

VOC meter PCE Instruments PCE-EM 880 Humidity, Temperature, VOC, Particulate matter USB interface, Thermometer-5

VOC meter PCE Instruments PCE-EM 880 Humidity, Temperature, VOC, Particulate matter USB interface, Thermometer-6

1/7

Datasheet (PDF)

Unavailable

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Aerosol meter PCE-EM 880

Air quality meter with data storageExport of the stored measuring data as CSVHCHO Measuring range: 0.00 … 5.00 mg/m³TVOC Measuring range: 0.00 … 9.99 mg/m³Temperature measuring range: 0 … 50 °C / 32 … 122 °F.Humidity measuring range: 0 … 100 % r.F.Memory for 5000 measurement pointsBattery and mains mode mobile and stationary use Micro USB interface

Technical specifications

HIGH DO Measuring range 0.00 … 5.00 mg/m³Resolution: 0.01 mg/m³Accuracy ±5 % from MB.TVOC Measuring range 0.00 … 9.99 mg/m³Resolution: 0.01 mg/m³Accuracy ±5 % from MB.Temperature Measuring range 0 … 50 °C / 32 … 122 °FResolution 0.1 °C / 0.1 °FAccuracy ±2 °C / ±4 °FHumidityMeasuring range 0 … 100 % r.F.Resolution 0.1 % r.Accuracy ±3.5 % at (20 … 80 % RH)±5 % at (0 … 20 %)±5 % at (80 … 100 %)Other specificationsMemory for 5000 measurement pointsFile format CSVMemory rate 1 minute, 15 minutes, 1 hourHCHO Warm-up Time: 10 secondsTVOC: 90 secondsUnitsTemperature °C, °FHCHO / TVOC: Ppm, mg/m3Measurement rate 1 HzVisual alarmInterface Micro USB interfacePower supply (rechargeable battery) 3.7 V, 1500 mAhPower supply (power supply) 5 V DC, 1 AOperating conditions 0 … 45 °C / 32 … 113 °F, <90 % RHStorage conditions -10 … 55 °C / 14 … 131 °F, <90 % r. FDimensions 54 x 215 x 34 mmWeighs 143 g.

Product type: VOC meter

Reading range: 0 - 50 °C

Unit of measurement: Humidity
Temperature
VOC
Particulate matter

Features: USB interface
Thermometer

Accuracy: 5 °C

Weight: 143 g

Reading range (max.): 50 °C

Reading range (min.): 0 °C

Width: 34 mm

Height: 54 mm

Length: 215 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2813589 VOC meter PCE Instruments PCE-EM 880 Humidity, Temperature, VOC, Particulate matter USB interface, Thermometer

User & Safety Instructions

User & Safety Instructions 2813589 VOC meter PCE Instruments PCE-EM 880 Humidity, Temperature, VOC, Particulate matter USB interface, Thermometer

Description

The air quality meter is equipped with different sensors to determine HCHO, TVOC, ambient temperature and the ambient humidity. Thus, the air quality meter already covers a large range of measurement tasks. The measuring range for TVOC measurement is 0.00 … 9.99 mg/m³. With an accuracy of ±5% of measurement range for the HCHO and TVOC measurement, the air quality meter is the ideal measuring instrument for the oriented measurement.The built-in 1500 mAh rechargeable battery makes it possible to operate the air quality meter as mobile. As soon as the rechargeable battery is discharged, it can be recharged via the micro USB interface with a 5 V DC power supply. Thus, the air quality meter is used, for example, for checking the air quality in offices, workshops, school facilities or also in logistics, in order to check the premises for volatile organic substances and for formaldehyde. The measured values are stored directly on the air quality meter. The air quality meter also features a 5000-point memory. After a measurement, the measured values can be analyzed on the air quality meter. The measured values can also be transferred from the air quality meter to a PC. When connecting the air quality meter with a PC, the air quality meter is recognized as a mass data storage device. This has the special advantage that the air quality meter operates independently. The measured values are saved in CSV file format by the air quality meter.

This text is machine translated.

Features

Aerosol measuring device with data storage Export of the stored measuring data as CSVHIGH DO TVOC TemperatureMoistureMeasuring range 0.00 ... 9.99 mg/m³1500 mAh rechargeable battery mobile and stationary use Micro USB interface

Scope of delivery

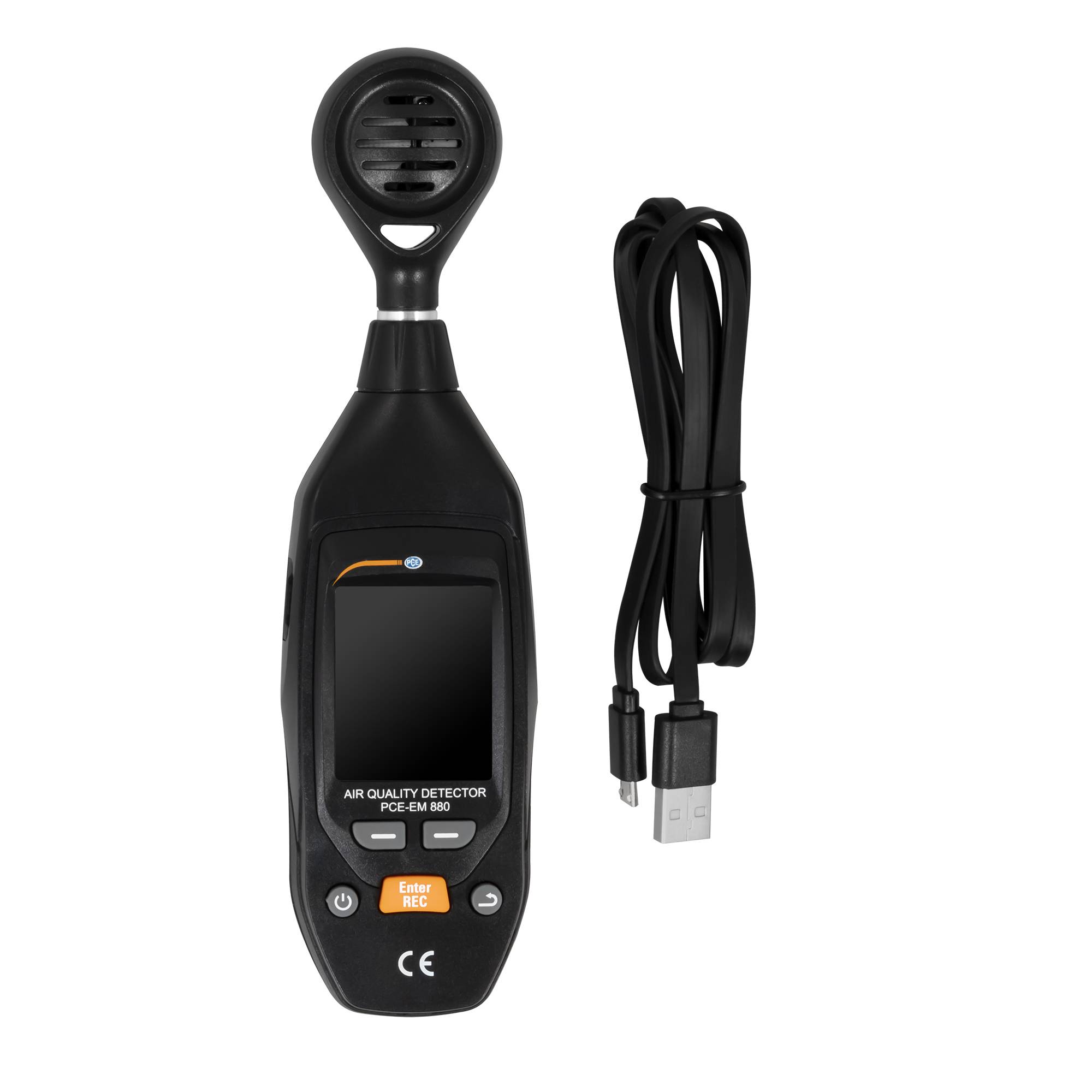

1 x aerosol detector PCE-EM 8801 x micro USB cable1x user manual
