Buy Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

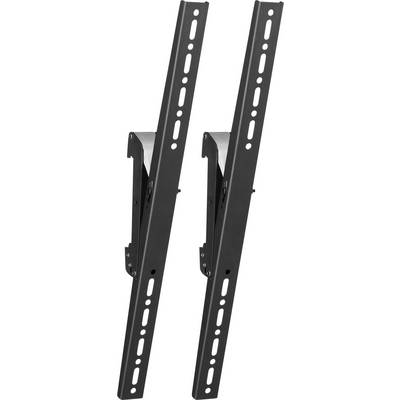

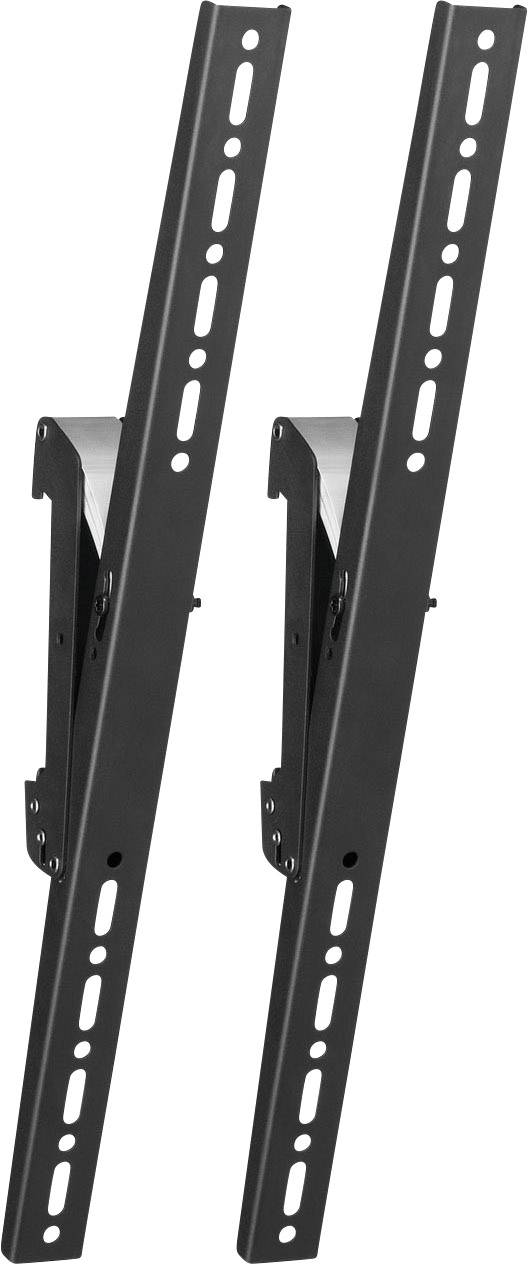

Two black, vertical metal brackets with holes, likely for wall mounting or as part of a mounting system.

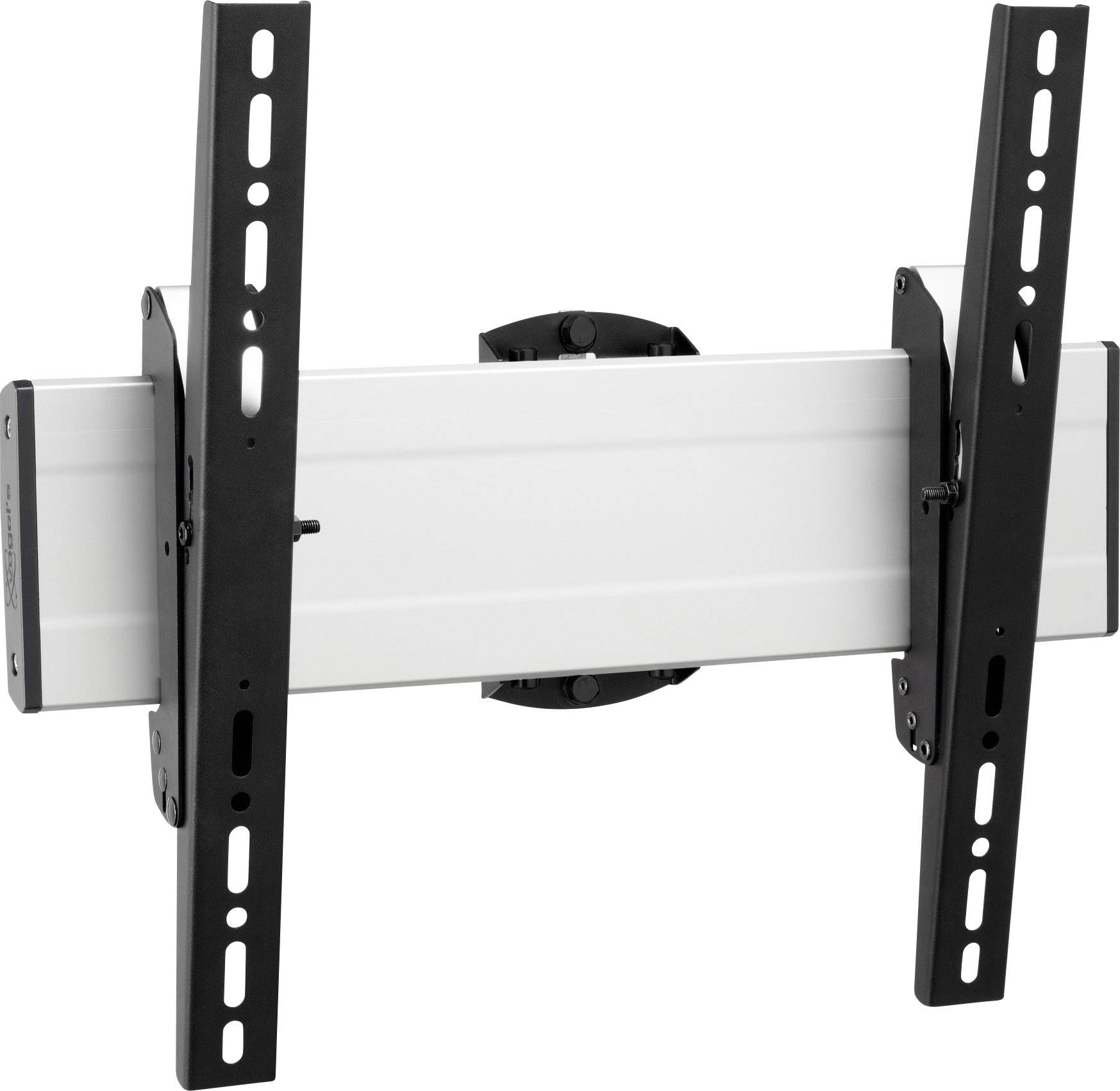

A height-adjustable TV wall mount in black metal for flat screens. It allows tilting and rotation for optimal viewing.

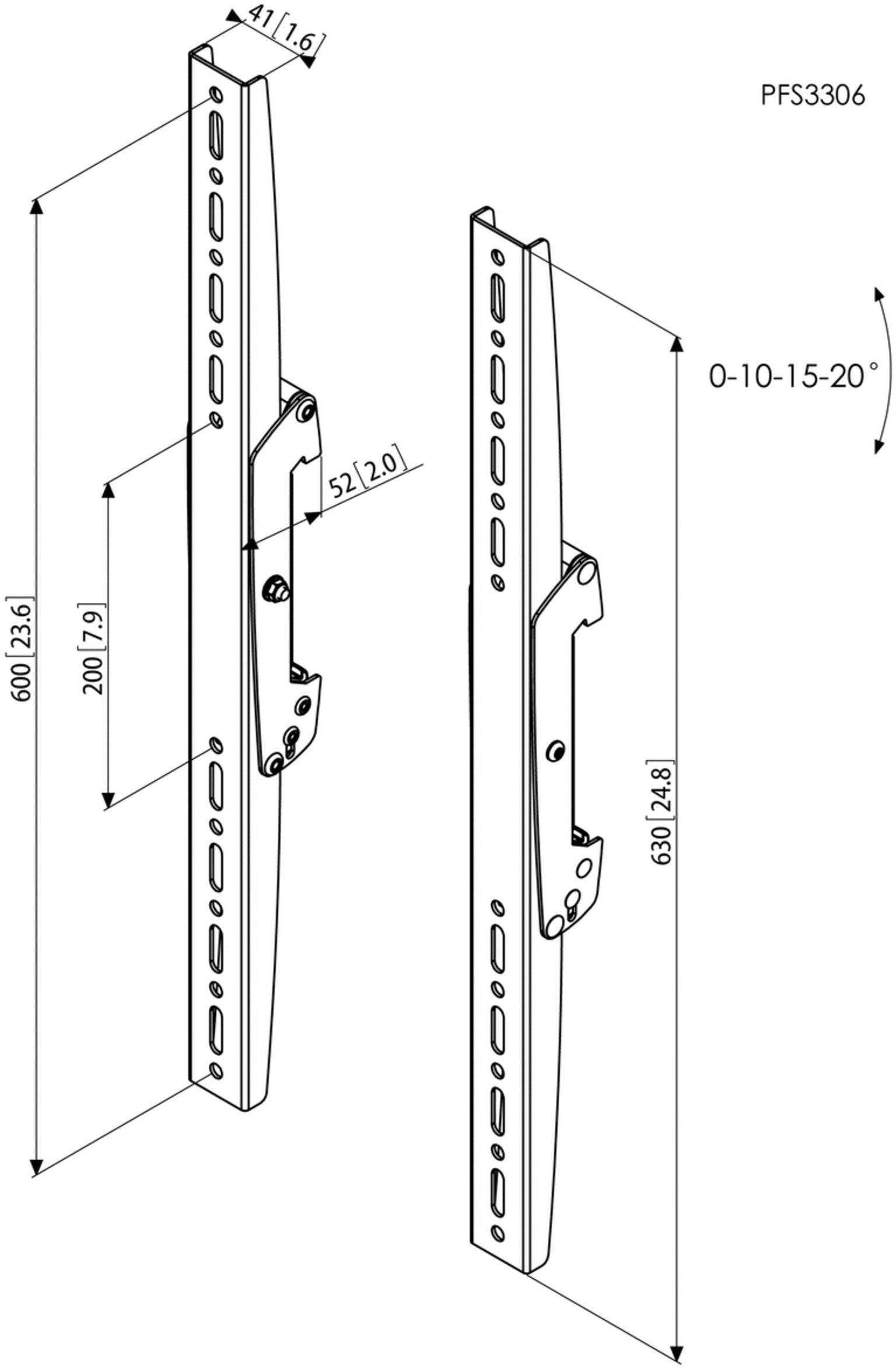

Technical drawing of two metal profiles with dimensions in millimetres: lengths 600, 620; width 41; angle of inclination 0-10-15-20 degrees.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

Vesa standard: 200 x 600 mm
Tilt function: +20/+15/+10/0

Technical specifications

Product type: Display adapter

Compatible with (series): Vogels wall mount system (modular)

Factory colour: Black

Max. load capacity: 80 kg

Material (details): Metal

Weight: 3000 g

Width: 41 mm

Height: 630 mm

Depth: 67 mm

Dim: (W x H x D) 41 x 630 x 67 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1493858 Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

User & Safety Instructions

User & Safety Instructions 1493858 Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

Description

PFS 3306 is for medium-sized to large displays up to 80 kg weight and a maximum vertical pass area of 600 mm. Combine this display adapter with a connect-it overhead console (PUC 1060 / 1070 / 1080 / 1090), a connect-it pipe (PUC 2508 / 2515 / 2530) and a connect-it adapter strip (PFB3405/3407/3409/3411) a complete solution for the ceiling mounting.
