Buy Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

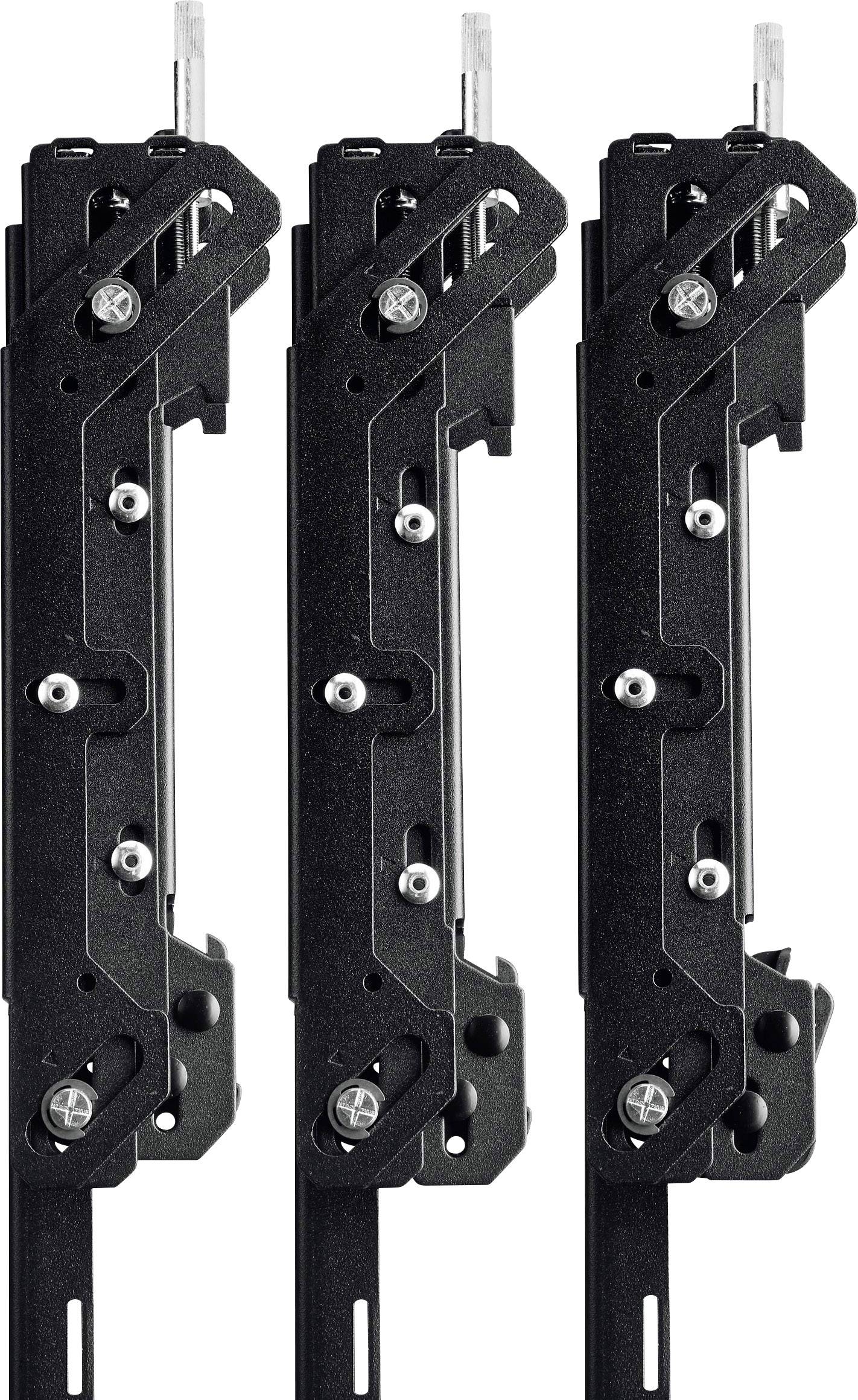

Three black, vertical mechanical devices with visible screws and joints, arranged side by side.

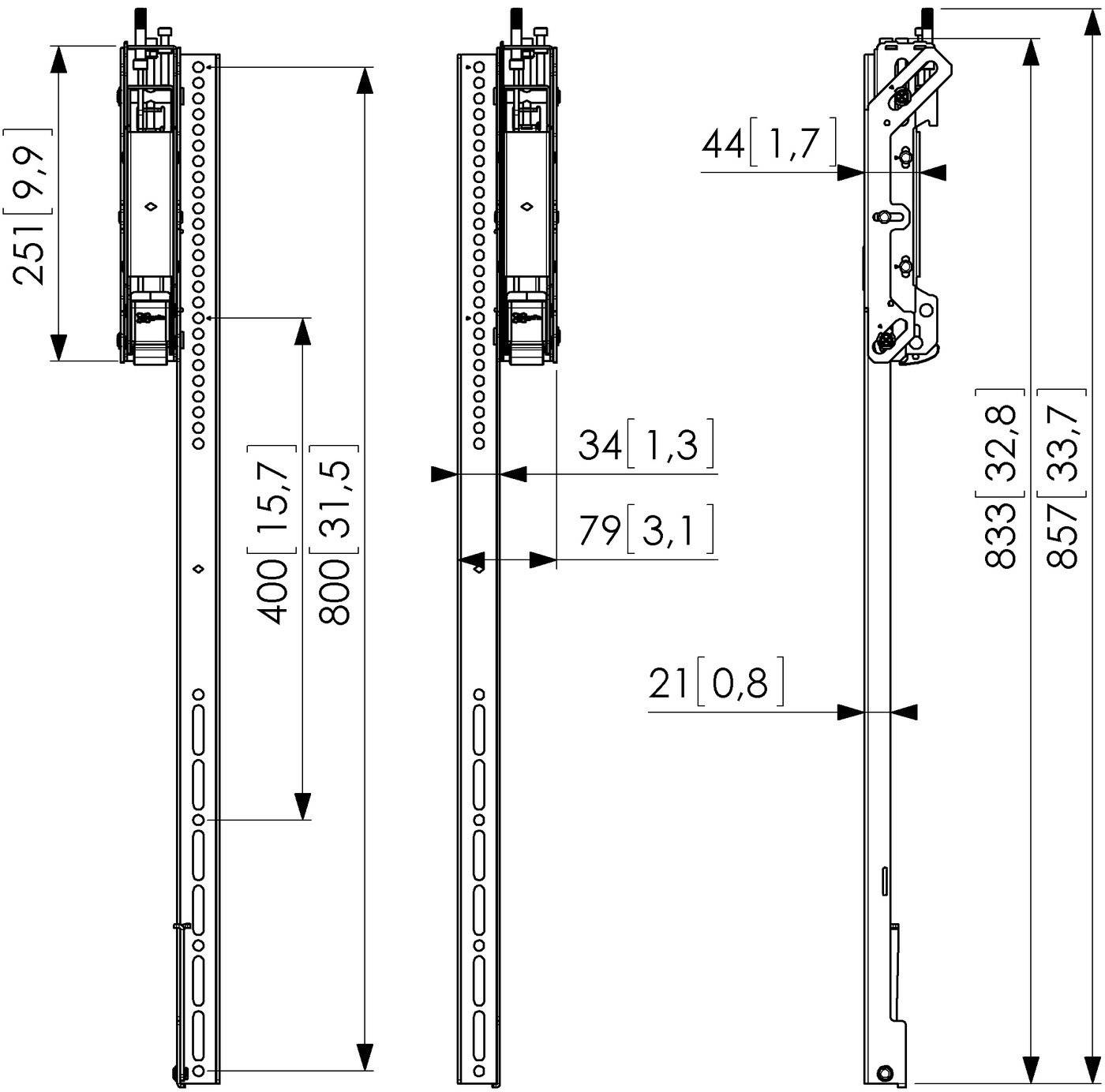

Technical drawing of a door fitting with dimensions in millimetres. Representation of vertical and horizontal views.

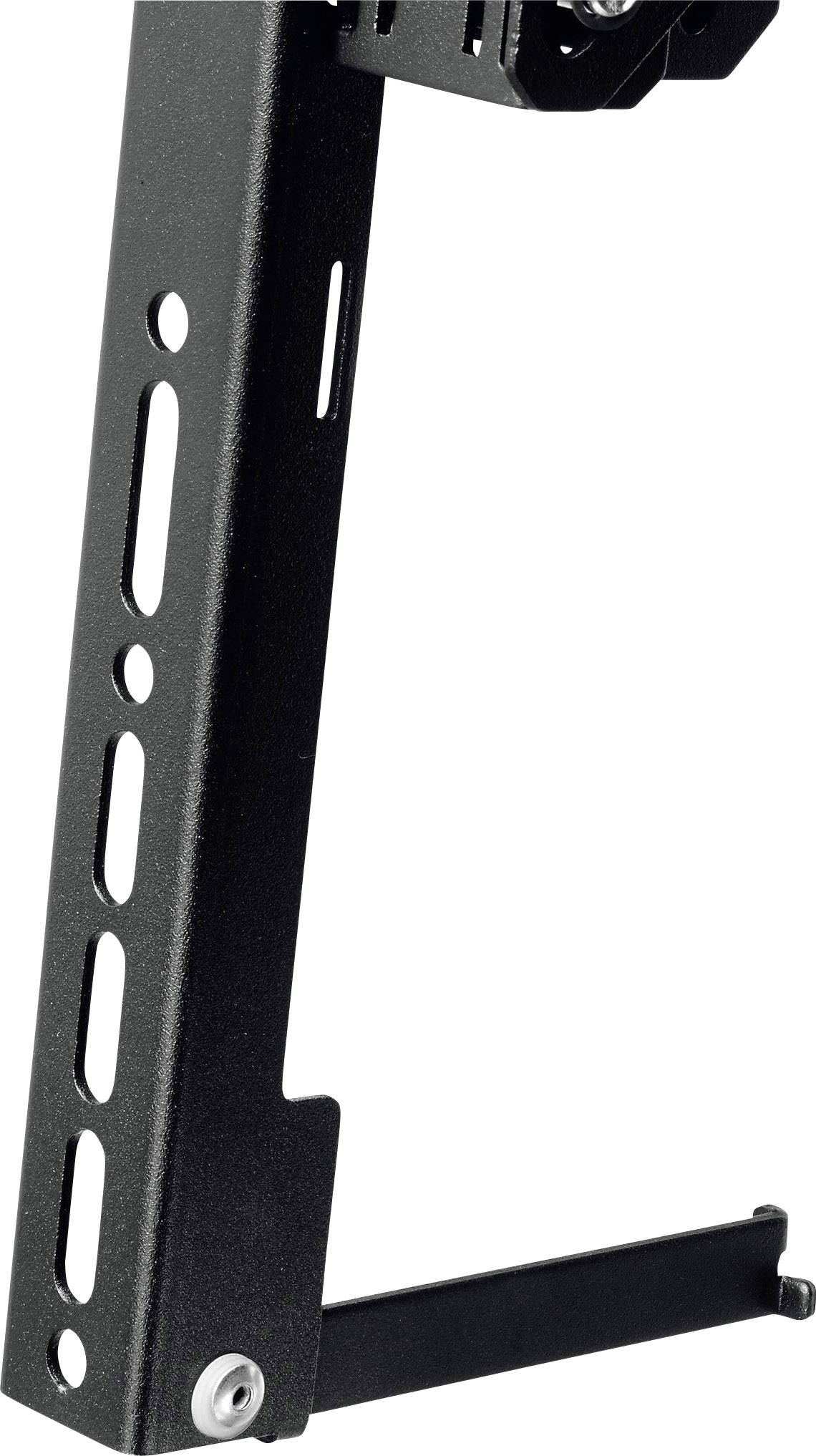

Metal carriers with screw holes, vertically aligned.

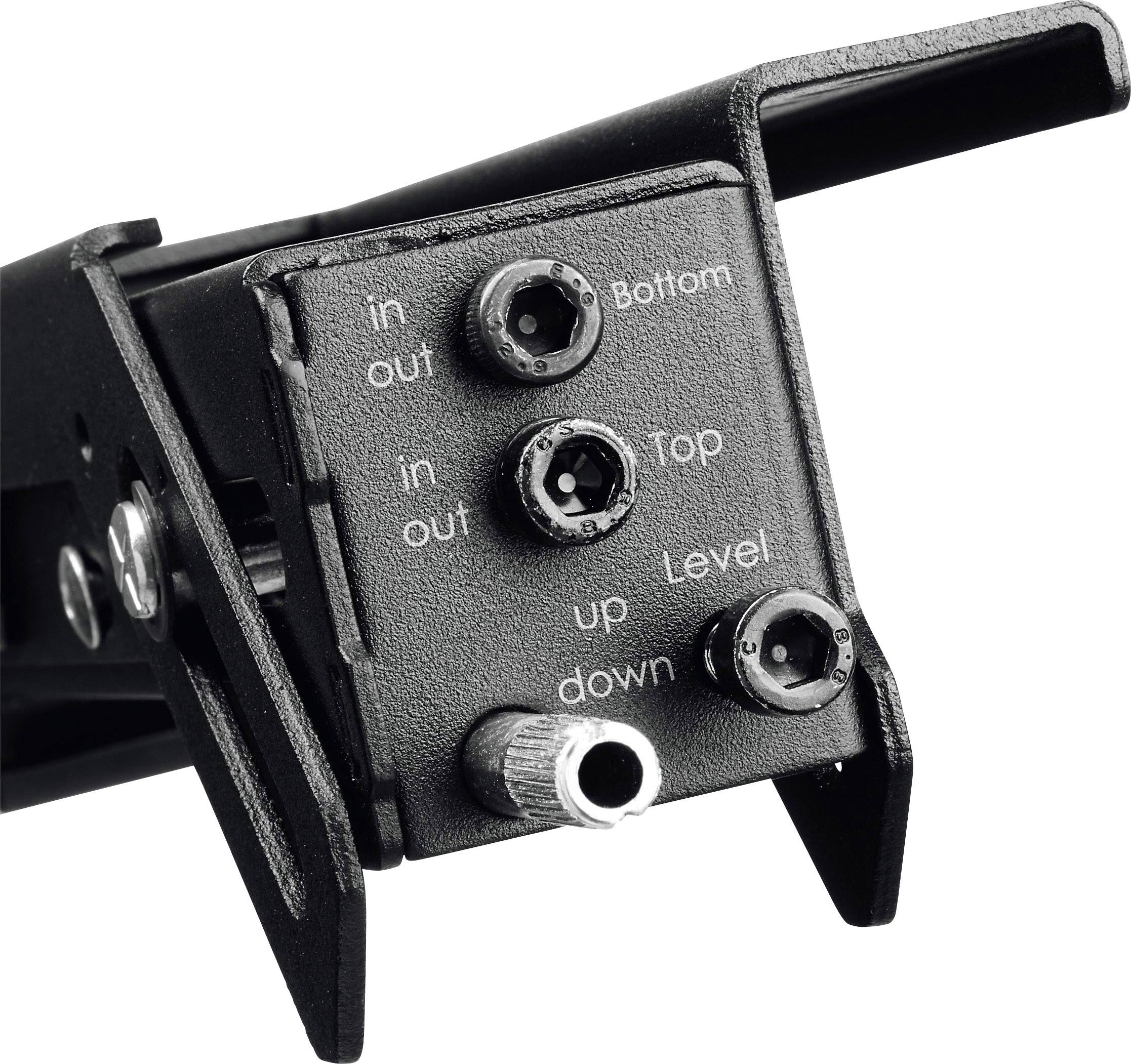

Black metal bracket with labels: 'Bottom', 'Top', 'Level'. Three black buttons and a silver lever.

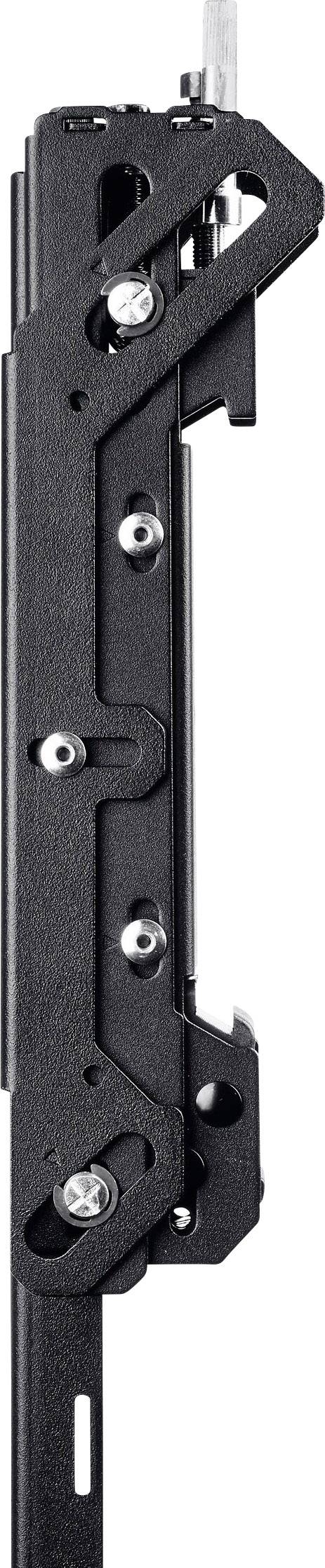

Close-up of a black mechanical hinge with multiple screws and joints.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Vogel's PFS3508 Adapter strips, tiltable, max. 80 kg, Vesa max. 800, black

Simple setting on the top of the strip.
Micro-adjustment for a seamless next to each other several displays
Lock against lateral movement
Service Line
Lock (PFA 9109) to prevent removal by unauthorized persons (optional)

Technical specifications

Product type: Display adapter

Compatible with (series): Vogels wall mount system (modular)

Factory colour: Black

Max. load capacity: 80 kg

Material (details): Metal

Weight: 4400 g

Width: 79 mm

Height: 857 mm

Depth: 800 mm

Dim: (W x H x D) 79 x 857 x 800 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1493860 Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

User & Safety Instructions

User & Safety Instructions 1493860 Vogel's Display adapter Compatible with (series): Vogels wall mount system (modular) Black

Description

PFS3508 in three directions adjustable Display Adapter strips. The adjustable in three directions Display Adapter strips are specially designed for the creation of video walls with the help of connect-it. As soon as the screens on the spot, enables the integrated service position the problem-free connection of the cable to the screens. The service line also enables the removal of individual screens for maintenance or replacement. Even if this is the screen in the middle of the video wall.

This text is machine translated.
