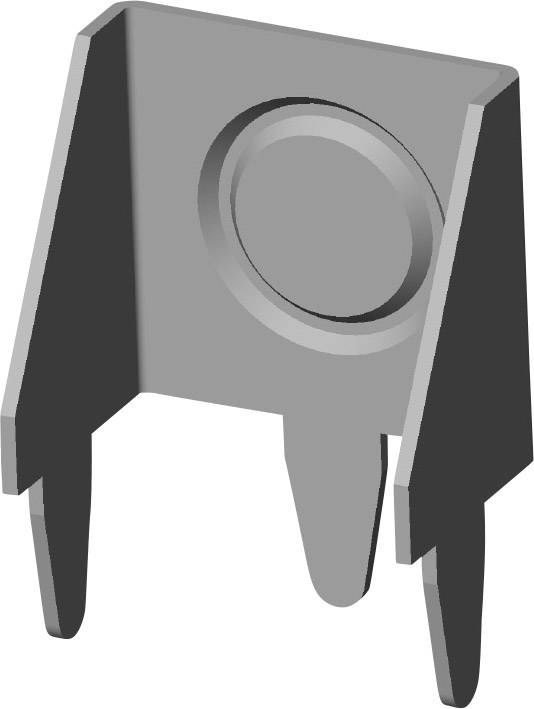

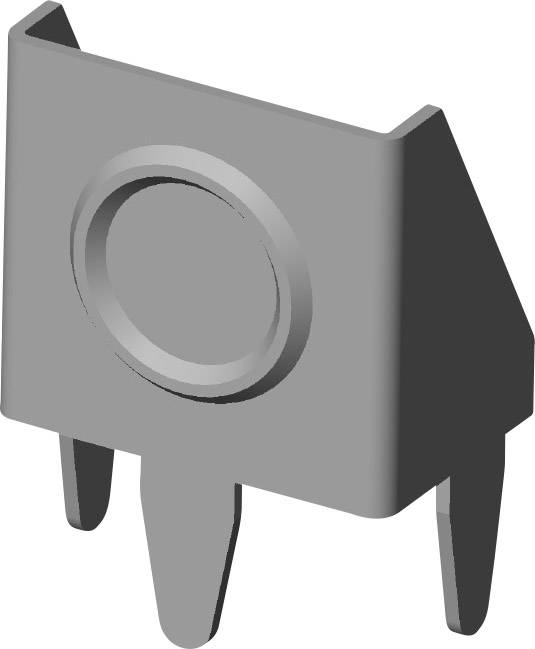

Vogt Verbindungstechnik 1456a.98 Single contact 1x AAA Solder lug (L x W x H) 7.1 x 10.4 x 14.3 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.64
9
8% = € 0.05
€ 0.59
15
11% = € 0.07
€ 0.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.64 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Battery contact positive Micro
- spring steel
- 3 pins
Technical specifications
- Product type
Single contact
- Connector
Solder lug
- Dim
(L x W x H) 7.1 x 10.4 x 14.3 mm
- Suitable for battery size
AAA
- Pin spacing
10 mm
- No. of cells
1
- Length
7.1 mm
- Width
10.4 mm
- Height
14.3 mm
- Material (details)
Spring steel
- Factory colour
Silver
- Type
Single contact for pcb
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1434343 Vogt Verbindungstechnik 1456a.98 Single contact 1x AAA Solder lug (L x W x H) 7.1 x 10.4 x 14.3 mm
Description
High-quality battery contact with solder.
Hints
This text is machine translated.
