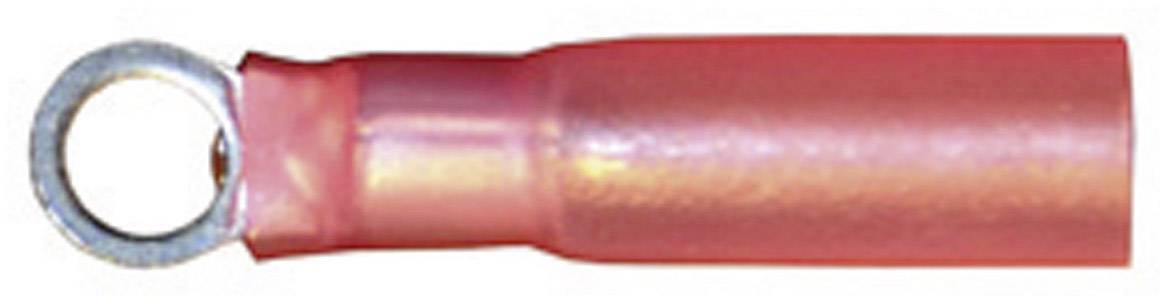

Buy Vogt Verbindungstechnik 3616ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=5.3 mm Partially insulated R

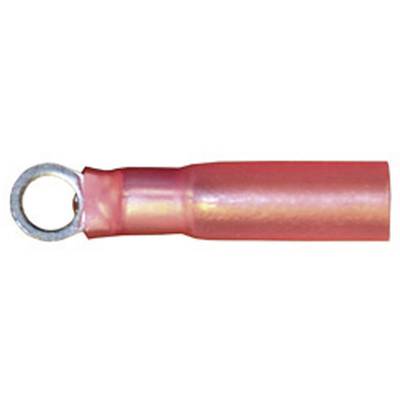

A pink, cylindrical object with a ring at one end, presumably a tool or accessory.

Product type

Ring terminal

Thread size

Hole Ø

5.3 mm

Insulation type

Partially insulated

Content

1 pc(s)

Fast track dispatch on Wed, 7 Oct

353 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.38 / piece)

€ 0.45

-16 %

€ 2.66

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

With heat shrink tubing ring connector

100% watertight

Our service for you

Technical specifications

Product type: Ring terminal

Thread size: M5

Hole Ø: 5.3 mm

Insulation type: Partially insulated

Factory colour: Red

Content: 1 pc(s)

Contact material: Cathode copper, tin plated

Manufacturer part #: 3616ah

Type: 3616ah

AWG max.: 18

AWG (min.): 22

max. cross section: 1 mm²

Min. cross section: 0.50 mm²

Insulation material: HDPE

Cross-section range: 0.50 - 1 mm²

RoHS-compliant: Yes

Features: + heatshrink

Support sleeve: No

Temperature range: -10 - +105 °C

Insulation: HDPE

Material (details): Tin-plated electrolytic copper

Shrink temperature: +150 °C

Cross section: 0.5 - 1 mm²

Voltage: 600 V

Size: M5

Variants(All information is without VAT, plus shipping costs)

Factory colour

Thread size

max. cross section

Hole Ø

Min. cross section

Vogt Verbindungstechnik 3616ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)

Item no:735375

This article

Red

1 mm²

5.3 mm

0.50 mm²

Vogt Verbindungstechnik 3608ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=3.7 mm Partially insulated Red 1 pc(s)

Item no:735327

Red

M3.5

1 mm²

3.7 mm

0.50 mm²

Vogt Verbindungstechnik 3614ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=4.3 mm Partially insulated Red 1 pc(s)

Item no:735351

Red

1 mm²

4.3 mm

0.50 mm²

Vogt Verbindungstechnik 3619ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=6.5 mm Partially insulated Red 1 pc(s)

Item no:735393

Red

1 mm²

6.5 mm

0.50 mm²

Vogt Verbindungstechnik 3635ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=4.3 mm Partially insulated Blue 1 pc(s)

Item no:735459

Blue

2.50 mm²

4.3 mm

1.50 mm²

Vogt Verbindungstechnik 3637ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=5.3 mm Partially insulated Blue 1 pc(s)

Item no:735480

Blue

2.50 mm²

5.3 mm

1.50 mm²

Vogt Verbindungstechnik 3639ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=6.5 mm Partially insulated Blue 1 pc(s)

Item no:735499

Blue

2.50 mm²

6.5 mm

1.50 mm²

Vogt Verbindungstechnik 3645ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=8.4 mm Partially insulated Blue 1 pc(s)

Item no:735524

Blue

2.50 mm²

8.4 mm

1.50 mm²

Vogt Verbindungstechnik 3647ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=10.5 mm Partially insulated Blue 1 pc(s)

Item no:735550

Blue

M10

2.50 mm²

10.5 mm

1.50 mm²

Vogt Verbindungstechnik 3652ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)

Item no:735573

Yellow

6 mm²

4.3 mm

4 mm²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 735375 Vogt Verbindungstechnik 3616ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=5.3 mm Partially insulated R

Description

Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
