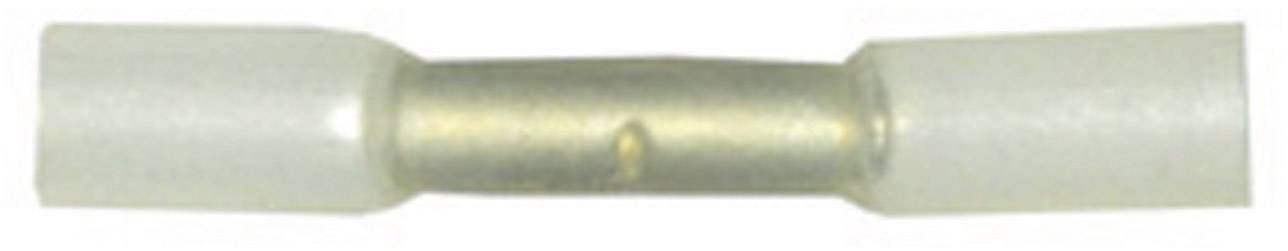

Vogt Verbindungstechnik 3734h Butt joint + heatshrink 0.305 mm² 0.50 mm² Insulated Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Butt joint
Insulation type
Insulated
Contact material
Cathode copper, tin plated
Length
28.5 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.49
21
8% = € 0.04
€ 0.45
35
12% = € 0.06
€ 0.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.49 / piece)
€ 0.59
-17 %
€ 3.43
plus VAT.
14-day return policy included
Highlights & Details
Vogt Verbindungstechnik 3734h Butt joint + heatshrink 0.305 mm² 0.50 mm² Insulated Yellow 1 pc(s)
- 100% watertight
Our service for you
Technical specifications
- Product type
Butt joint
- Factory colour
Yellow
- Insulation type
Insulated
- Contact material
Cathode copper, tin plated
- Length
28.5 mm
- Content
1 pc(s)
- Manufacturer part #
3734h
- Type
3734h
- AWG max.
22
- AWG (min.)
24
- max. cross section
0.50 mm²
- Min. cross section
0.305 mm²
- Outside Ø
3.8 mm
- Inside diameter
1.3 mm
- Insulation material
HDPE
- Cross-section range
0.305 - 0.50 mm²
- RoHS-compliant
Yes
- Shrink temperature
+150 °C
- Features
+ heatshrink
- Temperature range
-10 - +105 °C
- Wall thickness (details)
0.4 mm
- Insulation
HDPE
- Material (details)
Tinplated electrolytic copper
- Cross section
0.35 - 0.5 mm²
Documents & Downloads
Datasheet
Datasheet 735774 Vogt Verbindungstechnik 3734h Butt joint + heatshrink 0.305 mm² 0.50 mm² Insulated Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735774 Vogt Verbindungstechnik 3734h Butt joint + heatshrink 0.305 mm² 0.50 mm² Insulated Yellow 1 pc(s)
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
