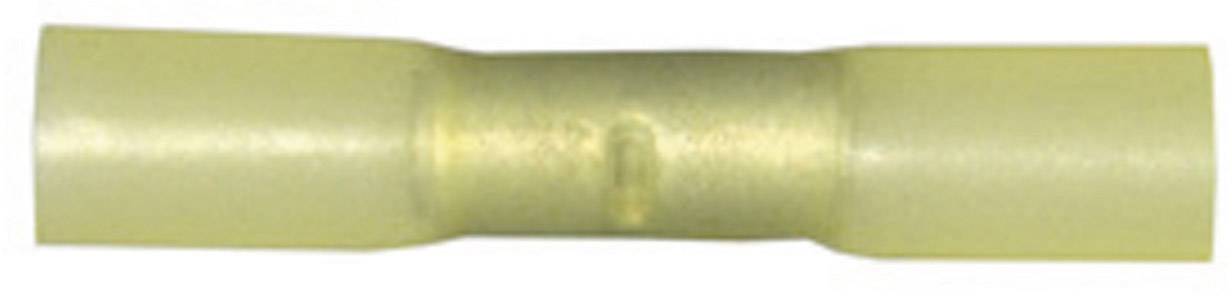

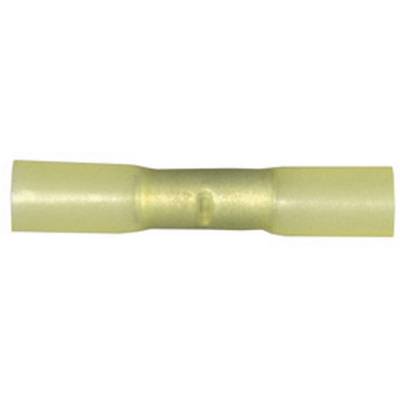

Vogt Verbindungstechnik 3737h Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Butt joint
Insulation type
Insulated
Contact material
Cathode copper, tin plated
Length
41 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.25
9
8% = € 0.10
€ 1.15
15
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.25 / piece)
€ 3.75
plus VAT.
14-day return policy included
Highlights & Details
Vogt Verbindungstechnik 3737h Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
- 100% watertight
Our service for you
Technical specifications
- Product type
Butt joint
- Factory colour
Yellow
- Insulation type
Insulated
- Contact material
Cathode copper, tin plated
- Length
41 mm
- Content
1 pc(s)
- Manufacturer part #
3737h
- Type
3737h
- AWG max.
10
- AWG (min.)
12
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Outside Ø
6.5 mm
- Inside diameter
3.4 mm
- Insulation material
HDPE
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Shrink temperature
+150 °C
- Features
+ heatshrink
- Temperature range
-10 - +105 °C
- Wall thickness (details)
1 mm
- Insulation
HDPE
- Material (details)
Tinplated electrolytic copper
- Cross section
4 - 6 mm²
Documents & Downloads
Datasheet
Datasheet 735814 Vogt Verbindungstechnik 3737h Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735814 Vogt Verbindungstechnik 3737h Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
