Buy Vogt Verbindungstechnik 380205.60 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulate

Metal clip in grey, suitable for cable fastening on walls or other surfaces. It has two round slots and a mounting tab.

A gold-coloured electrical connector with two sockets, most likely for cable connections in electronic devices.

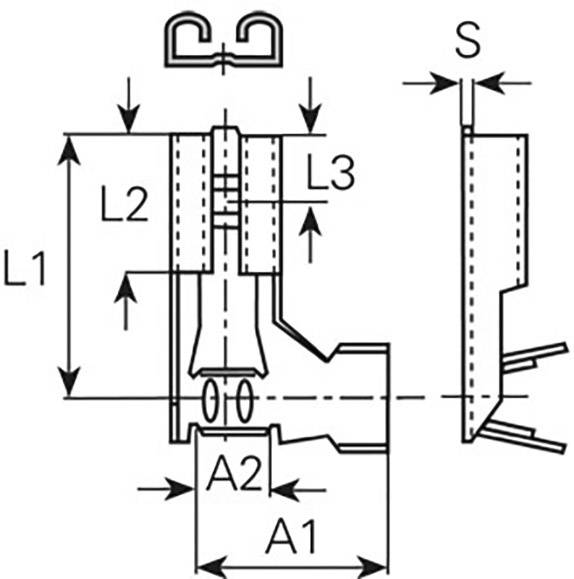

Technical drawing of a plug with dimension labels: L1, L2, L3, A1, A2, and S. Shows side and front views.

1/3

Product type

Blade receptacle

Connector width

4.8 mm

Insulation type

Not insulated

Content

1 pc(s)

max. cross section

1 mm²

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

510 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.22 / piece)

€ 0.28

-21 %

€ 3.30

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Vogt Verbindungstechnik 380205.60 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulated Metal 1 pc(s)

DIN 46346 form A for 6.3 mm

Our service for you

Technical specifications

Product type: Blade receptacle

Connector width: 4.8 mm

Factory colour: Metal

Connector thickness: 0.5 mm

Insulation type: Not insulated

Connection angle: 90°

Contact material: Brass

Content: 1 pc(s)

max. cross section: 1 mm²

Min. cross section: 0.50 mm²

AWG max.: 18

AWG (min.): 20

Manufacturer part #: 380205.60

Cross-section range: 0.50 - 1 mm²

Size: 4.8 x 0.5 mm

Type: 380205.60

Type: Angled

Documents & Downloads

Datasheet

Datasheet 1516247 Vogt Verbindungstechnik 380205.60 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulate
