Vogt Verbindungstechnik 380205.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulate
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.24
45
8% = € 0.02
€ 0.22
75
13% = € 0.03
€ 0.21
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.24 / piece)
€
Highlights & Details
Vogt Verbindungstechnik 380205.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulated Metal 1 pc(s)
- DIN 46346 form A for 6.3 mm
Technical specifications
- Factory colour
Metal
- Contact material
Tin plated (phosphor bronze)
- Content
1 pc(s)
- Cross-section range
0.50 - 1 mm²
- Size
4.8 x 0.5 mm
- Insulation type
Not insulated
- Manufacturer part #
380205.67
- Type
380205.67
- Type
Angled
- AWG max.
18
- AWG (min.)
20
- max. cross section
1 mm²
- Connector thickness
0.5 mm
- Connector width
4.8 mm
- Connection angle
90°
- Min. cross section
0.50 mm²
- Product type
Blade receptacle
Variants(All information is without VAT, plus shipping costs)
Vogt Verbindungstechnik 380205.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulated Metal 1 pc(s)
This article
Minimum order quantity: 15
Multiple: 1
€ 0.24*
Vogt Verbindungstechnik 380205.60 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 15
Multiple: 1
€ 0.21*
Vogt Verbindungstechnik 38373C.60 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 20
Multiple: 1
€ 0.15*
Vogt Verbindungstechnik 380208.60 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 15
Multiple: 1
€ 0.19*

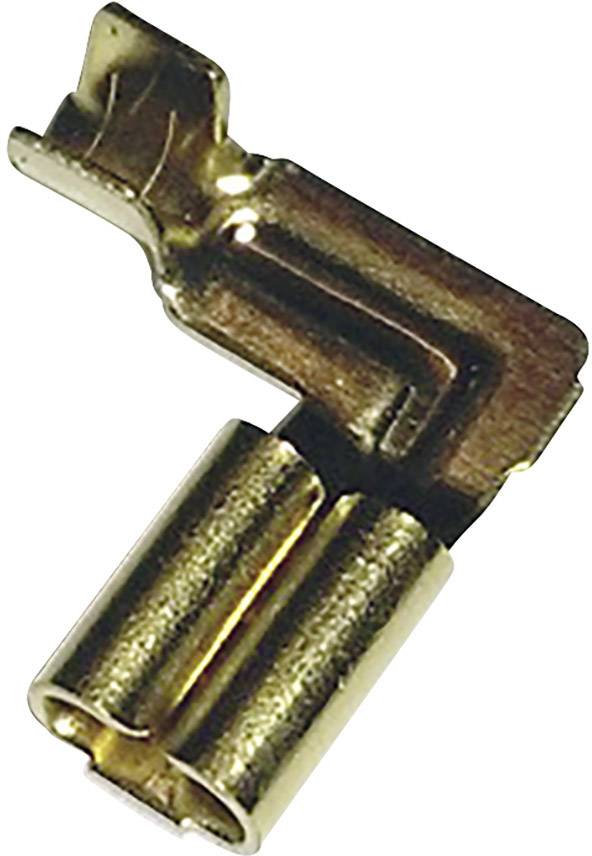

Vogt Verbindungstechnik 3765W.60 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 20
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 3764W.60 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 20
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 38372C.67 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 90 ° Not insulated Metal 1 pc(s)
Minimum order quantity: 15
Multiple: 1
€ 0.19*
