Buy Vogt Verbindungstechnik 3835.67 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated

A brass plug in close-up, with two parallel cavities and a curved shape for electrical connections.

Image similar

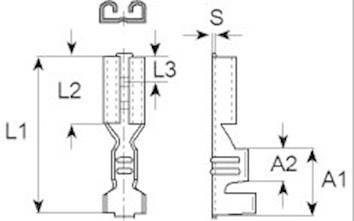

Technical drawing of a connector with dimensions L1, L2, L3, S, A1, A2. Side view and front view depicted.

1/2

Image similar

Product type

Blade receptacle

Connector width

6.3 mm

Insulation type

Not insulated

Content

1 pc(s)

max. cross section

6 mm²

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

4308 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.20 / piece)

€ 0.28

-29 %

€ 3.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Vogt Verbindungstechnik 3835.67 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

DIN 46247/1

Our service for you

Technical specifications

Product type: Blade receptacle

Connector width: 6.3 mm

Factory colour: Metal

Connector thickness: 0.8 mm

Support sleeve: No

Insulation type: Not insulated

Connection angle: 180°

Contact material: Brass tin plated

Content: 1 pc(s)

max. cross section: 6 mm²

Min. cross section: 4 mm²

AWG max.: 10

AWG (min.): 12

Manufacturer part #: 3835.67

Cross-section range: 4 - 6 mm²

Size: 6.3 x 0.8 mm

Type: 3835.67

Material (details): Brass, tin-plated

Type: 6.3 x 0.8 mm

Cross section: 4 - 6 mm²

Connection: -

Variants(All information is without VAT, plus shipping costs)

Connector width

max. cross section

Connection angle

Min. cross section

Connector thickness

Vogt Verbindungstechnik 3767.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226350

2.8 mm

1 mm²

180 °

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 3766.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226351

2.8 mm

1 mm²

180 °

0.50 mm²

0.5 mm

Vogt Verbindungstechnik 3760a.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226352

2.8 mm

0.30 mm²

180 °

0.104 mm²

0.5 mm

Vogt Verbindungstechnik 3765.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226353

2.8 mm

1 mm²

180 °

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 3762a.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226354

2.8 mm

0.30 mm²

180 °

0.104 mm²

0.8 mm

Vogt Verbindungstechnik 3760b.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226355

2.8 mm

0.50 mm²

180 °

0.30 mm²

0.5 mm

Vogt Verbindungstechnik 3762b.67 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226356

2.8 mm

0.50 mm²

180 °

0.30 mm²

0.8 mm

Vogt Verbindungstechnik 3801.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226357

4.8 mm

1 mm²

180 °

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 3800.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226358

4.8 mm

1 mm²

180 °

0.50 mm²

0.5 mm

Vogt Verbindungstechnik 3805.67 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Not insulated Metal 1 pc(s)

Item no:1226359

4.8 mm

2.50 mm²

180 °

1.50 mm²

0.8 mm

Documents & Downloads

Datasheet

Datasheet 737293 Vogt Verbindungstechnik 3835.67 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insulated
