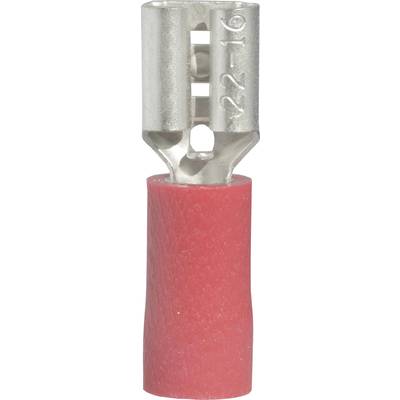

Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insul
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
4.8 mm
Insulation type
Partially insulated
Content
1 pc(s)
max. cross section
1 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.11
90
9% = € 0.01
€ 0.10
150
18% = € 0.02
€ 0.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.11 / piece)
€ 0.17
-35 %
€ 3.30
plus VAT.
14-day return policy included
Highlights & Details
Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)
- Red
- 4.8 mm x 0.8 mm
- 0.50 mm² - 1 mm²
Our service for you
Technical specifications
- Product type
Blade receptacle
- Connector width
4.8 mm
- Factory colour
Red
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
1 pc(s)
- max. cross section
1 mm²
- Type
sleeve
- Min. cross section
0.50 mm²
- Manufacturer part #
3902S
- Insulation material
PVC
- Cross-section range
0.50 - 1 mm²
- Size
4.8 x 0.8 mm
- Type
3902S
- Insulation
Partially insulated
- Material (details)
Brass, tin-plated
- Type
4.8 x 0.8 mm
- Cross section
0.5 - 1.0 mm²
- Connection
-
Documents & Downloads
Datasheet
Datasheet 732788 Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insul
User & Safety Instructions
User & Safety Instructions 732788 Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insul
