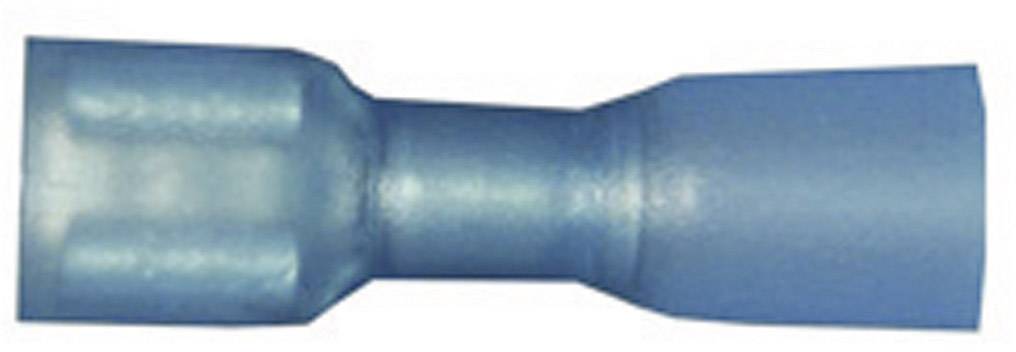

Vogt Verbindungstechnik 3966h Blade receptacle + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° In
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Insulated
Content
1 pc(s)
max. cross section
2.50 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.69
15
9% = € 0.06
€ 0.63
25
12% = € 0.08
€ 0.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.69 / piece)
€ 0.79
-13 %
€ 3.45
plus VAT.
14-day return policy included
Highlights & Details
Female spade connector with fully insulated heat-shrink sleeve
- 100% watertight
Our service for you
Technical specifications
- Product type
Blade receptacle
- Connector width
6.3 mm
- Factory colour
Blue
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
1 pc(s)
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- AWG max.
16
- AWG (min.)
14
- Manufacturer part #
3966h
- Insulation material
PE
- Cross-section range
1.50 - 2.50 mm²
- Size
6.3 x 0.8 mm
- Features
+ heatshrink
- Temperature range
-10 - +105 °C
- Type
3966h
- Length
28 mm
- Insulation
HDPE
- Material (details)
Tin-plated brass
- Type
6.3 x 0.8 mm
- Shrink temperature
+150 °C
- Cross section
1.5 - 2.5 mm²
Documents & Downloads
Datasheet
Datasheet 735956 Vogt Verbindungstechnik 3966h Blade receptacle + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° In
User & Safety Instructions
User & Safety Instructions 735956 Vogt Verbindungstechnik 3966h Blade receptacle + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° In
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
