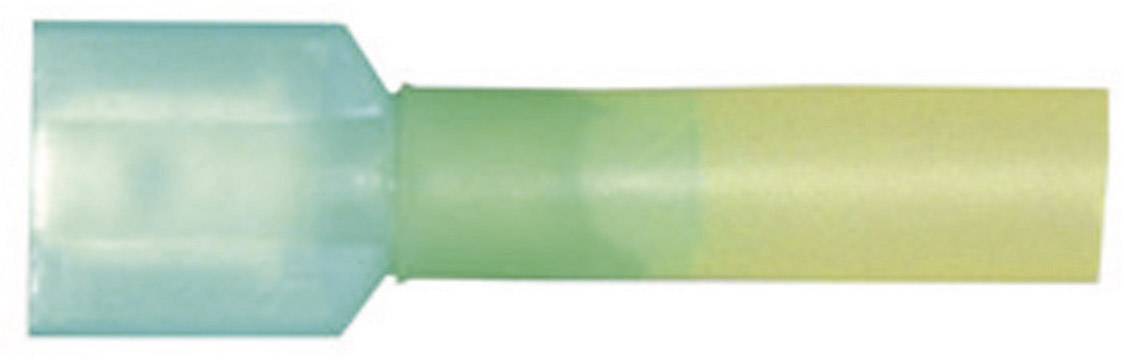

Vogt Verbindungstechnik 3970sh Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Ins
EAN:
Part number:
Item no:
Product type
Blade terminal
Connector width
6.3 mm
Connector thickness
0.8 mm
Insulation type
Insulated
Connection angle
180 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.65
15
8% = € 0.05
€ 0.60
25
12% = € 0.08
€ 0.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.65 / piece)
€ 3.25
plus VAT.
14-day return policy included
Highlights & Details
Flat plug with fully insulated heat-shrink sleeve
- 100% watertight
Our service for you
Technical specifications
- Shrink temperature: +150 °C
- Product type
Blade terminal
- Factory colour
Blue
- Connector width
6.3 mm
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Insulated
- Connection angle
180°
- Contact material
Brass tin plated
- Content
1 pc(s)
- Manufacturer part #
3970sh
- Type
3970sh
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- Insulation material
PE
- Cross-section range
1.50 - 2.50 mm²
- RoHS-compliant
Yes
- Size
6.3 x 0.8 mm
- Features
+ heatshrink
- Temperature range
-10 - +105 °C
- Insulation
Plug-side HDPE for shrinking · (Cable side) rigid PA
- Material (details)
Tin-plated brass
- Type
6.3 x 0.8 mm
- Shrink temperature
+150 °C
- Cross section
1.5 - 2.5 mm²
16 - 14
Documents & Downloads
Datasheet
Datasheet 735918 Vogt Verbindungstechnik 3970sh Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Ins
User & Safety Instructions
User & Safety Instructions 735918 Vogt Verbindungstechnik 3970sh Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Ins
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
