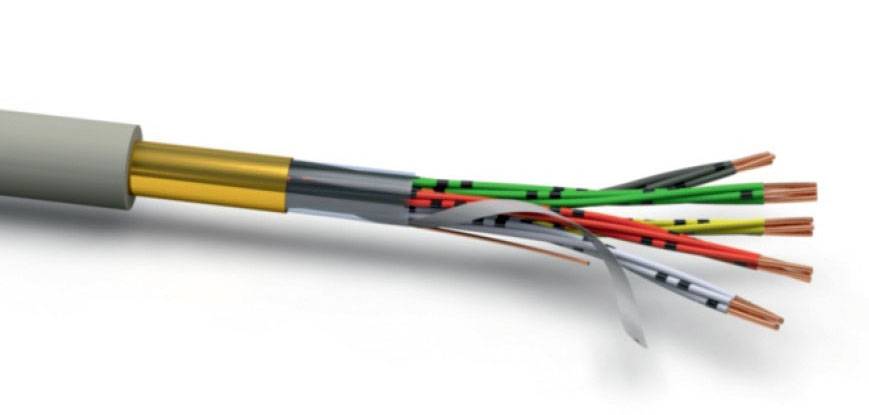

VOKA Kabelwerk 16408100 Telecom cable J-H(St)H 6 x 2 x 0.6 mm² Grey (RAL 7035) 500 m
EAN:
Part number:
Item no:
Product type
Telecom cable
Cable type
J-H(St)H
No. of leads
12 x
Cross section (each core)
0.6 mm²
Content
500 m
Datasheet (PDF)
Number
Total (1 m = € 1.49)
€ 747.06
plus VAT.
14-day return policy included
Technical specifications
- Product type
Telecom cable
- Cable type
J-H(St)H
- No. of leads
12 x
- Cross section (each core)
0.6 mm²
- Cross section
6 x 2 x 0.6 mm²
- Cable features
rigid core
Halogen-free
Metal foil shield
- Outside Ø
8.5 mm
- Factory colour
Grey (RAL 7035)
- Content
500 m
- Nominal voltage
300 V AC
- Test voltage
800 V AC
- Bend radius (no. of ODs for fixed installation)
8
- Bend radius (no. of ODs for flexible installation)
8
- Sold per metre
No
- Halogen-free
Yes
- Shielded
Yes
- Manufacturer part #
16408100
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Core layout
6 x 2 x 0.6 mm
- Certification marks
VDE 0815
- Type
16408100
- Max. length sold by the metre
500 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 2358981 VOKA Kabelwerk 16408100 Telecom cable J-H(St)H 6 x 2 x 0.6 mm² Grey (RAL 7035) 500 m
User & Safety Instructions
User & Safety Instructions 2358981 VOKA Kabelwerk 16408100 Telecom cable J-H(St)H 6 x 2 x 0.6 mm² Grey (RAL 7035) 500 m
Description
Application
For message and signal transmission.
Application:
In dry and damp operating locations, in and under plaster. Not suitable for high current installation purposes, external and ground laying.
