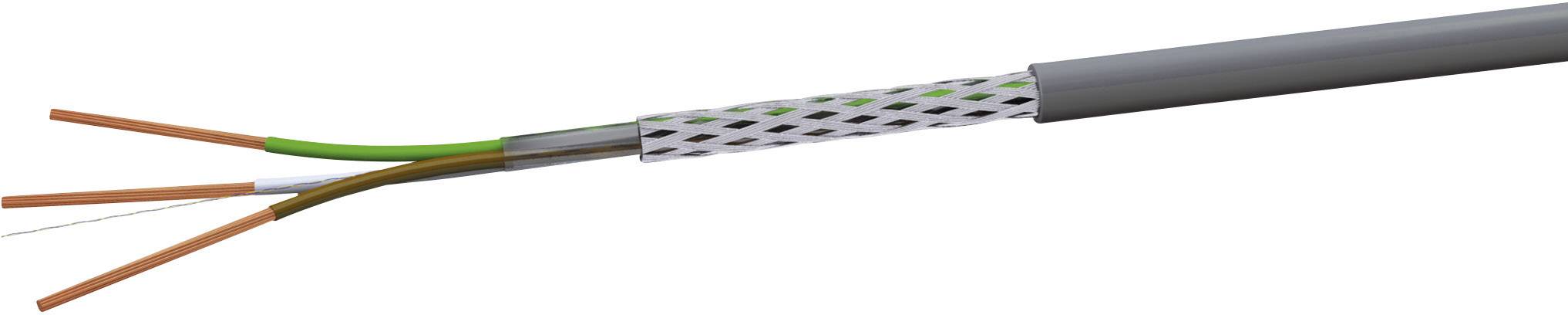

VOKA Kabelwerk LiYCY Control lead 2 x 0.14 mm² Grey (RAL 7001) LIYCY2X14 100 m
EAN:
Part number:
Item no:
Product type
Control lead
No. of leads
2 x
Cross section (each core)
0.14 mm²
Cable type
LiYCY
Outside Ø
3.70 mm
Datasheet (PDF)
Technical specifications
- Product type
Control lead
- No. of leads
2 x
- Content
100 m
- Cross section (each core)
0.14 mm²
- Cable features
Braided shield
- Cable type
LiYCY
- Outside Ø
3.70 mm
- Packaged
Yes
- Wire ID code
According to DIN 47100
- Halogen-free
No
- Manufacturer part #
LIYCY2X14
- Factory colour
Grey (RAL 7001)
- Insulation material
PVC
- Core layout
18 x 0.10 mm
- Material (details)
Copper wire, blank
- Sold per metre
No
- Nominal voltage
350 V
- Test voltage
800 V
- Cross section
2 x 0.14 mm²
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
80 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYCY 2x0,14qmm PVC
- Standards
In accordance with DIN VDE 0812
Documents & Downloads
Datasheet
Datasheet 1343494 VOKA Kabelwerk LiYCY Control lead 2 x 0.14 mm² Grey (RAL 7001) LIYCY2X14 100 m
