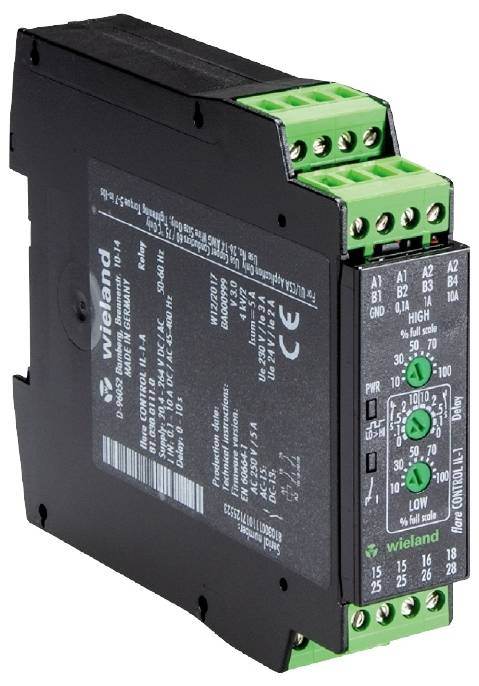

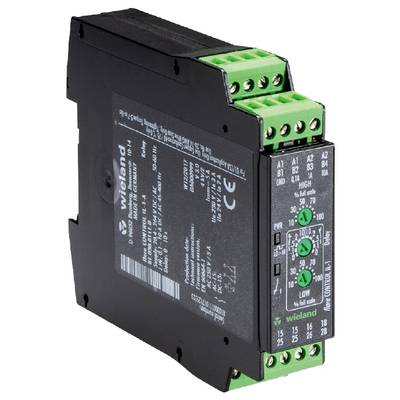

Voltage monitor Wieland Electric FLARE CONTROL UL-1-A Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Voltage monitor
Functions
Undervoltage and overvoltage
Type
FLARE CONTROL UL-1-A
Connection
Clamp
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Voltage monitor
- Type
FLARE CONTROL UL-1-A
- Functions
Undervoltage and overvoltage
- Connection
Clamp
- Width
22.5 mm
- Height
96.5 mm
- Dim
(W x H) 22.5 mm x 96.5 mm
- Content
1 pc(s)
22.5
96.5 mm
114 mm
AC/DC
TRUE
Screw connection
AC/DC
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3275010 Voltage monitor Wieland Electric FLARE CONTROL UL-1-A Piece 1 pc(s)
Description
FLARE CONTROL UL-1A
Voltage measuring relay for single-phase measurement of under or over voltage in the frequency range of 45 to 400Hz
Measurable curve shape DC and Sine
MEASUREMENT RANGE AC/DC 0.5 - 300V
Nominal voltage AC/DC 24 -230V 50 - 60Hz
Operating or closed-circuit principle
Threshold value adjustable 10..100% of the measuring range
Delay at undershoot
This text is machine translated.
Voltage measuring relay for single-phase measurement of under or over voltage in the frequency range of 45 to 400Hz
Measurable curve shape DC and Sine
MEASUREMENT RANGE AC/DC 0.5 - 300V
Nominal voltage AC/DC 24 -230V 50 - 60Hz
Operating or closed-circuit principle
Threshold value adjustable 10..100% of the measuring range
Delay at undershoot
This text is machine translated.
