Highlights & Details

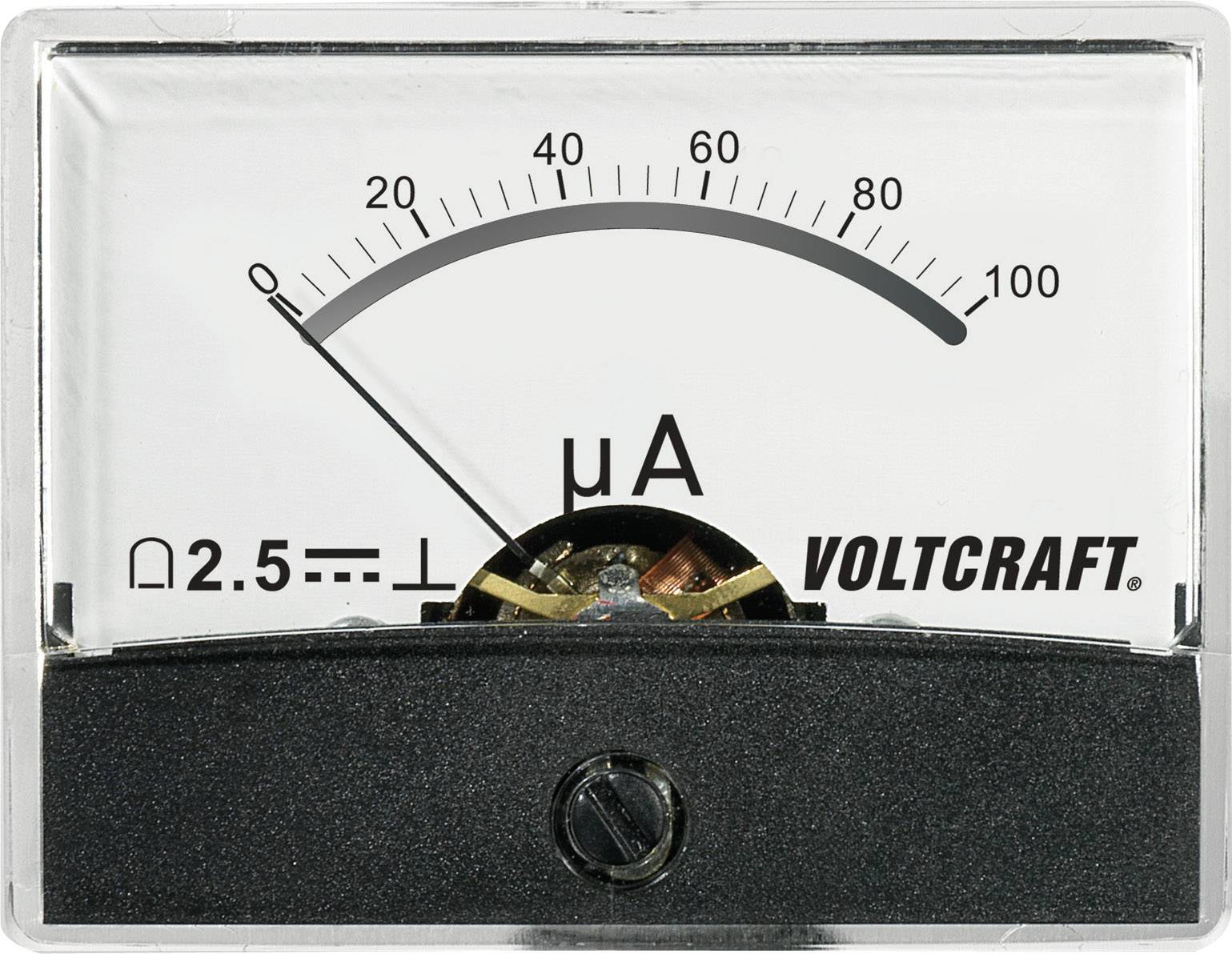

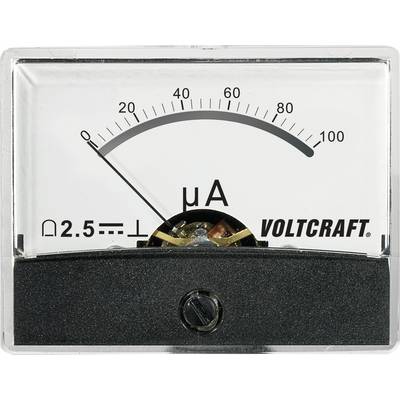

Panel-mounted measuring device AT THE-60 X 46/100 µA/DC

60 x 46 mm
0 - 100µA/DC

Technical specifications

Product type: Analogue rack-mount meter

Reading type: DC current

Reading range (min.): 0 A

Reading range (max.): 0.0001 A

Dim: (W x H) 60 mm x 46 mm

Instrument type: Moving coil

Temperature range: -25 - +55 °C

Type: AM-60X46/100µA/DC

Recess diameter: 38 mm

Recess depth: 22.3 mm

Electrical connection: Screw terminals

Weight: 44 g

Factory colour: White
Black

Content: 1 pc(s)

Width: 60 mm

Height: 46 mm

: Manufacturer's standards (no certificate)

Accuracy class: 2.5

Reading range: 100 µA

Documents & Downloads

Datasheet

Datasheet 103537 VOLTCRAFT AM-60X46/100µA/DC AM-60X46/100µA/DC Panel-mounted measuring device AT THE-60 X 46/100 µA/DC 100 µA Moving coil

User & Safety Instructions

User & Safety Instructions 103537 VOLTCRAFT AM-60X46/100µA/DC AM-60X46/100µA/DC Panel-mounted measuring device AT THE-60 X 46/100 µA/DC 100 µA Moving coil

Warranty Terms

Warranty Terms 103537 VOLTCRAFT AM-60X46/100µA/DC AM-60X46/100µA/DC Panel-mounted measuring device AT THE-60 X 46/100 µA/DC 100 µA Moving coil

Description

This text is machine translated.

Analogue panel-mounted moving coil meter for display of DC-currents. The pointer instrument enables the classic analogue display, the fluctuating values as linear pointer can be seen.
