VOLTCRAFT AN-50 DOK Anemometer 0.4 up to 30 m/s
EAN:
Part number:
Item no:
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
VOLTCRAFT AN-50 DOK Anemometer with reporting function
- Large LCD display
- Simultaneous display of wind speed and temperature
- Selectable units: m/s, ft/min, km/h, MPH, knots, °C, °F
- Bluetooth PDF data report
- Automatic backlight on/off function
Technical specifications
- Wind speed:
- m/s (Standard): 0.4 – 30 m/s | Resolution: 0.1 m/s | Accuracy: ±(5% of reading + 0.5 m/s)
- km/h (Reference): 1.4 – 108 km/h | Accuracy: ±(5% of reading + 15 digits)
- knots (Reference): 0.8 – 58 knots | Accuracy: ±(5% of reading + 10 digits)
- mph (Reference): 0.9 – 67 mph | Accuracy: ±(5% of reading + 10 digits)
- ft/min (Reference): 79 – 5905 ft/min | Accuracy: ±(5% of reading + 180 digits)
- Temperature: -10 to +50 °C | Resolution: 0.1 °C | Accuracy: ± 2.0 °C
- Beaufort wind scale: (Reference): 0 – 12 | Resolution: 1 | Accuracy: ± 1
- Wind chill notification: Display "WIND CHILL" for wind speeds ≥ 5 m/s and temperatures < 0 °C
- Sampling rate: 0.5 s

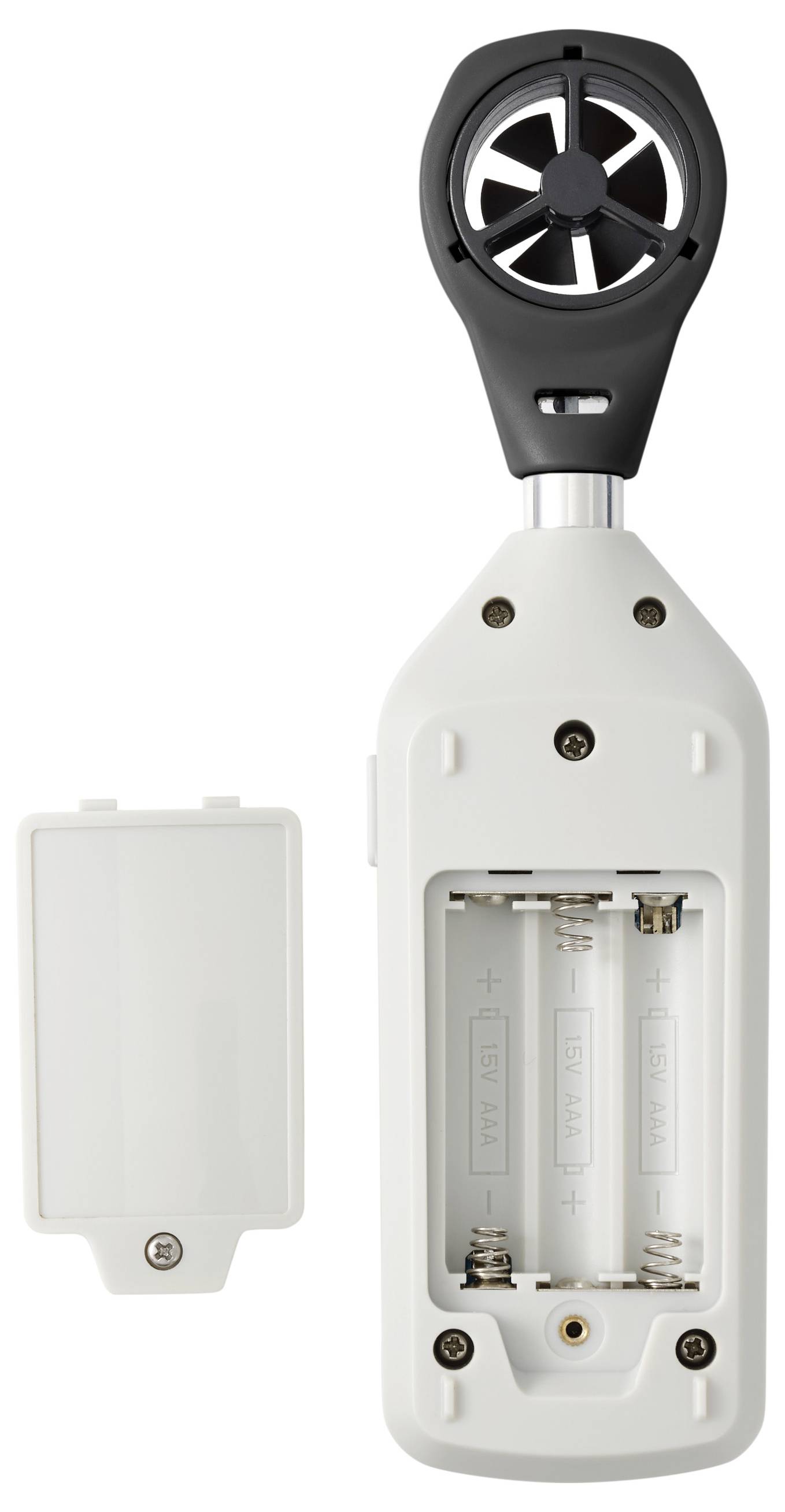

- Power: 3x 1.5 V AAA batteries
- LCD size: 32.4 x 29.4 mm
- Wind speed resolution
0.1 m/s
- Product type
Anemometer
- Temperature reading range
-10 up to 50 °C
- Wind speed
0.4 to 30.0 m/s
- Accuracy
5 %
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 183.8 x 30 x 50.9 mm
- Weight
104 g
- Temperature reading range (max.)
50 °C
- Temperature reading range (min.)
-10 °C
- Air speed reading range (max.)
30 m/s
- Air speed reading range (min.)
0.4 m/s
- Width
30 mm
- Height
50.9 mm
- Length
183.8 mm
- Power supply (details)
4.5 V DC
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639245 VOLTCRAFT AN-50 DOK Anemometer 0.4 up to 30 m/s
Warranty Terms
Warranty Terms 3639245 VOLTCRAFT AN-50 DOK Anemometer 0.4 up to 30 m/s
Description

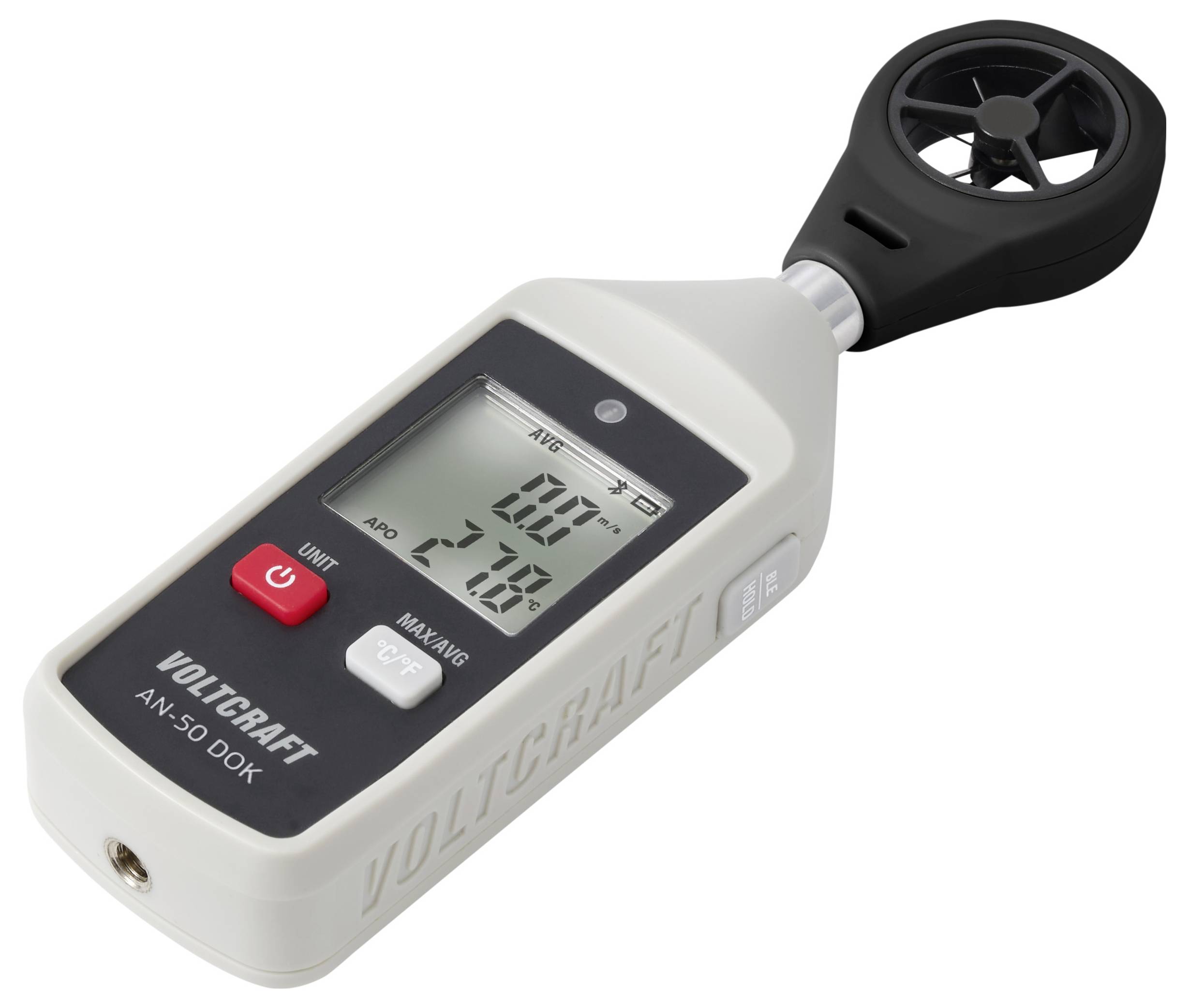

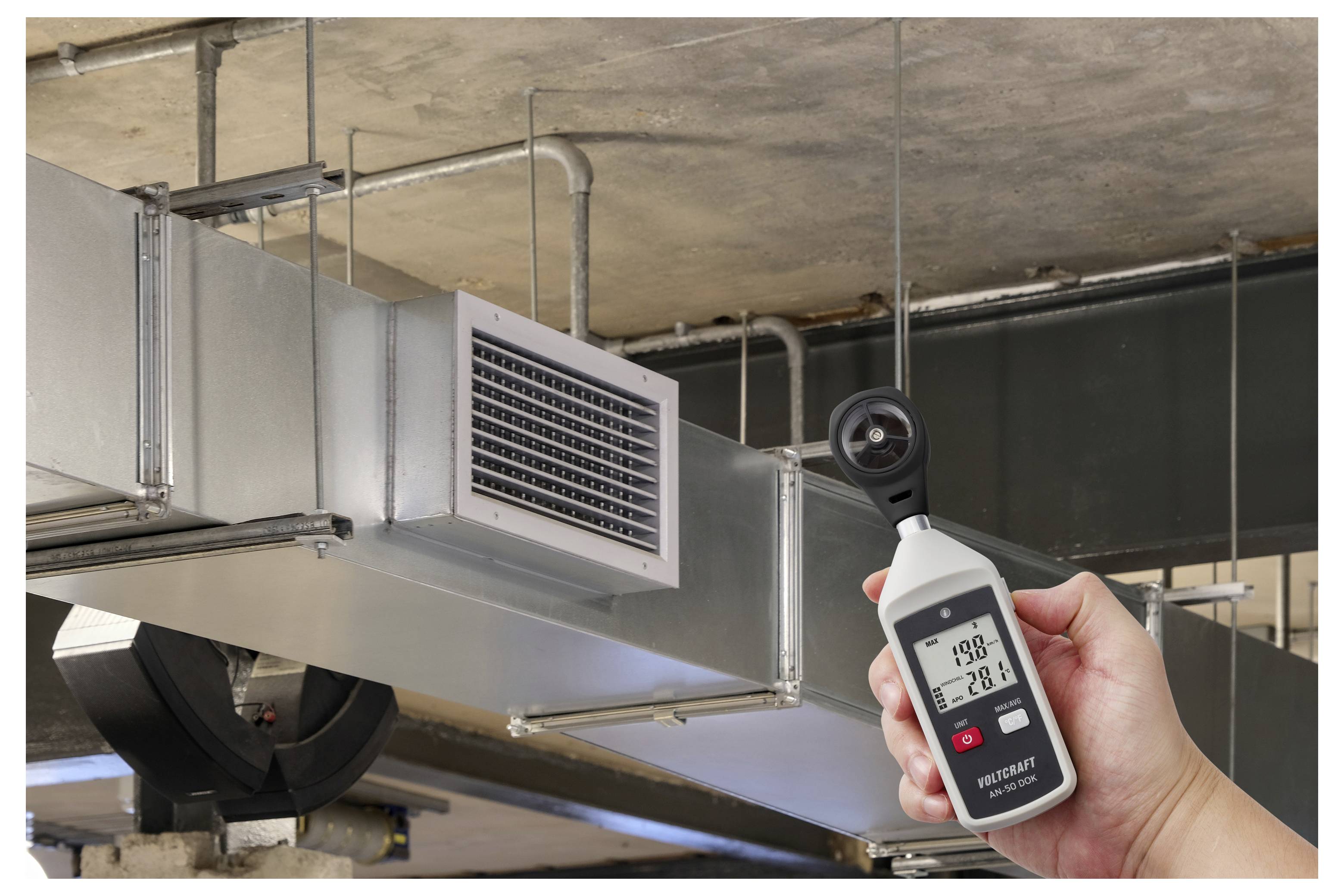

The VOLTCRAFT AN-50 DOK anemometer is a compact measuring device for simultaneous recording of wind speed and temperature. With a weight of 104 g and handy dimensions (30 x 50.9 x 183.8 mm), it is specifically designed for professional use, such as facility management. The factory-calibrated device (no certificate) is supplied for direct use including a canvas bag and three 1.5 V AAA batteries.
Extensive measurement functions
The device measures wind speeds in the range of 0.4 to 30 m/s and temperatures between -10 °C and +50 °C. Both the measured values are shown simultaneously on the 32.4 x 29.4 mm LCD-display. Users can switch flexibly between the units m/s, ft/min, km/h, MPH, knots as well as °C and °F.
Digital evaluation via APP

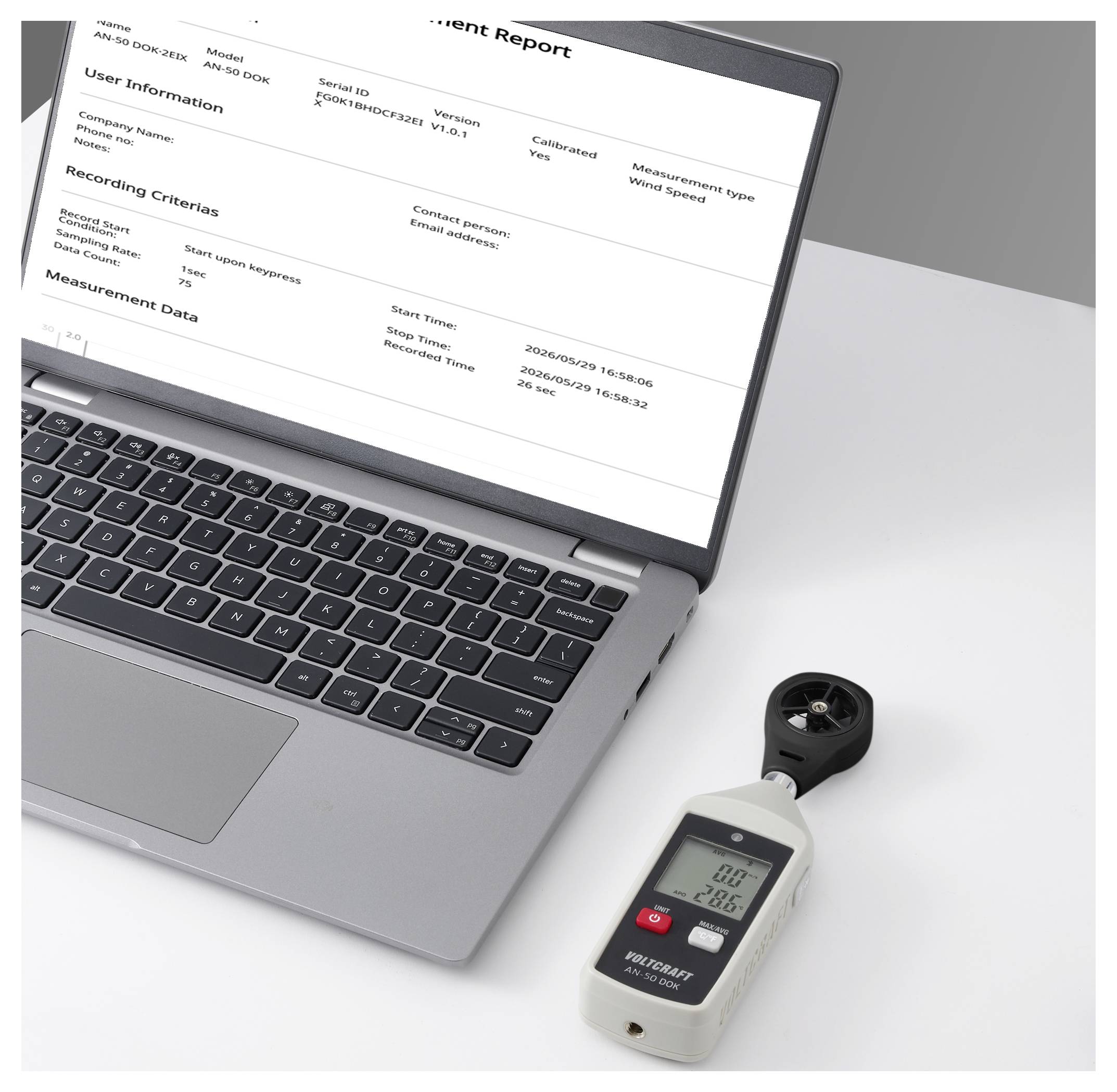

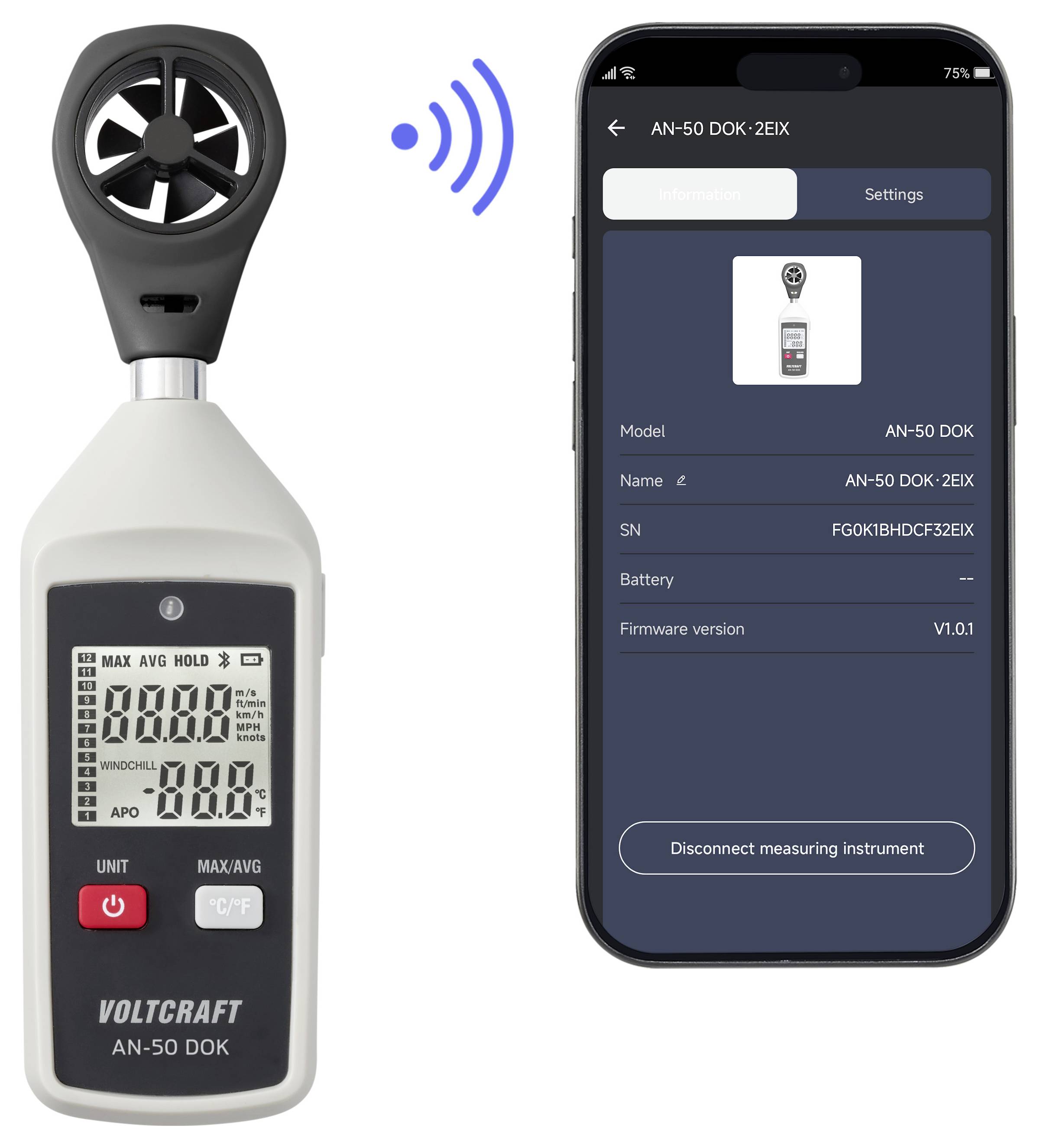

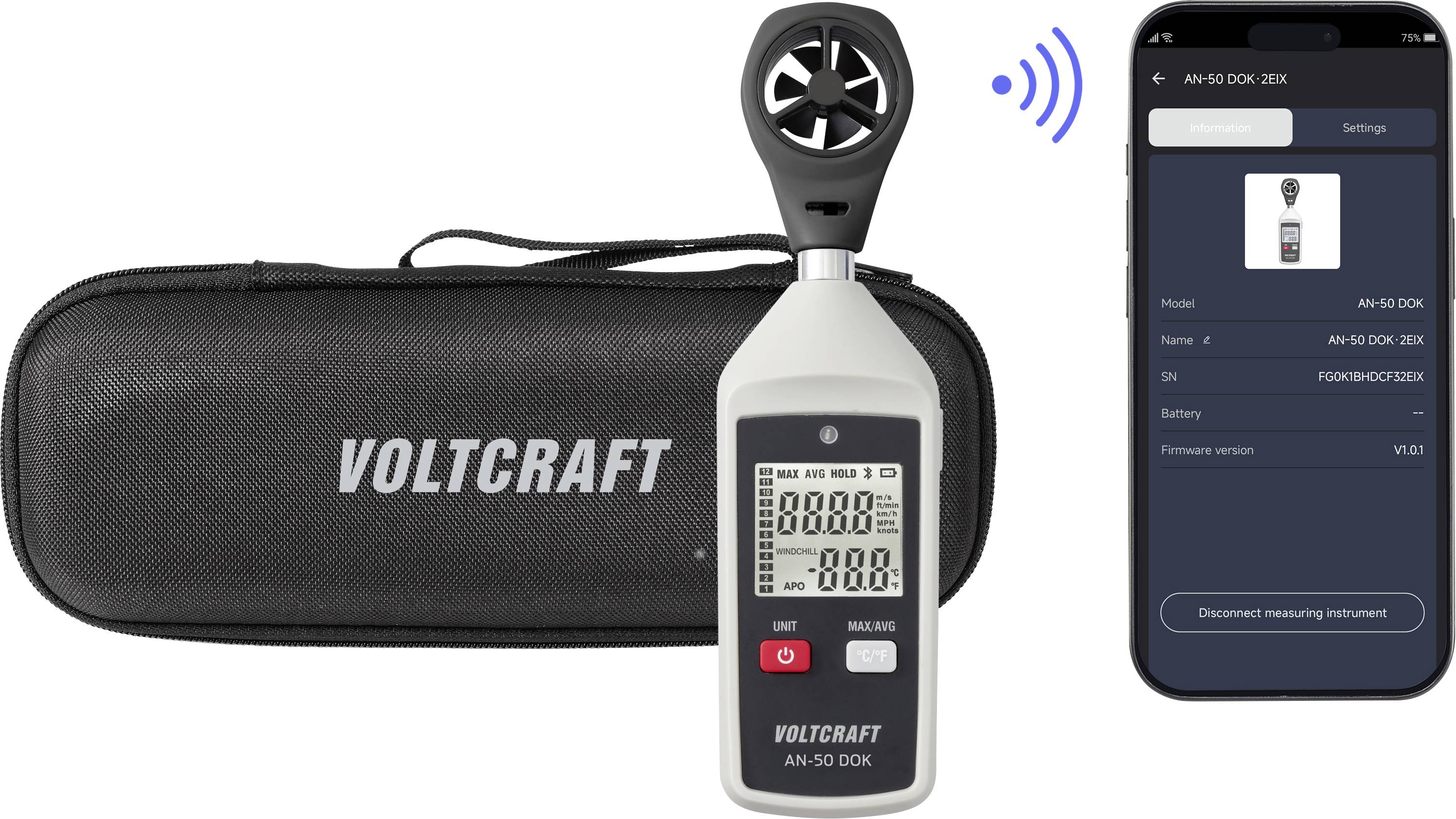

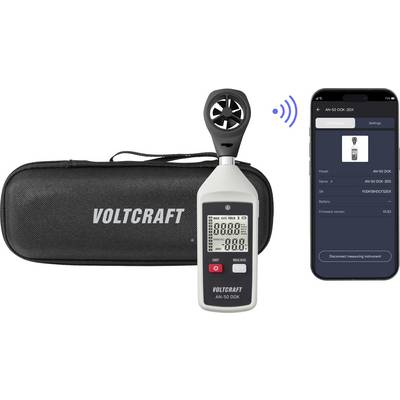

The measured values can be transmitted wirelessly via the integrated Bluetooth® technology. An associated APP enables the direct creation of professional PDF-test reports, WAS simplifies the data logging and documentation in the daily work routine considerably.
Supported warning and holding functions
In addition to a MAX/AVG measurement and a data hold function to store the current measured value, the anemometer provides a display based on the Beaufort wind scale (0 to 12). If the temperature falls below 0 °C at a wind speed of at least 5 m/s, the device automatically gives a windchill notification. If the measurement range is exceeded, the message "OL" will appear clearly visible.
Efficient handling
The display provides automatic background lighting, which can be switched on for use in poor lighting conditions. In order to extend the battery life in commercial use, the measurement device switches off automatically after about five minutes of inactivity. An integrated battery level indicator informs the user in time about the remaining energy.
This text is machine translated.
Extensive measurement functions
The device measures wind speeds in the range of 0.4 to 30 m/s and temperatures between -10 °C and +50 °C. Both the measured values are shown simultaneously on the 32.4 x 29.4 mm LCD-display. Users can switch flexibly between the units m/s, ft/min, km/h, MPH, knots as well as °C and °F.
Digital evaluation via APP
The measured values can be transmitted wirelessly via the integrated Bluetooth® technology. An associated APP enables the direct creation of professional PDF-test reports, WAS simplifies the data logging and documentation in the daily work routine considerably.
Supported warning and holding functions
In addition to a MAX/AVG measurement and a data hold function to store the current measured value, the anemometer provides a display based on the Beaufort wind scale (0 to 12). If the temperature falls below 0 °C at a wind speed of at least 5 m/s, the device automatically gives a windchill notification. If the measurement range is exceeded, the message "OL" will appear clearly visible.
Efficient handling
The display provides automatic background lighting, which can be switched on for use in poor lighting conditions. In order to extend the battery life in commercial use, the measurement device switches off automatically after about five minutes of inactivity. An integrated battery level indicator informs the user in time about the remaining energy.
This text is machine translated.
Features
- Over-range display: "OL"
- MAX/AVG Measurement: "MAX/AVG"
- Data hold function
- Auto backlight on/off function
- Auto power off (approx. 5 mins)
- Low battery indicator
- Bluetooth app for one-point PDF report generation

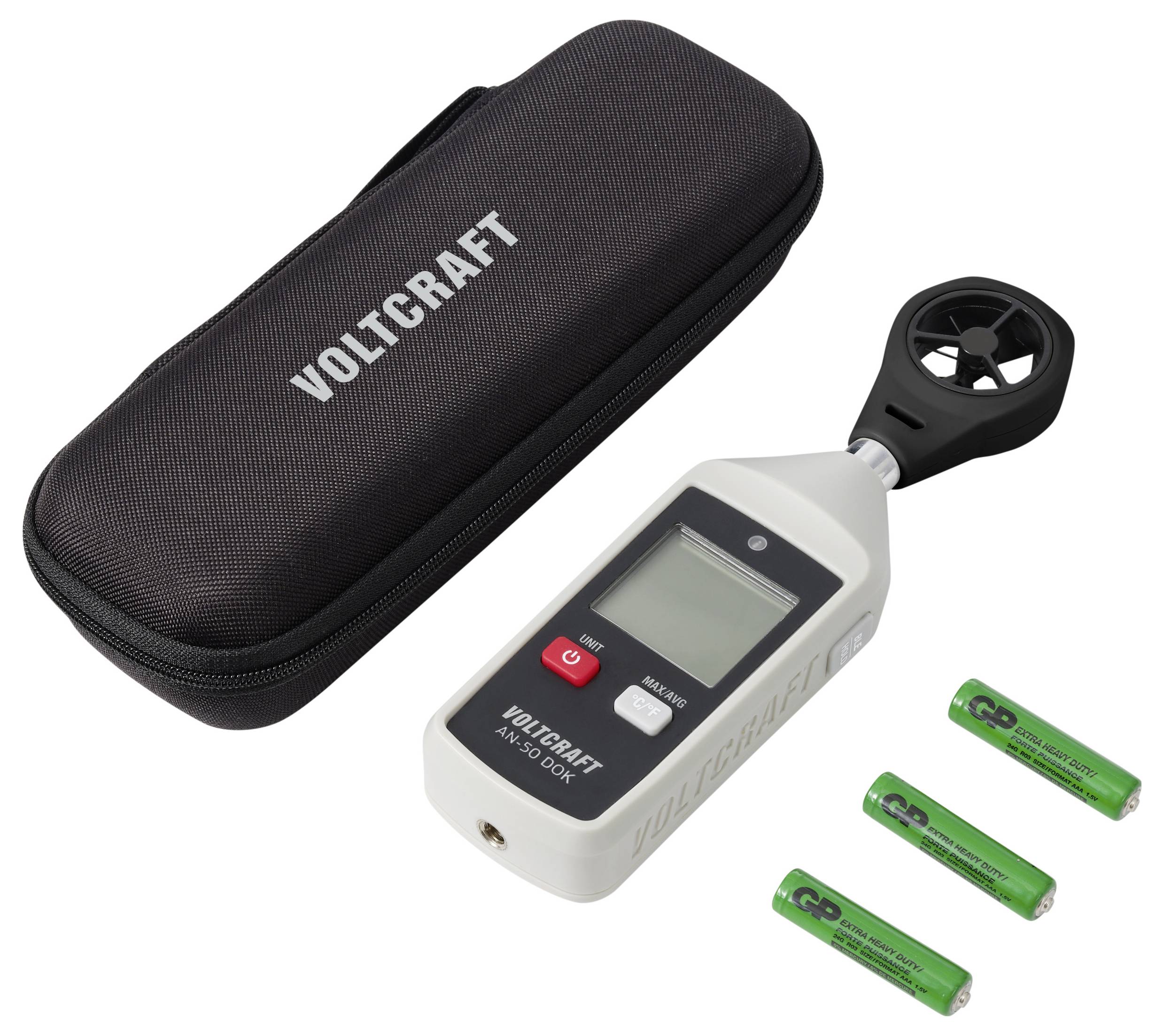

Scope of delivery
- Anemometer
- User manual

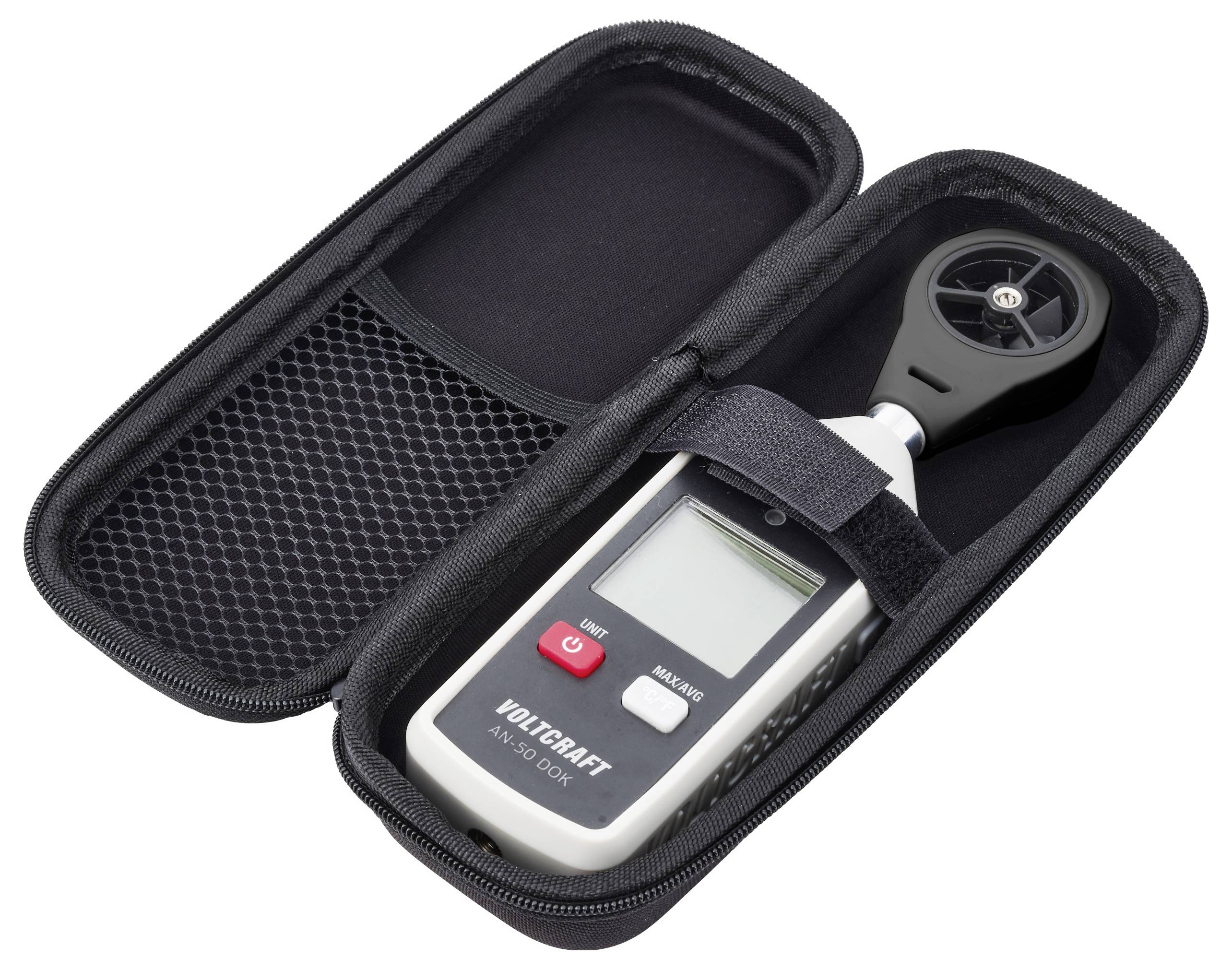

- Carrying bag
- 3x AAA batteries
