Buy VOLTCRAFT BS-10/1M VGA MF Endoscope probe Probe diameter 10 mm 1 m Waterproof, Swivelling, LED lit

Black endoscopic camera with flexible cable, suitable for inspections. Camera on the left, control elements on the right.

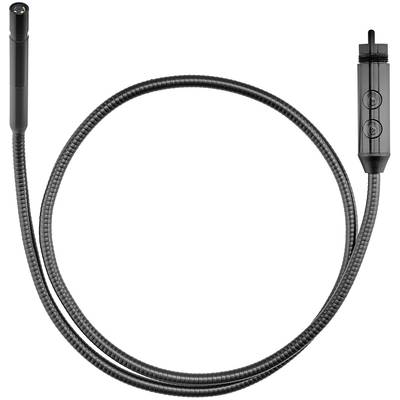

A flexible, black endoscope with a camera and control elements on the handle, suitable for inspection purposes in hard-to-reach areas.

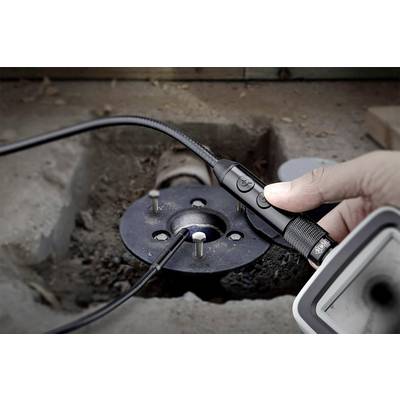

A hand holds an endoscope for inspecting a pipe that runs through a flange in the floor. The device displays live images on a screen.

A black hose in close-up, lying in muddy ground, with bright light at its tip.

A hand is holding an inspection camera over a dark hole in a concrete floor. The camera is attached to a flexible cable for examining hard-to-reach areas.

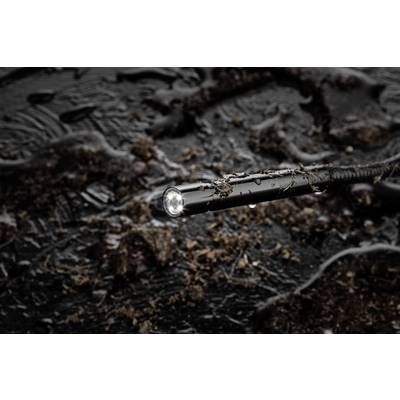

An endoscope camera cable with an illuminated tip is submerged in damp, muddy ground to explore the surroundings.

Black audio cable with volume control and microphone. Two buttons are visible, one with a plus symbol and one with a microphone symbol.

Close-up of a black cable with two buttons: volume up and down with a microphone. The casing is glossy.

1/8

Our service for you

82 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€

Report legal concerns

Highlights & Details

Endoscope camera probe,Probe diameter 10 mm;1 m VGA semi-flex

Water-proof, dimmable LED lighting
Probe length: 1 m
Semi-flexible
640 x 480 pixels
Manual Motor focus by pressing a button 3.6 mm -∞

Technical specifications

Semi-rigid

Probe length: 1 m

Light source: 4 LEDs, white

Min. focusing distance: 3.6 mm

Dim

Weight: 156 g

Focus: 3.6 mm -∞

: IP67

Camera resolution: 640 x 480 Pixel

Suitable for: Voltcraft

Suitable for: VOLTCRAFT BS-250XWSD
VOLTCRAFT BS-200XW
VOLTCRAFT BS-100XIP
VOLTCRAFT BS-30XHR
VOLTCRAFT BS-350XIPSD

Endoscope features: Waterproof
Swivelling
LED lit

Probe diameter: 10 mm

Max. bend radius: 45 mm

Product type: Endoscope probe

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1499841 VOLTCRAFT BS-10/1M VGA MF Endoscope probe Probe diameter 10 mm 1 m Waterproof, Swivelling, LED lit

Warranty Terms

Warranty Terms 1499841 VOLTCRAFT BS-10/1M VGA MF Endoscope probe Probe diameter 10 mm 1 m Waterproof, Swivelling, LED lit

Description

This text is machine translated.

Small diameter extra or spare gooseneck camera for endoscopes. The semi-flexible gooseneck can be bended into the required position and keeps this form.
Manual Motor focus.
The Manual Motor focus to all areas of close-up remote with a precisely adjusted image monitor arm. The motor focus is operated via two buttons on the camera, so this function independently of the basic device available.
