Buy VOLTCRAFT BS-14mm/25m Endoscope probe Probe diameter 14 mm 25 m Waterproof, Exchangeable camera attachment, Extensions (

A cable reel stand with a black cable and metal stand. At the cable end, there is a plug and a cylindrical sensor.

Flexible metal conduit, cylindrical in shape, with a silver corrugated structure, typically used for cable protection or fluid channelling.

A spotlight with modern design, mounted on a black bracket. The white body has an oval shape with a metal switch.

A portable inspection device with a screen, spiral-shaped cable, and probe, is being used by a person to examine a pipe.

An inspection device for checking drains is pictured on a floor. A hand is inserting a camera probe into a drain.

A hand is holding an inspection endoscope over a drainage pipe in an unfinished wall. The device is displaying images of the pipe's interior.

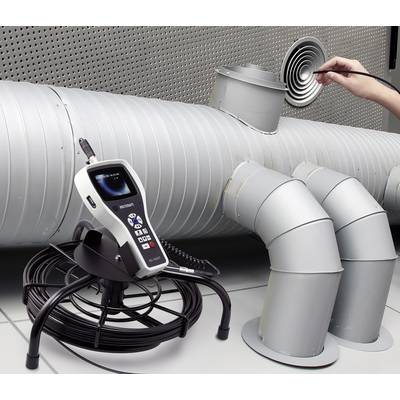

'Inspection of a ventilation system with an endoscopic device to check pipework.' A hand opens a ventilation grille.

1/7

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 24 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 861.34 / piece)

€ 861.34

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT BS-14mm/25m ENDOSCOPE PROBE

Compatible with Voltcaft® Endoscope BS-1500T
Probe diameter: 14 mm
Highly flexible cable length: 25 m
Waterproof camera head and endoscope tube (IP67)
Adjustable brightness via 8 LEDs
640x480p resolution

Technical specifications

Probe length: 25 m

Product type: Endoscope probe

Probe diameter: 14 mm

Light source: LED

Camera resolution: 640 x 480 Pixel

Min. focusing distance: 50 mm

Dim: (Ø x L) 14 mm x 20 cm

Weight: 5.3 kg

Endoscope features: Waterproof
Exchangeable camera attachment
Extensions (optional)
Focus
Image function
LED lit

Suitable for: Voltcraft

Suitable for: VOLTCRAFT BS-1500T

Width: 1.4 cm

Length: 20 cm

(Ø): 14 mm

: IP67 (probe)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2183202 VOLTCRAFT BS-14mm/25m Endoscope probe Probe diameter 14 mm 25 m Waterproof, Exchangeable camera attachment, Extensions (

User & Safety Instructions

User & Safety Instructions 2183202 VOLTCRAFT BS-14mm/25m Endoscope probe Probe diameter 14 mm 25 m Waterproof, Exchangeable camera attachment, Extensions (

Warranty Terms

Warranty Terms 2183202 VOLTCRAFT BS-14mm/25m Endoscope probe Probe diameter 14 mm 25 m Waterproof, Exchangeable camera attachment, Extensions (

Description

The Voltcraft BS-14mm / 25m is a camera attachment to be used with the BS-1500T endoscope for visual troubleshooting or inspection of extended piping systems and de-energized equipment and facilities. The flexible camera neck gives access to confined or hard-to-reach areas. In addition, the BS-1500T comes with a metre counter measuring distances. Eight LEDs built into the camera head enable recording or taking images in zero-light areas. The brightness can be adjusted at any time via the endoscope. The reel makes camera and camera neck storage easy. The tripod keeps the camera in place.

Features

CMOS sensor
Automatic white balance and automatic exposure control
Distance measuring (meter counter)

Scope of delivery

Camera cable (25 m) with reel
Holder with 1 screw and 2 spacers/washers
Camera rubber cover
8 to 8-pin adaptor cable
Spare camera cover
User manual
