Buy VOLTCRAFT BS-806 Camera cable Probe diameter 8 mm 20 m High-resolution, LED lit, Waterproof

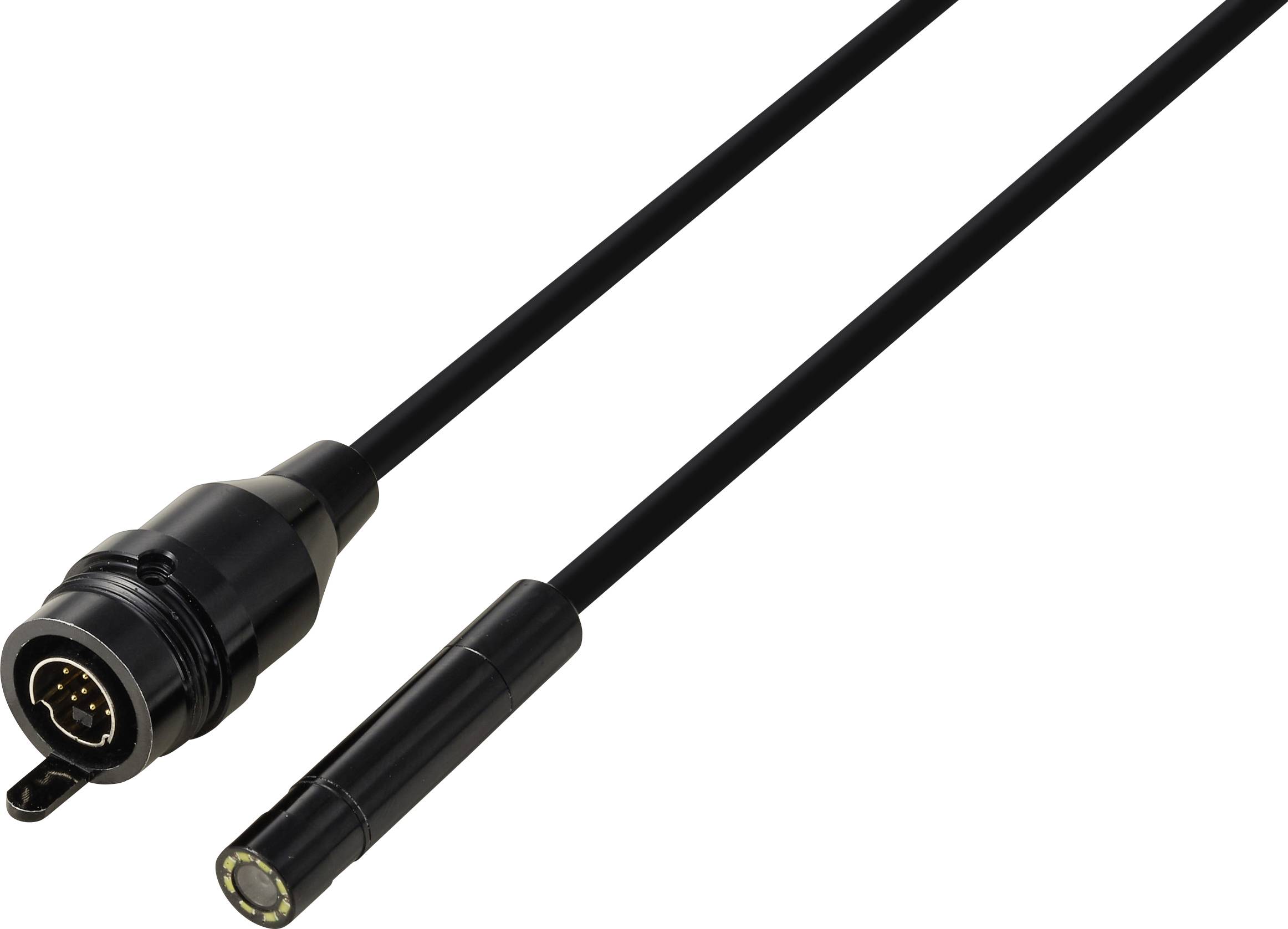

Two black connector cables on a white background, showing a circular plug on one end and a smaller round connector on the other.

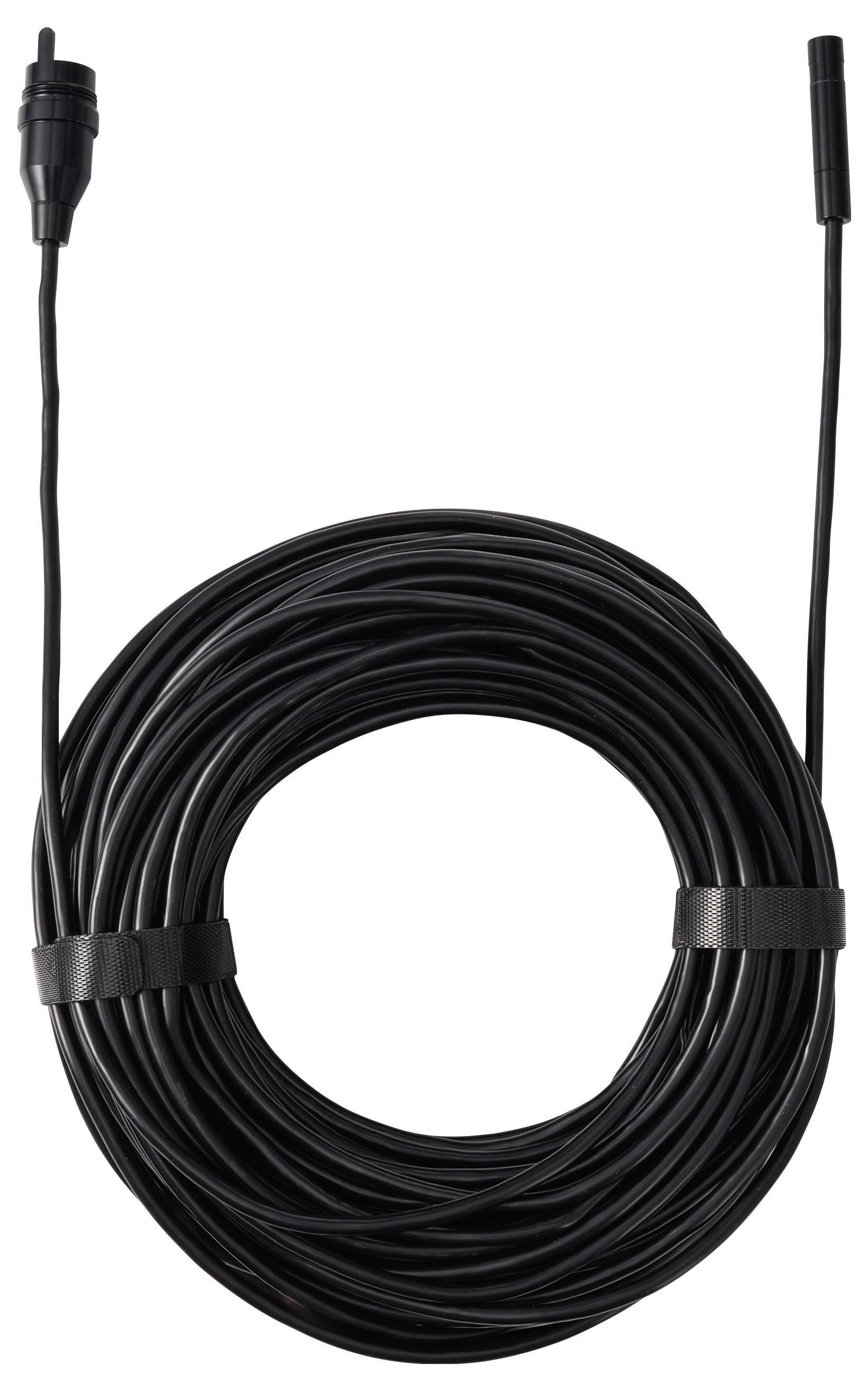

Black coiled cable with two connectors on a white background.

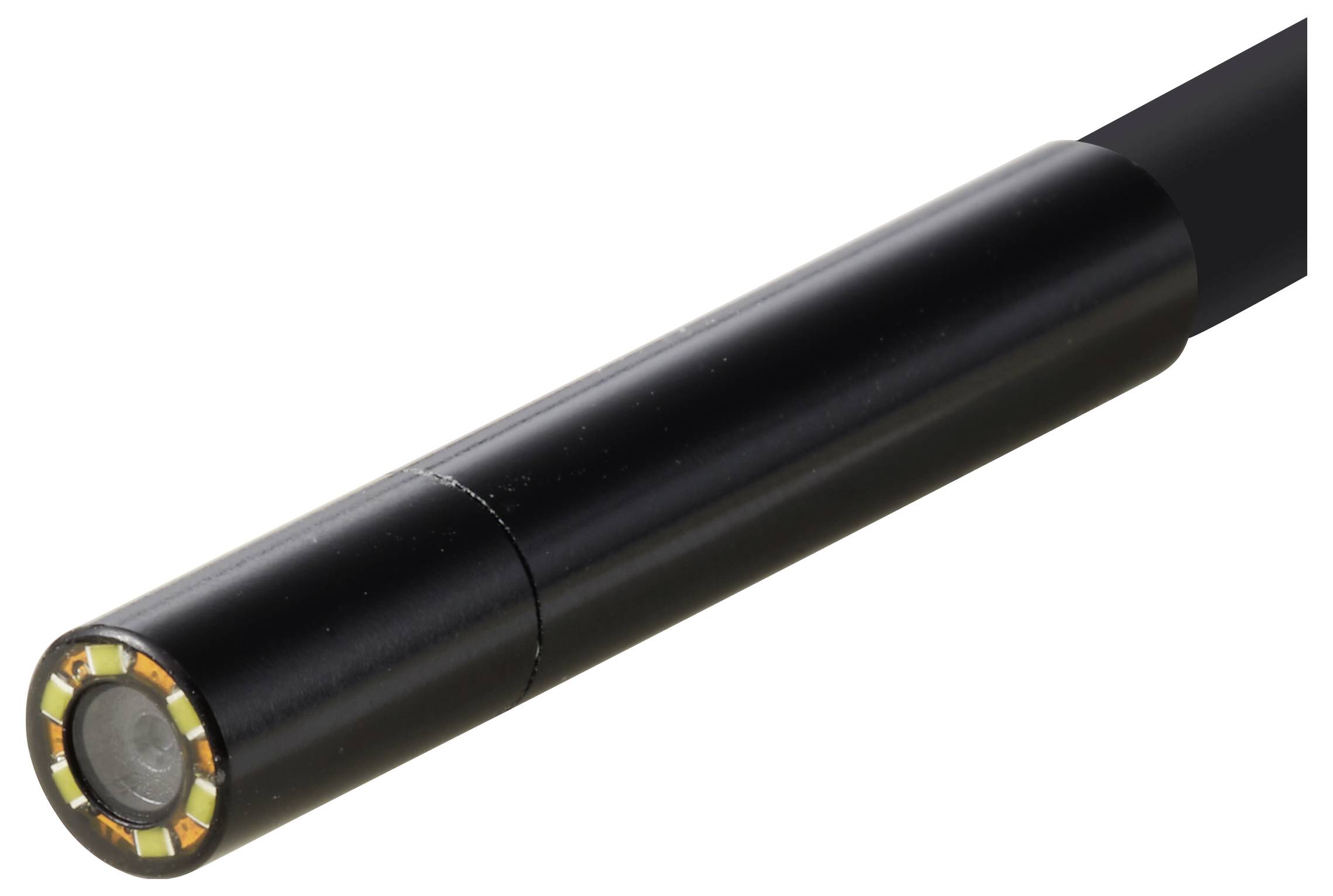

Close-up of a black cylindrical inspection camera or sensor with a small circular lens and LED lights at the tip.<br>

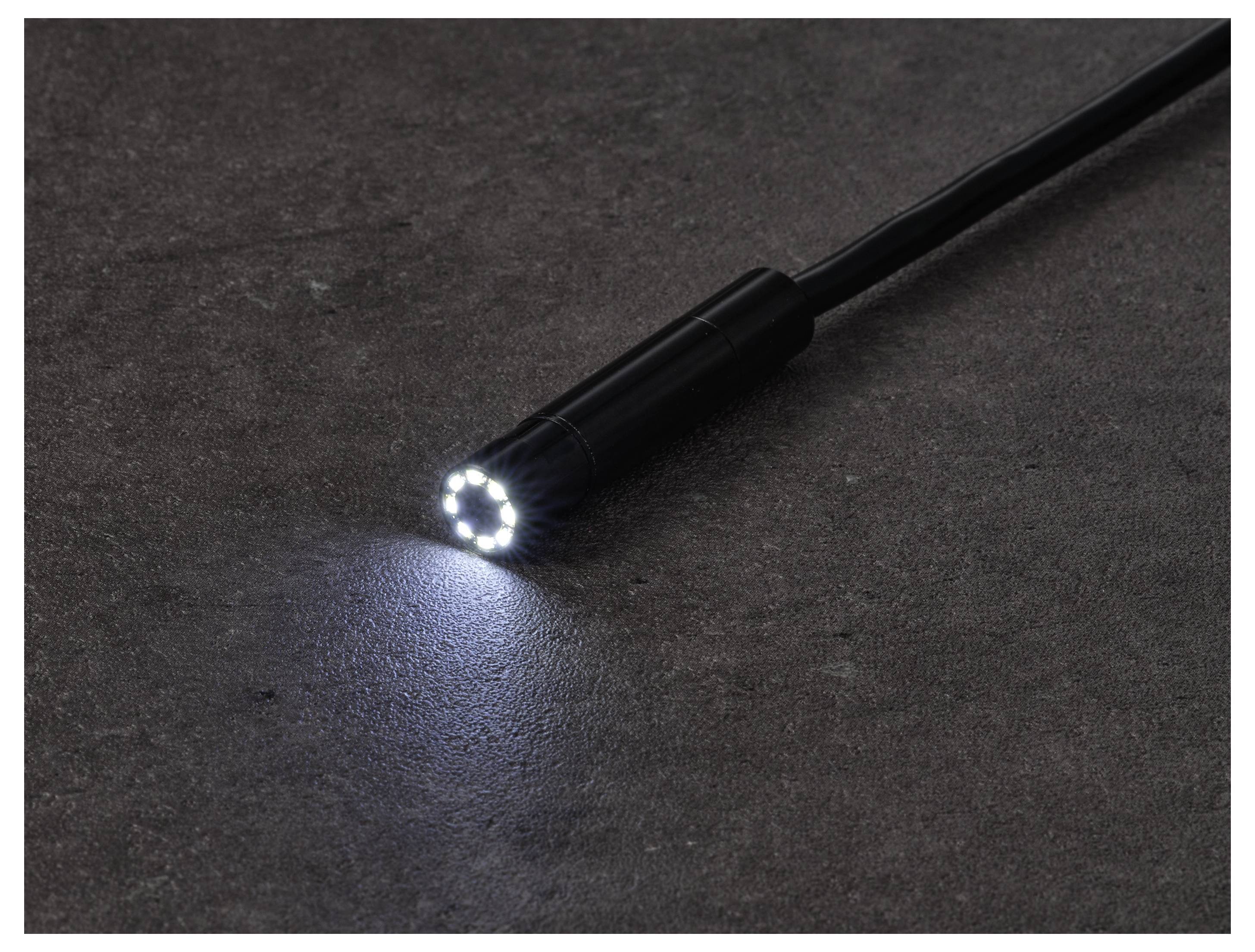

A black flashlight with its LED beam on, shining a small white circle of light onto a dark surface.

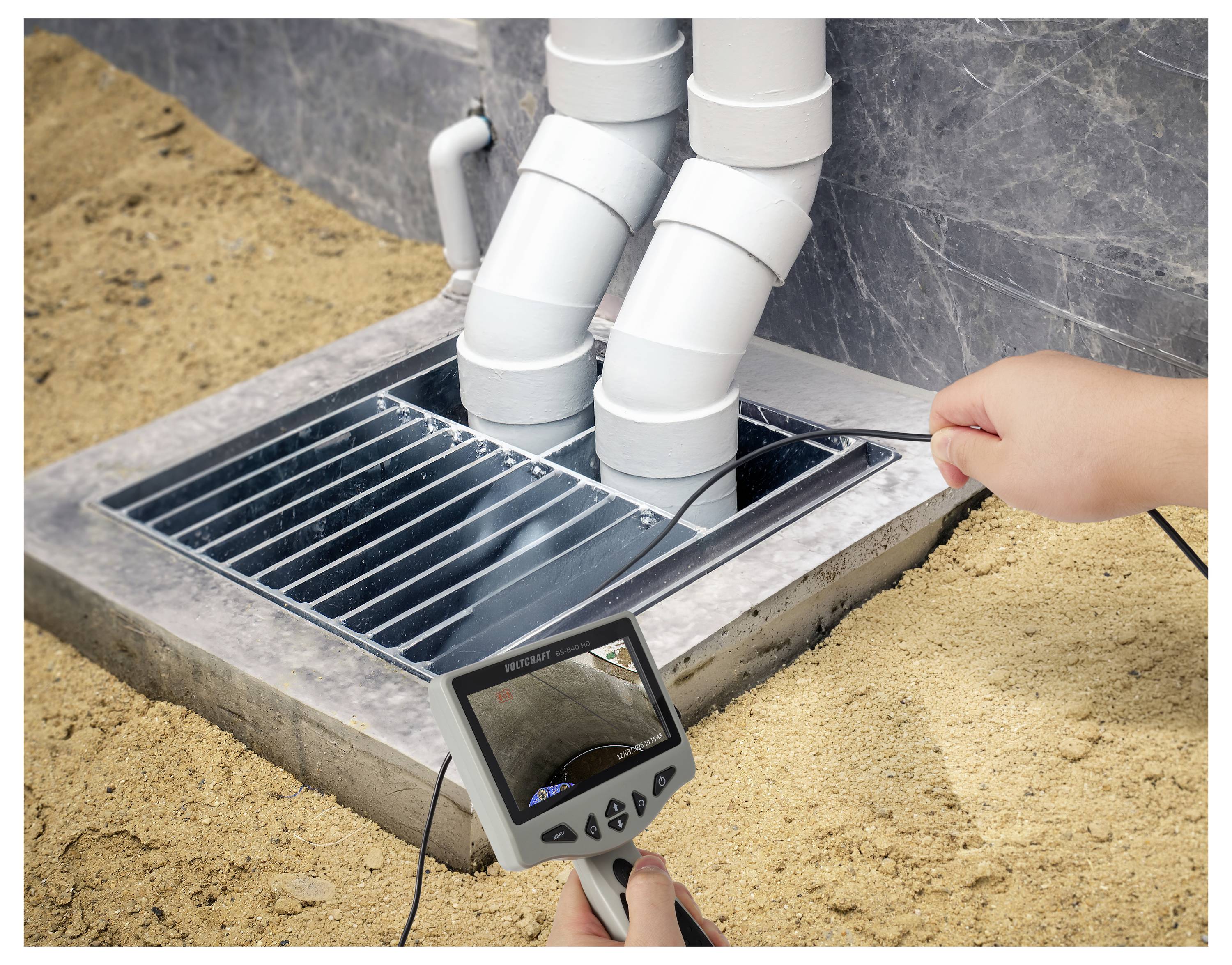

Technician inspects basement drain vent pipes with a camera scope near a floor grate, checking the drainage system.

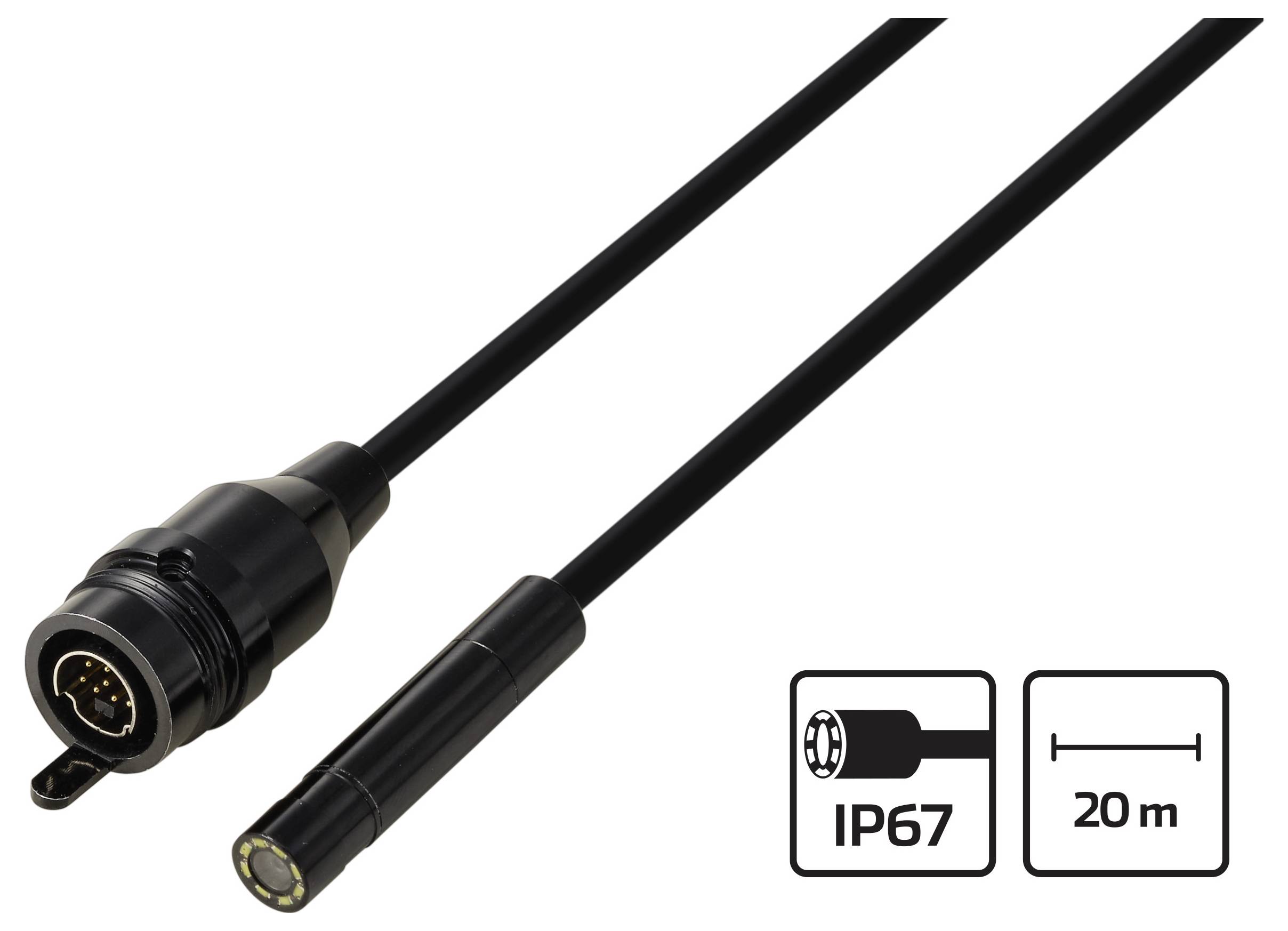

Black waterproof connector cable with two plug ends, labeled IP67 and 20 m.

1/6

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

49 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT Camera Cable BS-806 HD 8 mm 20 m Flex for BS-8xx Series Endoscopes

HD (1280 x 720 pixels) camera
Compatible with VOLTCRAFT ® endoscopes BS-800, BS-820, and BS-840
Probe camera diameter: 8 mm
20 m semi-rigid waterproof probe
Focus: 2 - 8 cm
Probe Protection Rating: IP67

Technical specifications

Probe length: 20 m

Product type: Camera cable

Probe diameter: 8 mm

Light source: 8 LEDs

Camera resolution: 1280 x 720 Pixel

Min. focusing distance: 20 mm

Dim: (Ø) 8 mm

Weight: 552 g

Endoscope features: High-resolution
LED lit
Waterproof

Focus: 20 - 80 mm

Suitable for: Voltcraft

Suitable for: VOLTCRAFT BS-800
VOLTCRAFT BS-820
VOLTCRAFT BS-840

(Ø): 8 mm

: IP67 (probe)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3733408 VOLTCRAFT BS-806 Camera cable Probe diameter 8 mm 20 m High-resolution, LED lit, Waterproof

User & Safety Instructions

User & Safety Instructions 3733408 VOLTCRAFT BS-806 Camera cable Probe diameter 8 mm 20 m High-resolution, LED lit, Waterproof

Warranty Terms

Warranty Terms 3733408 VOLTCRAFT BS-806 Camera cable Probe diameter 8 mm 20 m High-resolution, LED lit, Waterproof

Description

The VOLTCRAFT BS-806 camera cable is a 20 meter long, semi-rigid probe for visual inspection of hard to reach areas. As accessories, the cable is perfectly designed for the VOLTCRAFT® endoscope of the BS-8xx series. With a narrow camera diameter of 8 mm it supports in testing and diagnostic tasks in industrial or handicraft environments.

HD resolution and automatic image adjustment
The probe has a camera with HD resolution of 1280 x 720 pixels to ensure a clear and detailed representation of the work area. The integrated automatic white balance and automatic exposure adjust the picture automatically to the prevailing lighting conditions. With a focus range from 2 to 8 cm (minimum focusing distance: 20 mm) objects can be captured directly in the near area.

Adjustable LED-illumination
Eight LEDs are installed on the camera head for working in non-illuminated cavities. The brightness is adjustable so that the user can match the illumination exactly to the requirements of the respective inspection environment without any cross-fading.

Waterproof semi-rigid probe (IP67)
The semi-rigid cable gives the 20 meter long probe the necessary stability to push it in a controlled way into pipes or duct systems. According to the classification in the IP67 degree of protection, the probe is dust and waterproof. This allows reliable use even in damp or wet environments.

This text is machine translated.
