VOLTCRAFT CNPS-60 Laptop PSU 60 W 18.5 V DC, 19 V DC, 19.5 V DC, 20 V DC 3.2 A Adjustable voltage output, Auto-Detect, M
EAN:
Part number:
Item no:
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details
Notebook power supply CNPS-60 60 W
- 18.5 - 20 V DC/ 3.2 A
- 60 W Power
- Input voltage range 100-240 V/50 - 60 Hz
- Suitable for notebooks Acer, Asus, Compaq, Dell, Delta, Fujitsu, Gateway, HP, Lenovo, Liteon, Toshiba, Samsung
Technical specifications
- Product type
Laptop PSU
- Type
CNPS-60
- Type
Universal AC Adapter
- for brands
Acer
Asus
Compaq
Dell
Delta
Fujitsu
Gateway
HP
Lenovo
Liteon
Show more
- Output
Plug
60 W
- Input voltage
100 V AC
240 V AC
- Input voltage
100-240 V/50 - 60 Hz
- No. of outputs
1 x
- Output voltage
18.5 V DC
19 V DC
19.5 V DC
20 V DC
- Output voltage range
18.5 - 20 V DC
- Output current (max.) - rounded
3.2 A
- Max. output current
3.2 A
- Output current (low)
3 A
- Dim
(L x W x H) 70 x 40 x 36 mm
- Length
70 mm
- Width
40 mm
- Height
36 mm
- Weight
165 g
- Factory colour
Black
- Used at
Indoors
Portable
- PSU features
Adjustable voltage output
Auto-Detect
M8 connector piece
- Cable length
1.8 m
- EuP Status
Step 2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1656669 VOLTCRAFT CNPS-60 Laptop PSU 60 W 18.5 V DC, 19 V DC, 19.5 V DC, 20 V DC 3.2 A Adjustable voltage output, Auto-Detect, M
Information
Information 1656669 VOLTCRAFT CNPS-60 Laptop PSU 60 W 18.5 V DC, 19 V DC, 19.5 V DC, 20 V DC 3.2 A Adjustable voltage output, Auto-Detect, M
Warranty Terms
Warranty Terms 1656669 VOLTCRAFT CNPS-60 Laptop PSU 60 W 18.5 V DC, 19 V DC, 19.5 V DC, 20 V DC 3.2 A Adjustable voltage output, Auto-Detect, M
Description

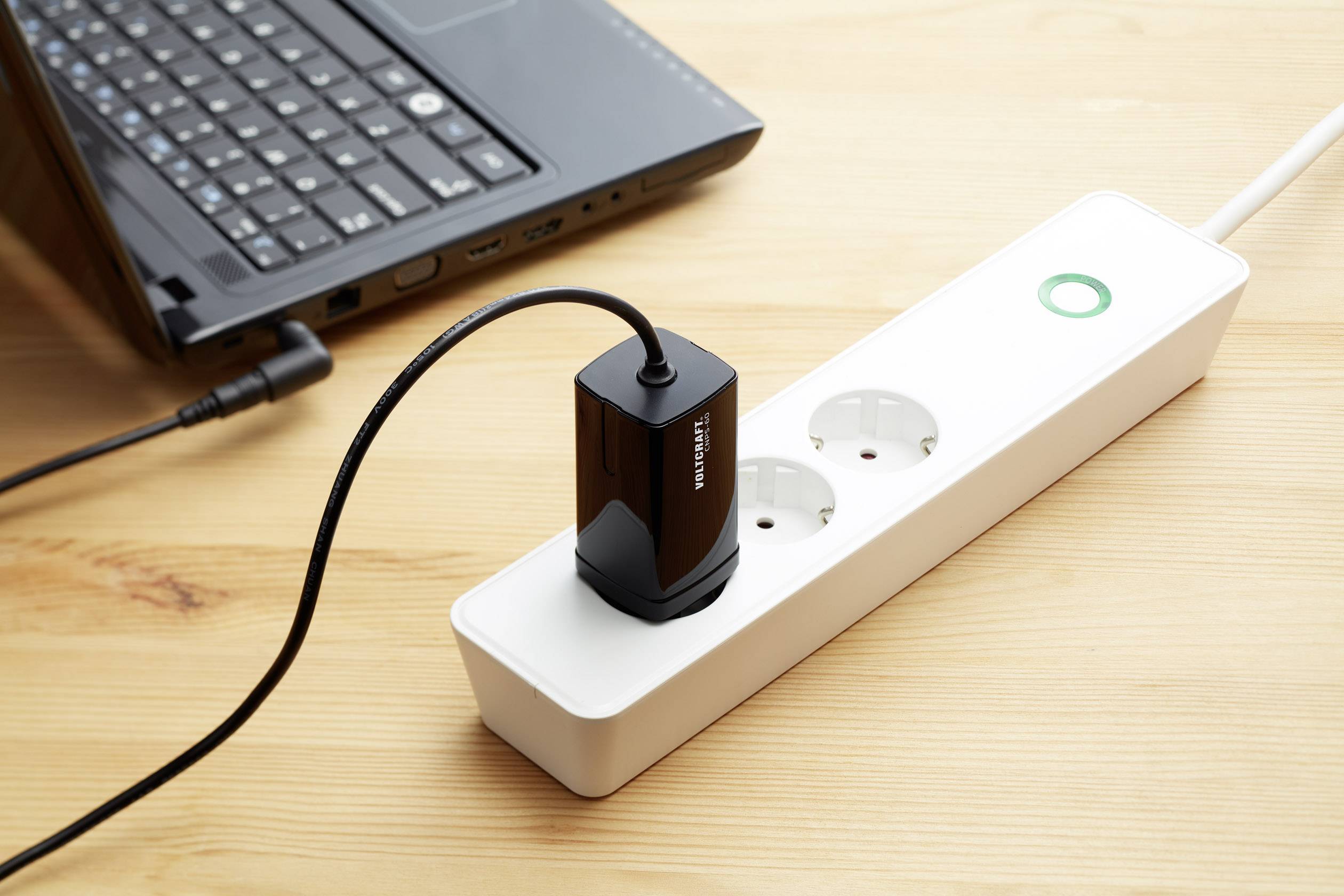

The compact notebook power supplyCNPS-60 from VOLTCRAFT is particularly sleek. Neighboring outlets are not covered. Thus it isCNPS-60 perfect for the use in multiple sockets as well as traveling or on the route. Thanks to the space-saving design makes it ideal for transporting or even the tightest of spaces. The power supply directly to the euro plug is installed, there is only one cable, especially when working on the notebook while traveling very convenient. ThisCNPS-60 is despite its compact design 60 W performance!
The power supply is universally applicable for a number of different notebooks. As a spare or as second power supply if the manufacturer power supply in the office to remain.
The power supply is universally applicable for a number of different notebooks. As a spare or as second power supply if the manufacturer power supply in the office to remain.
Features
- Self regulating output voltage
- Short-circuit and overload protection.
- This text is machine translated.
Scope of delivery

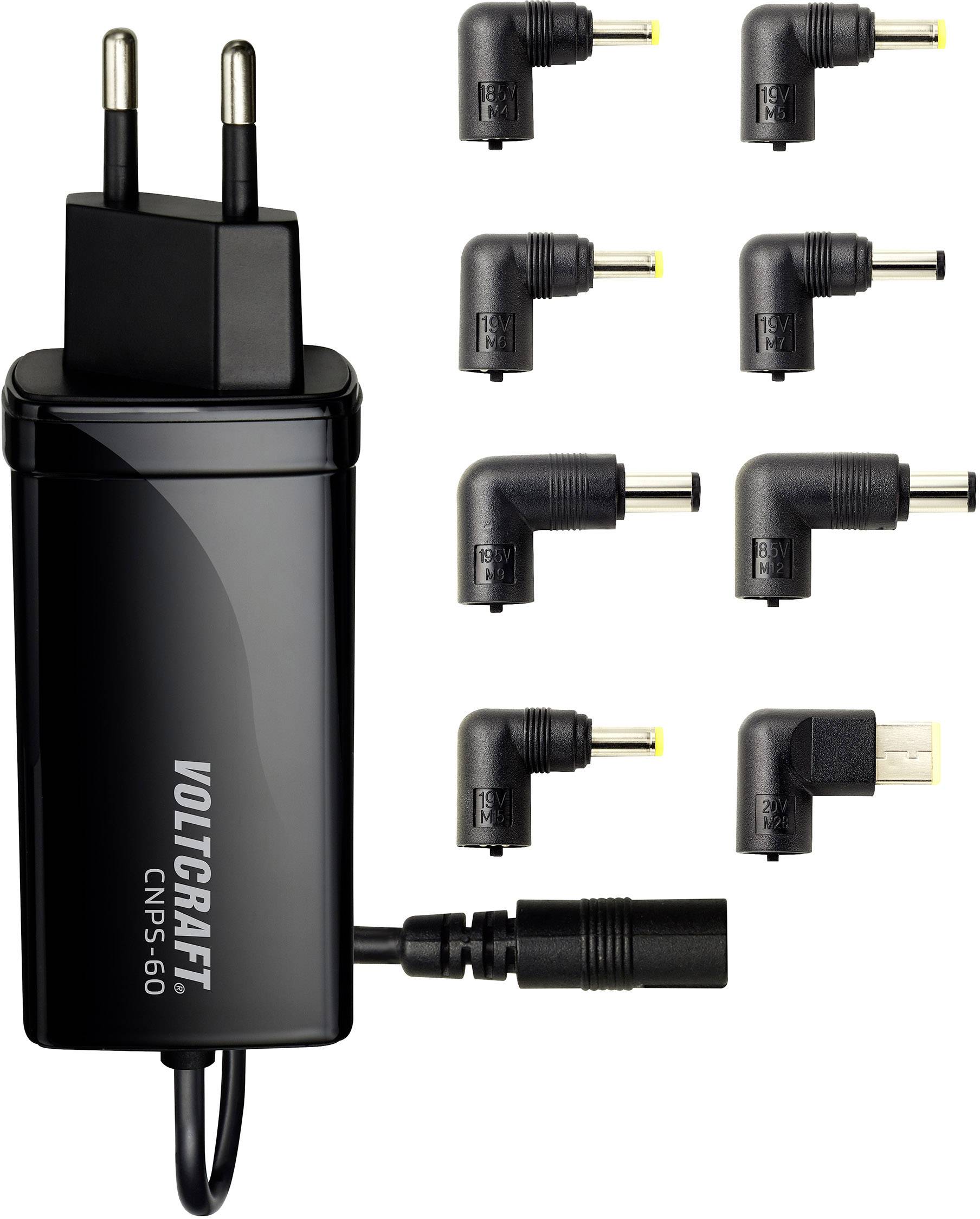

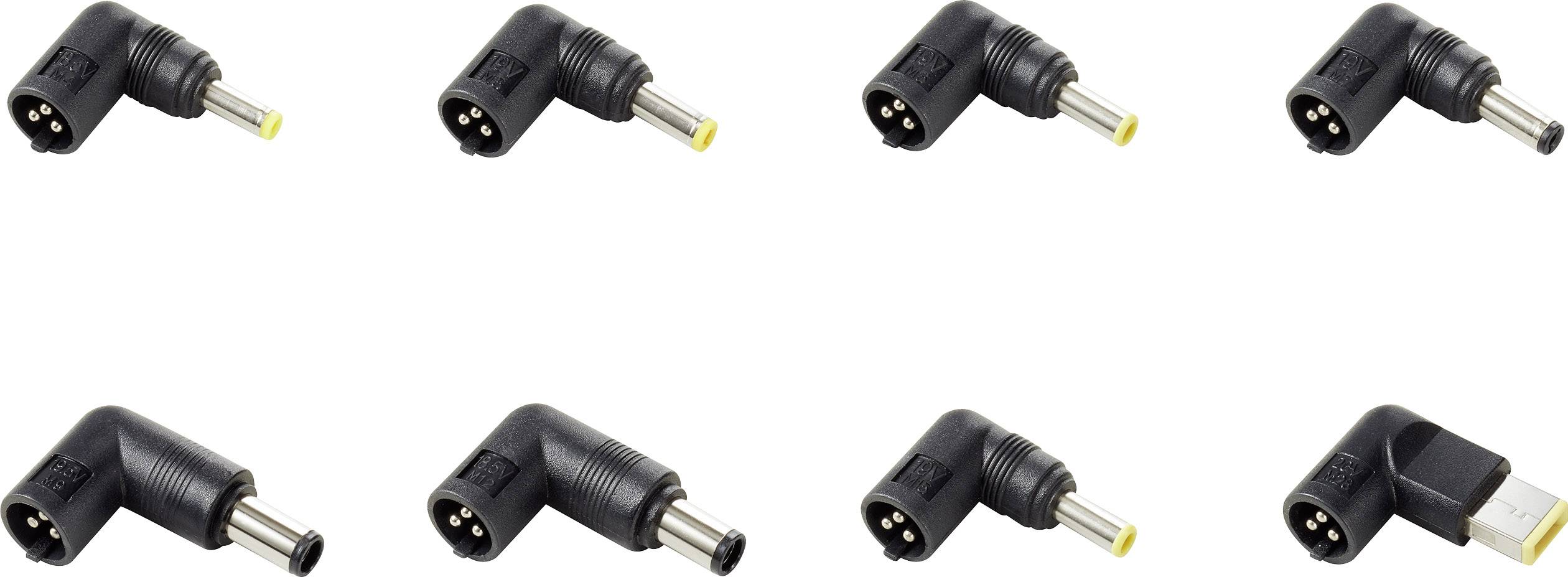

- 8 different plugs (4.8/1..7 mm (Compaq, HP), 5.5/2.5 mm (Acer, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, liteon, ASUS), 5,0/3,0 mm (Samsung), 5.5/2.1 mm (Acer, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, liteon), 7.4/5..0 mm (DELL (with IC clip), 7.4/5..0 mm (HP, Compaq), 5.5/1.7 mm (ACER), 7.9 mm (square tip) (Lenovo))
