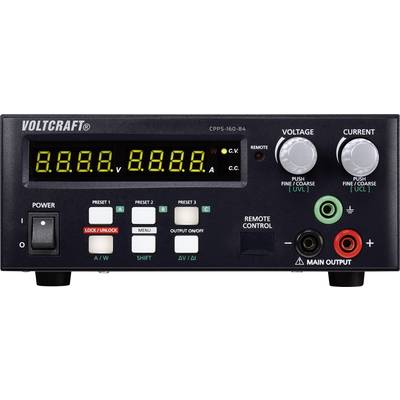

VOLTCRAFT CPPS-160-84 Bench PSU (adjustable voltage) 0.02 - 84 V DC 0.01 - 5 A 160 W USB remote controlled, programmable
EAN:
Part number:
Item no:
Datasheet (PDF)
35 Piece(s)
Sales and shipping:
Number
Total (€ 348.74 / piece)
€
Highlights & Details
CPPS-160-84 Programmable Bench Power Supply Unit
- 1 xOutputs0.02 V DC-84 V DC
- 0.01 A-5 A
- Power 160 W
- Synchronised
- USB interface
- Memory for 3 output routines
Technical specifications
- Type
CPPS-160-84
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
160 W
- Technology
SMPSU
- Interfaces
USB
- Features
remote controlled
programmable
Autoranger
- Dim
(L x W x H) 250 x 200 x 90 mm
Manufacturer's standards (no certificate)
- Input voltage
230 V AC
115 V AC
- Weight
2.5 kg
- Connections
4 mm safety sockets.
- Output
PG jack socket
- Output voltage (max.)
84 V DC
- Output voltage (min.)
0.02 V DC
- Max. output current
5 A
- Output current (min.)
0.01 A
- Load balance
< 40 mVpp
- Mains supply
IEC 320 C14
- Mains control
<10 mV
- Type
Synchronised
- Width
200 mm
- Height
90 mm
- Length
250 mm
- Residual ripple
< 80 mVpp
- Max. temperature
40 °C
- Min. temperature
0 °C
- Output current 1
0.01 - 5 A
- Output rating
160 W
- Input voltage
90 - 264 V AC
- Output voltage 1
0.02 - 84 V DC
Documents & Downloads
Datasheet
Datasheet 1182103 VOLTCRAFT CPPS-160-84 Bench PSU (adjustable voltage) 0.02 - 84 V DC 0.01 - 5 A 160 W USB remote controlled, programmable
User & Safety Instructions
User & Safety Instructions 1182103 VOLTCRAFT CPPS-160-84 Bench PSU (adjustable voltage) 0.02 - 84 V DC 0.01 - 5 A 160 W USB remote controlled, programmable
Conformity certificate
Conformity certificate 1182103 VOLTCRAFT CPPS-160-84 Bench PSU (adjustable voltage) 0.02 - 84 V DC 0.01 - 5 A 160 W USB remote controlled, programmable
Warranty Terms
Warranty Terms 1182103 VOLTCRAFT CPPS-160-84 Bench PSU (adjustable voltage) 0.02 - 84 V DC 0.01 - 5 A 160 W USB remote controlled, programmable
Description
Programmable bench power supply unit with adjustable output settings. Allows setting voltage and current based on Ohm's law (Power = Voltage x Current) up to 160 W. The 160 W power limit enables a wide range of output voltage/current settings. Means either maximum voltage at limited current, or maximum current at limited voltage. The PSU also comes with a memory for the three most frequently used voltage and current settings. USB port and included software enable the simulation of a wide rance of sources and operating scenarios.
Features
- Remote control via USB, external voltage sources and external potentiometers
- Sense port
- Backlit keypad
- Voltage/current rough and fine adjustment knobs
- Load display
- Safety sockets
- Wave or ramp output - output waveform can be selected via keypad or interface
- Constant voltage (CV)
- Constant current (CC)
- 3 operating modes: standard, preset and remotely controlled (via USB/ext in)
- USB control: auto-executes a maximum of 20 saved data sets with different time settings and up to 999 cycles
- Selectable over and undervoltage protection
- Sense function suppressing output voltage loss.
Scope of delivery
- Power cables
- USB cable
- Remote control jack
- Software CD
- User manual.
