Buy VOLTCRAFT CSP-100 Bench PSU (adjustable voltage) 1.5 V, 3 V, 6 V, 9 V, 12 V, 15 V 2 A (max.) 30 W No. of outputs 1 x

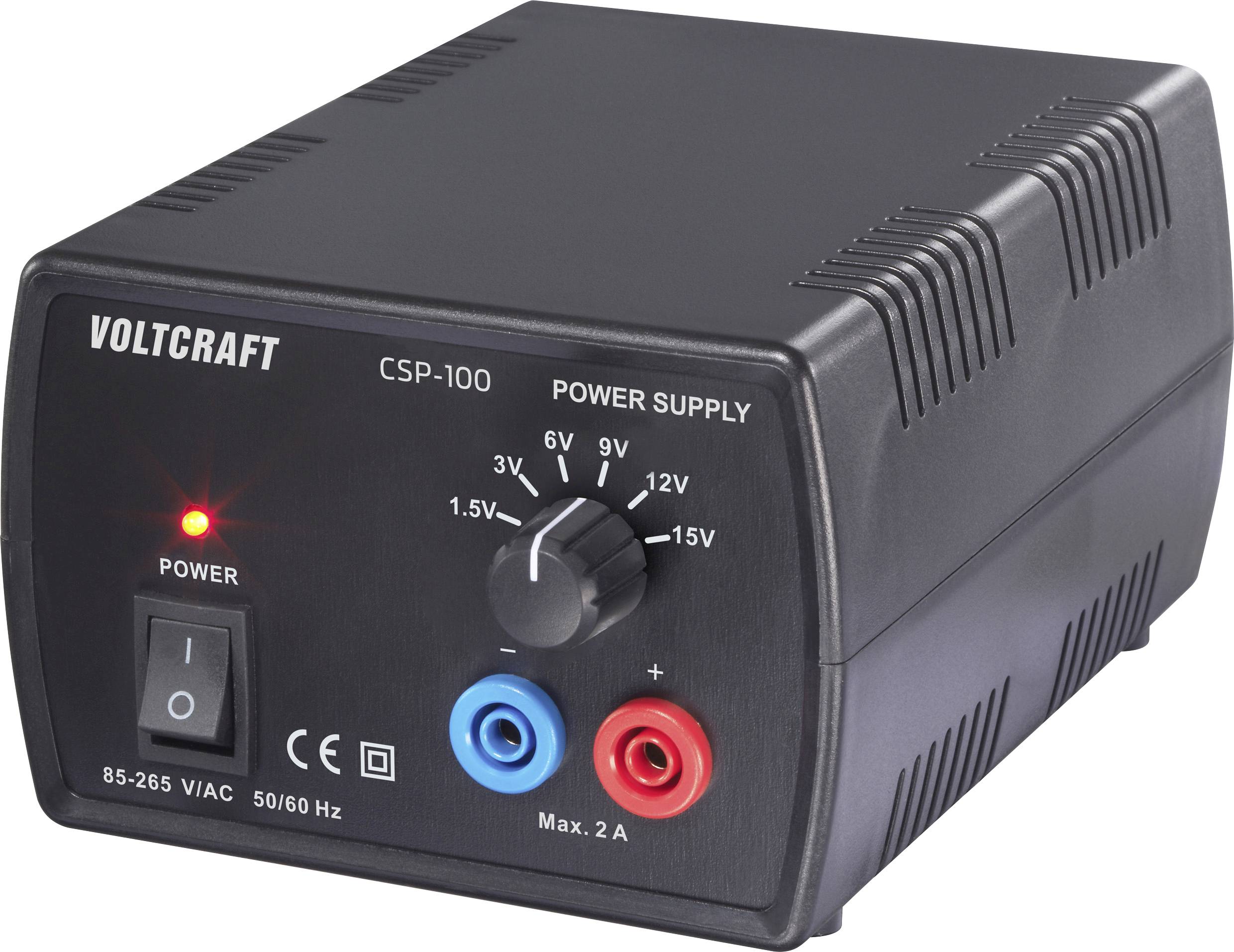

A black Voltcraft CSP-100 power supply with adjustable voltage knob, ranging from 1.5V to 15V, and red and blue output sockets.

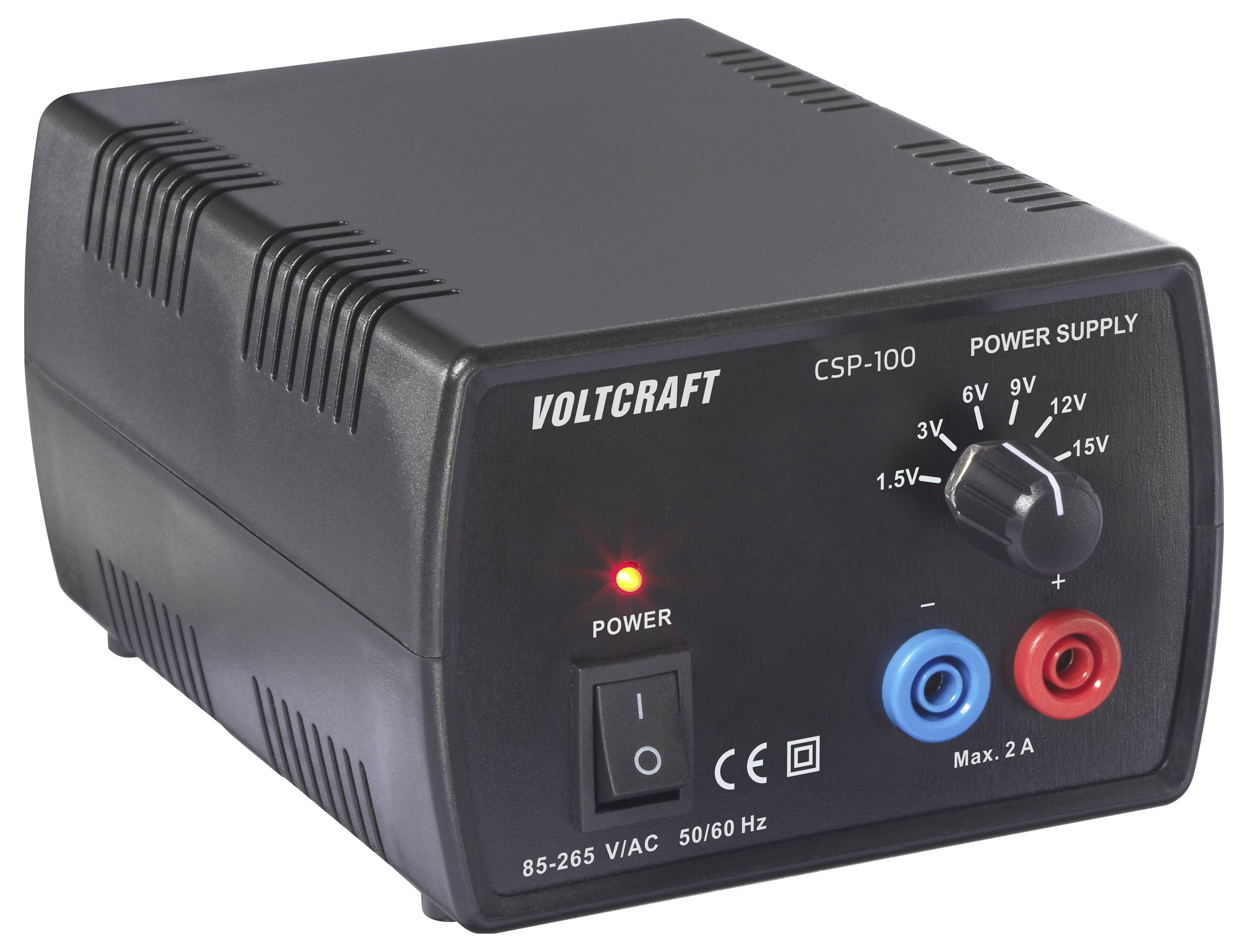

Black Voltcraft CSP-100 power supply with a dial for voltage selection and red/blue terminals. Red LED indicates power is on.

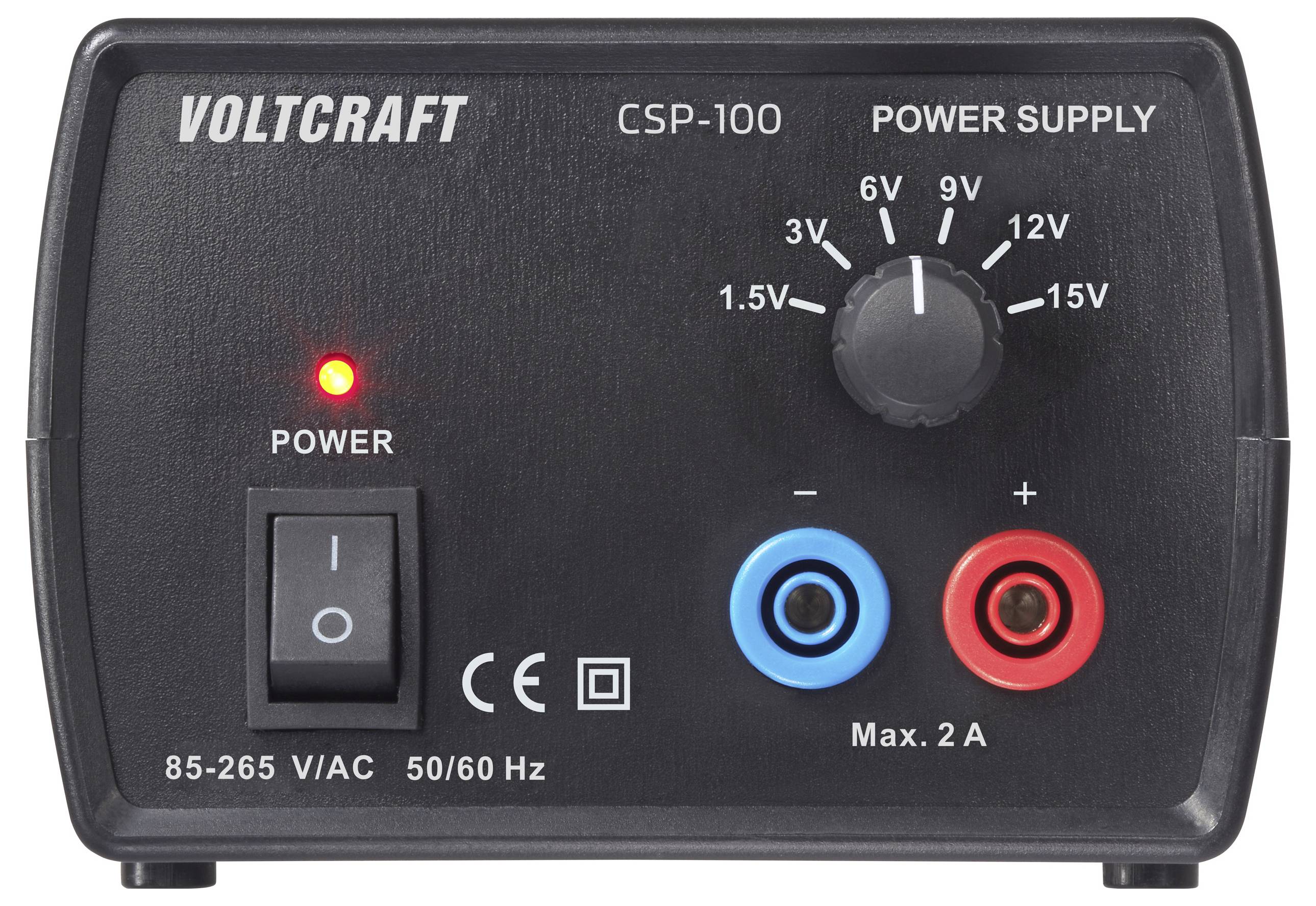

Voltage power supply unit displaying 'VOLTCRAFT CSP-100'. Features adjustable voltage knob with settings 1.5V to 15V, power switch, and outputs marked blue and red.

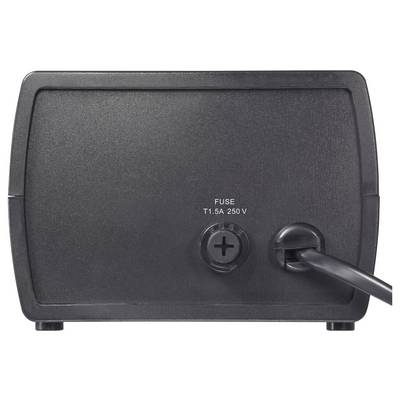

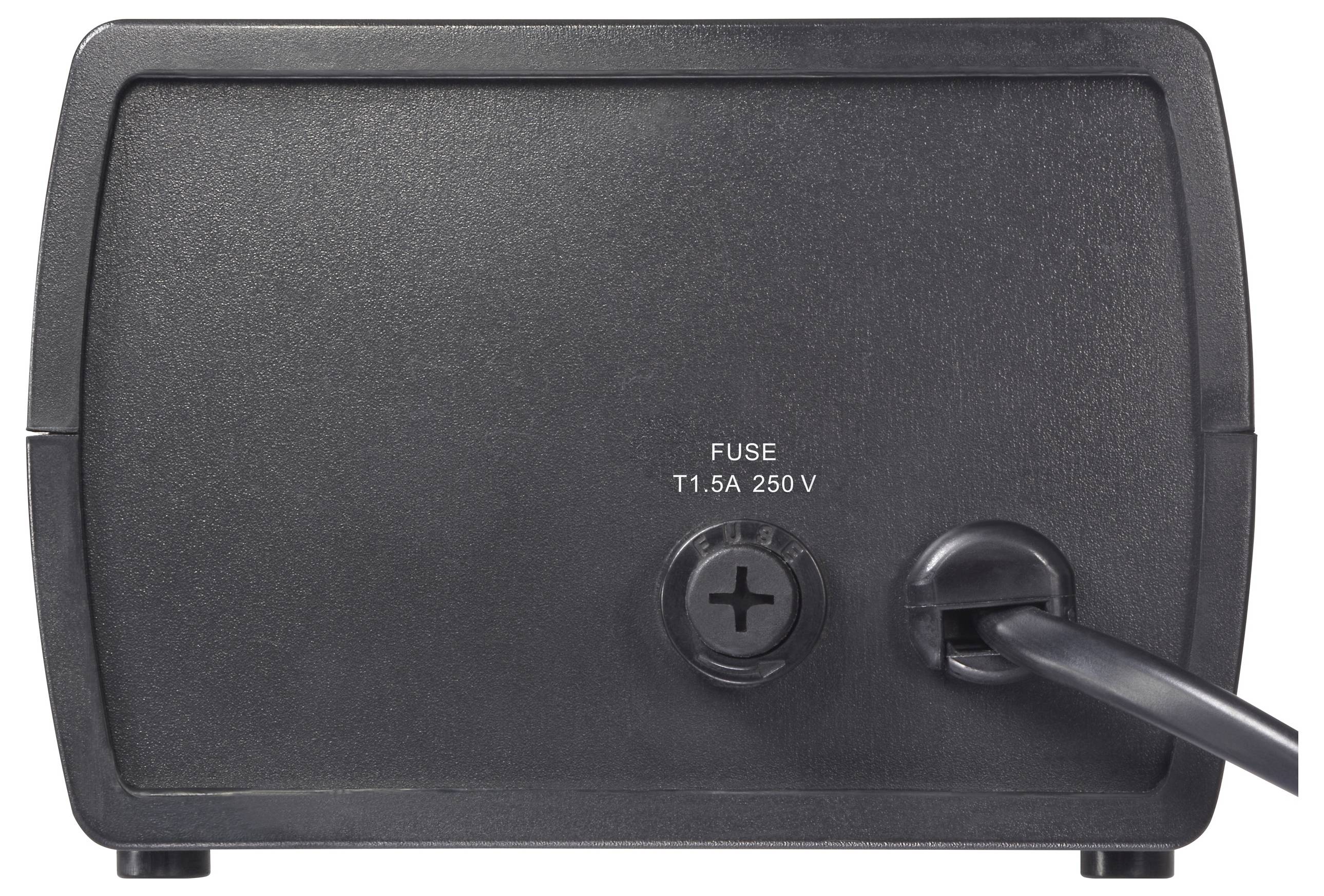

Backside of a black electronic device with a power cord and a fuse labeled 'FUSE T1.5A 250V', indicating electrical specifications.

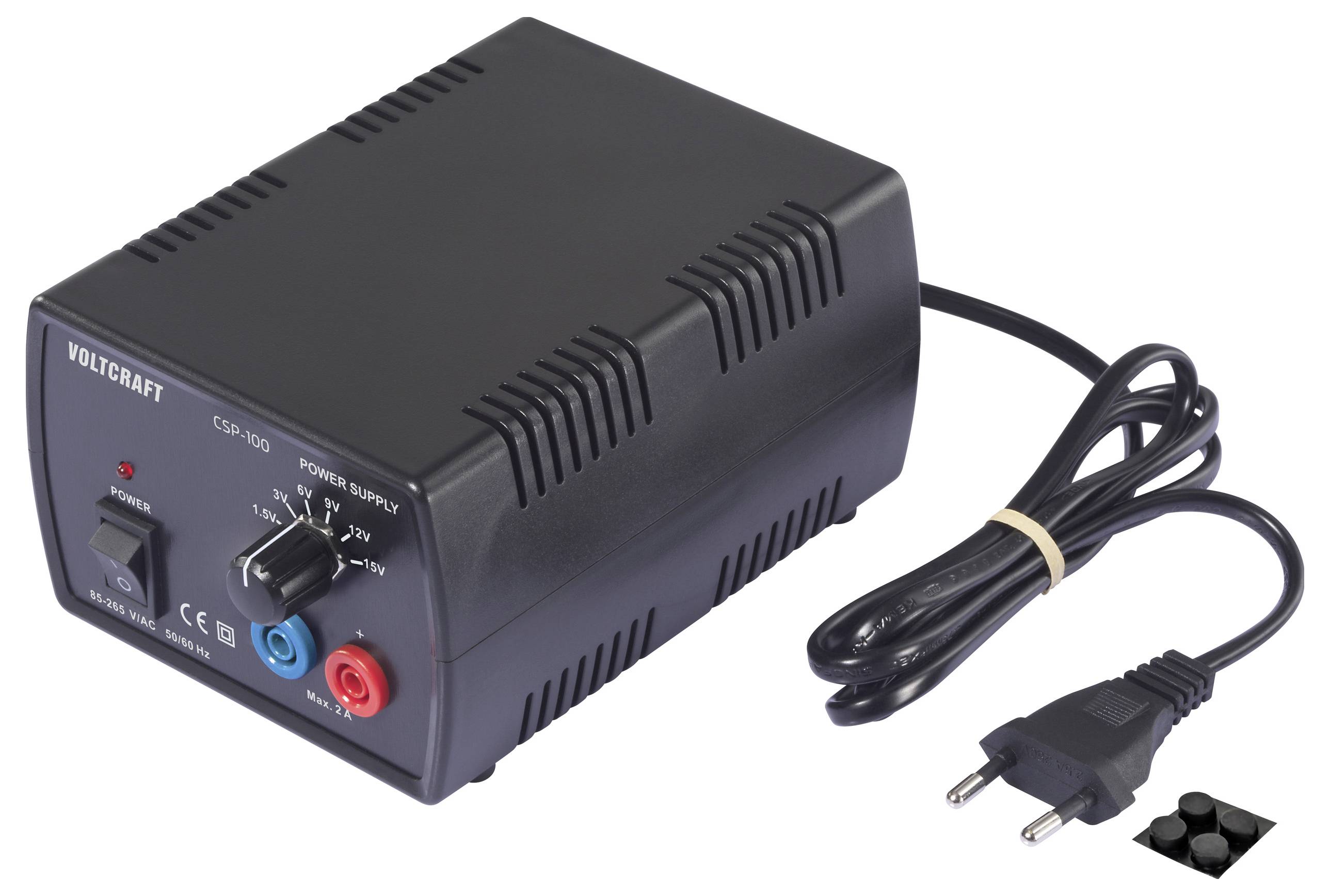

A black Voltcraft CSR-100 power supply with red and blue output terminals, a switch, and a European plug cable, placed on a white background.

1/5

Our service for you

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT CSP-100 Power supply

No. of outputs 1 x
1.5 V, 3 V, 6 V, 9 V, 12 V, 15 V / 2 A (max.)
30 W

Technical specifications

Fuse: T1.5 A / 250 V
Efficiency: >80 %

Type: CSP-100

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 30 W

Technology: SMPSU

Dim: (L x W x H) 140 x 110 x 74 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Weight: 300 g

Connections: 4 mm safety sockets

Type: Switching DC

Output voltage (max.): 1.5 V
3 V
6 V
9 V
12 V
15 V

Output voltage (min.): 1.5 V DC

Max. output current: 2 A

Inputs: EU plug

MTBF: 2000 h

Mains control: Fuse

Type: Bench PSU (Selectable voltage)

Width: 110 mm

Height: 74 mm

Length: 140 mm

Residual ripple: 20 mV

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3438794 VOLTCRAFT CSP-100 Bench PSU (adjustable voltage) 1.5 V, 3 V, 6 V, 9 V, 12 V, 15 V 2 A (max.) 30 W No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3438794 VOLTCRAFT CSP-100 Bench PSU (adjustable voltage) 1.5 V, 3 V, 6 V, 9 V, 12 V, 15 V 2 A (max.) 30 W No. of outputs 1 x

Warranty Terms

Warranty Terms 3438794 VOLTCRAFT CSP-100 Bench PSU (adjustable voltage) 1.5 V, 3 V, 6 V, 9 V, 12 V, 15 V 2 A (max.) 30 W No. of outputs 1 x

Description

The VOLTCRAFT CSP-100 is a laboratory power supply unit designed for use in professional environments, such as workshops and laboratories. It specializes in providing common standard voltages and provides a reliable energy source for compatible electronic circuits. The clear operating principle allows efficient handling of daily measurement and test tasks.

Versatile voltage selection
The device has a range of fixed adjustable output voltages: 1.5 V, 3 V, 6 V, 9 V, 12 V and 15 V. This fine scale covers the operating requirements of many electronic components and allows a rapid change between the values without a fine adjustment.

Suitable power reserves
With a current of 2 A and a maximum power of 30 W, the CSP-100 provides solid energy reserves. These power parameters ensure that connected consumers are provided stable up to the upper limit of 30 W.

Connector
The power supply unit is equipped with an output (1 x). This concentration on a single connection channel provides for clarity at the workplace and facilitates the direct connection to the test object.
