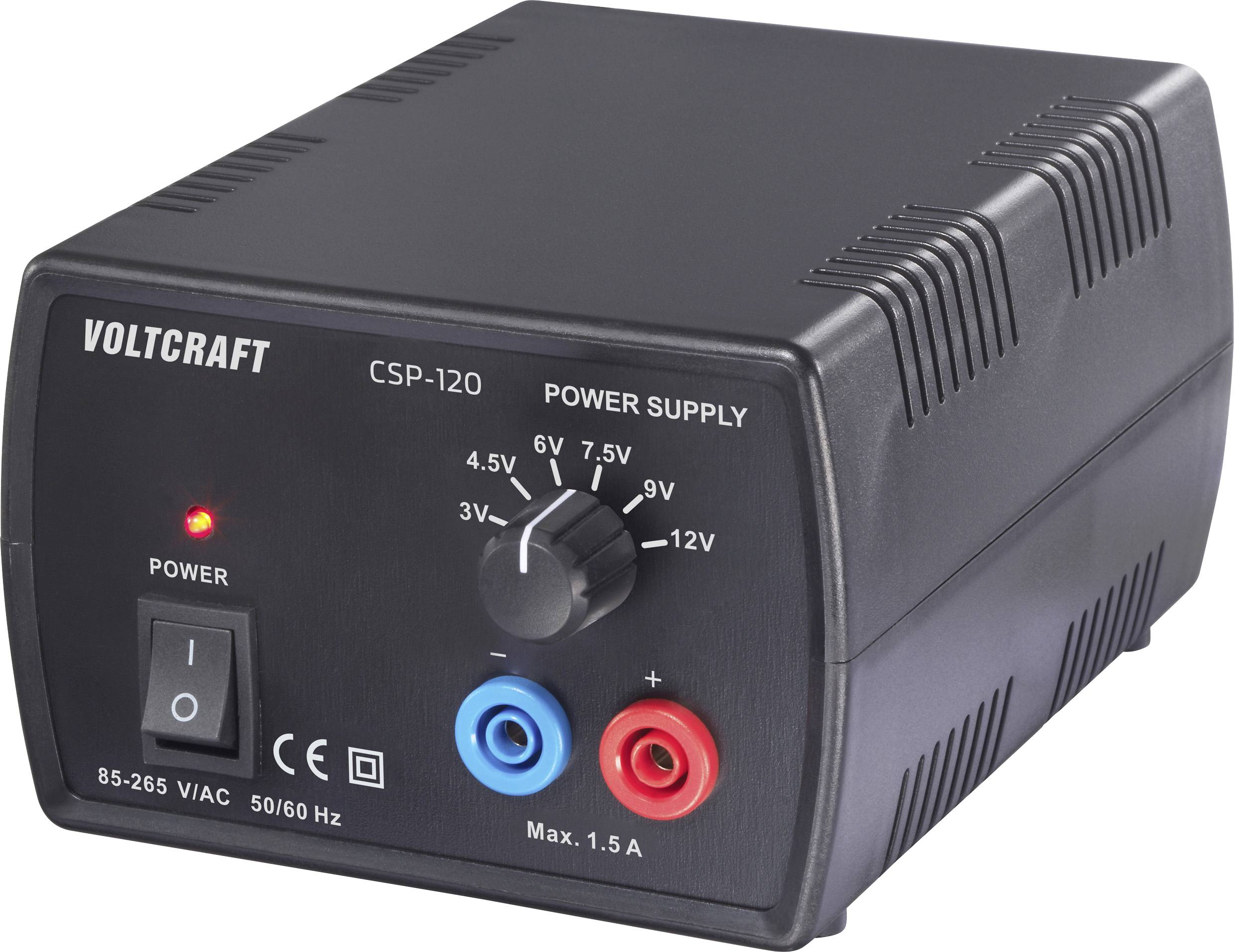

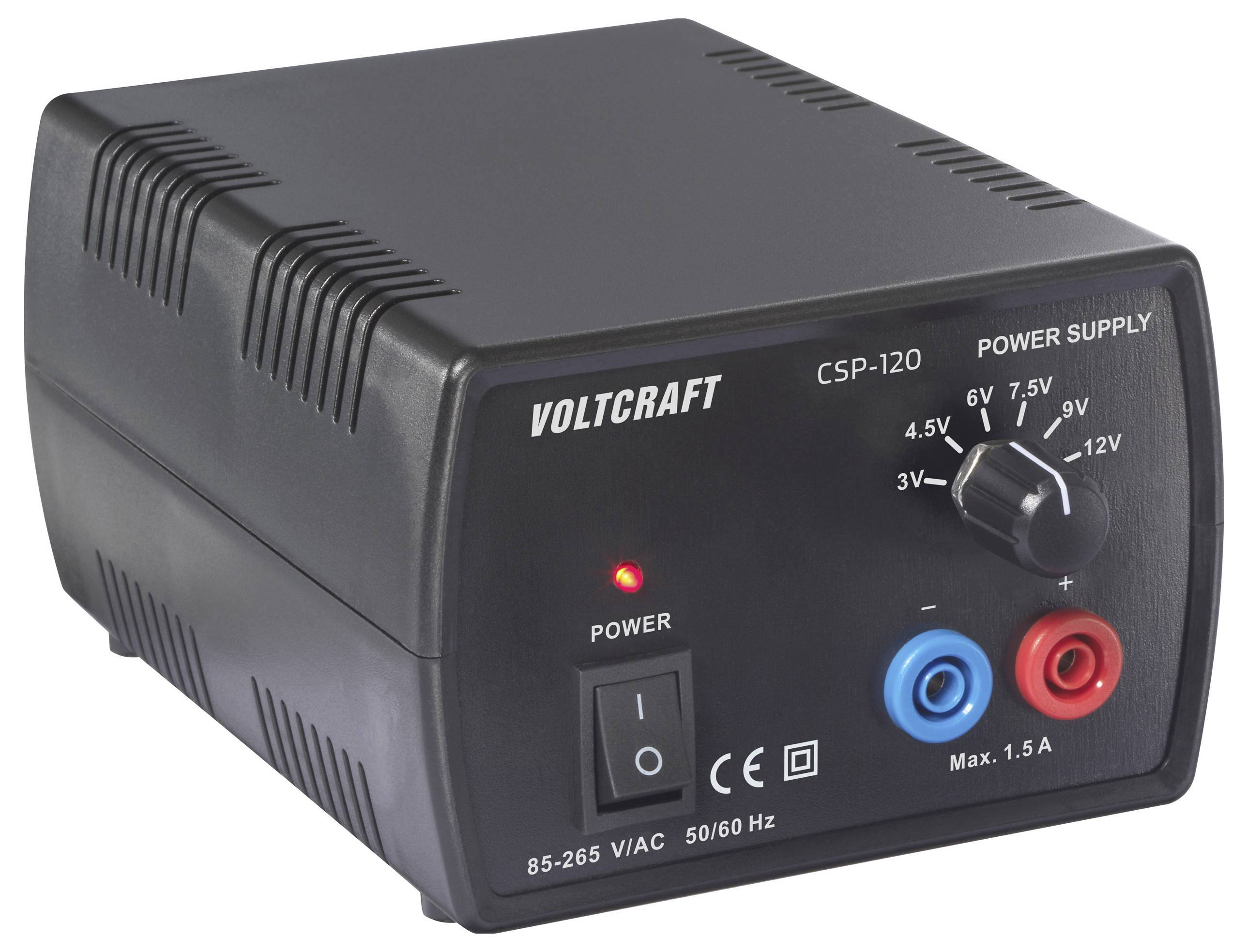

VOLTCRAFT CSP-120 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 1.5 A (max.) 18 W No. of outputs 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Only 5 Piece(s) available
Highlights & Details
VOLTCRAFT CSP-120 Power supply
- No. of outputs 1 x
- 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V / 1.5 A (max.)
- 18 W
Technical specifications

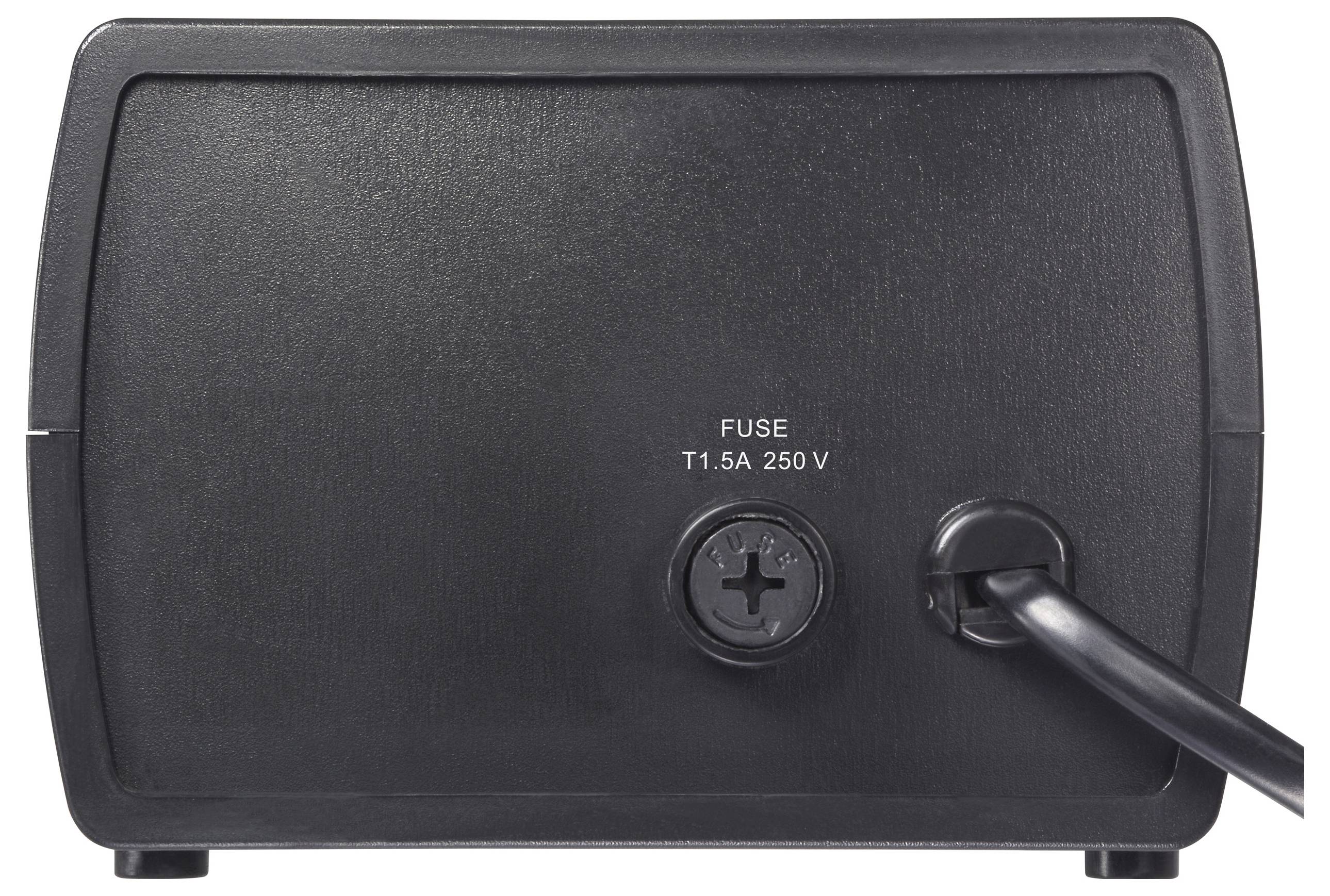

- Fuse: T1 A / 250 V
- Efficiency: >80 %
- Type
CSP-120
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
18 W
- Technology
SMPSU
- Dim
(L x W x H) 140 x 110 x 74 mm
Manufacturer's standards (no certificate)
- Input voltage
100 V AC
240 V AC
- Weight
300 g
- Connections
4 mm safety sockets
- Type
Switching DC
- Output voltage (max.)
3 V
4.5 V
6 V
7.5 V
9 V
12 V
- Output voltage (min.)
3 V DC
- Max. output current
1.5 A
- Inputs
EU plug
- MTBF
2000 h
- Mains control
Fuse
- Type
Bench PSU (Selectable voltage)
- Width
110 mm
- Height
74 mm
- Length
140 mm
- Residual ripple
2 mV
- Max. temperature
40 °C
- Min. temperature
0 °C
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3438792 VOLTCRAFT CSP-120 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 1.5 A (max.) 18 W No. of outputs 1 x
User & Safety Instructions
User & Safety Instructions 3438792 VOLTCRAFT CSP-120 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 1.5 A (max.) 18 W No. of outputs 1 x
Warranty Terms
Warranty Terms 3438792 VOLTCRAFT CSP-120 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 1.5 A (max.) 18 W No. of outputs 1 x
Description
The VOLTCRAFT CSP-120 is a handy laboratory power supply designed for applications who need standard fixed voltages. Ideal is suitable for use in workshops and servicing where specific voltage values must be provided quickly and reliably. The clear gradation of the settings simplifies operation and prevents misadjustments when supplying compatible small devices.
Versatile voltage selection

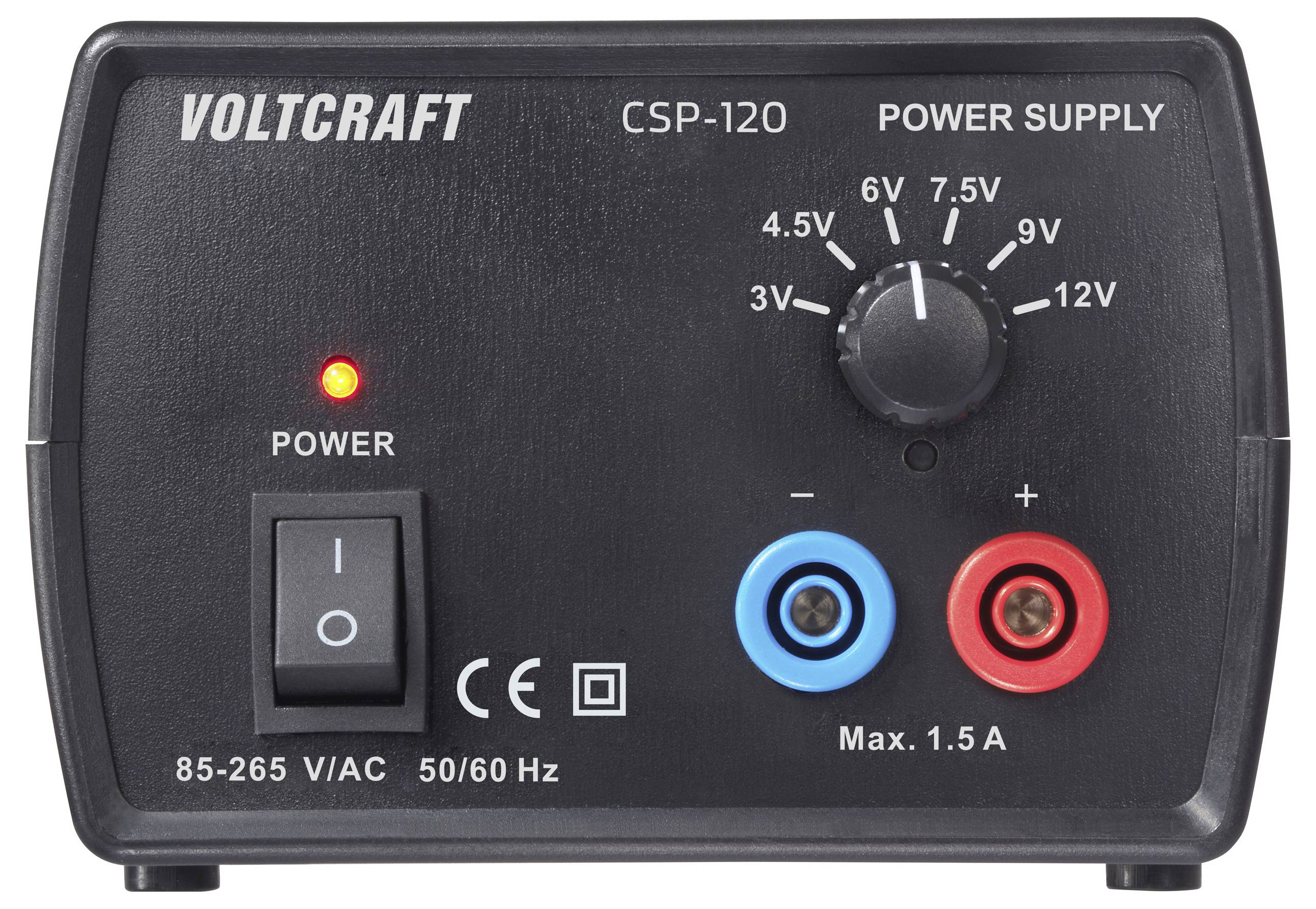

The power supply unit offers a selection of fixed adjustable output voltages: 3 V, 4.5 V, 6 V, 7.5 V, 9 V and 12 V. This bandwidth covers the requirements of many common electronic components and allows flexible use for different test specimens without lengthy adjustment.
Defined power output
With a current of 1.5 A and a maximum power of 18 W, the CSP-120 is designed for business with low-power consumers. It ensures that connected devices are supplied with stable power within these specifications.
Connector
The device is equipped with an output (1 x). This reduction on a central connection provides for a clear overview at the workplace and enables a direct connection to the respective consumer.
This text is machine translated.
Versatile voltage selection
The power supply unit offers a selection of fixed adjustable output voltages: 3 V, 4.5 V, 6 V, 7.5 V, 9 V and 12 V. This bandwidth covers the requirements of many common electronic components and allows flexible use for different test specimens without lengthy adjustment.
Defined power output
With a current of 1.5 A and a maximum power of 18 W, the CSP-120 is designed for business with low-power consumers. It ensures that connected devices are supplied with stable power within these specifications.
Connector
The device is equipped with an output (1 x). This reduction on a central connection provides for a clear overview at the workplace and enables a direct connection to the respective consumer.
This text is machine translated.
Features
- Compact power supply
- Adjustable voltage (6 steps)
- Wide voltage input
Scope of delivery

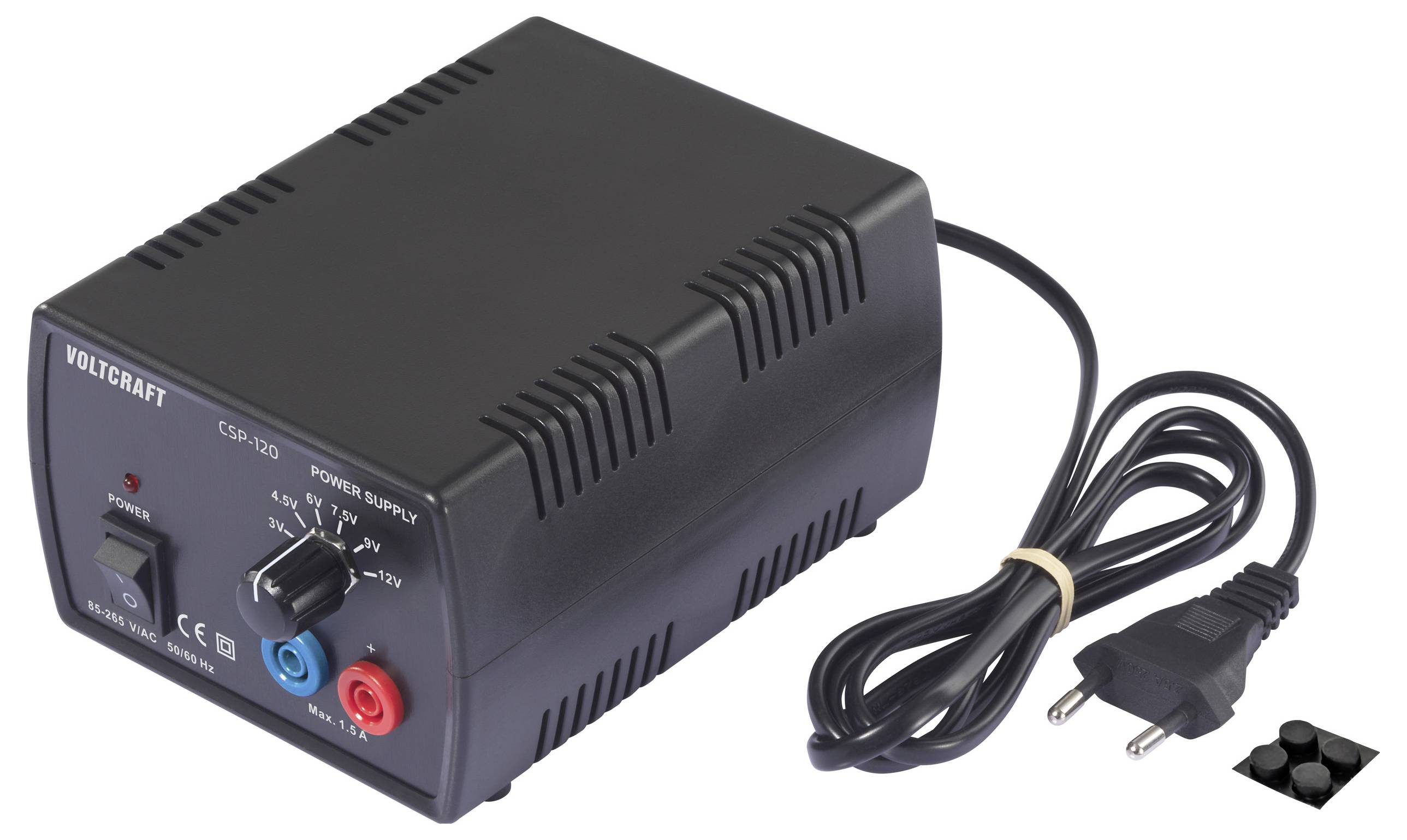

- Power supply with power cord
- User manual
