Buy VOLTCRAFT CSP-180 Bench PSU (adjustable voltage) DC voltage 0 - 30 ;1 A (max.);30 W;No. of outputs 1 x

A 'Voltcraft CSP-180' power supply displaying 0.00 volts and 0.00 amps. Features include adjustable dials and power indicators.

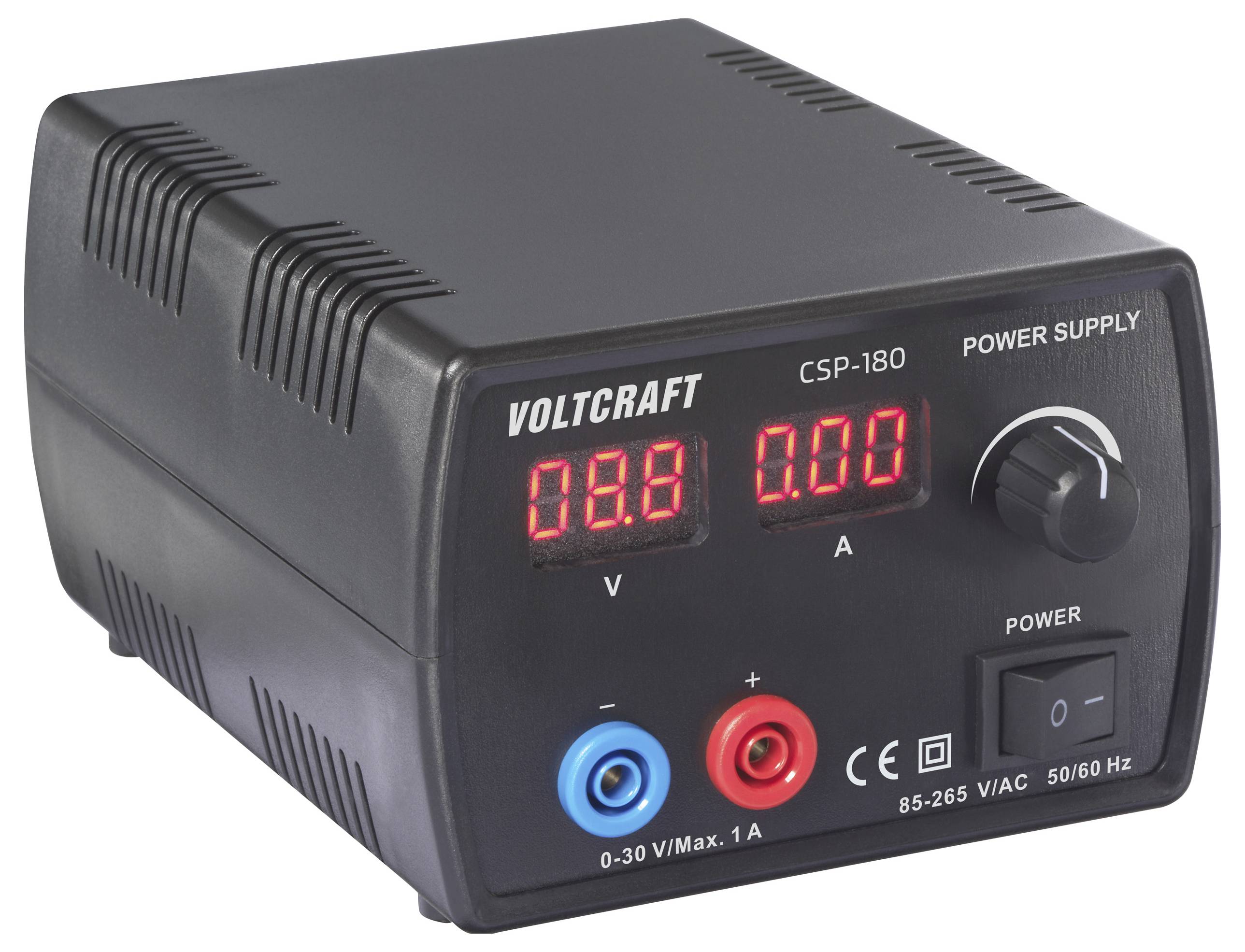

A black Voltcraft CSP-180 power supply with digital display showing '0.00' volts and amps, a dial, power switch, and colored terminals.

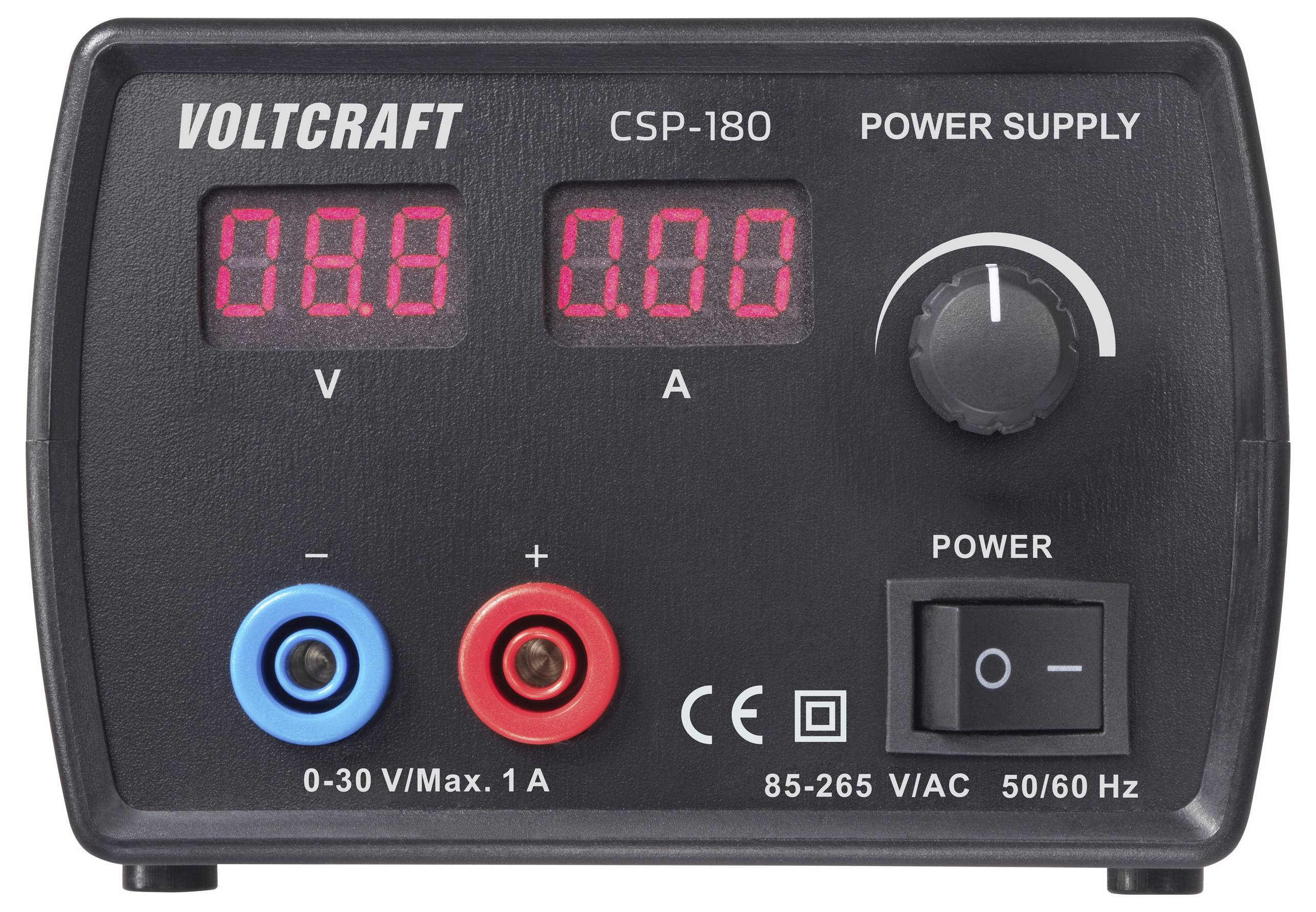

'VOLTCRAFT CSP-180 Power Supply' with digital displays for voltage and current, adjustable knob, and power switch.

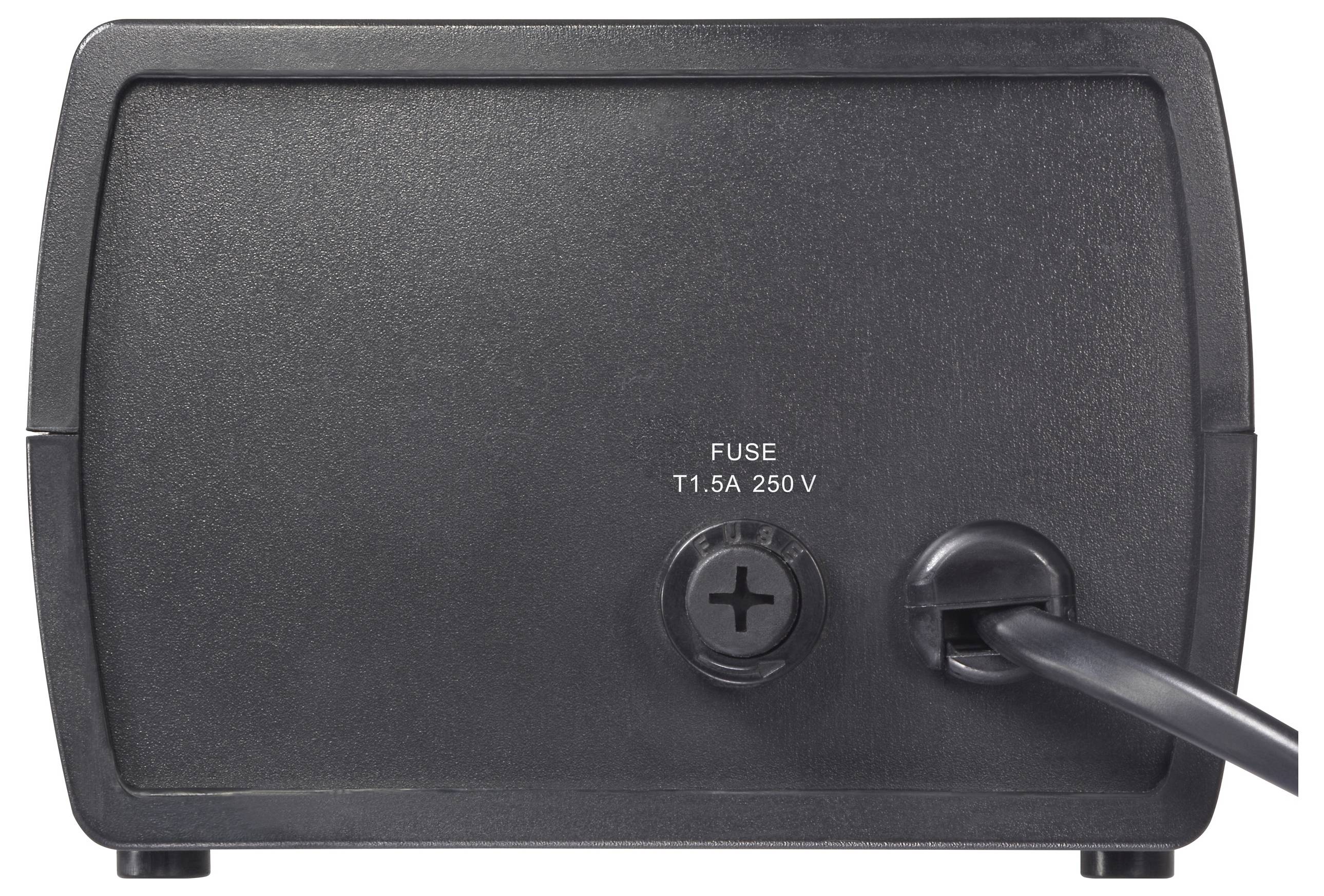

The image shows the back of an electrical device with a visible fuse slot labeled 'FUSE T1.5A 250V' and a power cord plugged in.

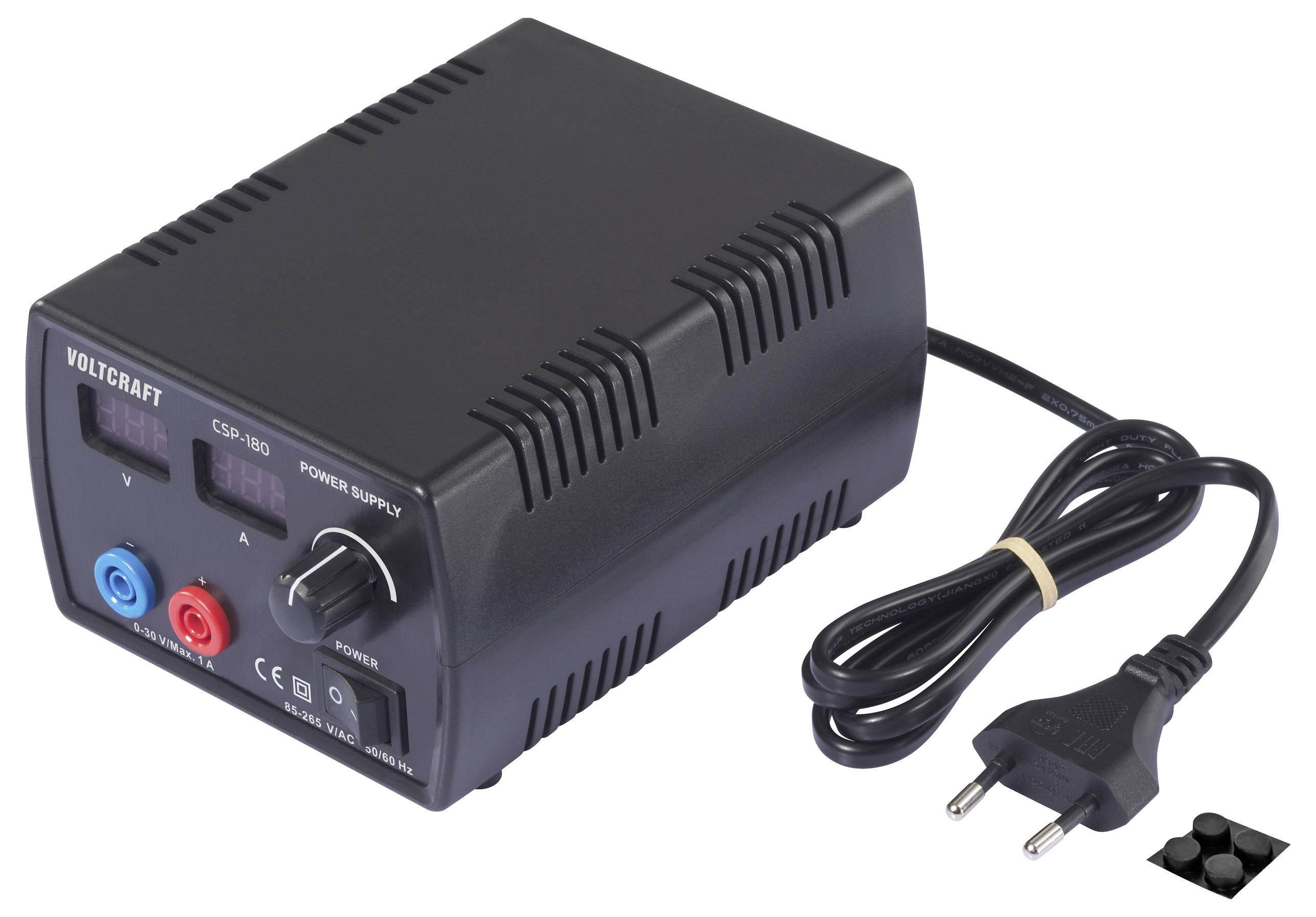

'A black Voltcraft CSP-180 power supply with two meters and knobs for voltage and current, displaying measurement units and dual output jacks.'

1/5

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT CSP-180 Power supply

No. of outputs 1 x
0 - 30 / 1 A (max.)
30 W

Technical specifications

Fuse: T1.5 A / 250 V
Efficiency: >80 %

Type: CSP-180

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 30 W

Technology: SMPSU

Dim: (L x W x H) 140 x 110 x 74 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Weight: 300 g

Connections: 4 mm safety sockets

Type: Switching DC

Output voltage (max.): 30 V DC

Output voltage (min.): 0 V DC

Max. output current: 1 A

Inputs: EU plug

MTBF: 2000 h

Mains control: Fuse

Type: Bench PSU (Adjustable voltage)

Width: 110 mm

Height: 74 mm

Length: 140 mm

Residual ripple: 70 mV

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3438795 VOLTCRAFT CSP-180 Bench PSU (adjustable voltage) DC voltage 0 - 30 ;1 A (max.);30 W;No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3438795 VOLTCRAFT CSP-180 Bench PSU (adjustable voltage) DC voltage 0 - 30 ;1 A (max.);30 W;No. of outputs 1 x

Warranty Terms

Warranty Terms 3438795 VOLTCRAFT CSP-180 Bench PSU (adjustable voltage) DC voltage 0 - 30 ;1 A (max.);30 W;No. of outputs 1 x

Description

The VOLTCRAFT CSP-180 is a compact laboratory power supply unit designed for use in professional environments, such as development laboratories and workshops. It offers a solid basic supply for electronic applications in the low power range. The ease of use and the defined technical parameters make it a reliable aid for daily measurement and test tasks.

Variable voltage adjustment
The mains adapter allows flexible adjustment of the output voltage in a range from 0 to 30 V. This wide adjustment range allows the supply of various electronic circuits and components requiring variable input voltages.

Defined performance data
With a current of 1 A and a maximum power of 30 W, the CSP-180 ensures a stable power supply. The performance data is specially designed for applications that do not require high currents but require a constant supply.

Focused operation
The device has an output (1 x). This concentration on the essentials ensures a clear working environment and facilitates the direct connection of the test sample.

This text is machine translated.
