Buy VOLTCRAFT CSP-310 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 2 - 6 A 72 W No. of outputs 1 x

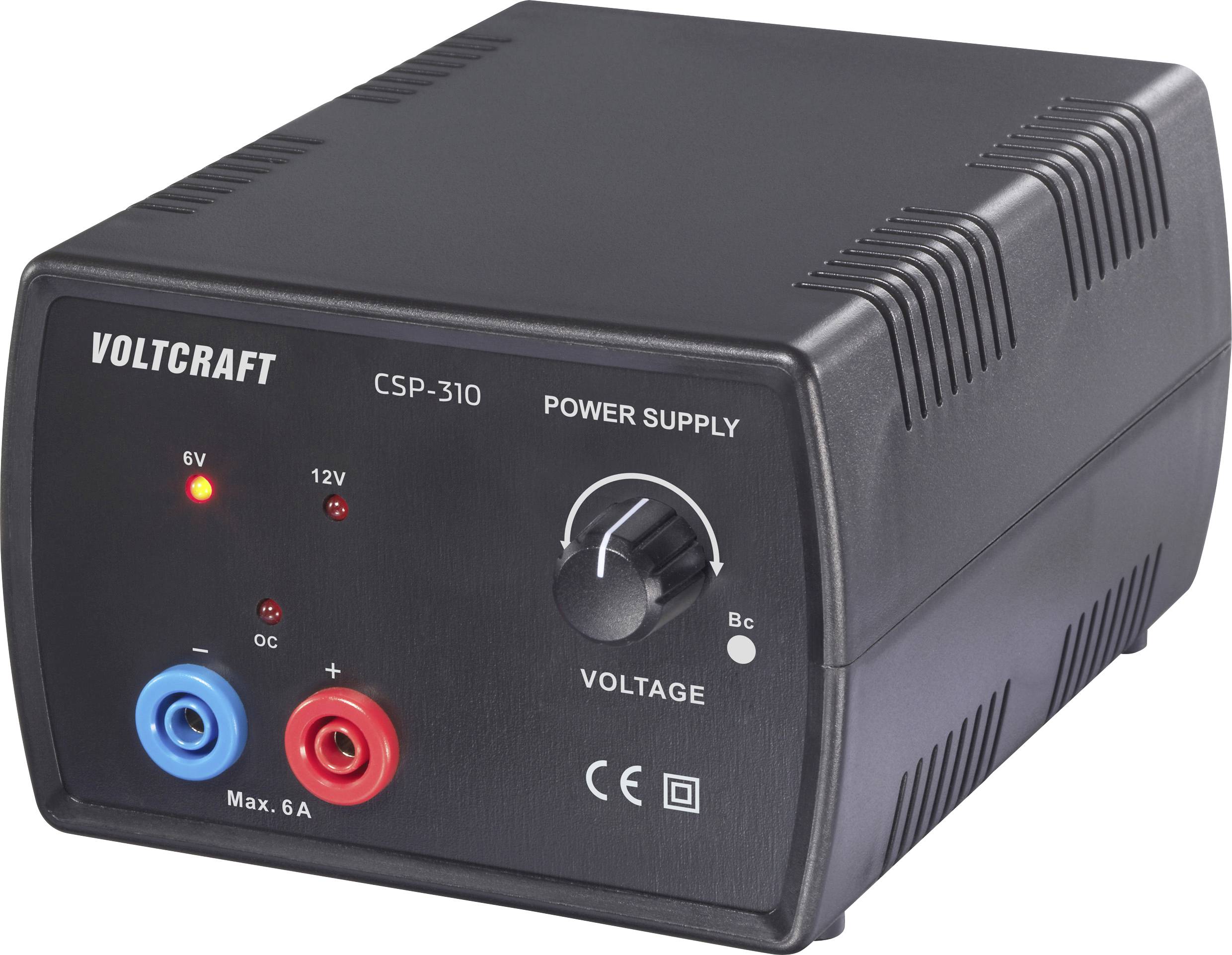

'Voltcraft CSP-310 Power Supply' shows a black unit with voltage settings. Features voltage dial, red and blue connectors, and indicator lights.

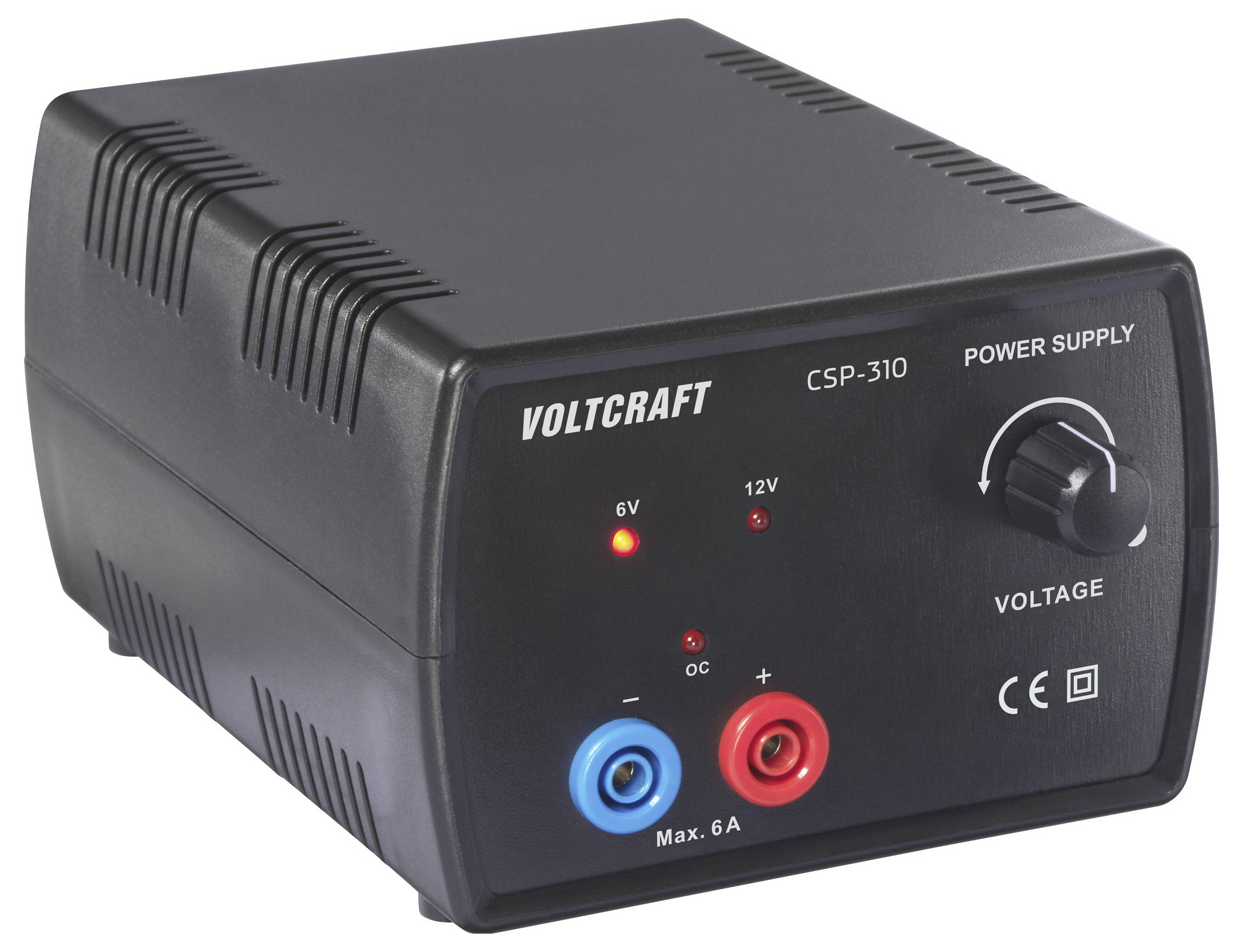

A black Voltcraft CSP-310 power supply unit with voltage dial, 6V and 12V settings, red and blue output sockets, and a power indicator.

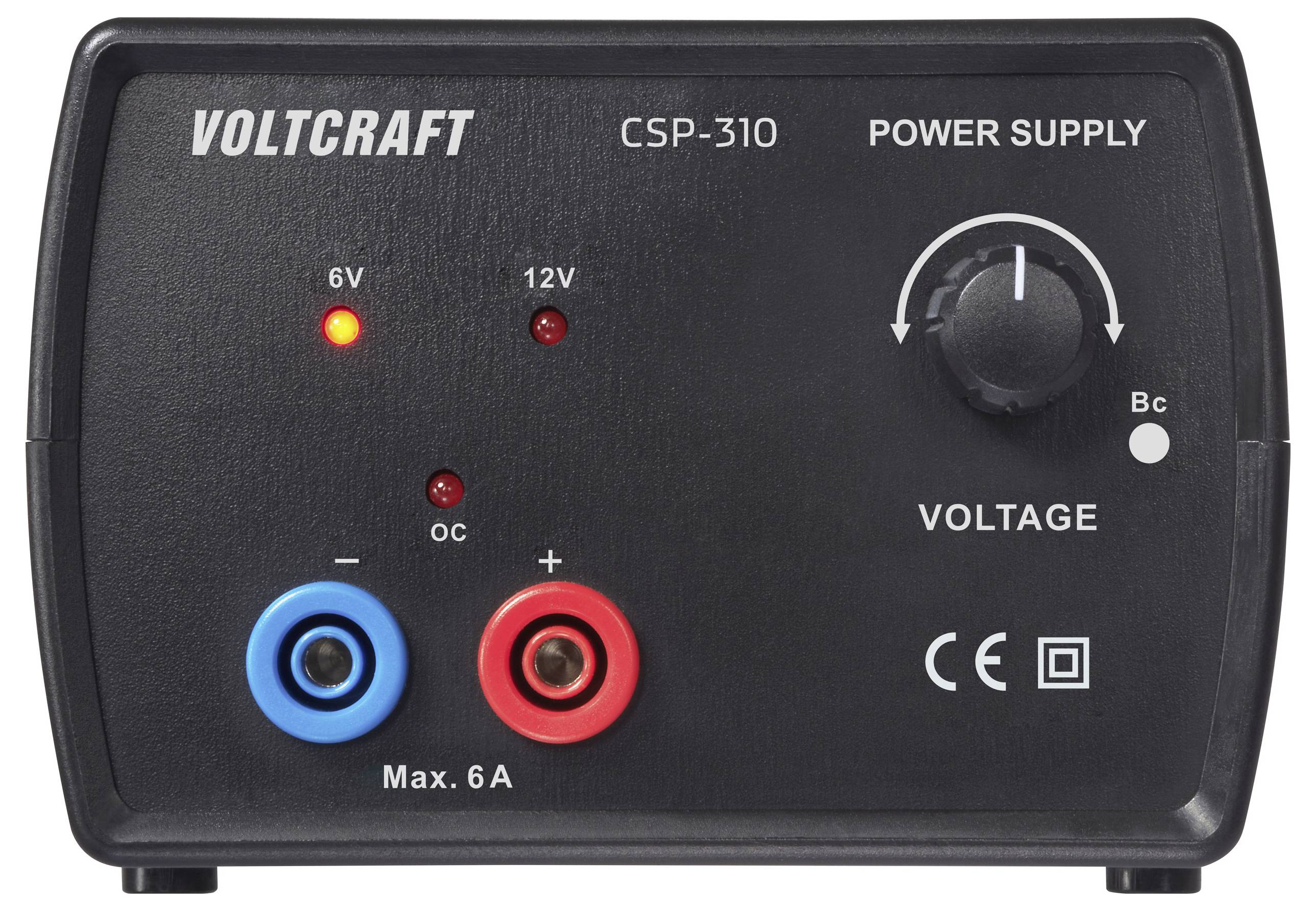

'Voltcraft CSP-310 Power Supply' showing voltage dial, 6V/12V indicators, red and blue terminals, and various safety labels.

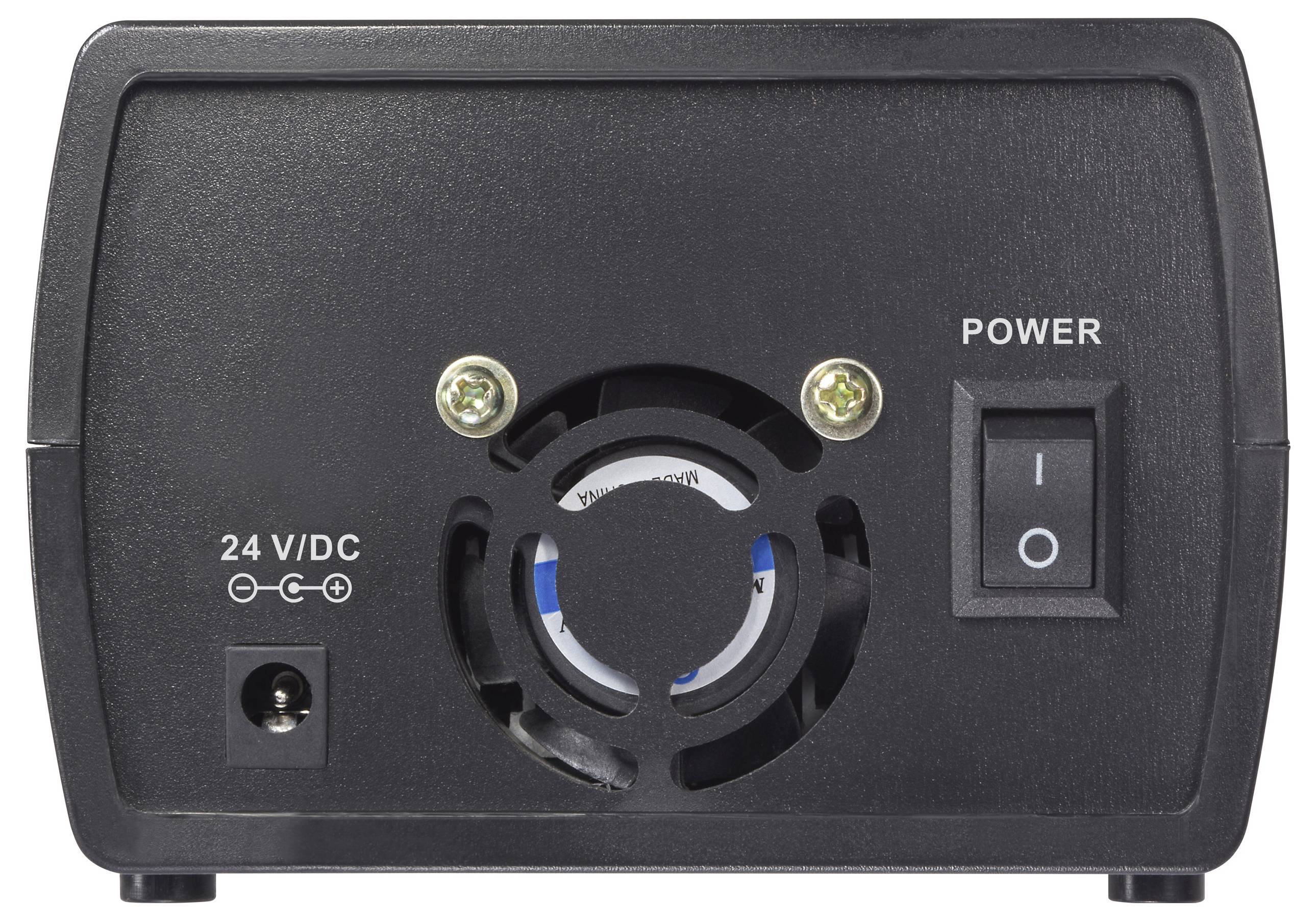

Back view of a black electronic device with a power switch, labeled 'POWER', a port labeled '24 V/DC', and a central ventilation grille.

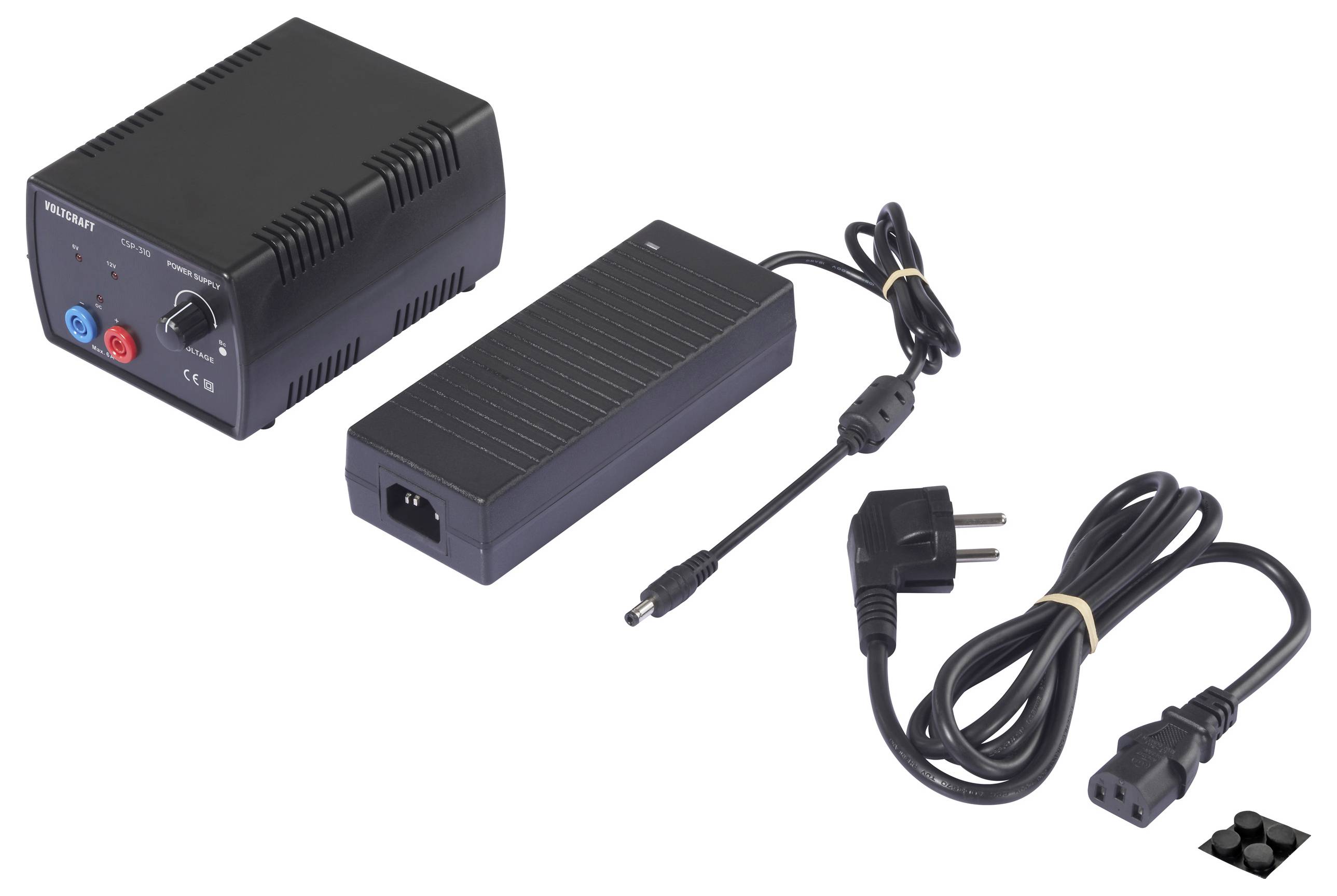

A power supply and adapter with cables, showing a US plug, ready for electronic device connectivity.

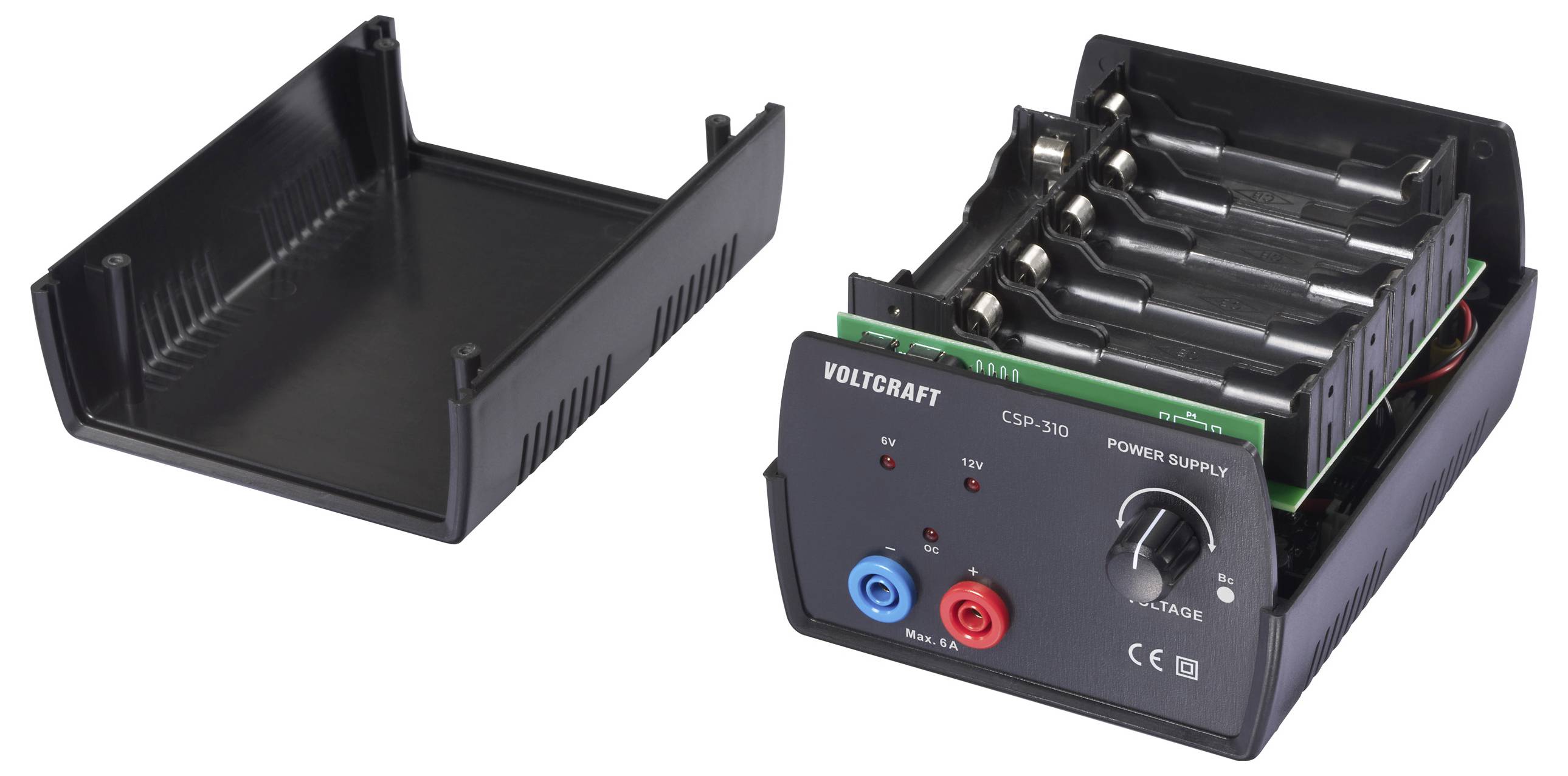

'A Voltcraft CSP-310 power supply with an open plastic casing showing multiple battery slots, power knob, and red and blue terminals.'

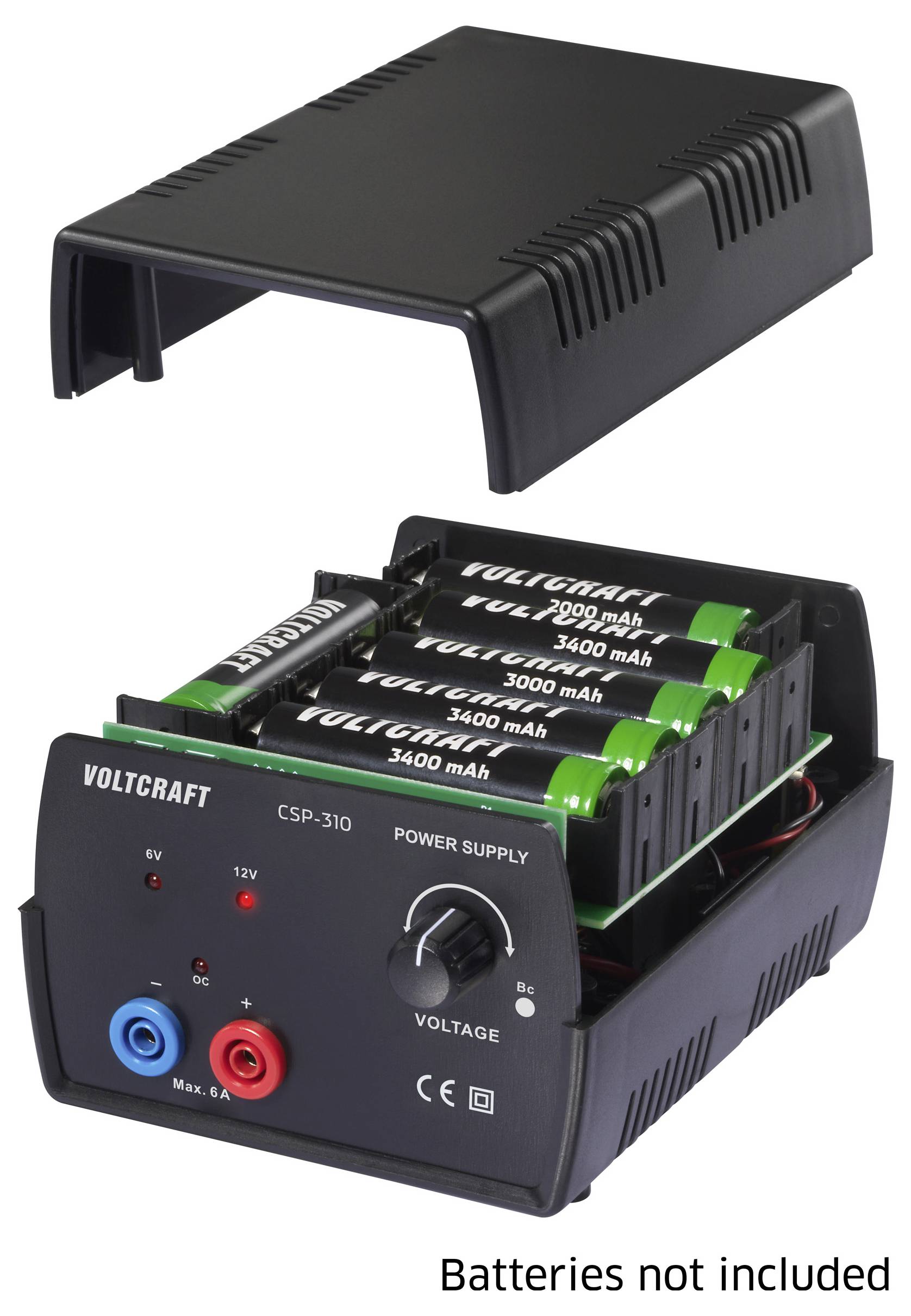

'VOLTCRAFT CSP-310 power supply', showing battery compartment with six 1.2V rechargeable batteries (not included) and plastic cover.

1/7

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT CSP-310 Power supply

No. of outputs 1 x
6 V DC, 12 V DC / 2 - 6 A
2 A (battery mode), 6 A (adaptor mode)
72 W

Technical specifications

Efficiency: >80 %

Type: CSP-310

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 72 W

Technology: SMPSU

Dim: (L x W x H) 140 x 110 x 74 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Connections: 4 mm safety sockets

Type: Switching DC

Output voltage (max.): 6 V DC
12 V DC

Output voltage (min.): 6 V DC

Max. output current: 6 A

Output current (min.): 2 A

Inputs: Vehicle socket

MTBF: 2000 h

Mains control: Fuse

Type: Bench PSU (Selectable voltage)

Width: 110 mm

Height: 74 mm

Length: 140 mm

Residual ripple: 40 mV

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3438556 VOLTCRAFT CSP-310 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 2 - 6 A 72 W No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3438556 VOLTCRAFT CSP-310 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 2 - 6 A 72 W No. of outputs 1 x

Warranty Terms

Warranty Terms 3438556 VOLTCRAFT CSP-310 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 2 - 6 A 72 W No. of outputs 1 x

Description

Battery- and mains-operation
The VOLTCRAFT CSP-310 is a digital lab power supply specially designed for applications who require% mobile use and 100% disconnection from the mains voltage. The laboratory power supply can be operated with mains voltage as well as with 6 standard 18650 Li-ion battery cells (not included). The batteries are inserted into the battery holders in the inside of the housing and charged. Any old battery cells can be replaced by new cells at a later time without any problem.

Selectable voltage levels
The device provides two common output voltages: 6 V and 12 V. This pre-selection covers frequently used voltage ranges and enables a quick adjustment to the respective consumer by simply switching.

Defined currents
And high power In addition to the voltage, the power consumption can also be specifically addressed. The CSP-310 offers 2 A (battery operation) and 6 A (AC operation) currents. In its tip the power supply unit supplies a power of 72 W, WAS also offers sufficient reserves for more energy-intensive applications within the framework of the specifications.

Output
With an output (1 x), the power supply unit focuses on the essential task of supplying a single sample. This ensures a clear handling and minimizes the risk of incorrect operation.
