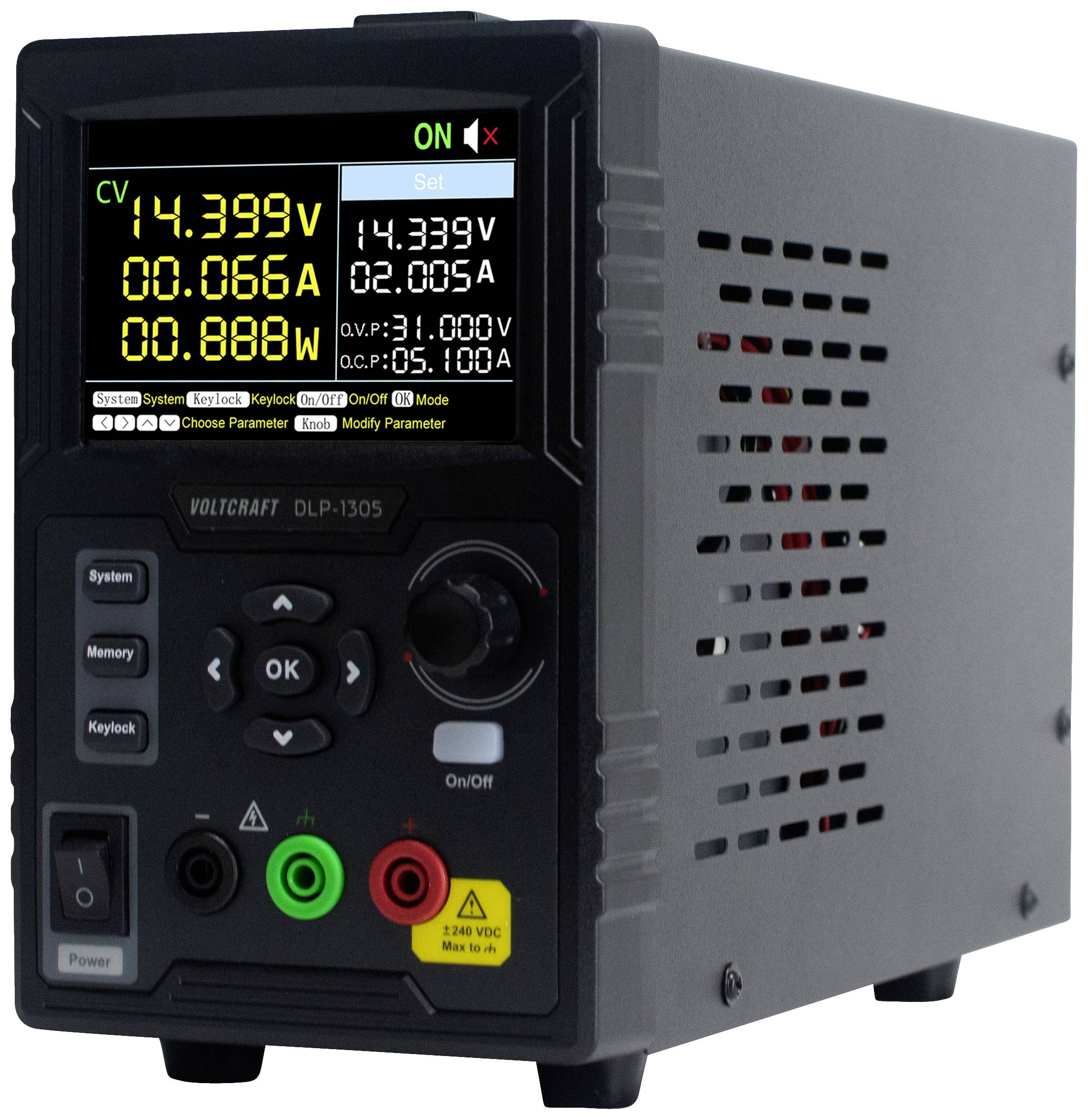

Black power supply unit with digital display. The display shows current, voltage, and power. Three large buttons and control knobs are located underneath.

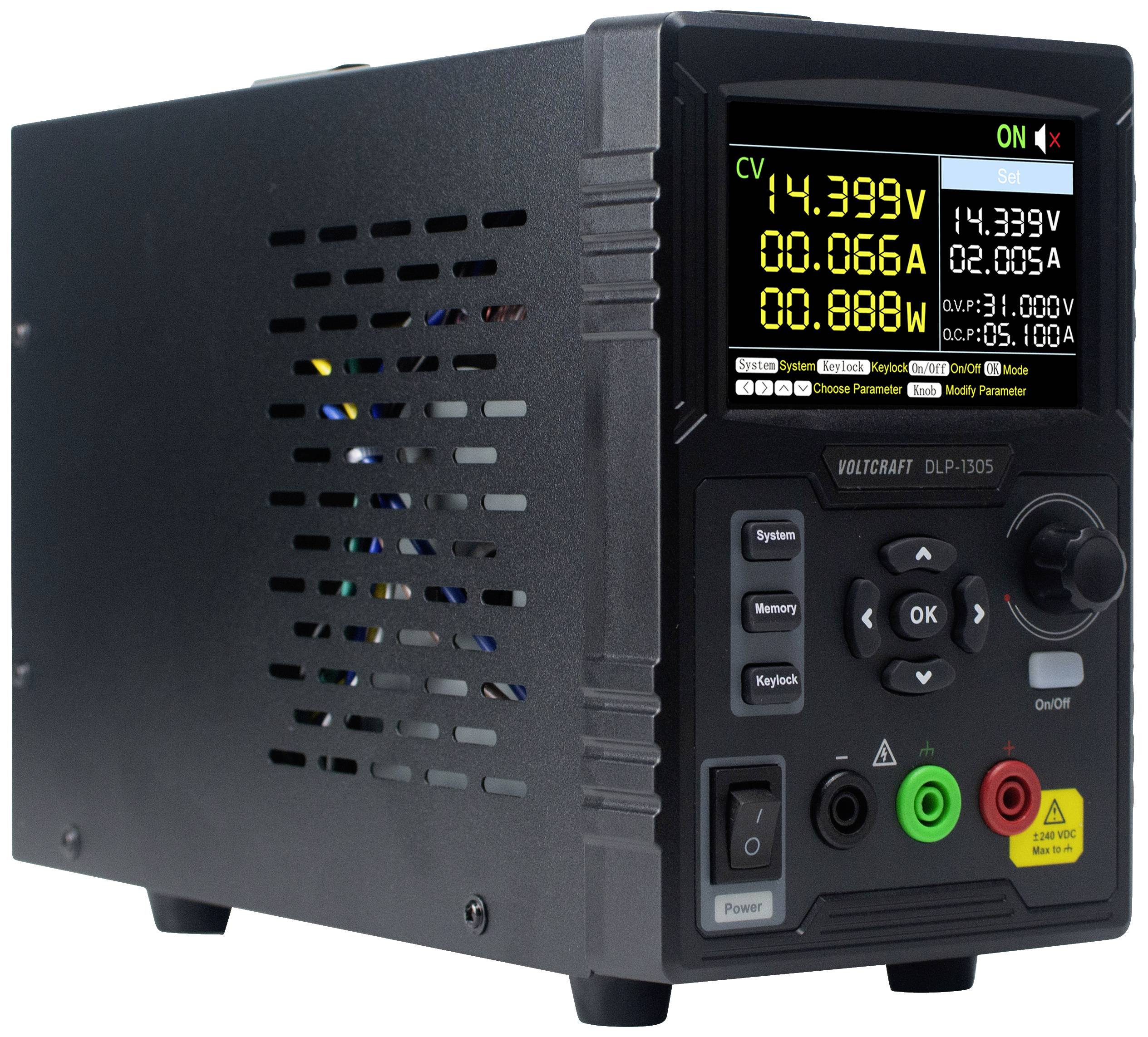

A black digital laboratory power supply with displays for voltage (14.399V), current (0.066A) and power (0.888W). Control buttons located at the front.

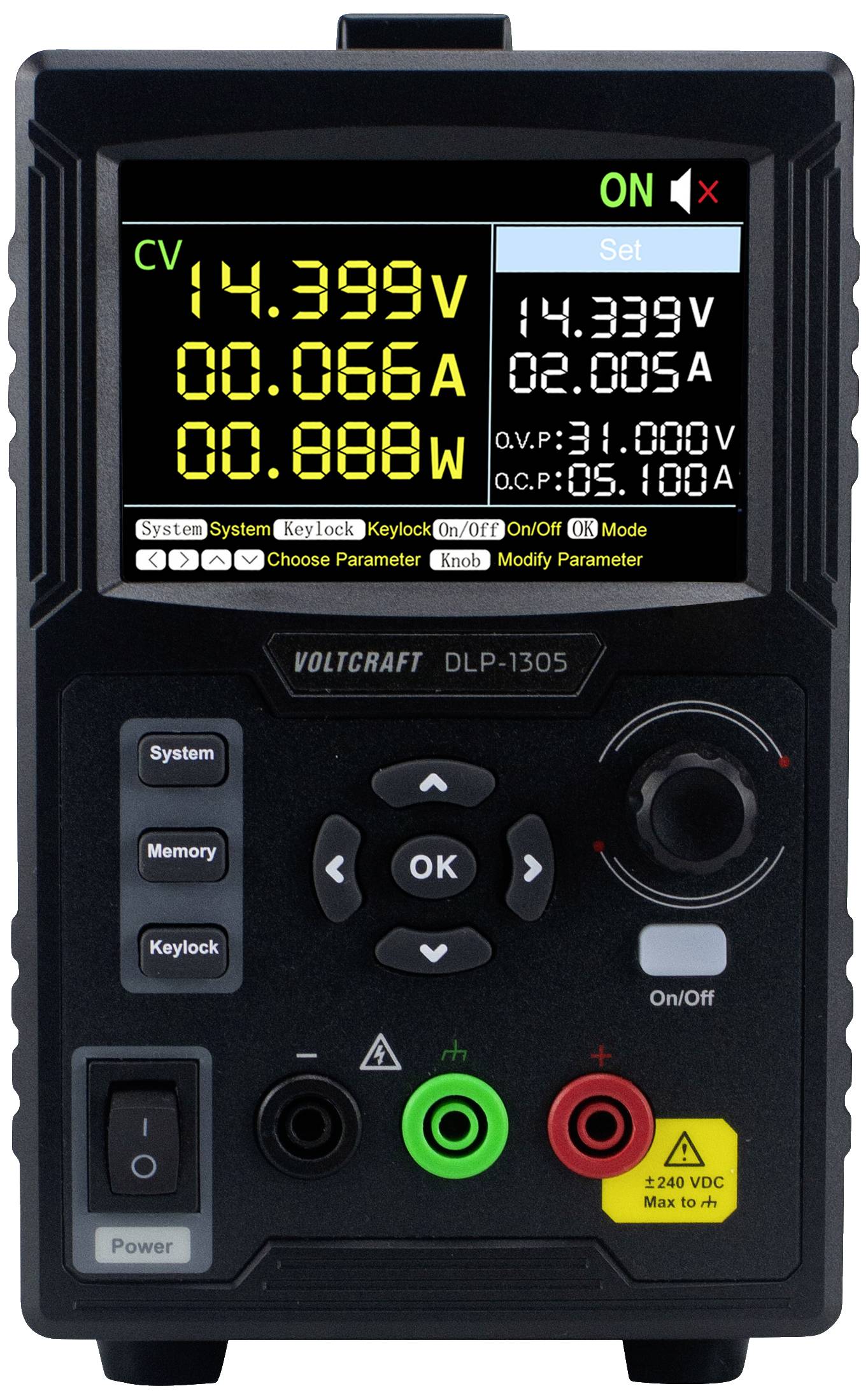

A laboratory power supply with display showing voltage (14.399 V) and current (0.066 A). Various control buttons and connections are visible.

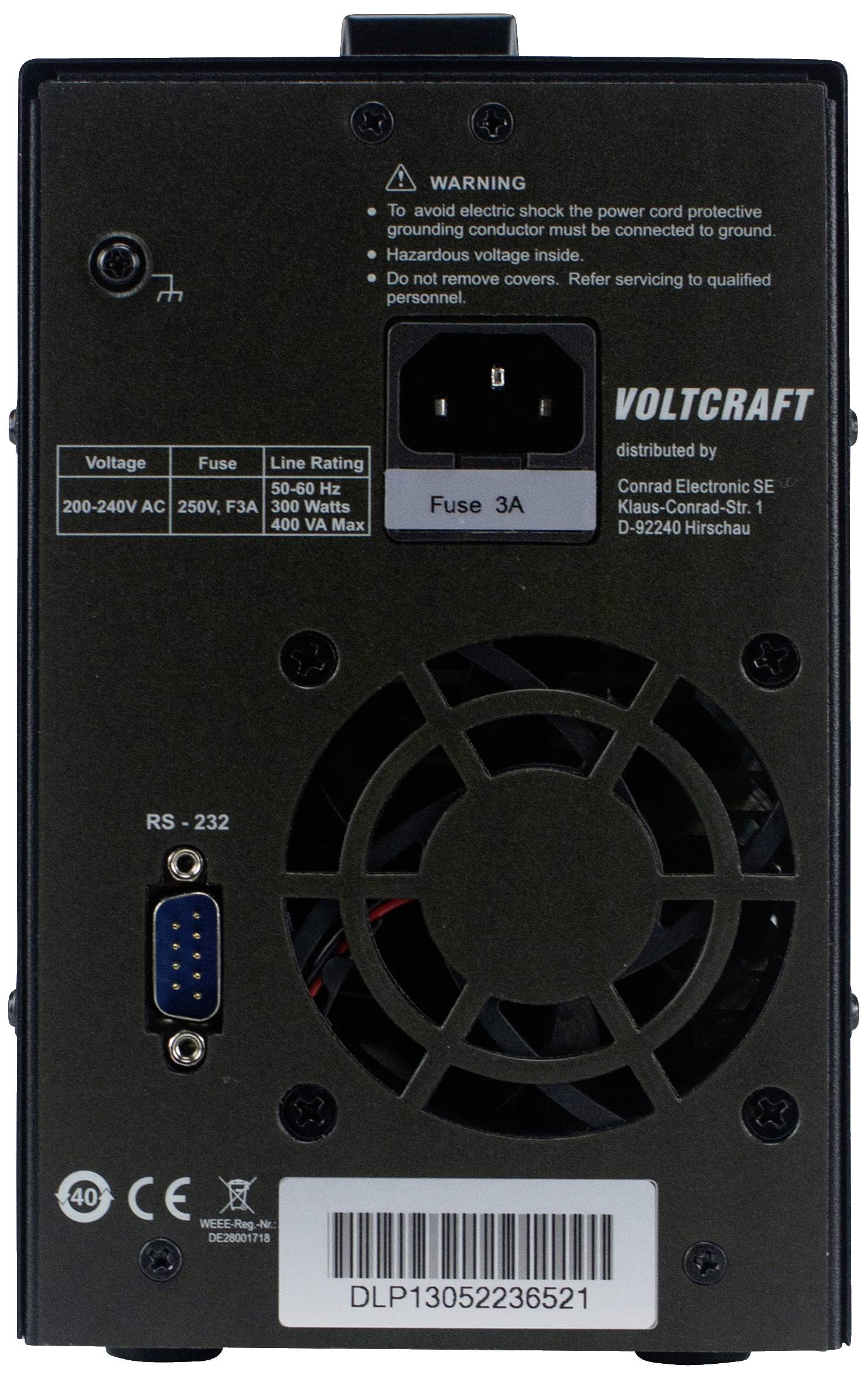

Back of a Voltcraft device with fan, fuse (3A), and connections. Warning sign for electrical shock.

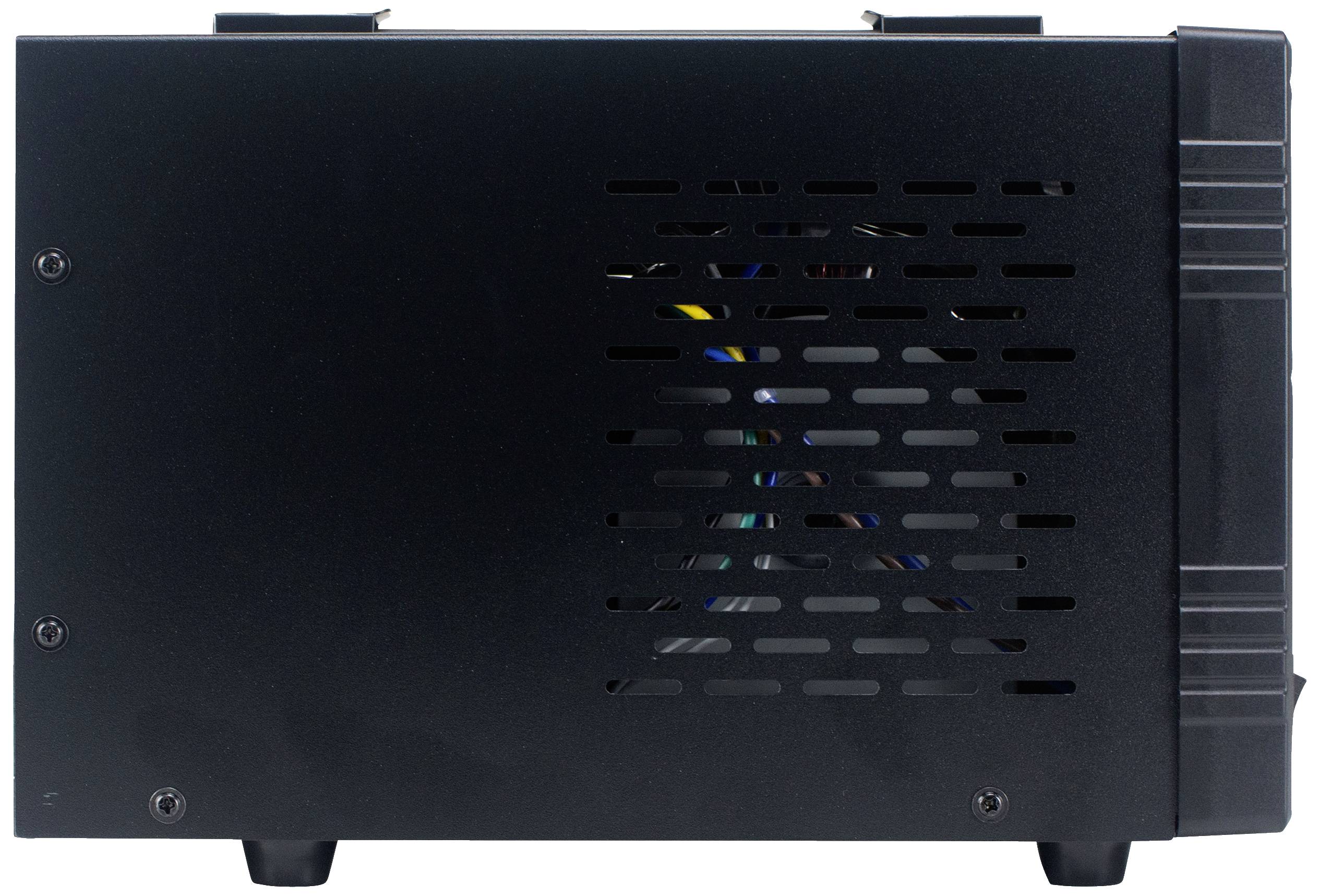

A black computer case with ventilation grilles on the side, mounted on support feet.

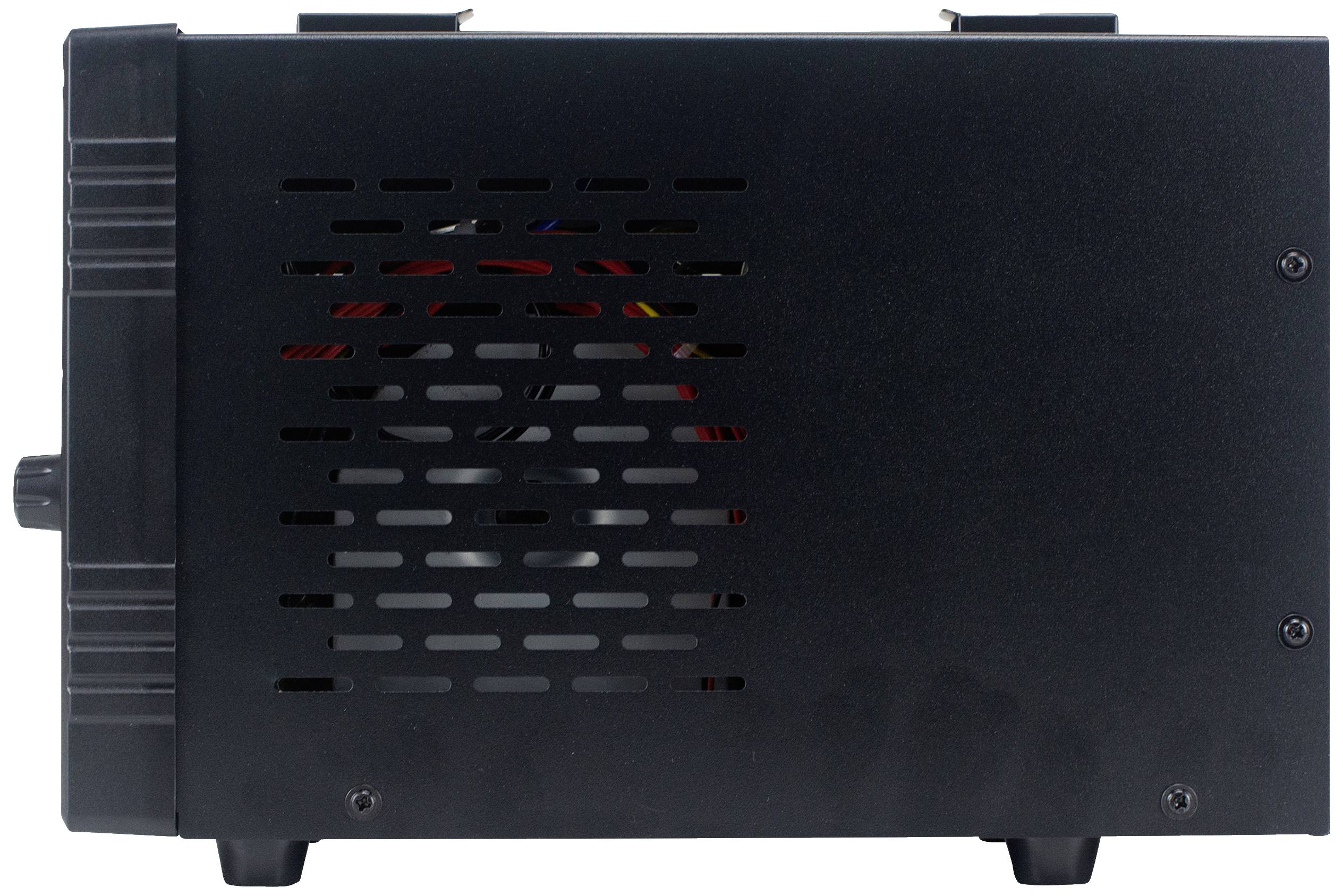

Black electronic device with ventilation slots on the sides. Rugged design, suitable for robust deployment areas.

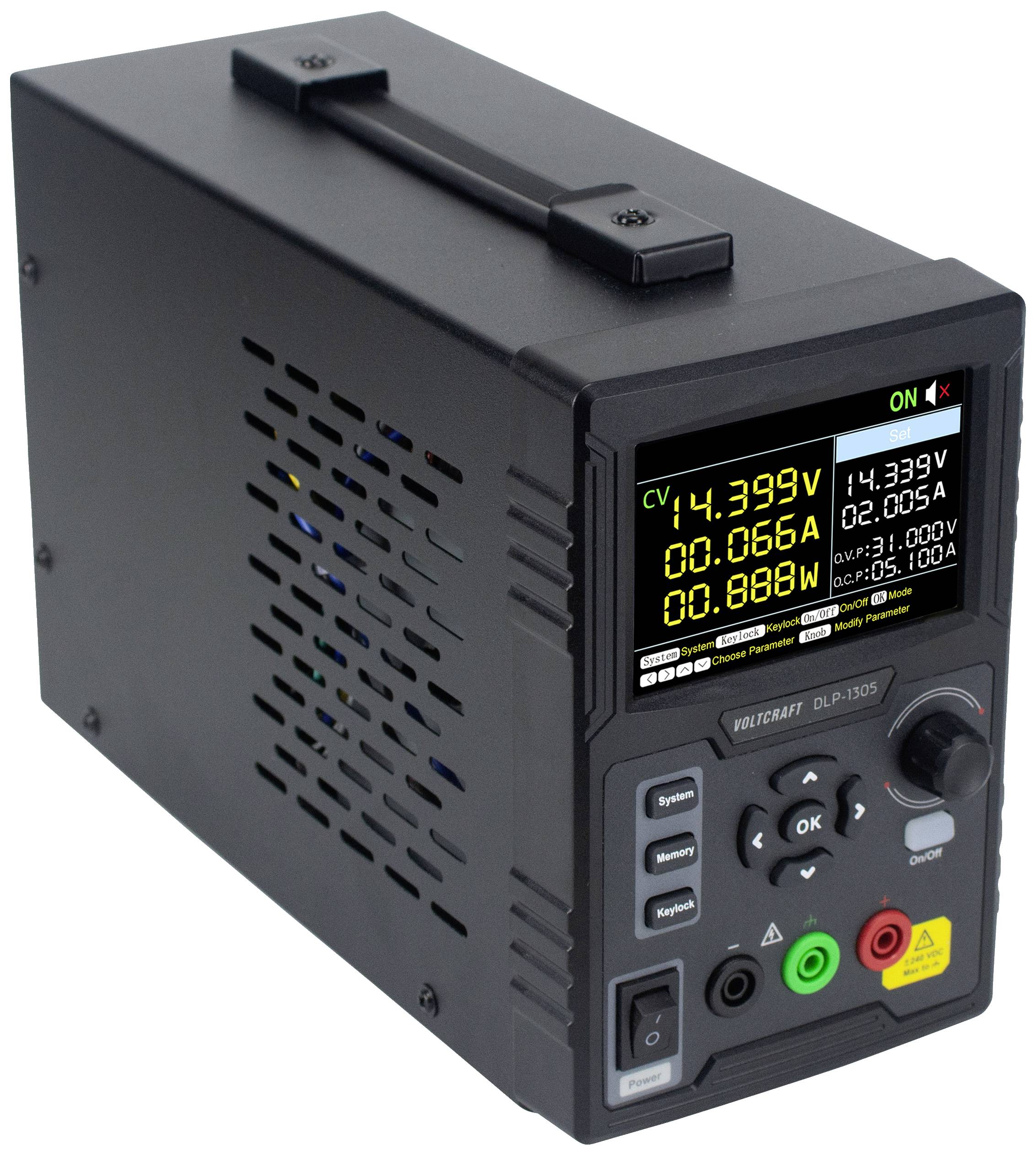

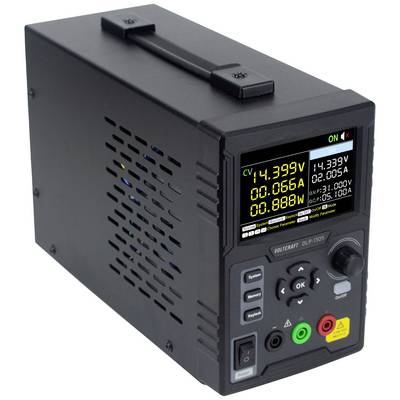

Black laboratory power supply with digital display, showing voltage, current, and power. Settings buttons located underneath.

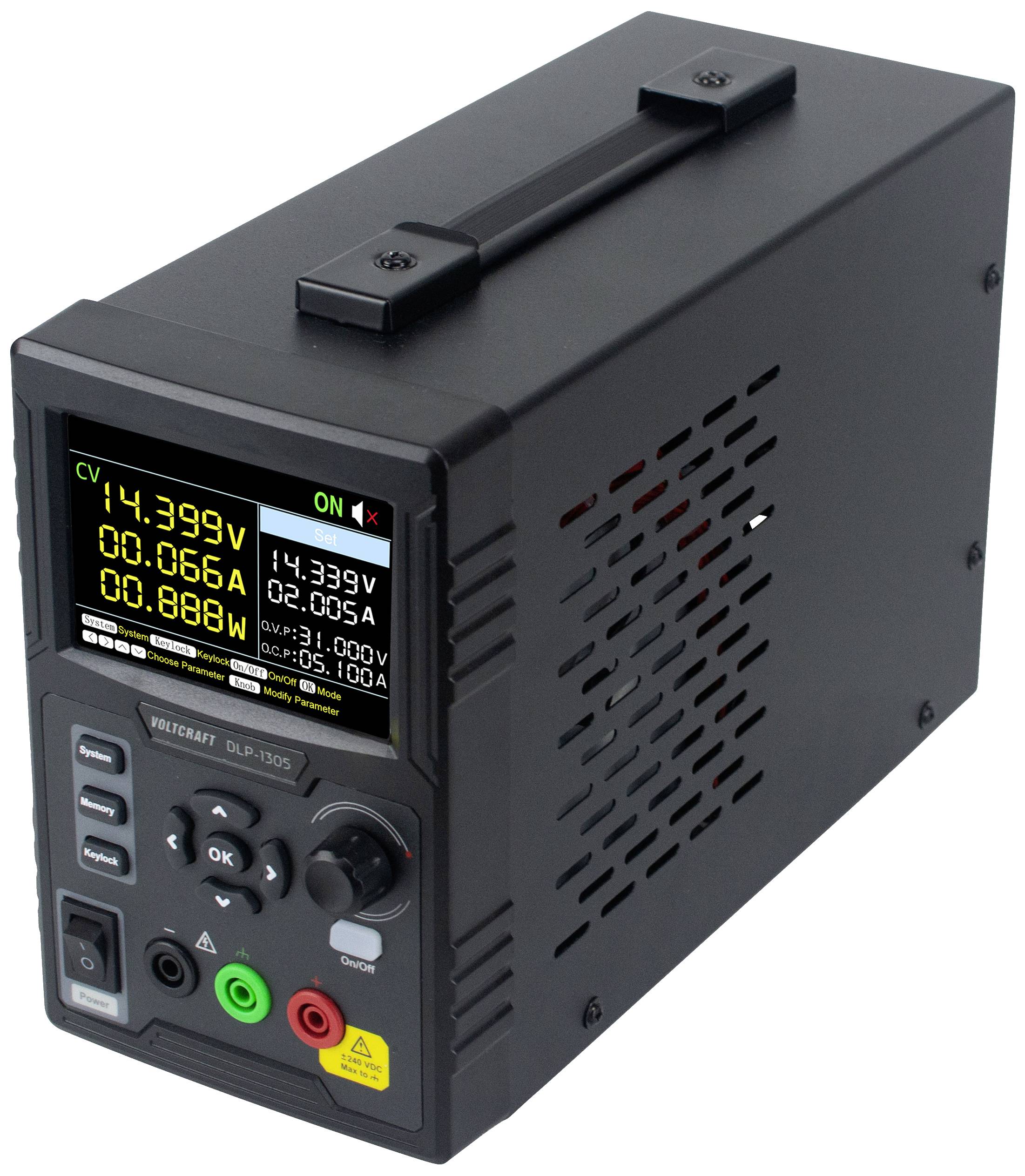

Black digital measuring device with LED display showing voltage (14.399V) and current (3.005A). Physical controls at the front.

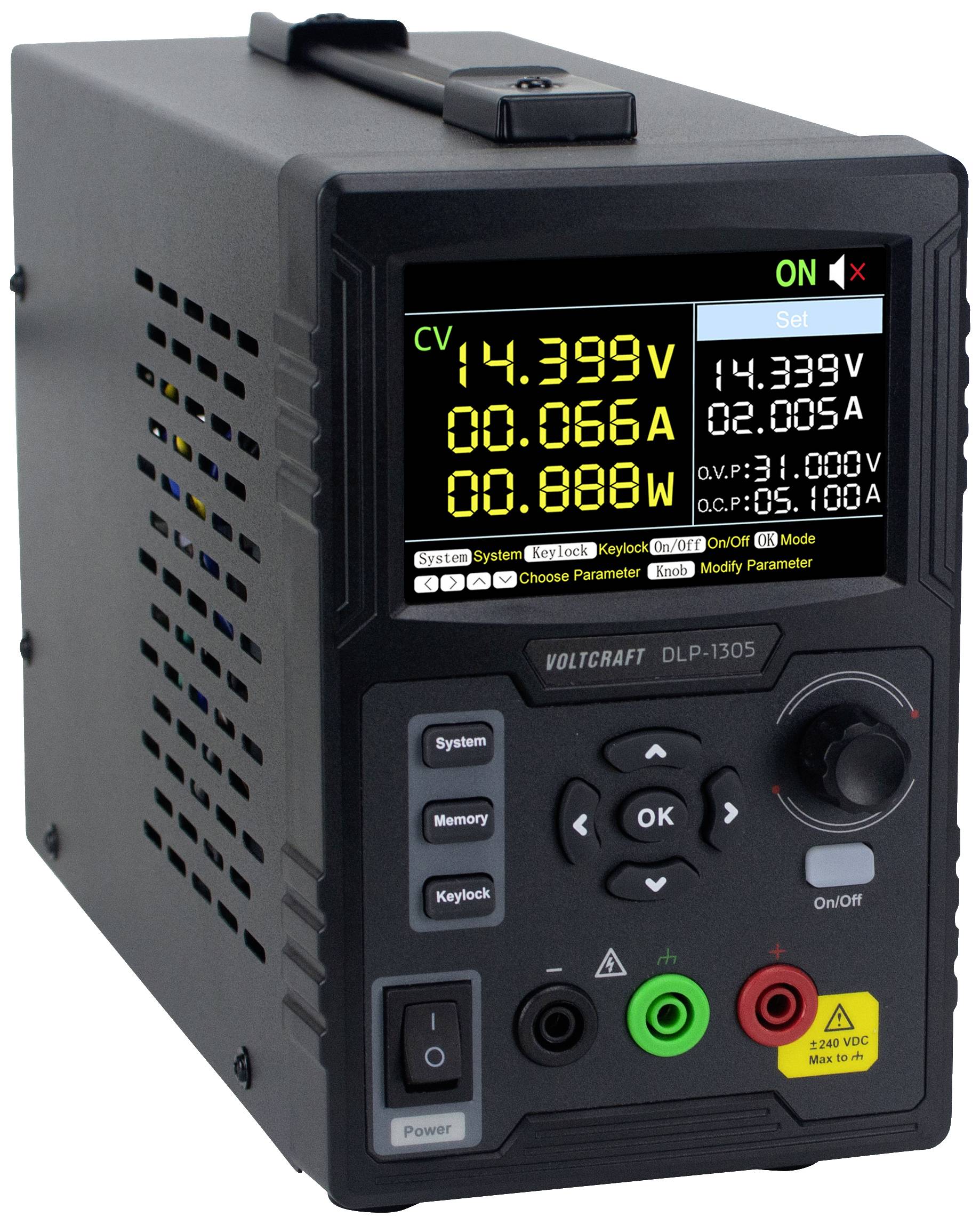

Black laboratory power supply with digital display showing voltage (14.39V), current (0.066A) and power (0.888W). Buttons and rotary control for operation.

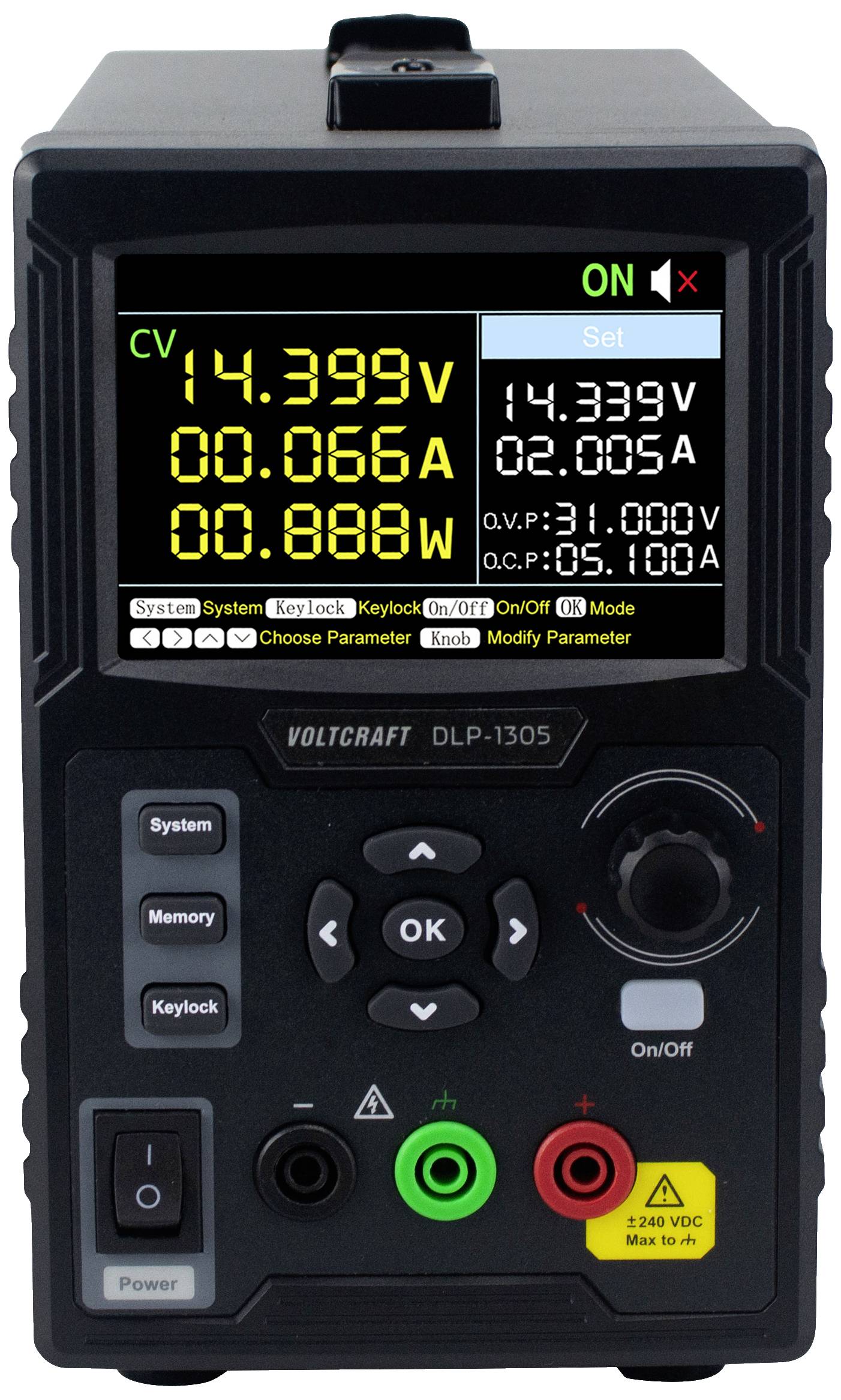

A digital laboratory power supply display shows '14.399V', '0.066A' and 'ON', with controls for voltage and current.

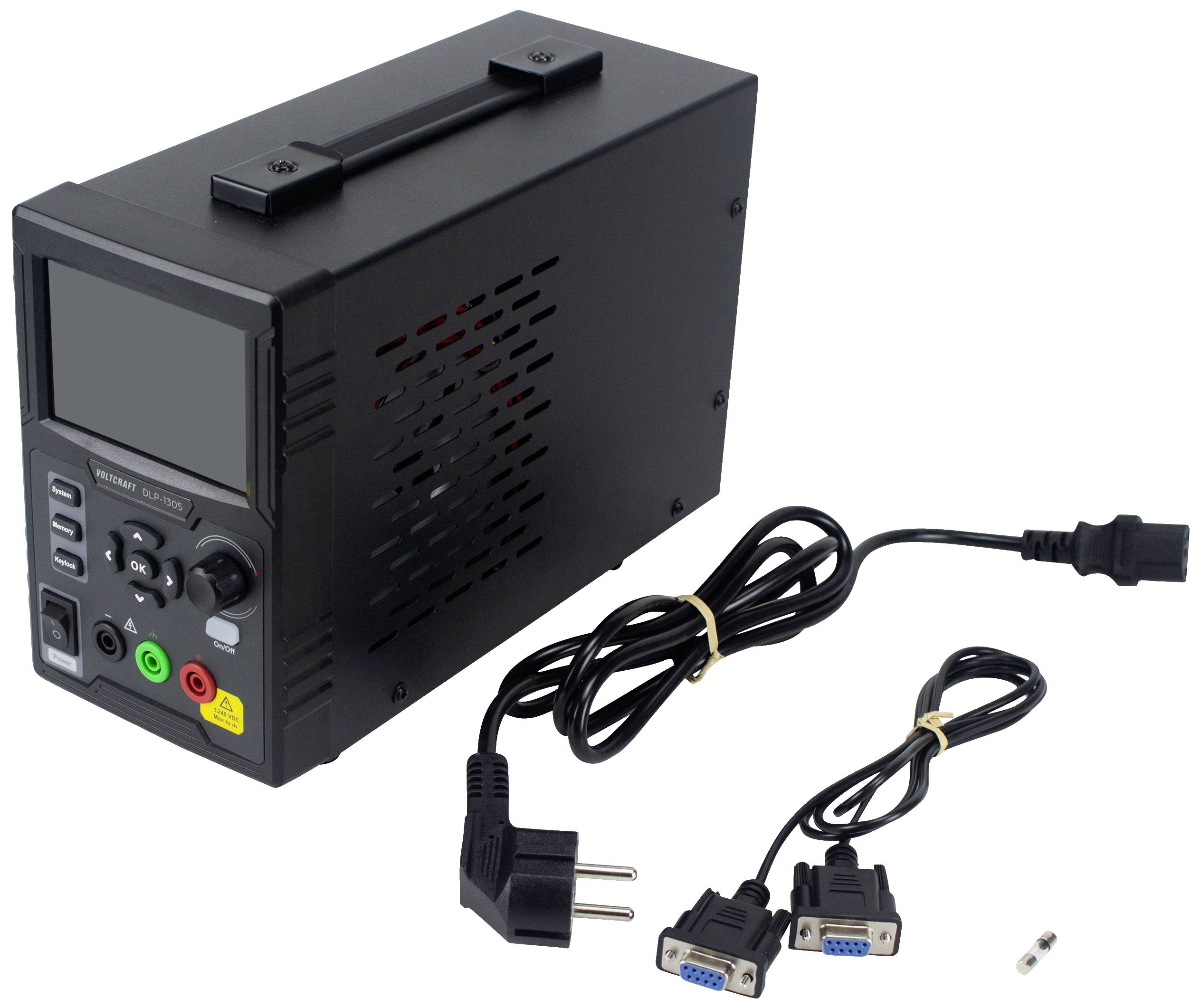

Black electronic device with a screen and multiple ports, alongside two cables with different plugs.

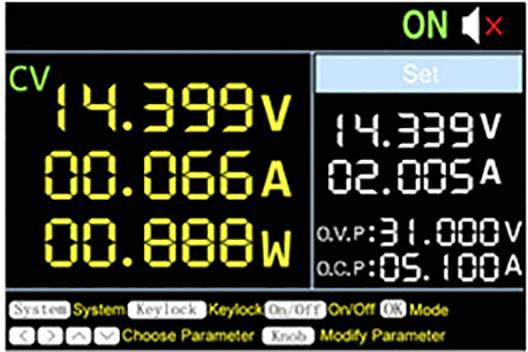

Image of a digital controller with voltage and current display. Shows 14.399V, 00.066A, 00.888W and set values of 14.339V, 02.005A.

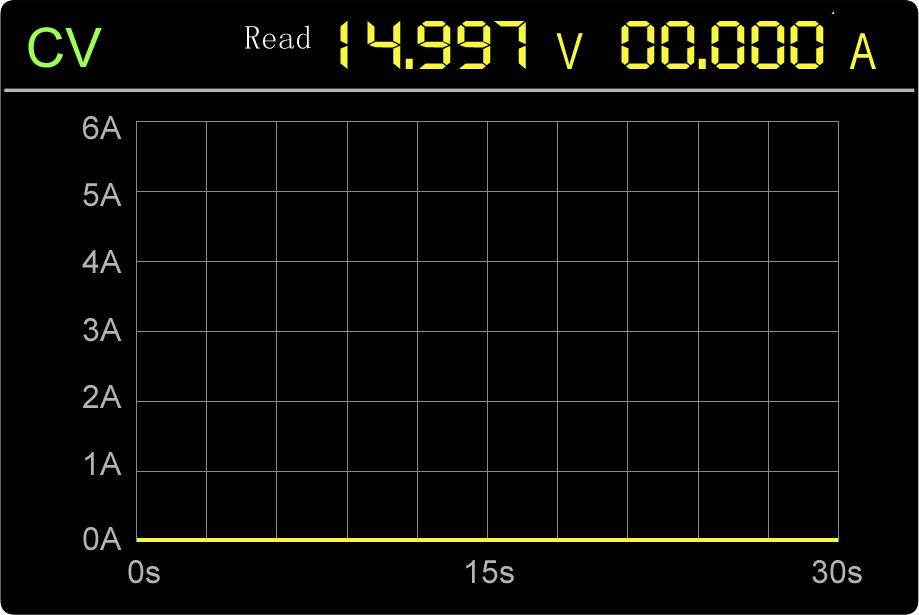

Measuring device display shows 'Read 14.997 V, 00.000 A'. Diagram with axis labelling from 0 to 6A and time from 0 to 30s, without data progression.

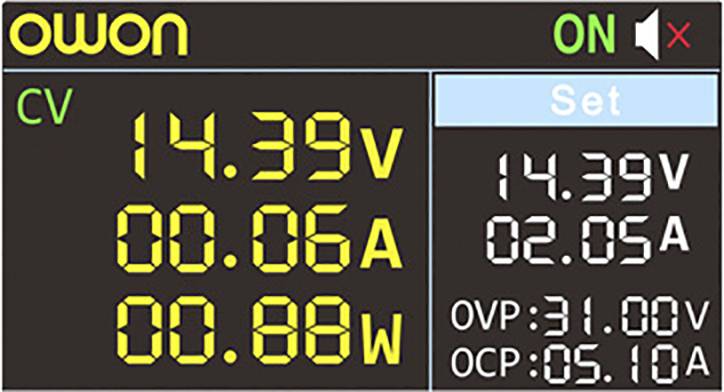

The image shows a digital display screen of an electronic device with readings: 14.39V, 0.06A, 0.88W. Display set to 'Set'.

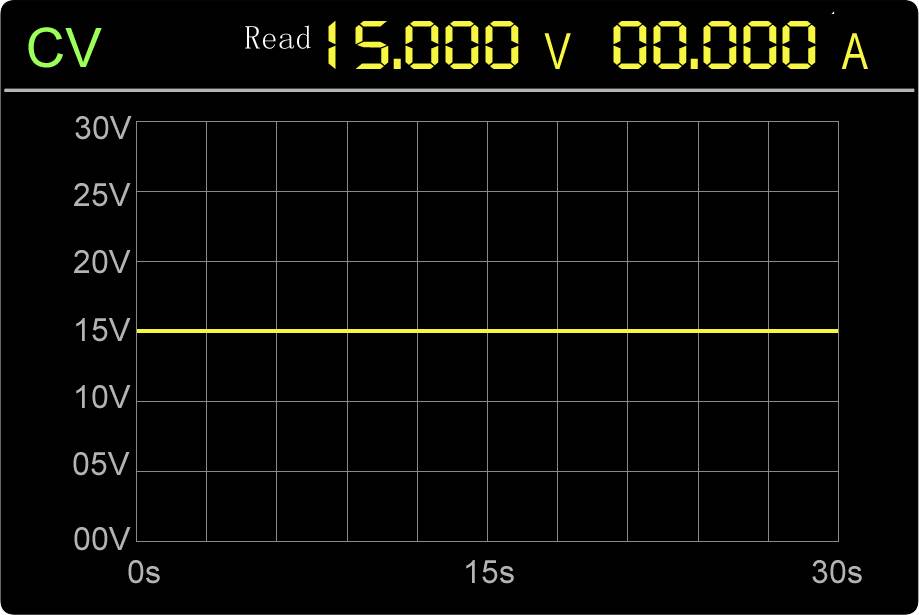

Measuring device display shows 'Read 15,000 V 00,000 A'. Graph with constant 15V over 30 seconds.

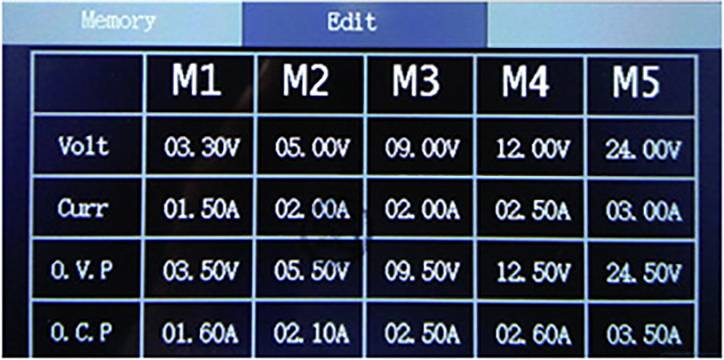

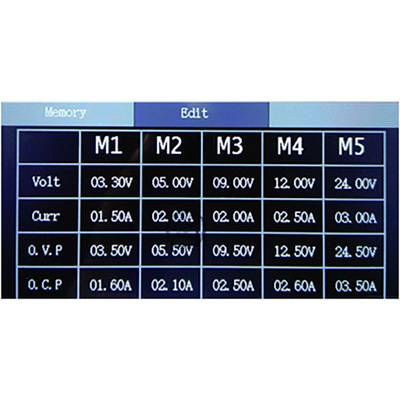

Table shows five columns M1 to M5 under 'Edit' with voltages, currents, and O.C.P values. Values range from 03.30V to 24.00V and 01.50A to 03.50A.

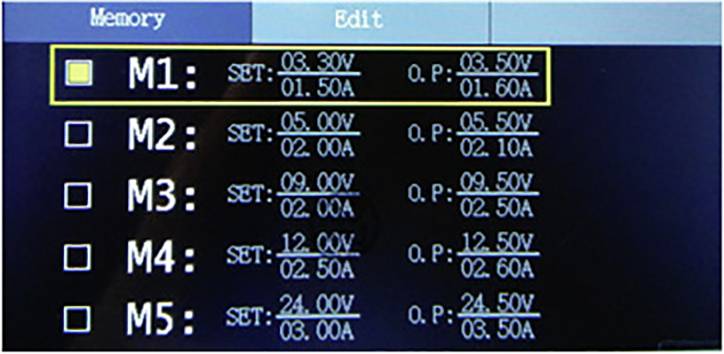

Display of an electronic device with storage and editing options. Displays for M1 to M5 show voltage and current settings.

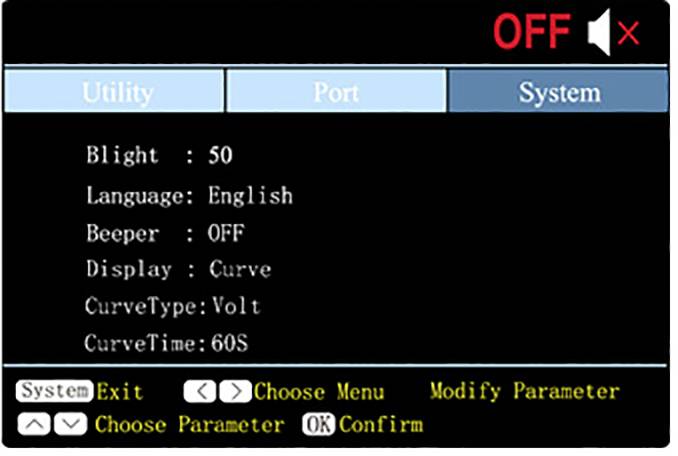

'System Settings Menu on a screen: Blight: 50, Language: English, Beeper: Off, Display: Curve, Curve Type: Volt, Curve Time: 60 Seconds. Buttons below: System, Exit, Select Menu, Adjust Parameters, Confirm.'

Display of electronic device: Voltage '14.39V', Current '2.05A', Overvoltage protection '31.00V', Overcurrent protection '5.10A'.

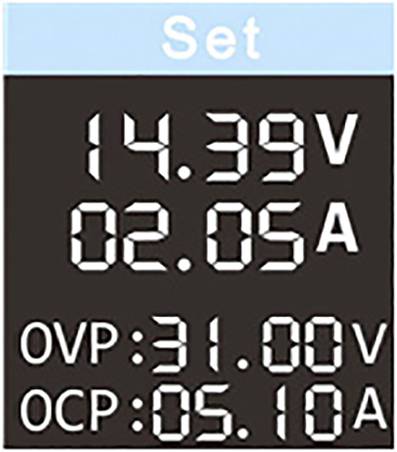

'Set' is displayed on a screen, followed by '14.39V' and '02.05A'. Under 'OVP' is '31.00V' and under 'OCP' '05.10A'.<br><br>Note: I've converted the decimal commas to decimal points, which is standard in British English for numerical representations.

1/20

Our service for you

Datasheet (PDF)

Unavailable

72 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

VOLTCRAFT DLP-1305 30V/5A 1-ch Linear DC power supply

Small and portable design
150 W maximum output power
High resolution: 1 mV / 1 mA
Low noise
Overvoltage/overcurrent protection
Multi-directional cooling system with smart fan
Supports RS232 digital communication
Supports SCPI

Technical specifications

Type: DLP-1305

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 150 W

Technology: Linear regulated PSU

Interfaces: RS232
IEE488.2 SCPI/GPIB

Features: slave communication protocol

Dim: (L x W x H) 290 x 117 x 194 mm

: Manufacturer's standards (no certificate)

Input voltage: 220 V AC
240 V AC

Weight: 6 kg

Output voltage (max.): 30 V

Output voltage (min.): 0 V

Max. output current: 5 A

Output current (min.): 0 A

Output current 2 (max.): 5 A

Mains supply: IEC 320 C14

Type: Linear

Width: 117 mm

Height: 194 mm

Length: 290 mm

Residual ripple: 4 mVpp

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2619142 VOLTCRAFT DLP-1305 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W slave communication protocol No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 2619142 VOLTCRAFT DLP-1305 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W slave communication protocol No. of outputs 1 x

Conformity certificate

Conformity certificate 2619142 VOLTCRAFT DLP-1305 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W slave communication protocol No. of outputs 1 x

Warranty Terms

Warranty Terms 2619142 VOLTCRAFT DLP-1305 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W slave communication protocol No. of outputs 1 x

Download

Download 2619142 VOLTCRAFT DLP-1305 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W slave communication protocol No. of outputs 1 x

Description

Compact mobile DC power supply
The VOLTCRAFT DLP-1305 power supply unit is particularly compact. It is ideally suited as a handy mobile power supply owing to its practical carrying handle. Power is available up to 150 W, the voltage can be set from 0 to 30 V and the current can be set from 0 to 5 A. The VOLTCRAFT DLP-1305 is characterized by low noise and an output resolution of 1 mV / 1 mA. Clear working enables a 3.95 inch LC-display with high resolution. It runs smoothly over-voltage and over-current protection as well as the multi-directional cooling with smart fan. R S232 is available as the interface. The VOLTCRAFT also supports DLP-1305 SCPI.
Included in the delivery
In addition to the power supply with mains and USB cable, the package includes a 250 V fuse, a CD-ROM, operating instructions and a sheet with safety instructions.

This text is machine translated.

Features

10 cm (3.95 inch) high resolution LCD display
1-channel output
Max power: 150 W
Voltage: 0 - 30 V; Current: 0 - 5 A

Scope of delivery

Power supply
Power cord
USB cable
1x Fuse (250 V)
Manual
Safety hint sheet
