VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

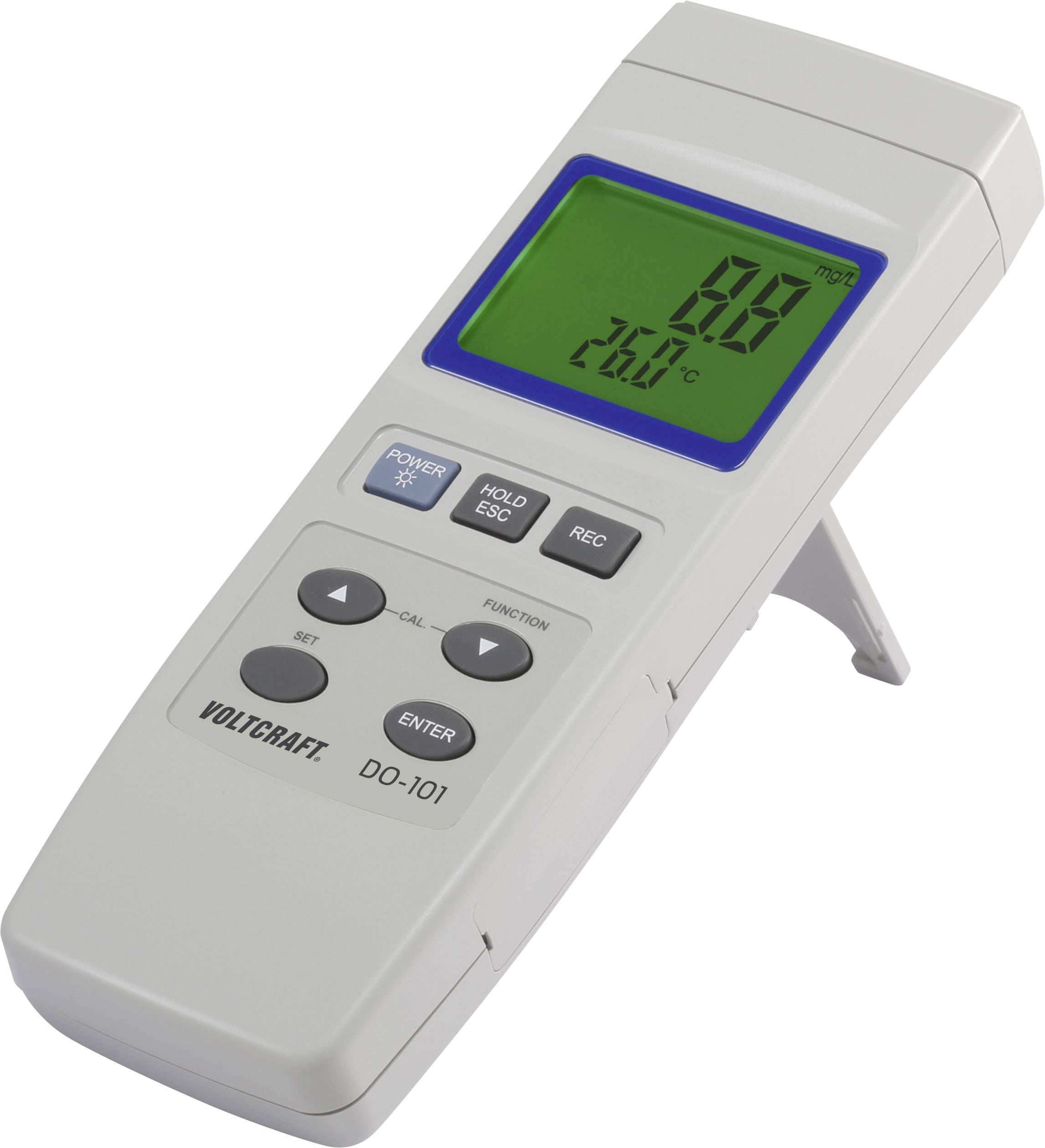

DO-101 dissolved oxygen meter
- Measurement of dissolved oxygen and temperature
- With RS232 interface
- With 6 bits. Data hold function

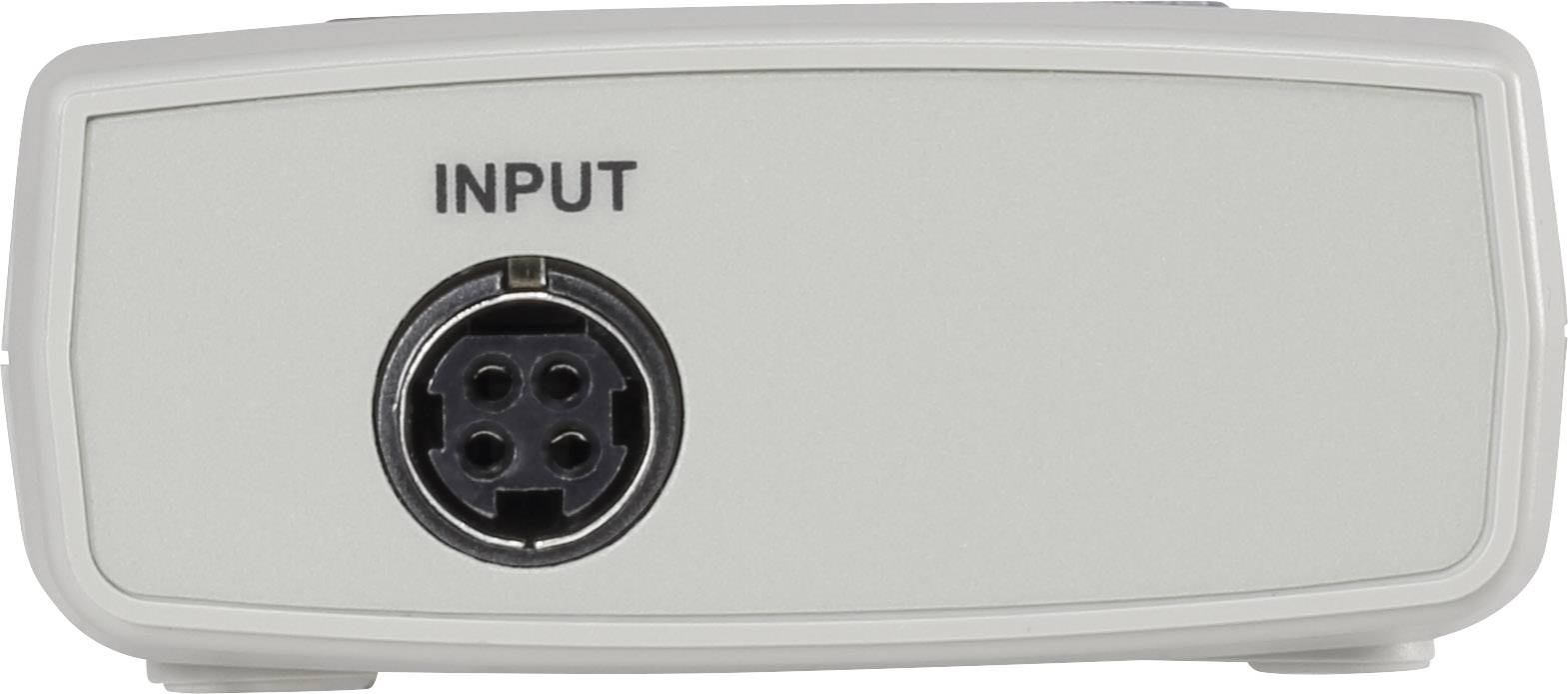

- External sensor
Technical specifications
- Product type
Oxygen detector
- Unit of measurement
Oxygen
- Reading range
0 - 20 mg/l
- Electrode length
190 mm
- Dim
(L x W x H) 68 x 30 x 195 mm
- Resolution
0.1 mg/l
- Features
Exchangeable electrode
Thermometer
- Accuracy
0.4 ppm
- Weight
489 g
- Reading range (max.)
20 mg/l
- Reading range (min.)
0 mg/l
- Width
30 mm
- Height
195 mm
- Length
68 mm
- Power supply (details)
9 V
Documents & Downloads
Datasheet
Datasheet 1668324 VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
User & Safety Instructions
User & Safety Instructions 1668324 VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
Conformity certificate
Conformity certificate 1668324 VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
Security datasheet
Security datasheet 1668324 VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
Warranty Terms
Warranty Terms 1668324 VOLTCRAFT DO-101 Oxygen detector 0 - 20 mg/l Exchangeable electrode, Thermometer
Description

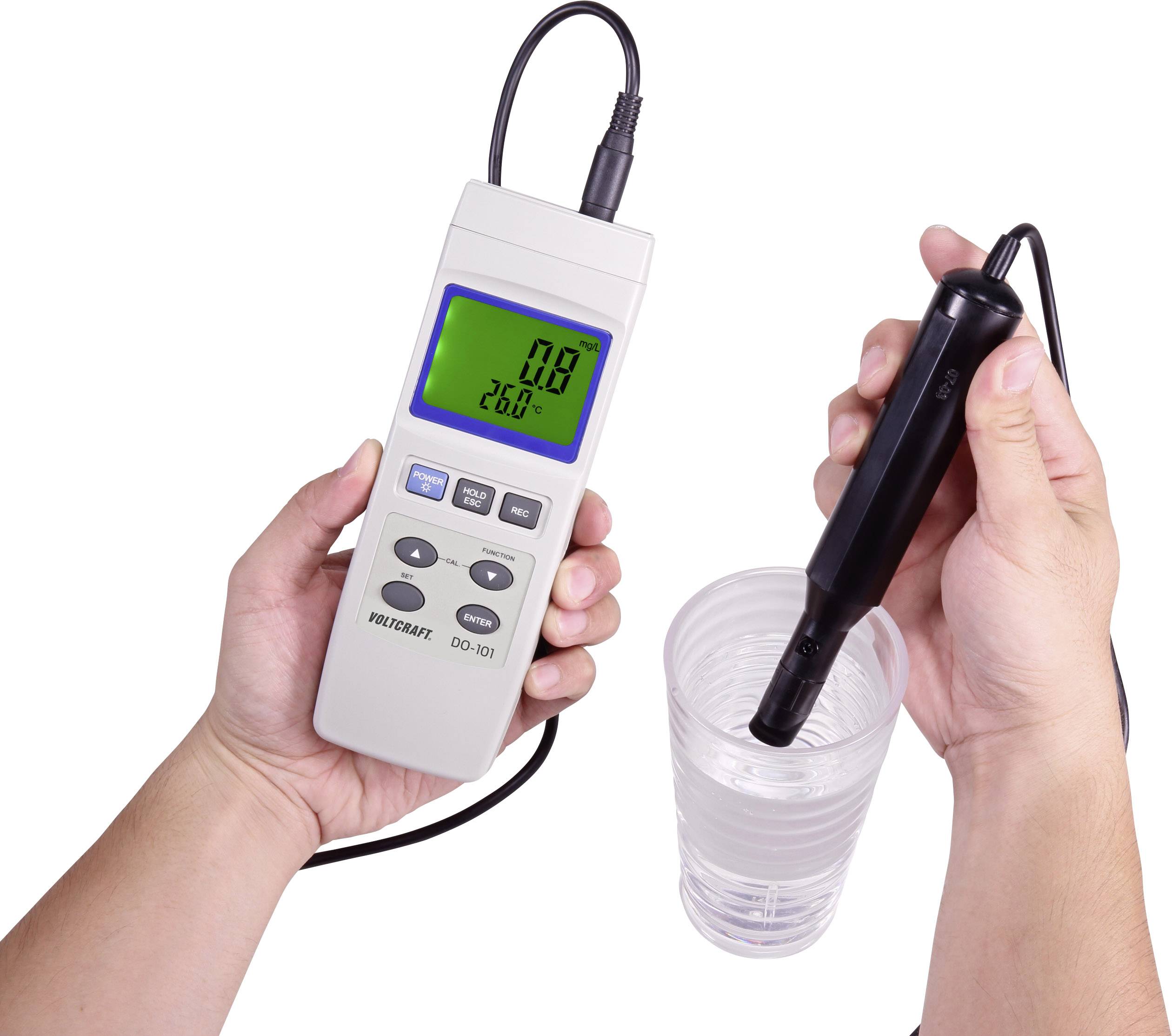

Portable measuring device for measuring dissolved oxygen (DO) and temperature. This handy device has an external sensor which makes it easy to use. The measuring device is optimally suitable for measurements of aquariums, electroplating technology, quality control, food processing and many more. With the help of the data hold function the values can be measured at difficult to access places and can then be read easily and comfortably. The device has an RS232 interface, so that the data can later be easily evaluated at the PC.
This text is machine translated.
This text is machine translated.
Features
- Data-hold function
- Green background lighting
- Auto switch-off
- Acoustic signal when switching on and off
- Temperature unit °C or °F adjustable

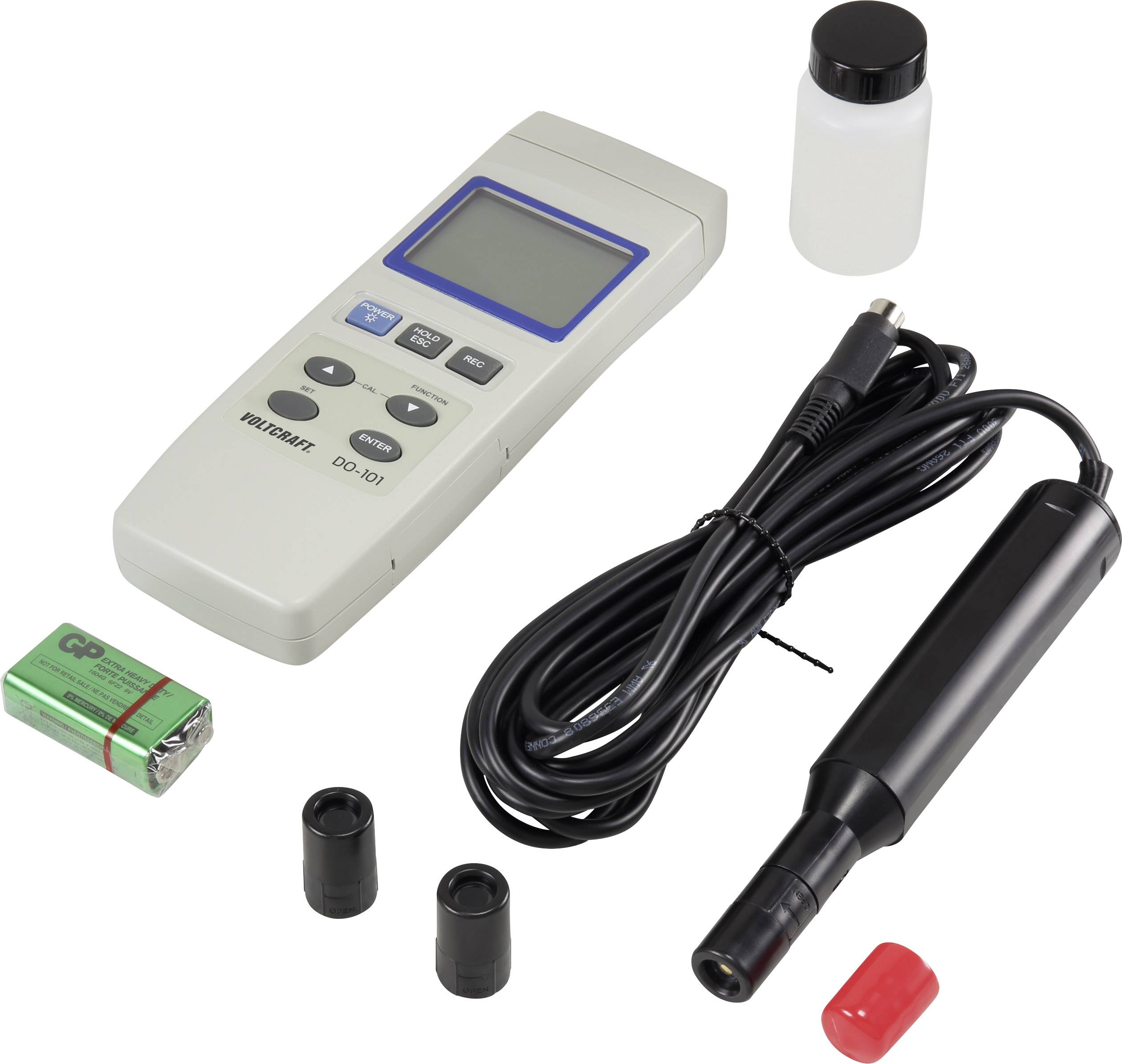

Scope of delivery
- DO-101 meter
- Oxygen sensor
- 2 replacement probe head
- 1 Probe filling electrolyte OXEL-03
- User manual
