Buy VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

A laboratory power supply shows 16.0 V at 0.00 A. The voltage knob is selected; maximum output current: 5A. Device is switched on.

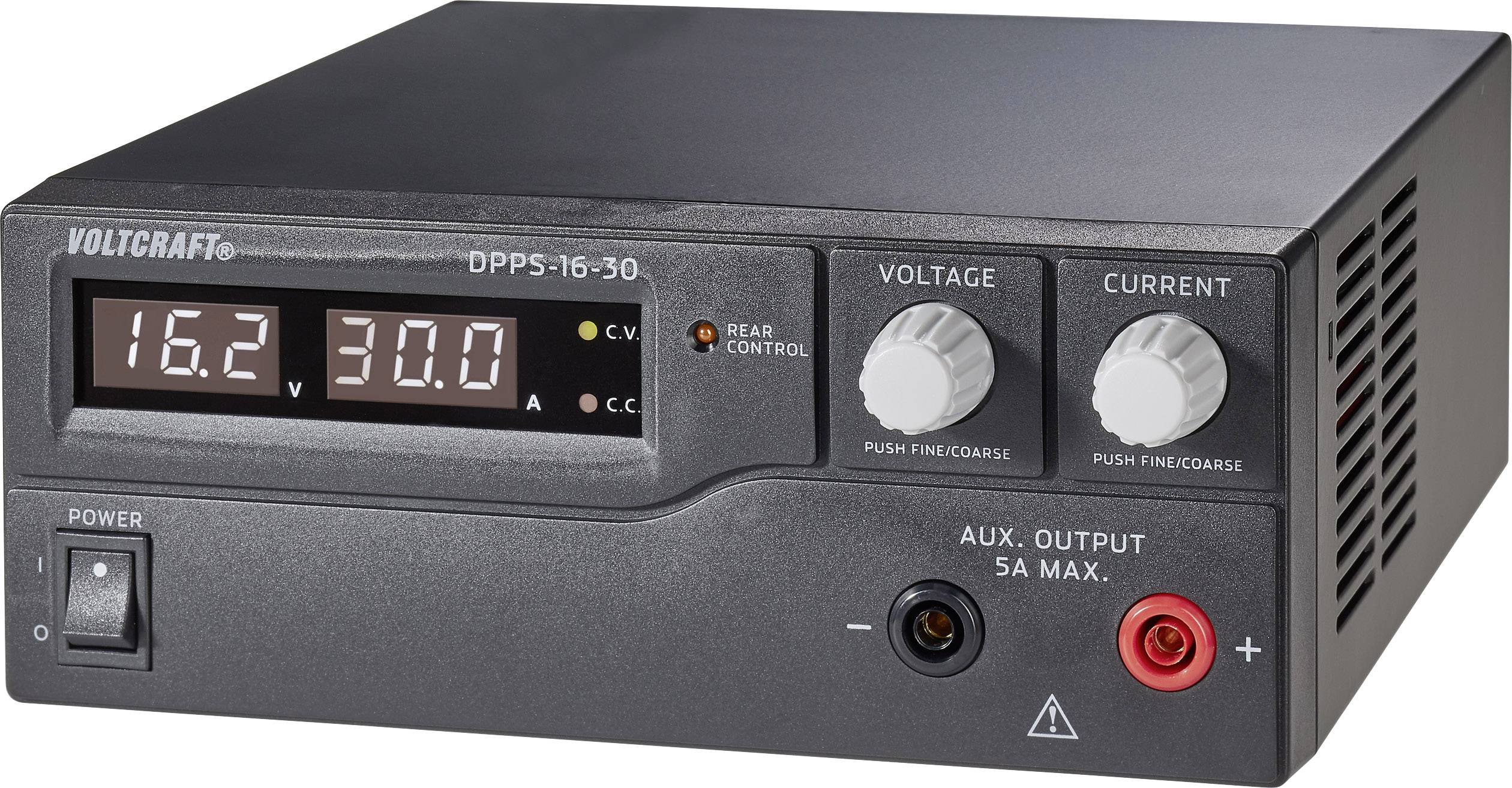

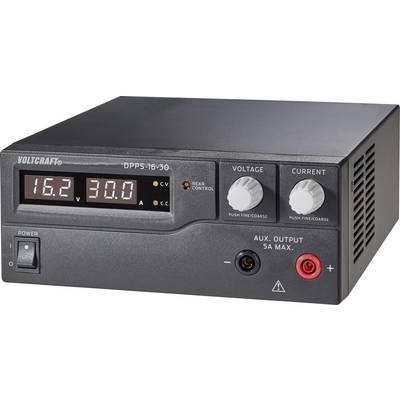

Black laboratory power supply with digital displays for voltage and current; buttons for fine adjustment; Model: Voltcraft DPPS-16-30.

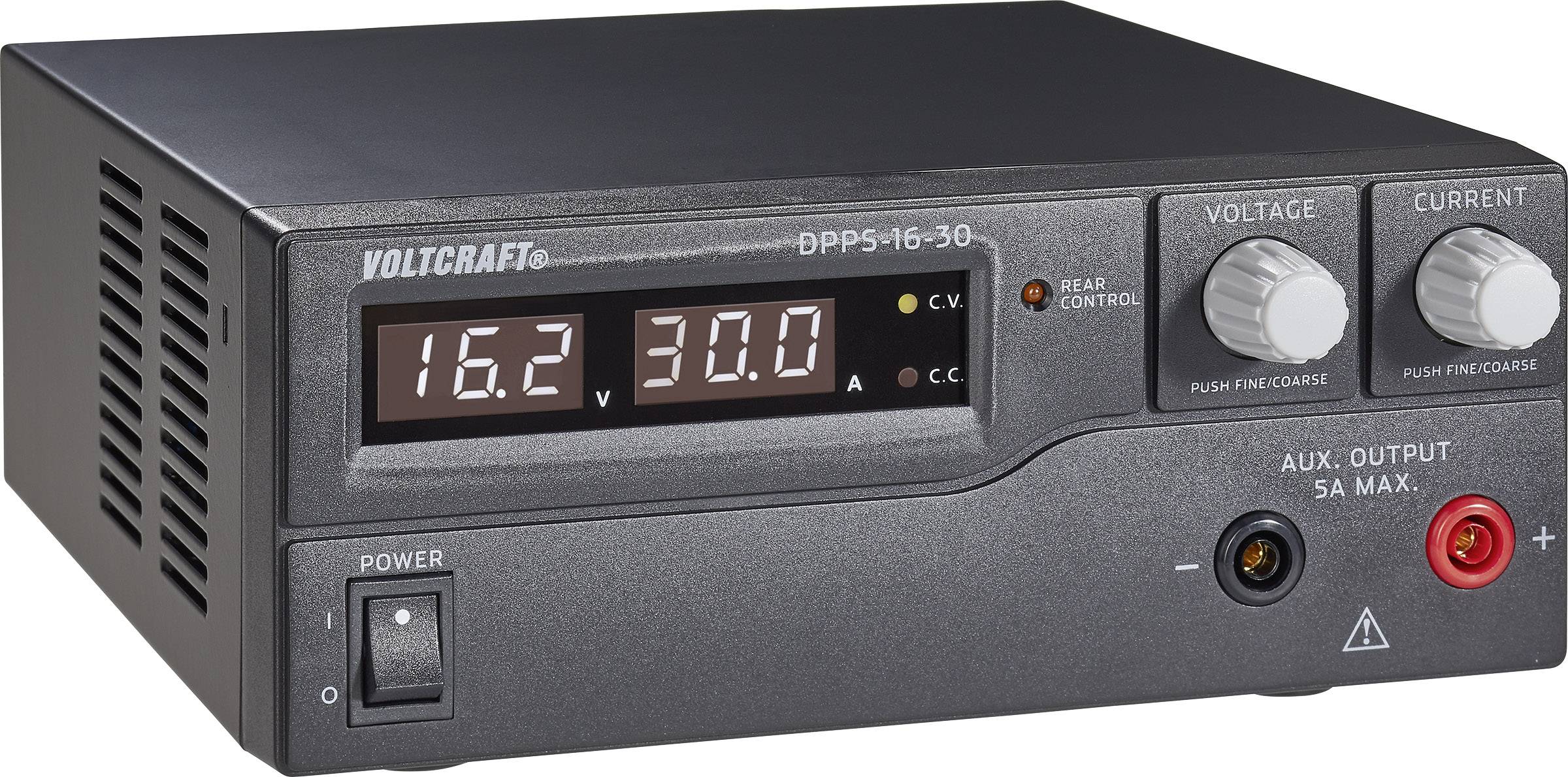

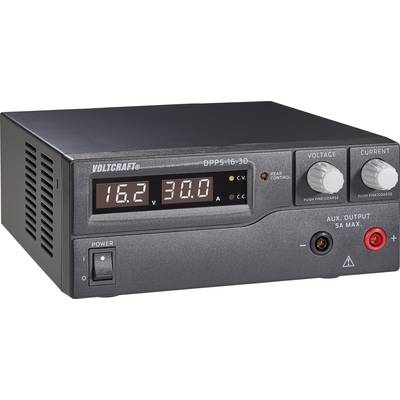

Laboratory power supply with display showing 16.2 volts and 30.0 amperes. Two regulators for voltage and current, red and black terminals.

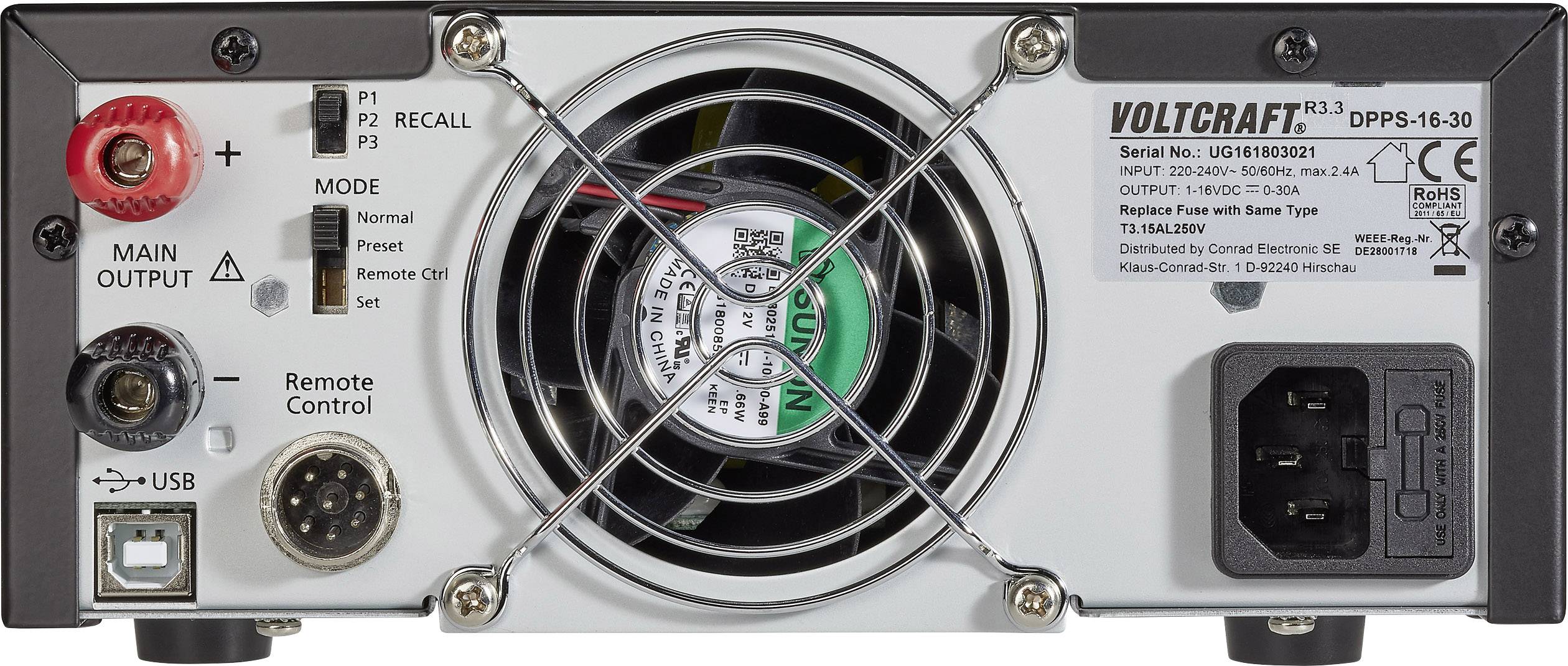

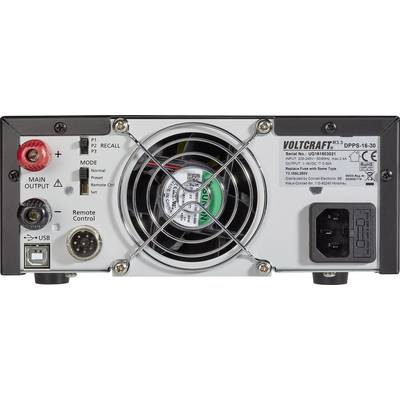

Rear view of a Voltcraft DPPS-16-30 device with a fan, various connections and control elements for operation and power supply.

1/4

Our service for you

41 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 281.51 / piece)

€

Report legal concerns

Highlights & Details

Voltcraft DPPS lab power supply series

No. of outputs 1 x
1 - 16 V DC
0 - 30 A
480 W
Residual ripple 5 mV
Type (misc.): Desktop
Synchronised
USB interface

Technical specifications

Type: DPPS-16-30

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 480 W

Technology: SMPSU

Interfaces: USB

Features: programmable

Dim: (W x H) 200 mm x 90 mm

: Manufacturer's standards (no certificate)

Weight: 2.6 kg

Connections: 4 mm safety socket (front side)
4 mm screw terminal socket (back side)

Type: Desktop

Output voltage (max.): 16 V DC

Output voltage (min.): 1 V DC

Max. output current: 30 A

Output current (min.): 0 A

Inputs: Low power device panel plug, IEC 320 C14

Load balance: <50 mV

Mains control: 20 mV

Type: Synchronised

Width: 200 mm

Height: 90 mm

Residual ripple: 5 mV

Input voltage: 230 V AC

Output voltage 1: 1 - 16 V DC

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Item no:1086555

This article

480 W

Manufacturer's standards (no certificate)

1 - 16 V DC

0 - 30 A

VOLTCRAFT DPPS-32-15 Bench PSU (adjustable voltage) 1 - 32 V DC 0 - 15 A 480 W USB programmable No. of outputs 1 x

Item no:1086556

480 W

Manufacturer's standards (no certificate)

1 - 32 V DC

0 - 15 A

VOLTCRAFT DPPS-60-8 Bench PSU (adjustable voltage) 1 - 60 V DC 0 - 8 A 480 W USB programmable No. of outputs 1 x

Item no:1086558

480 W

Manufacturer's standards (no certificate)

1 - 60 V DC

0 - 8 A

VOLTCRAFT DPPS-16-40 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 40 A 640 W USB programmable No. of outputs 1 x

Item no:1086559

640 W

Manufacturer's standards (no certificate)

1 - 16 V DC

0 - 40 A

VOLTCRAFT DPPS-32-20 Bench PSU (adjustable voltage) 1 - 32 V DC 0 - 20 A 640 W USB programmable No. of outputs 1 x

Item no:1086560

640 W

Manufacturer's standards (no certificate)

1 - 32 V DC

0 - 20 A

VOLTCRAFT DPPS-60-10 Bench PSU (adjustable voltage) 1 - 60 V DC 0 - 10 A 600 W USB programmable No. of outputs 1 x

Item no:1086561

600 W

Manufacturer's standards (no certificate)

1 - 60 V DC

0 - 10 A

VOLTCRAFT DPPS-16-60 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 60 A 960 W USB programmable No. of outputs 1 x

Item no:1086562

960 W

Manufacturer's standards (no certificate)

1 - 16 V DC

0 - 60 A

VOLTCRAFT DPPS-32-30 Bench PSU (adjustable voltage) 1 - 32 V DC 0 - 30 A 960 W USB programmable No. of outputs 1 x

Item no:1086563

960 W

Manufacturer's standards (no certificate)

1 - 32 V DC

0 - 30 A

VOLTCRAFT DPPS-60-15 Bench PSU (adjustable voltage) 1 - 60 V DC 0 - 15 A 900 W USB programmable No. of outputs 1 x

Item no:1086564

900 W

Manufacturer's standards (no certificate)

1 - 60 V DC

0 - 15 A

VOLTCRAFT DPPS-60-15 Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 1 - 60 V DC 0 - 15 A 900 W USB programmable No. of outputs 1 x

Item no:3028464

900 W

DAkkS standards

1 - 60 V DC

0 - 15 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1086555 VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Information

Information 1086555 VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Conformity certificate

Conformity certificate 1086555 VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Warranty Terms

Warranty Terms 1086555 VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Download

Download 1086555 VOLTCRAFT DPPS-16-30 Bench PSU (adjustable voltage) 1 - 16 V DC 0 - 30 A 480 W USB programmable No. of outputs 1 x

Description

The high-performance power supply is primarily clocked and therefore very compact. The output voltage can be tapped at the front side via 4 mm safety sockets up to 5 A and high power output to maximum power at the back side.

This text is machine translated.

Features

3 user-definable presets (Preset) for U und I
Voltage, current and output on/off can be remote controlled
Digital double function-adjustment control for rough and detailed control
Overload protection
Temperature regulated unit fans.

Scope of delivery

Power cord
Plug for Remote connection
USB cable 1.5 m
Software CD
User manual.
