VOLTCRAFT DS-02 Industrial strobe 60 - 32000 U/min
EAN:
Part number:
Item no:
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
14-day return policy included
Highlights & Details

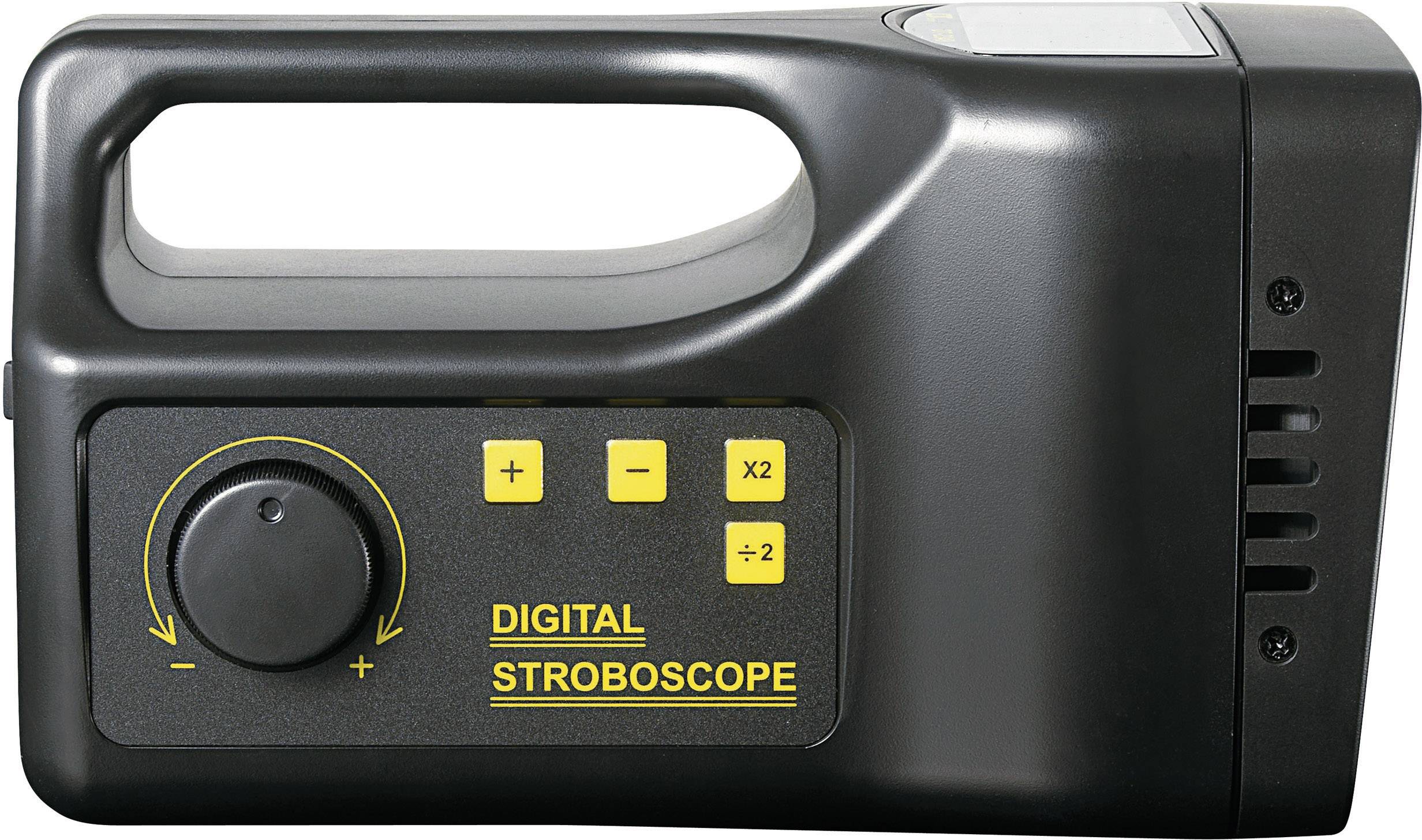

Digital stroboscope DS-02
- Xenon electronic flash tube
- Battery or power pack operation possible
Technical specifications
- Battery period of operation: approx. 3 h (depending upon Battery typ)
- Product type
Industrial strobe
- RPM accuracy
± 0,05% + 1 Digit
- Speed resolution
0.1 U/min
- Operating voltage
4 NiMh-Akku, mains adaptor 9 V/DC.3 mA
- Dim
(W x H) 12 cm x 12 cm
Manufacturer's standards (no certificate)
- Weight
1 kg
- Display
LED
- Rotational speed, optical (max.)
32000 U/min
- Rotational speed, optical (min.)
60 U/min
- Rotational speed (optical)
60 - 32000 U/min
- Width
12 cm
- Height
12 cm
- Type
DS-02
- Display (details)
5-way LED-display
- Type
DS-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 121179 VOLTCRAFT DS-02 Industrial strobe 60 - 32000 U/min
Conformity certificate
Conformity certificate 121179 VOLTCRAFT DS-02 Industrial strobe 60 - 32000 U/min
Warranty Terms
Warranty Terms 121179 VOLTCRAFT DS-02 Industrial strobe 60 - 32000 U/min
Description
The DS-02 makes fast, repeating courses of motion, visible which cannot be noticed by the human eye no more. By flashes produced for the movement the courses of motion appear synchronous as apparently standing picture. So can be observed printings, oscillations and other events with current enterprise. With the battery function a running time of up to 3 hours (dependent on the used Battery) without electricity mains operated. Also longer assignments can be achieved by an optional power pack. In addition, the attitude of the flash rate been made by an adjusting wheel, can be entered with keys (). The adjusted flash rate can be doubled and halved by push of a button simply and from the equipment read off.
Scope of delivery
- Battery (DS-02)
- Instructions for use. Batteries (type D) or power pack please separately order.
Hints
Battery and power pack not in the scope of supply.
