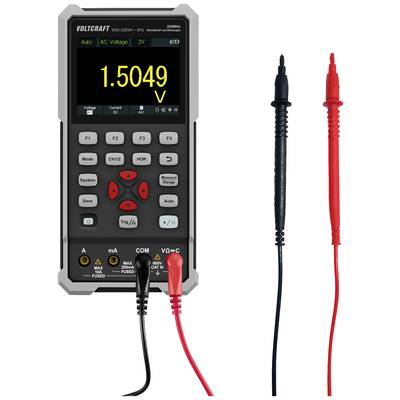

Digital multimeter shows a measured value of 1.5049 volts. Black and red test leads are shown on the right.

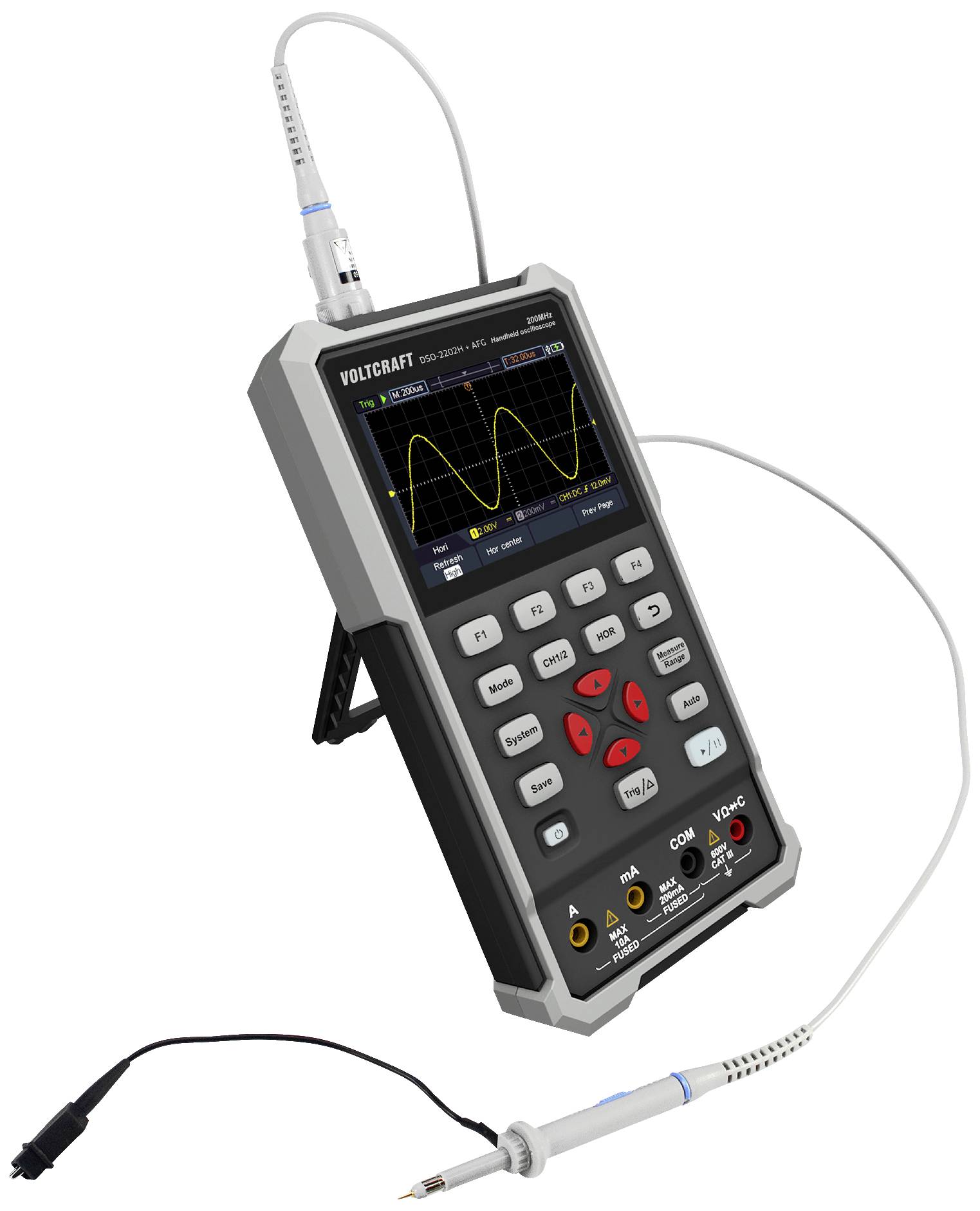

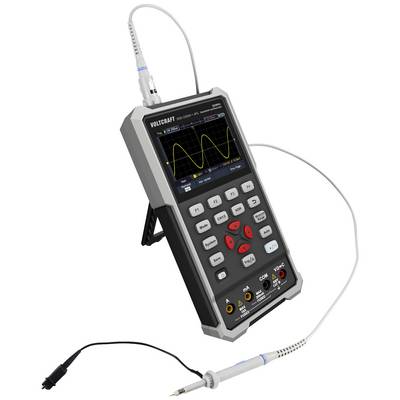

A portable oscilloscope with a digital screen displays a sine wave measurement. A probe is connected.

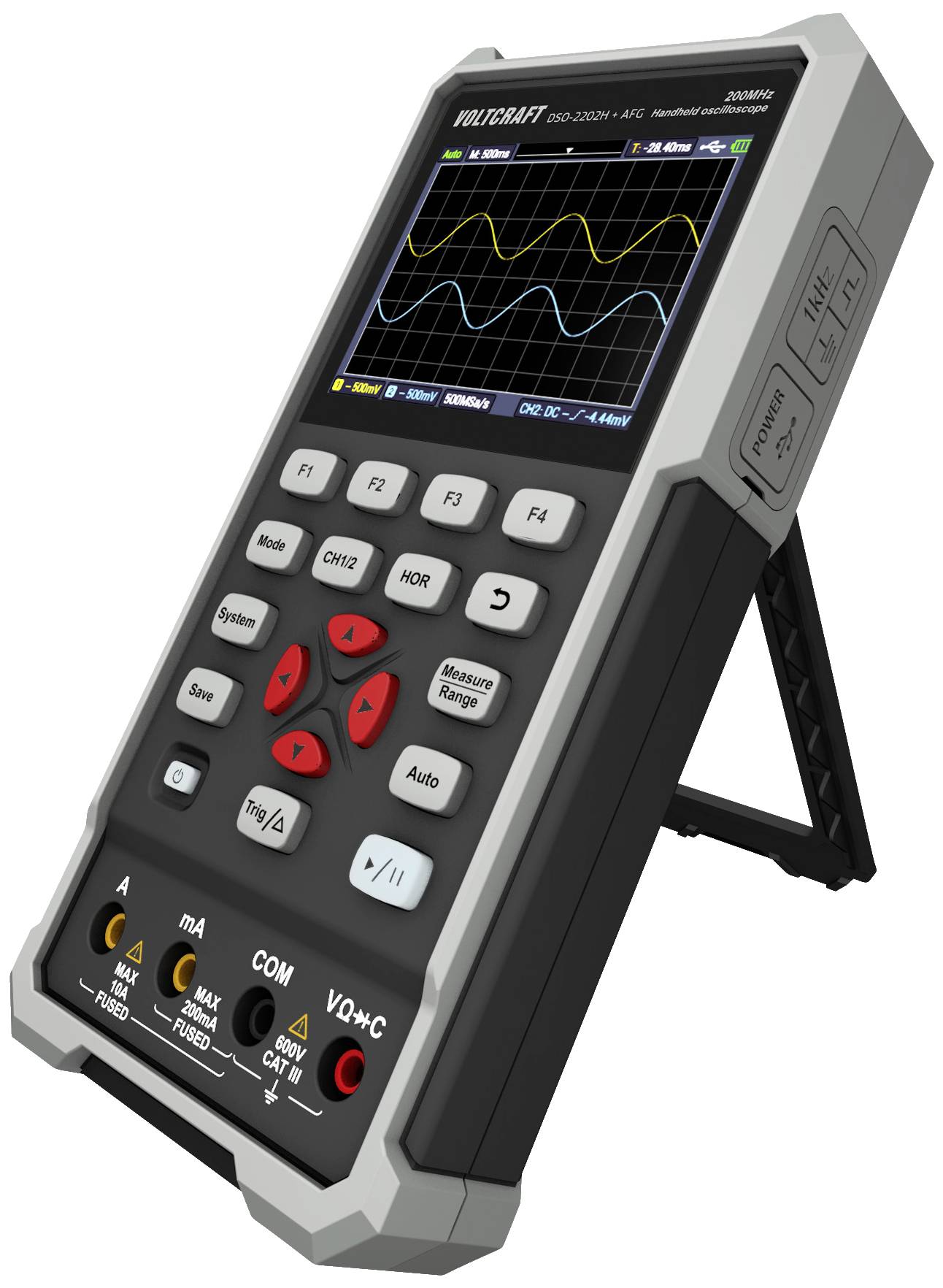

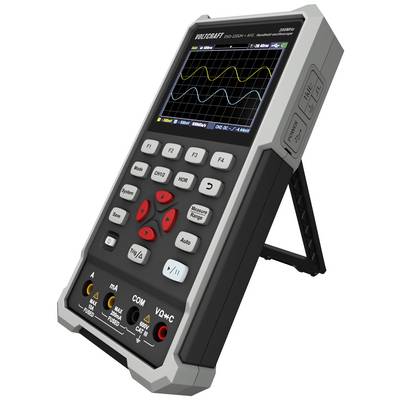

Digital multimeter with a colour display, showing multiple measurement curves and buttons for various measurements and settings.

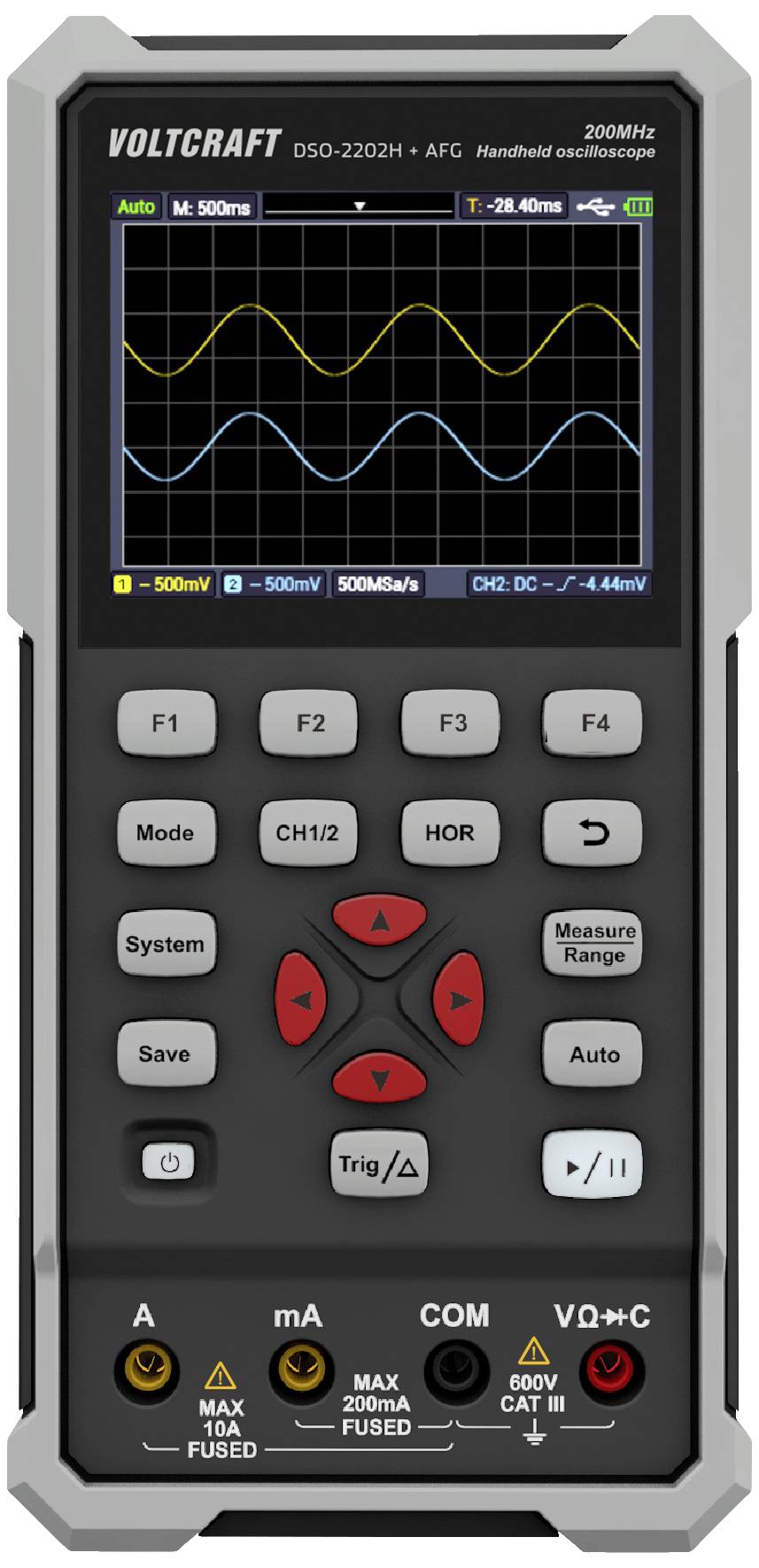

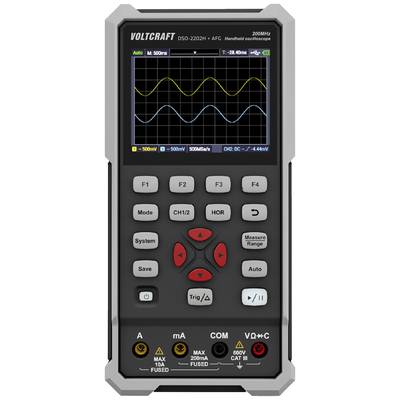

Portable Handheld Oscilloscope Voltcraft DSO-2202H; displays signal progression on screen; buttons for voltage settings and measurement ranges.

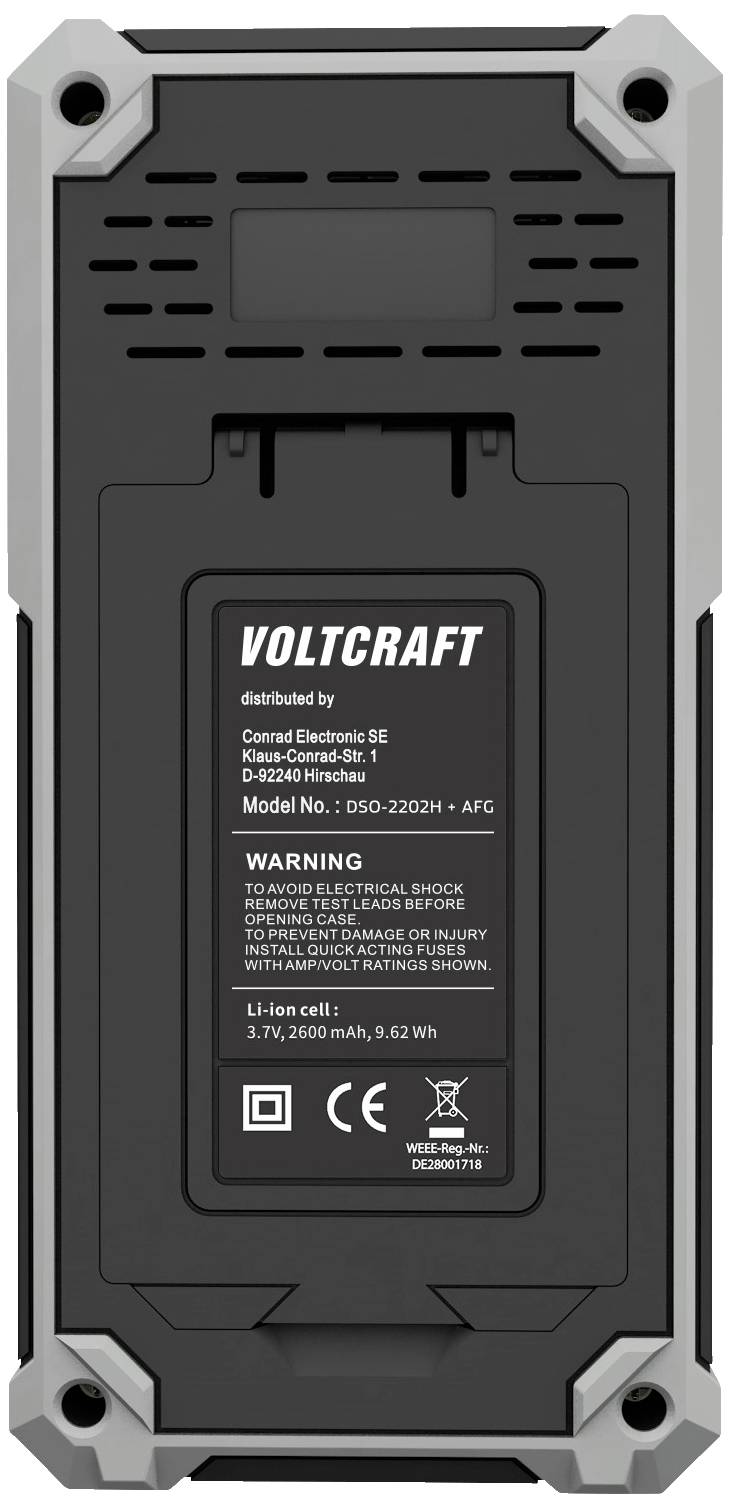

Back of a VOLTCRAFT device with technical details and warning notices for usage and safety on the label.

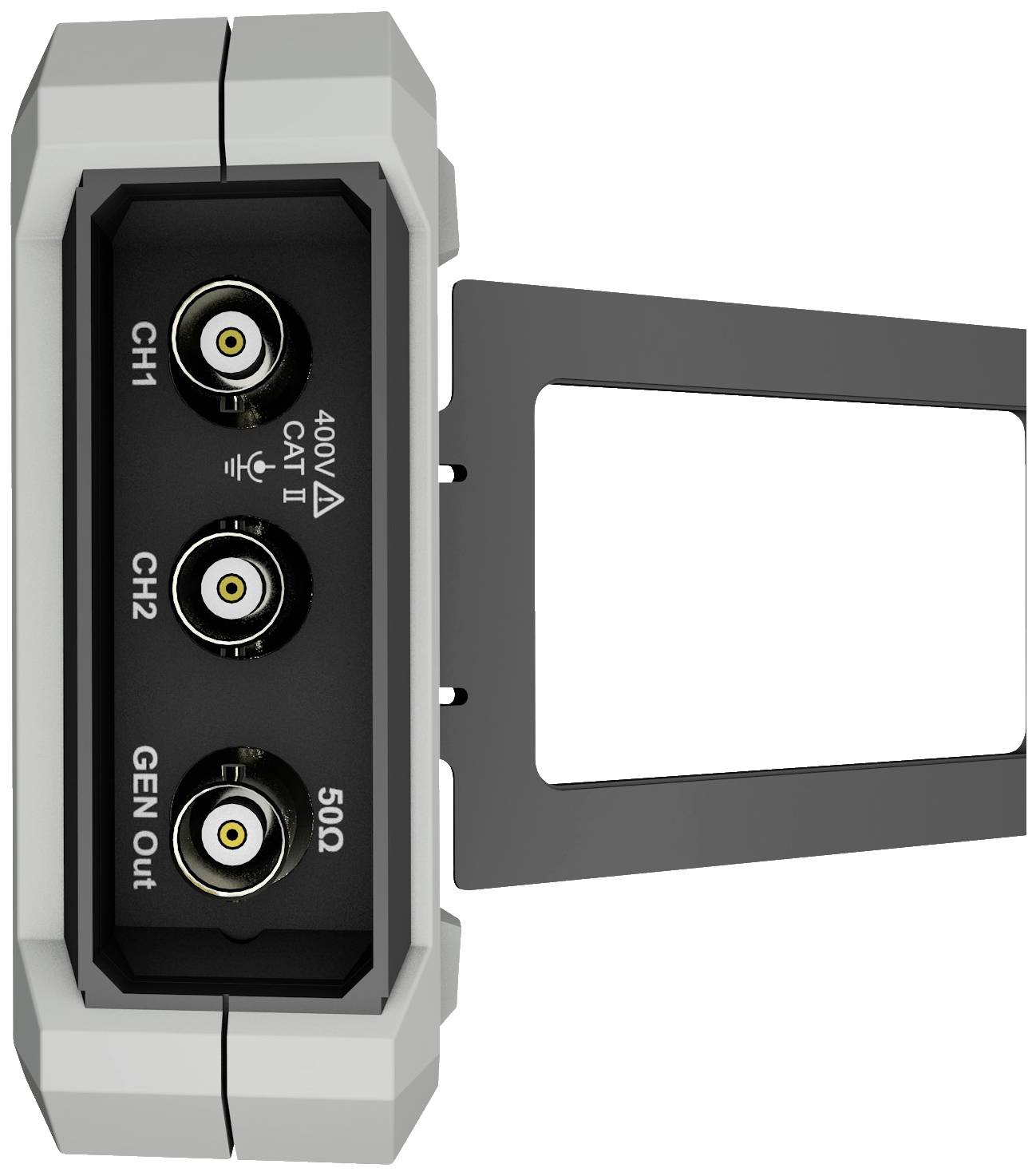

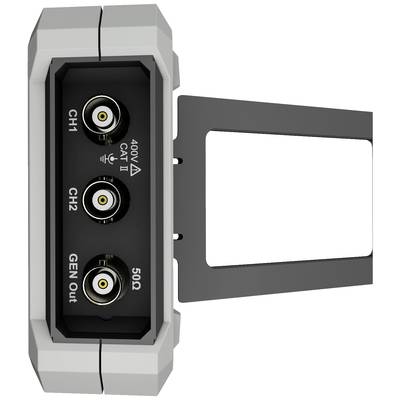

A black device panel with three connections: 'CH1', 'CH2' and 'GEN Out', along with a label '400V CAT II'.

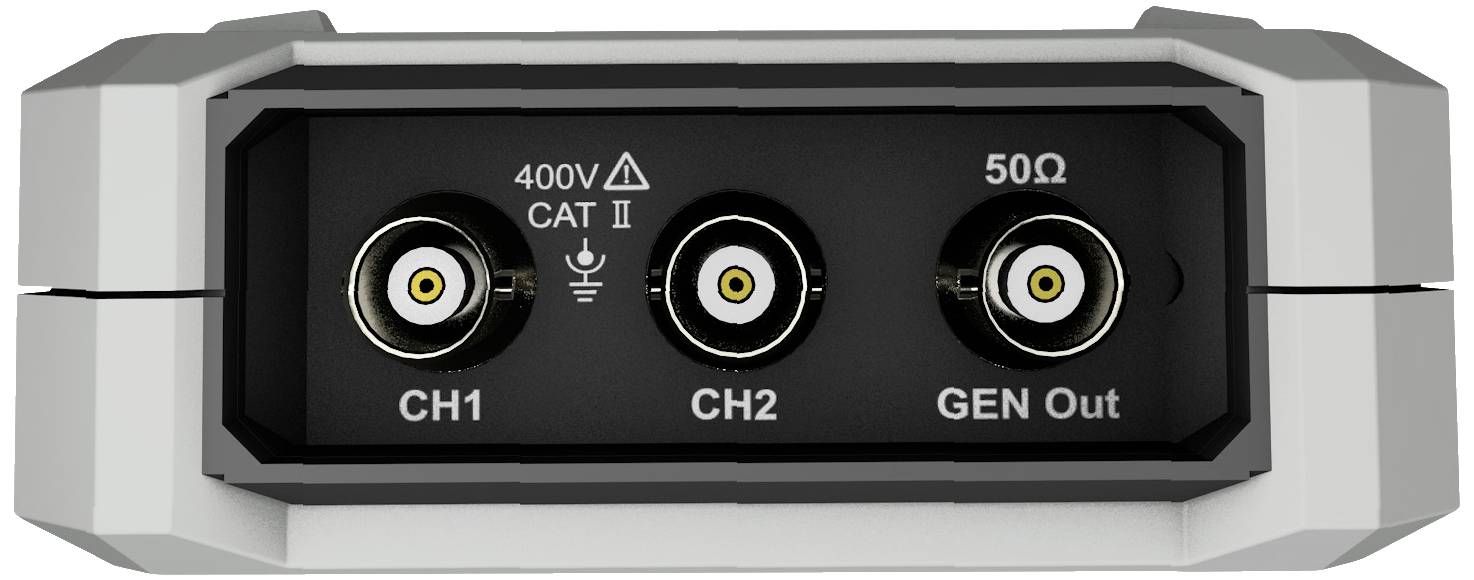

'Rear view of an electronic device with three connections: CH1, CH2 and GEN Out, labelled with 400V CAT II and 50Ω.'

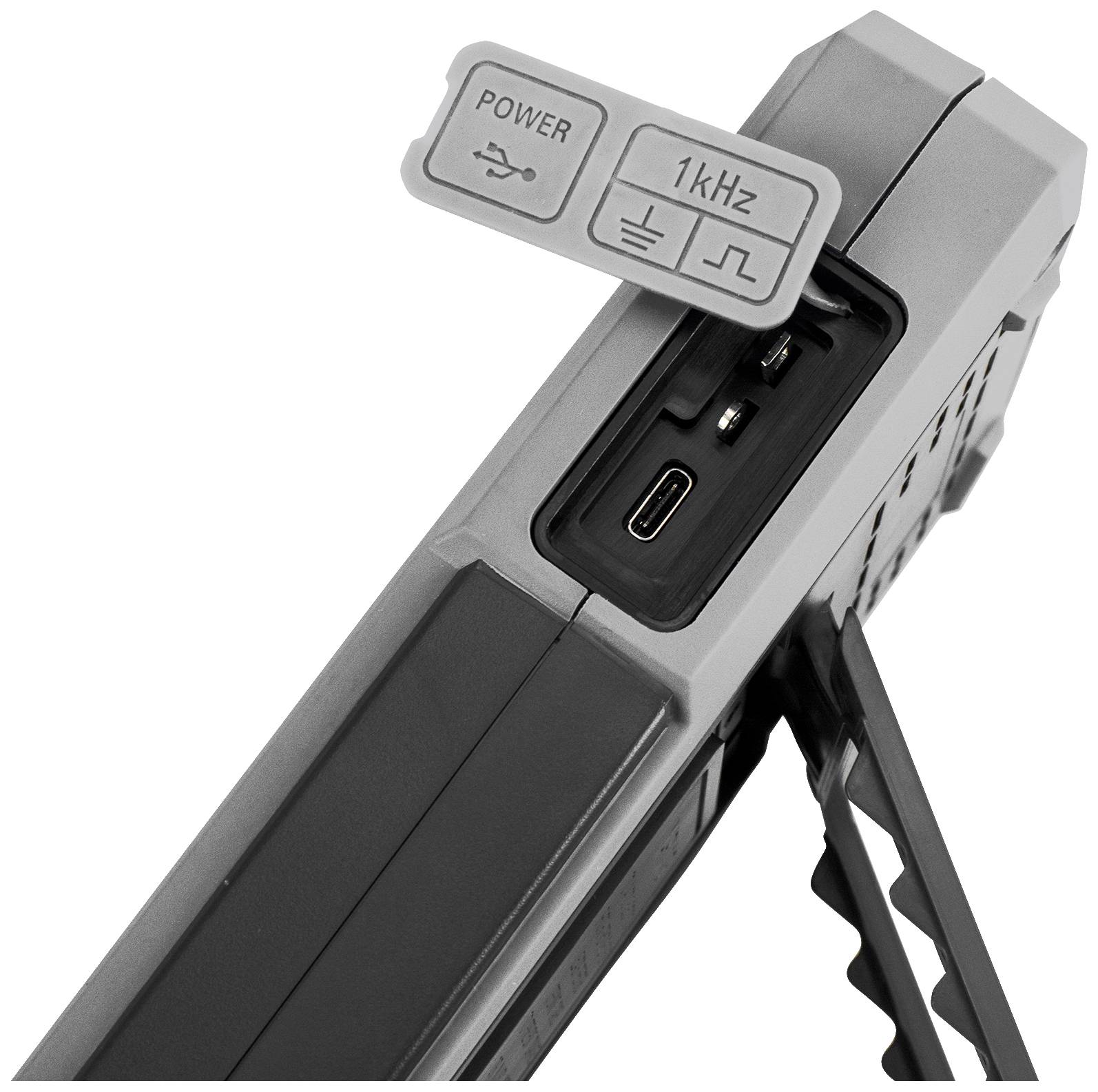

A bench multimeter with a removable cover showing the 'POWER' and '1kHz' buttons; it also has USB and jack connections.

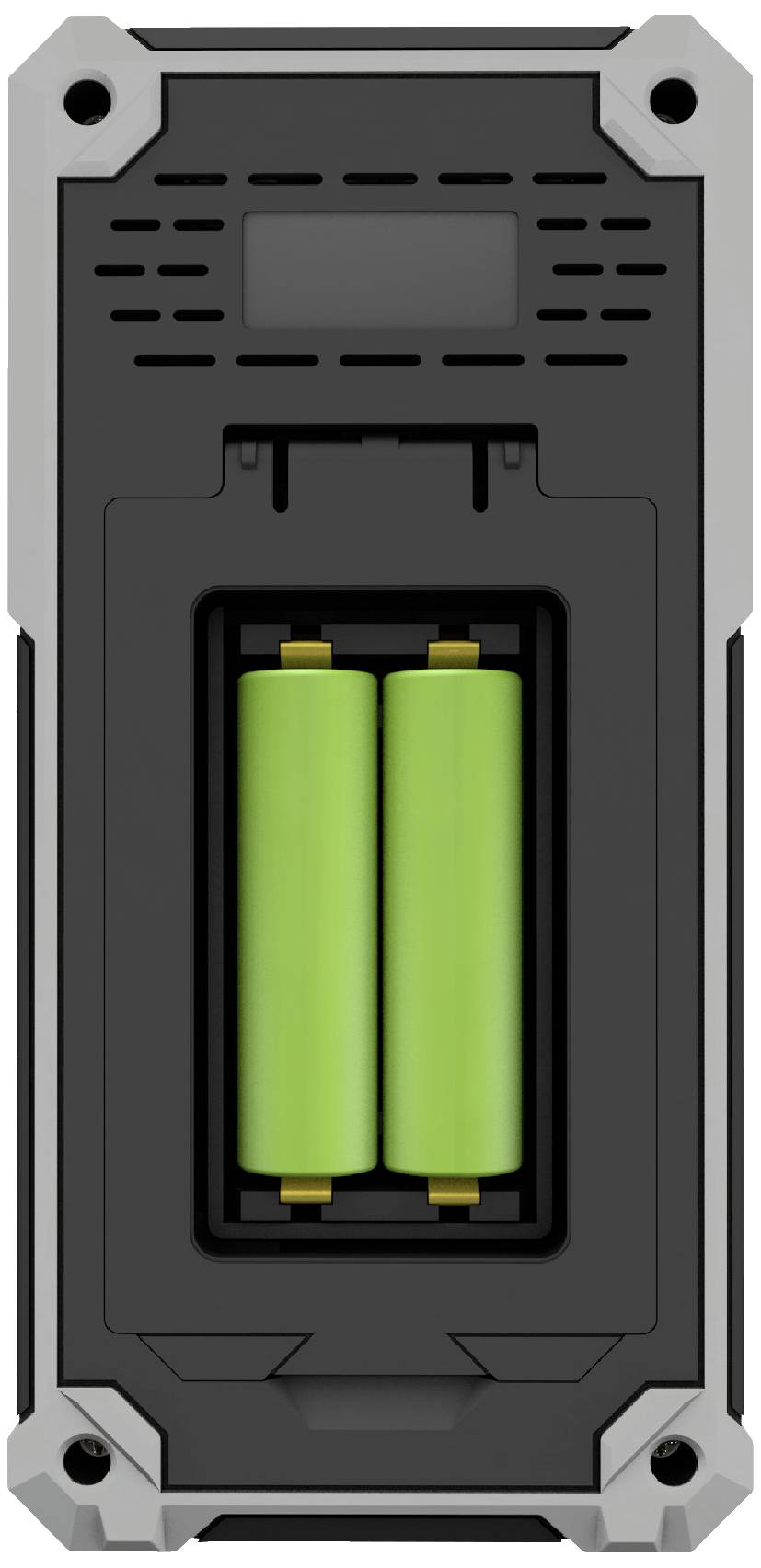

The image shows the back of a portable device with an open battery compartment. Two green batteries are visible.

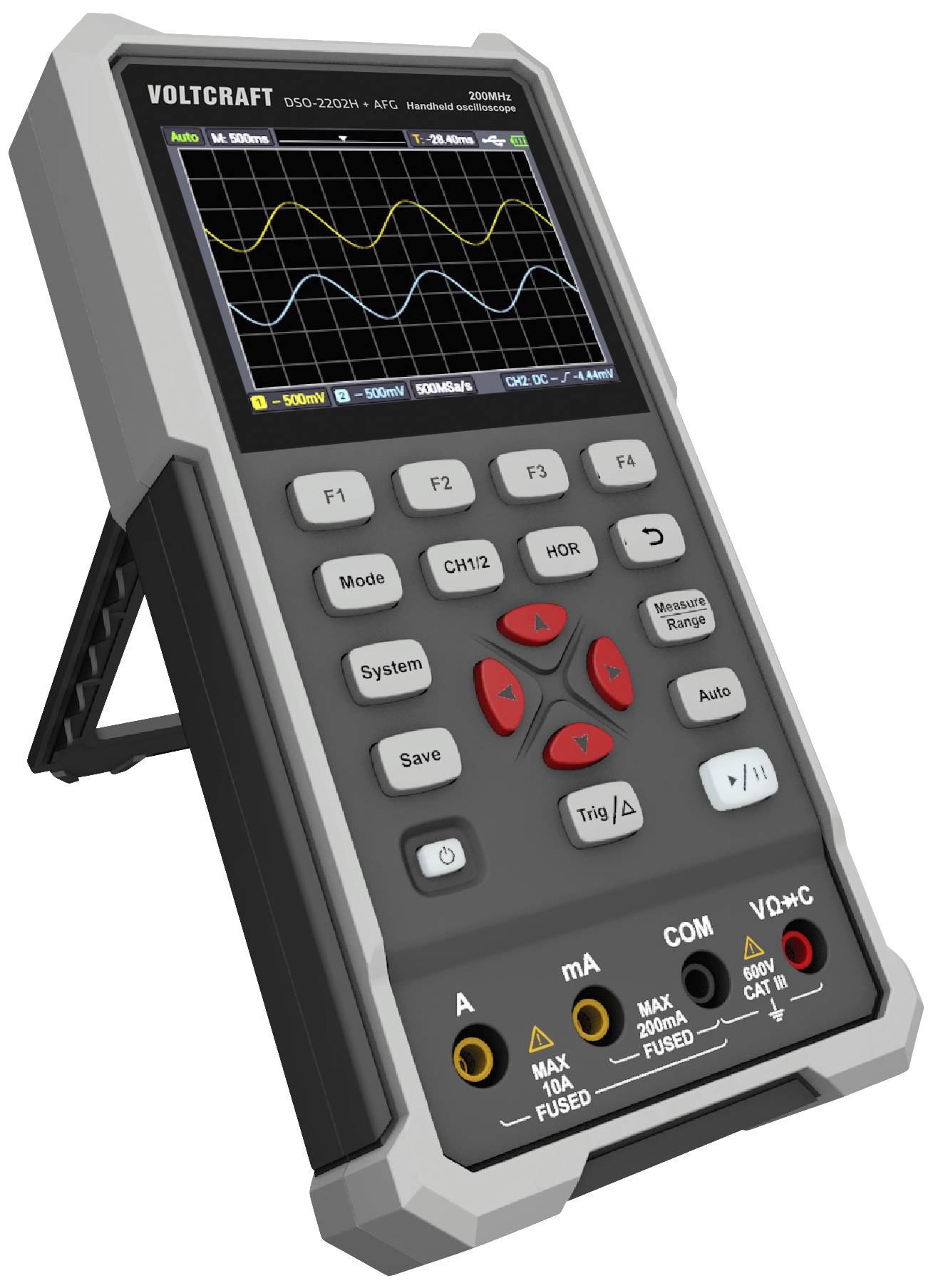

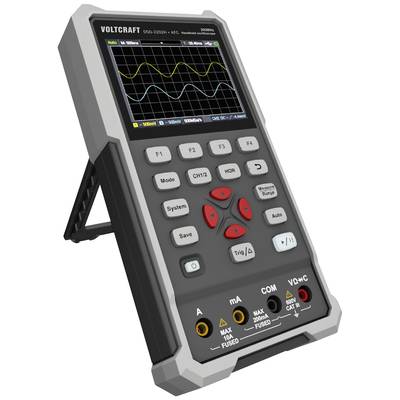

A handheld device with a screen displays two overlapping waveforms in different colours. It has several buttons and ports at the bottom.

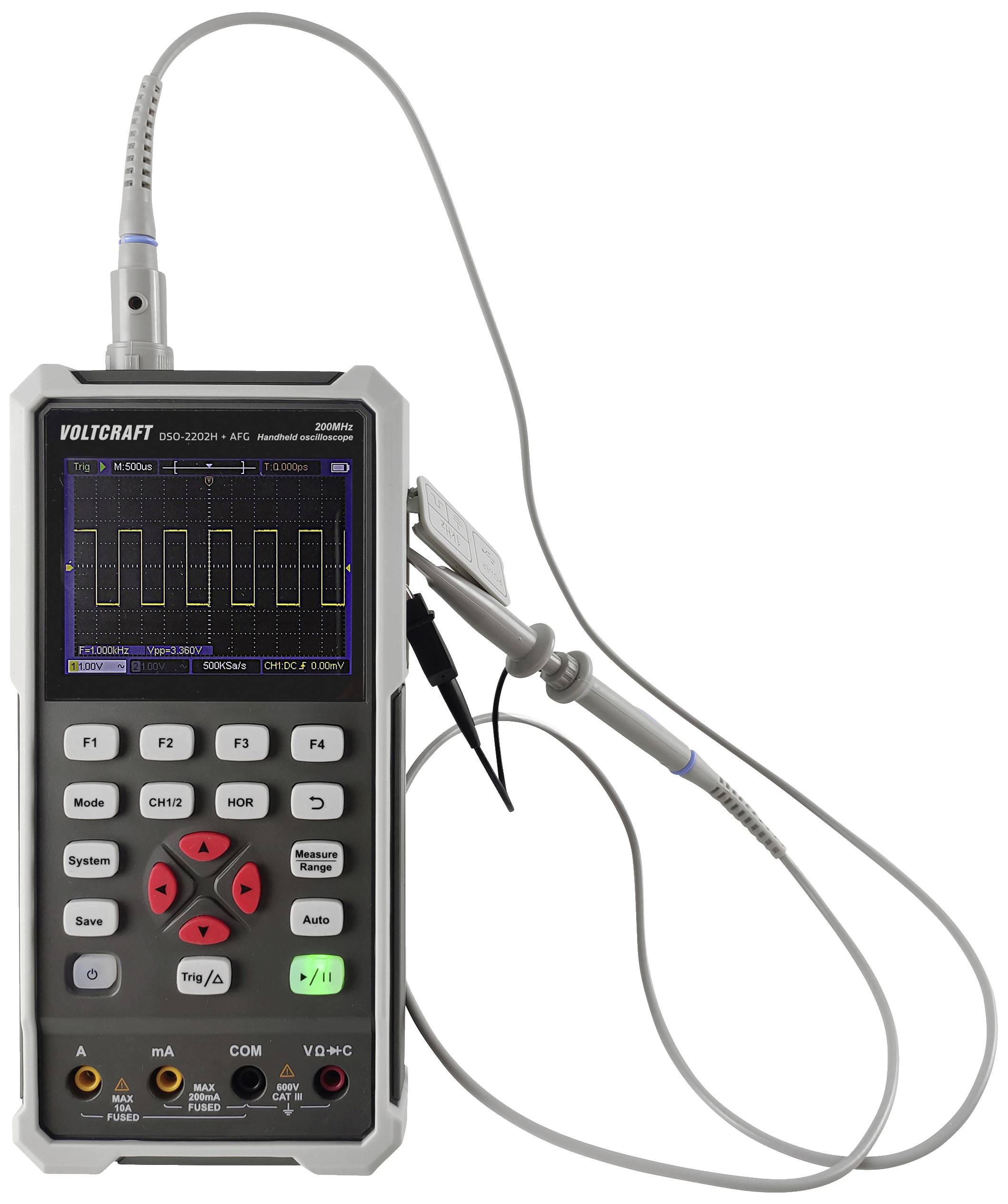

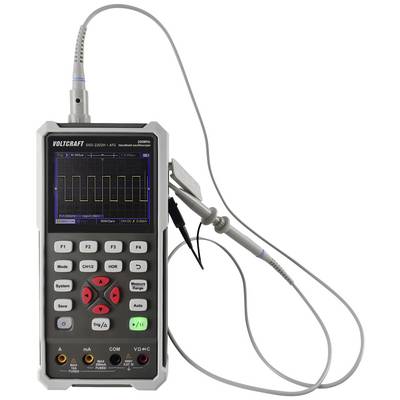

A portable oscilloscope measures electrical signals. The display shows a rectangular waveform. The device has various function buttons.

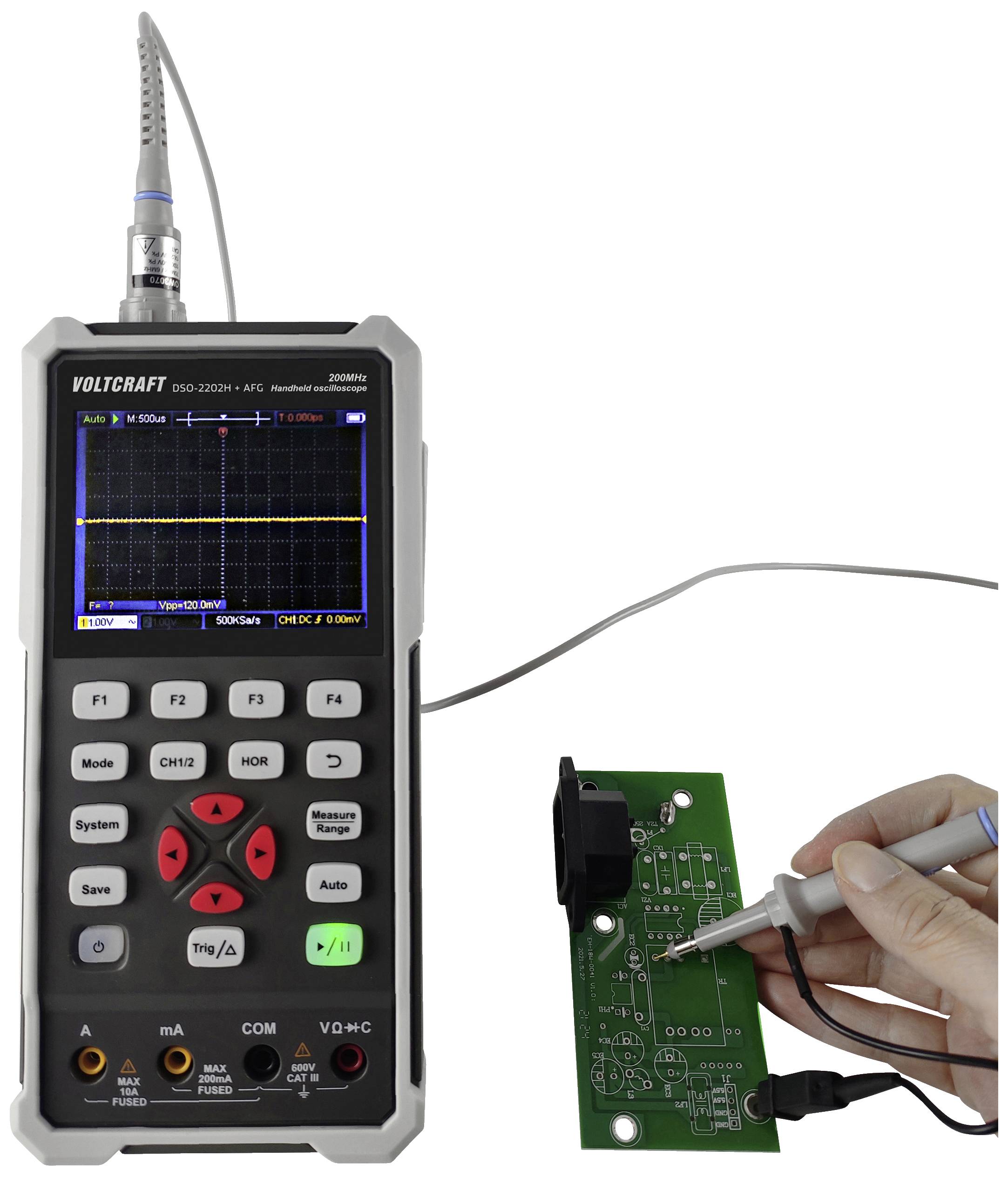

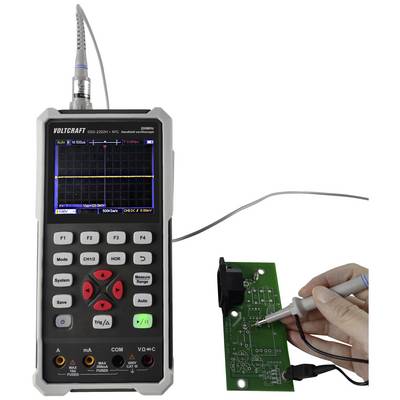

A handheld oscilloscope is measuring voltage values on a green circuit board. The screen displays an oscilloscope diagram.

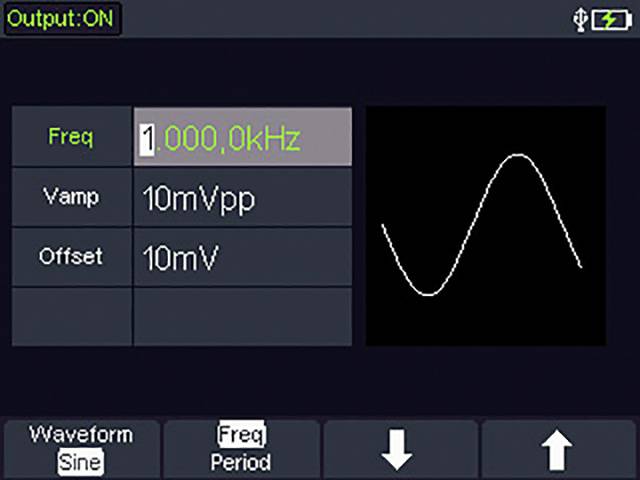

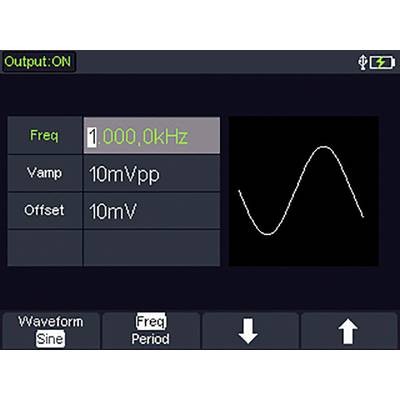

Image of an oscilloscope display showing a sine wave at 1000.0 kHz with an amplitude of 10 Vpp and an offset of 10 mV.

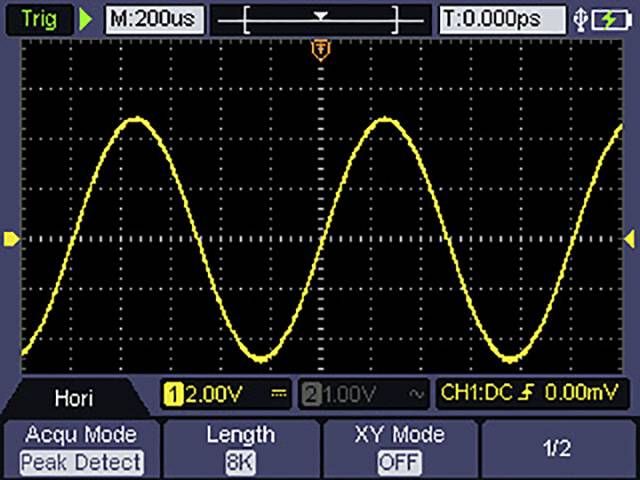

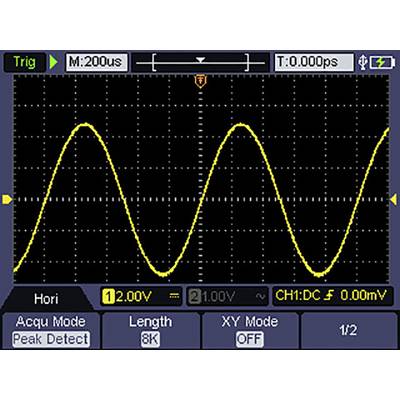

'Oscilloscope display shows a sinusoidal wave.'

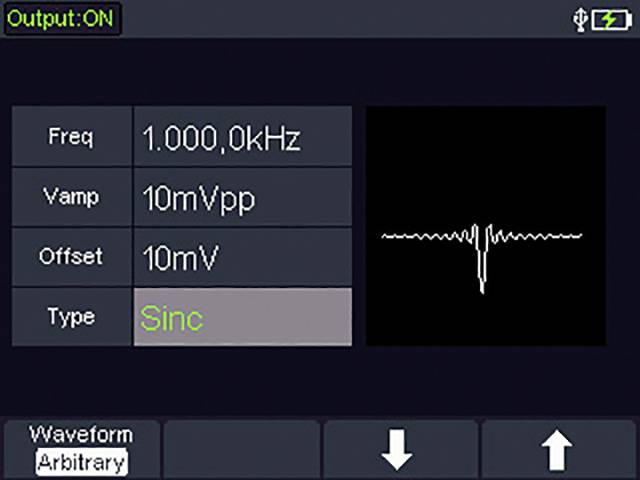

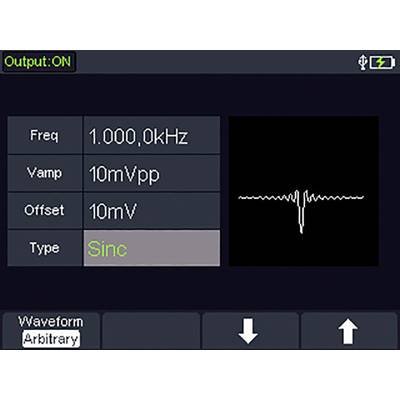

'Output: ON'. Display of a frequency generator: Freq 1,000.0 kHz, Vamp 10 mVpp, Offset 10 mV, Type 'Sinc'. Rectangular waveform graphic on the right.

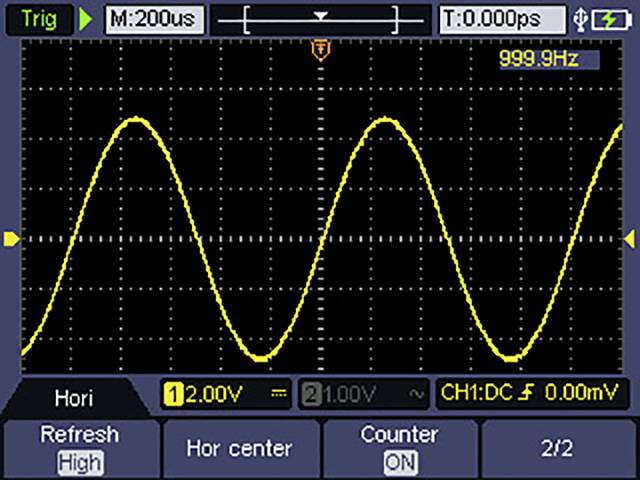

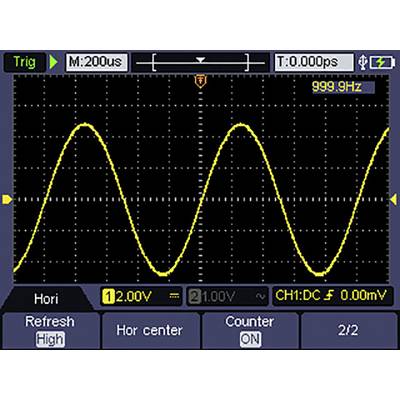

'Oscilloscope screen displays a yellow sine wave with a frequency of 999.9 Hz and a voltage of 12.00 V on Channel 1.'

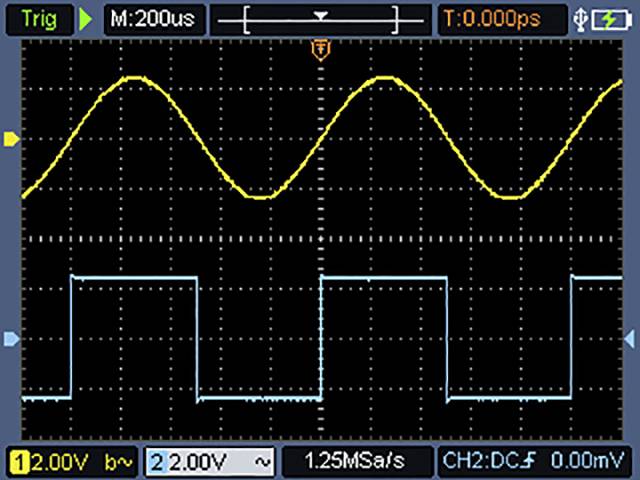

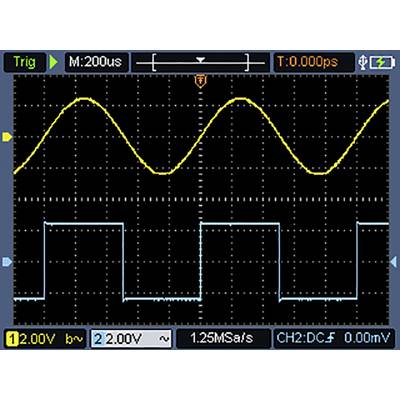

'Oscilloscope screen shows two waveforms: upper yellow sine wave and lower blue square wave. Axes indicate voltages.'

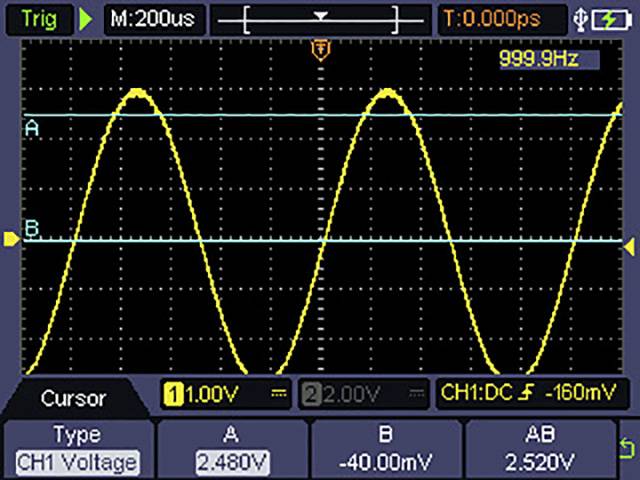

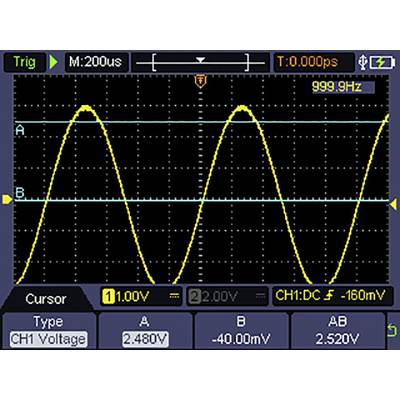

An oscilloscope displays a yellow sine wave at 999.9 Hz. Measurement values: 2.480 V voltage, with horizontal and vertical axes marked.

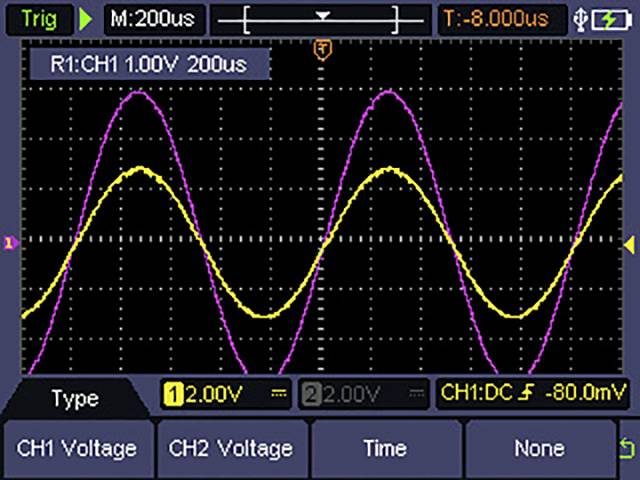

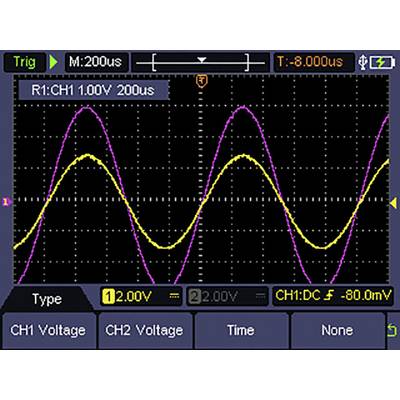

An oscilloscope shows two sine waves. The yellow line has an amplitude of 1.00V, the pink line also. The Y-axis shows voltage, the X-axis shows time.

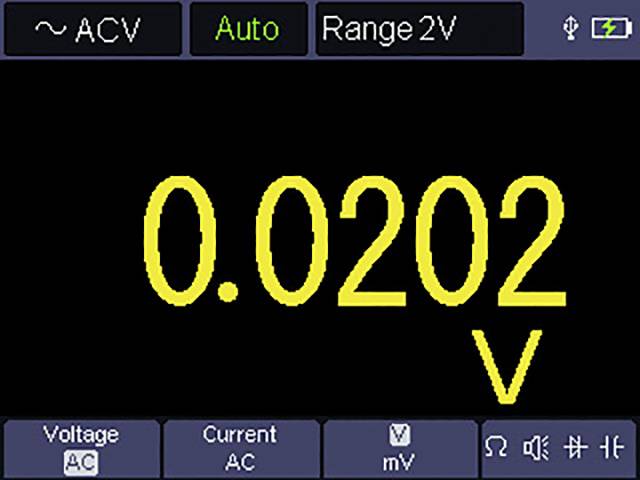

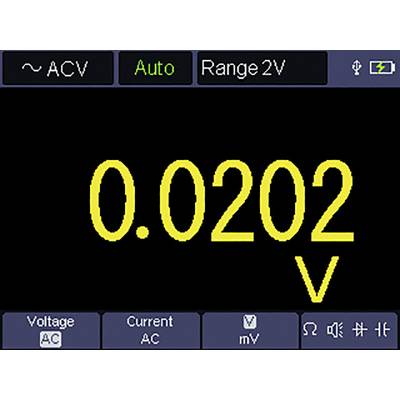

Digital voltmeter displays reading: 0.0202 Volts in the alternating current range of 2V. Automatic mode activated.

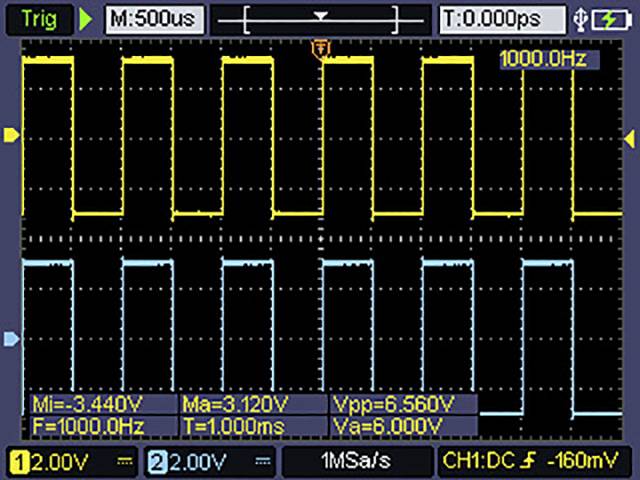

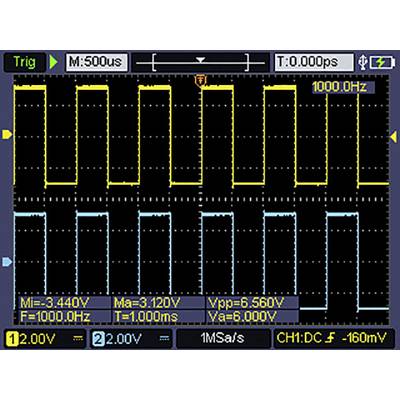

'Oscilloscope display with two waveforms. Upper wave: 1000.0 Hz, lower waveform. Parameters: Vpp=6.560 V, T=1.000 ms.'

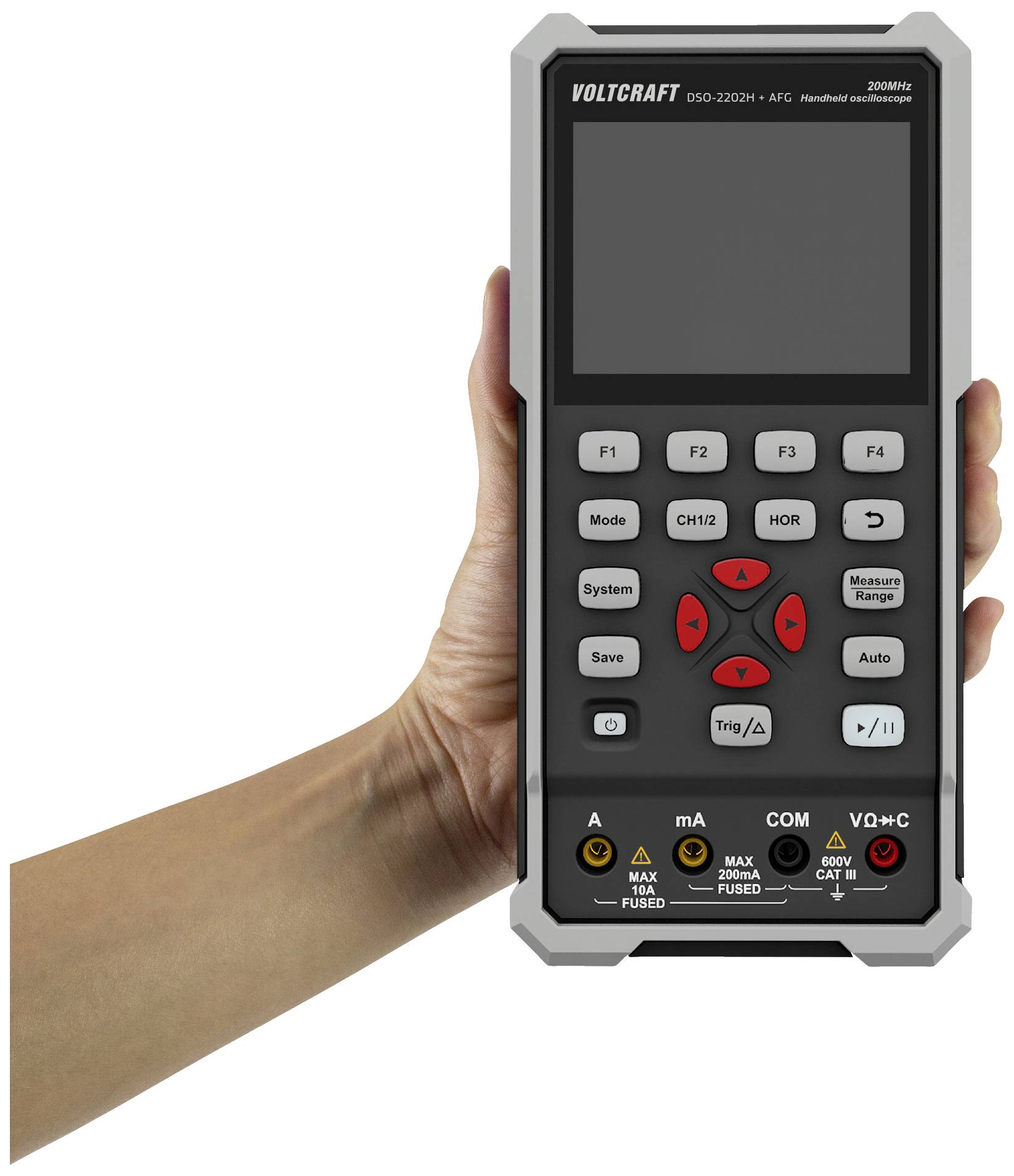

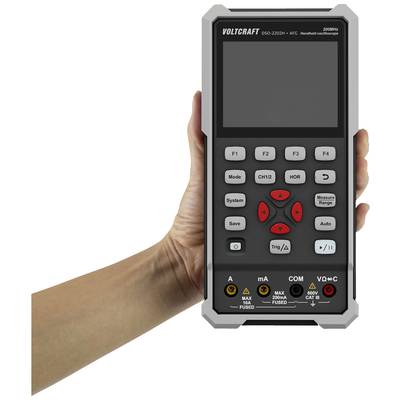

A hand is holding a portable measuring device with a screen and keypad, used for measuring electrical currents.

1/23

Our service for you

Datasheet (PDF)

42 Piece(s)

Show alternatives

Do your needs go beyond this?

Sales and shipping:

Report legal concerns

Highlights & Details

DSO-2202H + AFG DIGITAL OSCILLOSCOPE 3 IN 1

3 in 1 - Oscilloscope, multimeter and waveform generator
8.89 cm LCD color screen (320 x 240 pixels)
USB Type-C interface

Technical specifications

Max 10,000 WFM/s

Product type: Handheld oscilloscope

Bandwidth: 200 MHz

Channel sample rate: 1 GS/s

Displays: 8.89 cm TFT LCD, 320 x 240 pixels

Resolution: 8 Bit

Screen size: 8.89 cm

Oscilloscope features: Handheld

Time base: 2ns/div~1000s/div, step by 1 – 2 - 5

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 400 V

Vertical deflection: 10mV/div~10V/div

Input impedance: 1 MΩ±2%, parallel dazu 16 pF±10 pF

Input coupling: DC, AC, ground

Input voltage: 400 V (DC + AC, PK - PK)

Power supply (details): 5V DC, 2A

Dim: (L x W x H) 198 x 38 x 96 mm

Weight: 0.6 kg

Display: 8.89 cm

Width: 38 mm

Height: 96 mm

Length: 198 mm

Interfaces: USB device

Channel memory depth: 8 KP

Type: DSO-2202H + AFG

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2687724 VOLTCRAFT DSO-2202H + AFG Handheld oscilloscope 200 MHz 2-channel 1 GS/s 8 KP 8 Bit Handheld 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2687724 VOLTCRAFT DSO-2202H + AFG Handheld oscilloscope 200 MHz 2-channel 1 GS/s 8 KP 8 Bit Handheld 1 pc(s)

Warranty Terms

Warranty Terms 2687724 VOLTCRAFT DSO-2202H + AFG Handheld oscilloscope 200 MHz 2-channel 1 GS/s 8 KP 8 Bit Handheld 1 pc(s)

Download

Download 2687724 VOLTCRAFT DSO-2202H + AFG Handheld oscilloscope 200 MHz 2-channel 1 GS/s 8 KP 8 Bit Handheld 1 pc(s)

Description

The VOLTCRAFT DSO-2202H + AFG digital oscilloscope 3 in 1 impresses with a bandwidth of 200 MHz, 2 channels and a 8.89 cm LCD color display. The maximum sampling rate is 1 GS/s, the recording capacity is 8 K. The VOLTCRAFT digital oscilloscope works with 8-bit vertical resolution. The USB connection also serves for data storage.

This text is machine translated.

Features

Oscilloscope:
200 MHz bandwidth , 2 channels
Max. 1 GSa/s sampling rate
Max. 8K record length
8-bit vertical resolution
Multimeter:
CATII 1000 V
20,000 Counts
Auto-range
TRMS
Measuring type - Voltage, current, resistance, capacitance, on/off, diode
Waveform generator:
Max. 25 MHz frequency output, 1 channel
Max. 125 MSa/s sampling rate
0.1 Hz frequency resolution
14-bit vertical resolution
8K waveform length

Scope of delivery

Oscilloscope
Probes
Probe adjust tool
USB cable
Carrying bag
2 x BNC to alligator clip cable
1 x pair of Multimeter test leads (Red & Black)
Software + English manual on CD
Quick guide
Safety hint sheet
