Name: VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x
Brand: VOLTCRAFT
SKU: 3451554

VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x-0

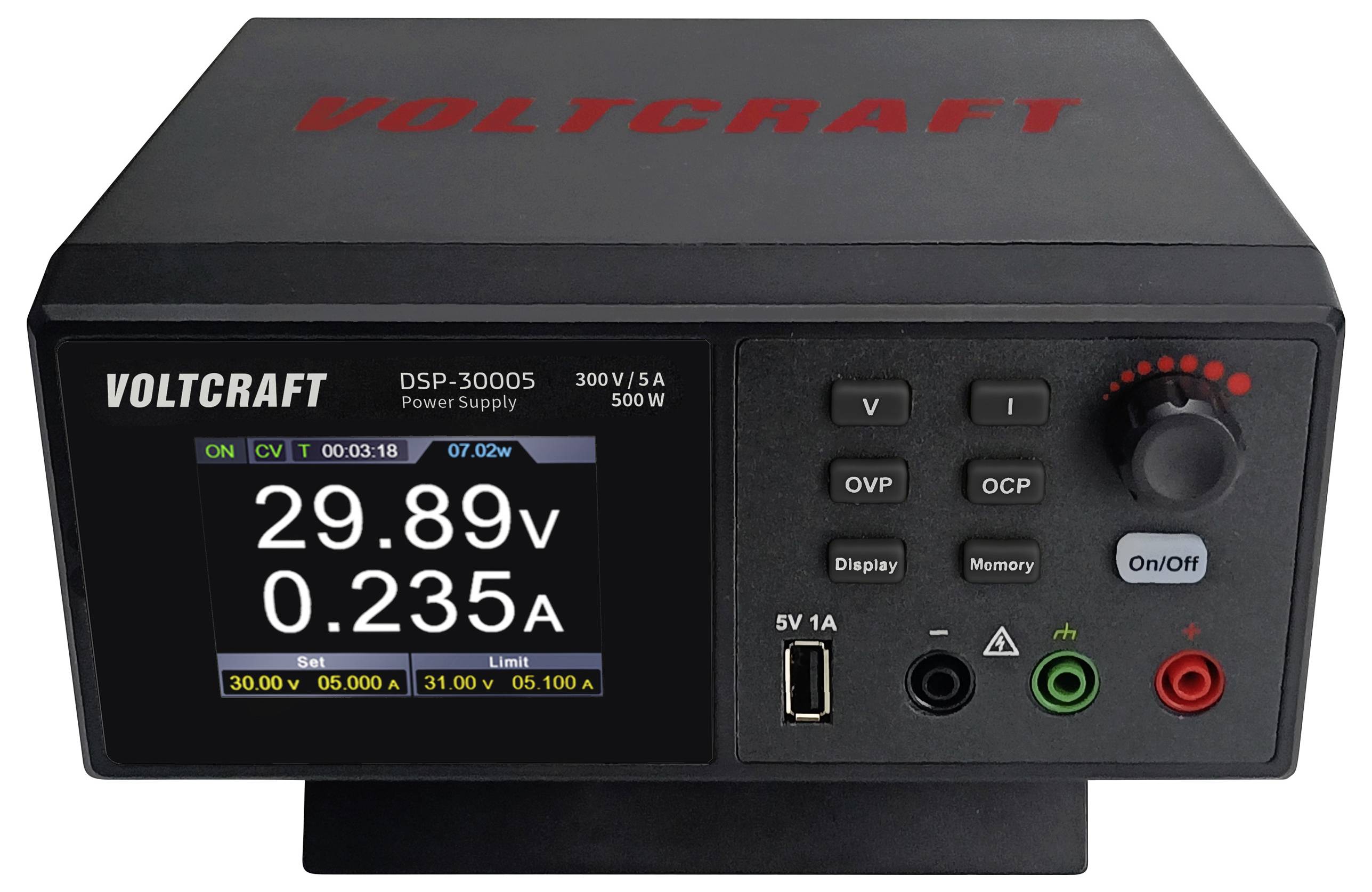

'VOLTCRAFT DSP-3005' power supply showing 29.89 volts, 0.235 amps on display. Features buttons for OVP, OCP, and an adjustable knob.

'PowerCraft model TSP-3000S' power inverter, 3000W, black casing, rear view showing plug socket, fan vent, and switch.

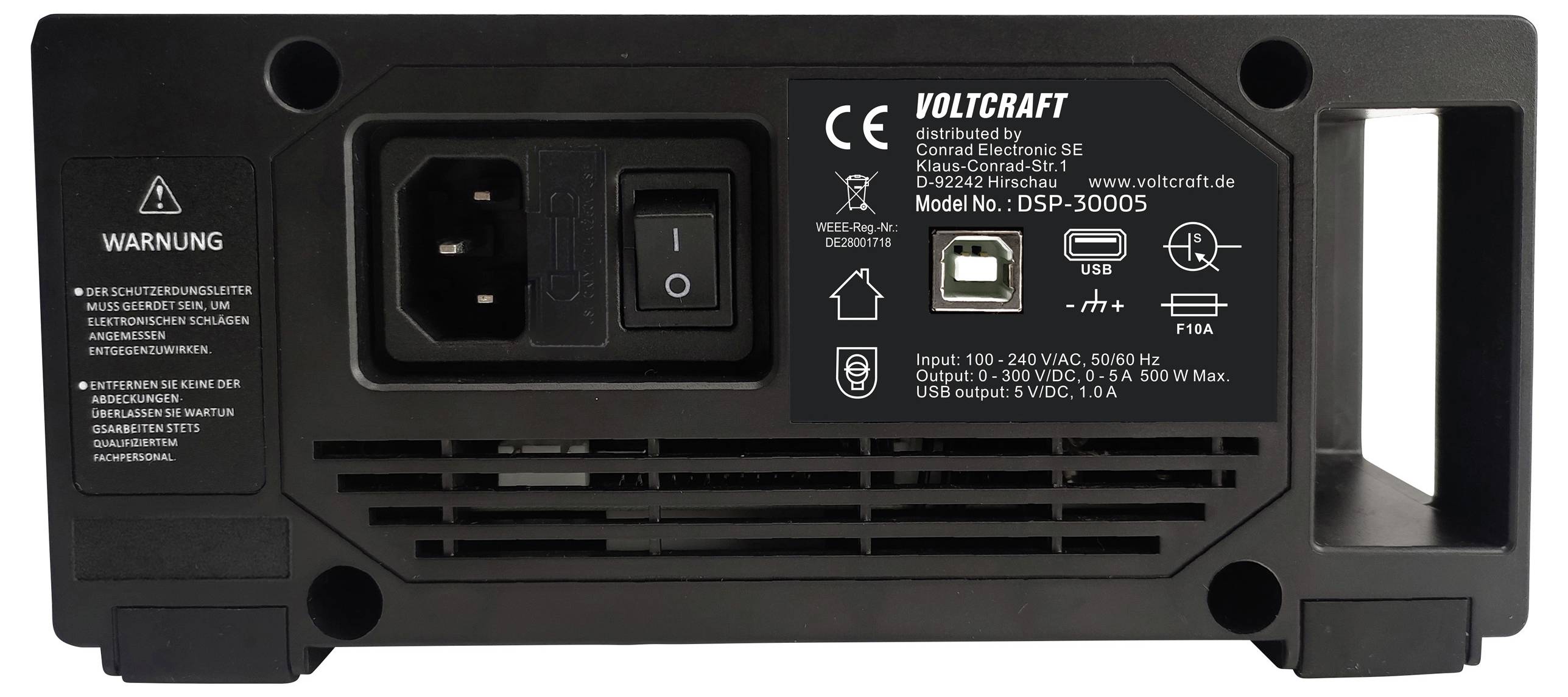

Back view of a Voltcraft DSP-3000S power supply showing various ports and connections, including AC input, USB, RS-232, and fan vent.

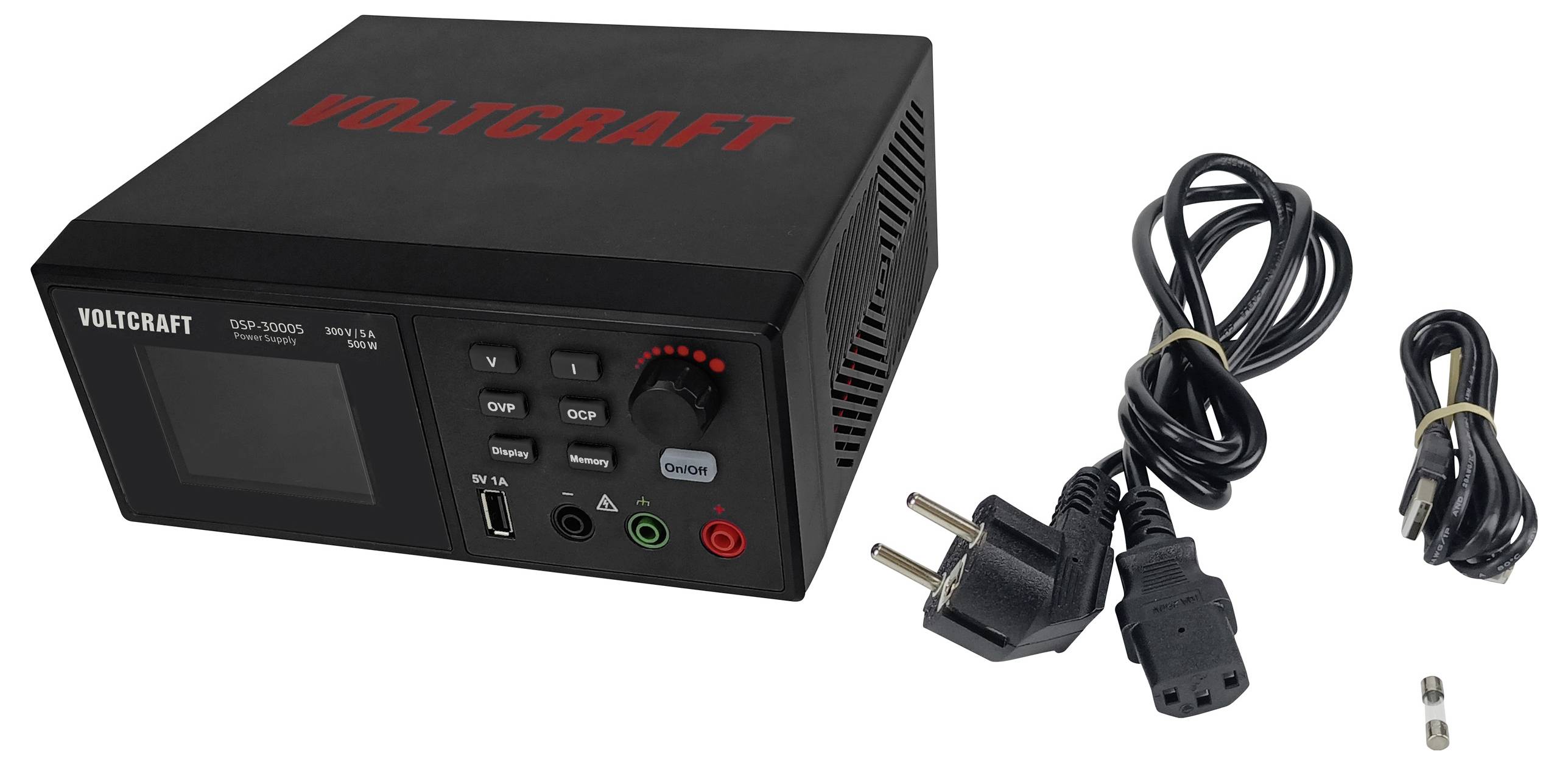

A black Voltcraft power supply with various control buttons, display screen, and multiple plug attachments is shown.

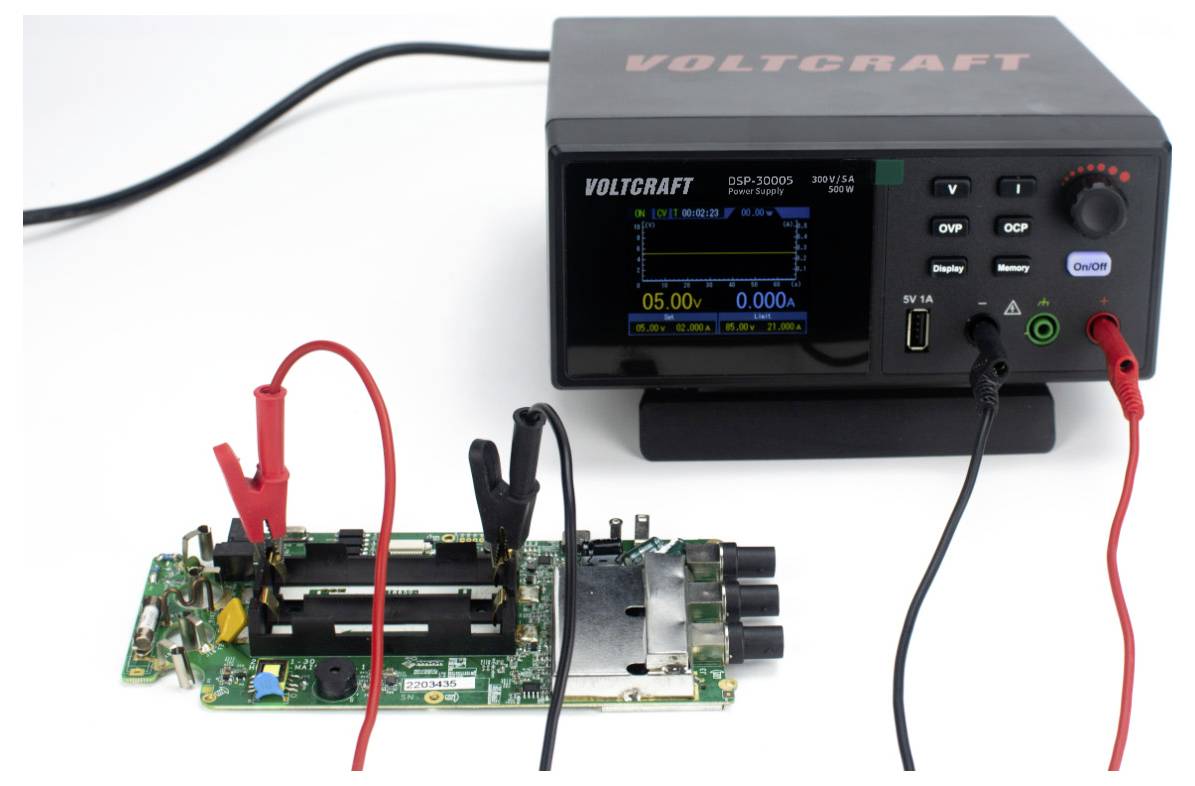

A digital power supply unit connected to a circuit board with wires. The display shows voltage readings, indicating active testing or calibration.

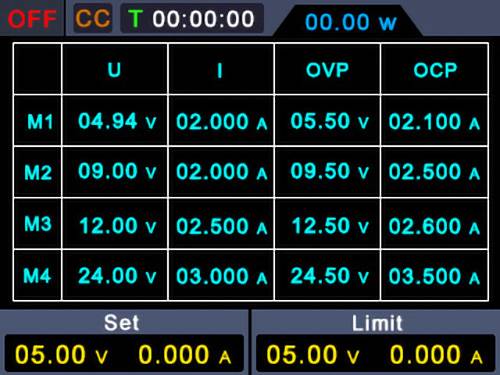

Display screen showing electrical measurements: rows labeled M1 to M4, columns for voltage (U), current (I), OVP, and OCP with numerical values.

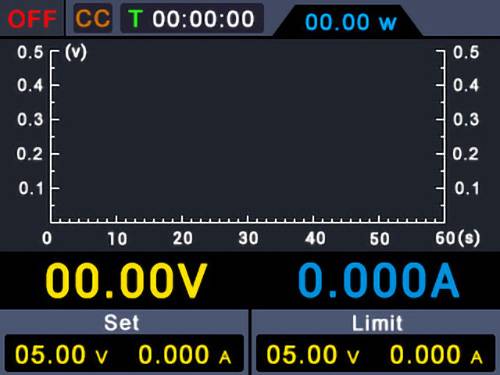

'Display panel showing a power supply's output. Voltage is 00.00V, current is 0.000A. Set and limit values are 05.00V and 00.00A.'

Power supply display showing voltage '00.00 v' and current '0.000 A'. Set and limit values are '05.00 v' and '0.000 A'.

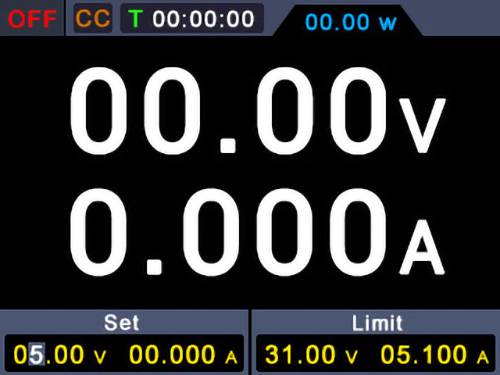

Power supply display showing '00.00v' voltage, '0.000A' current, set to '05.00v', '0.000A', with limits '31.00v', '05.100A', and labels 'OFF', 'CC', 'T'.

A digital screen displays zeros for voltage (V) and current (A) readings. 'Set' shows 5V and 0A, while 'Limit' shows 31V and 5.1A.

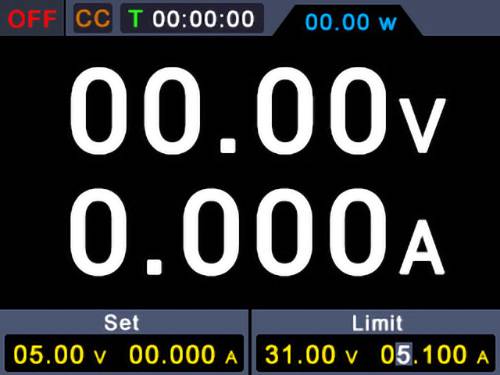

Digital power supply display showing voltage at '00.00v' and current at '0.000 A'. Settings: 'Set - 05.00 V, 00.00 A'; 'Limit - 31.00 V, 5.100 A'.

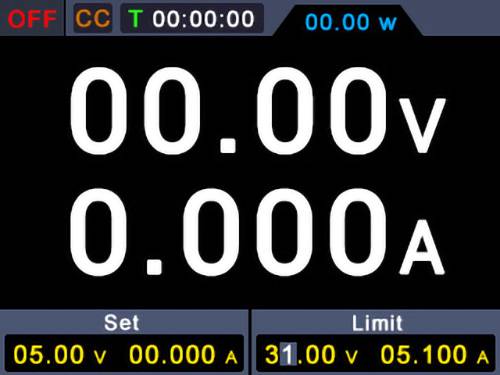

Power supply display showing voltage '00.00v' and current '0.000A'. The settings indicate a voltage limit of 31.00V and current limit of 5.100A.

1/13

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VOLTCRAFT DSP-30005 DC power supply

No. of outputs 1 x
0 - 300 / 5 A (max.)
500 W
USB

Technical specifications

Input frequency: 50/60 Hz
Input fuse: 250 V, F10 A
Resolution: 10 mV, 1 mA
Power cord length: 1.5 m
USB cable length: 1.08 m

Type: DSP-30005

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 500 W

Interfaces: USB

Features: programmable

Dim: (L x W x H) 185 x 200 x 92 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Weight: 1.6 kg

Output: USB

Output voltage (max.): 300 V

Output voltage (min.): 0 V

Max. output current: 5 A

Output current (min.): 0 A

Type: DC power supply

Width: 200 mm

Height: 92 mm

Length: 185 mm

Residual ripple: Voltage (Vp-p): ≤300 mVp-p
Current (rms): ≤30 mA

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Input voltage

Product type

Output current

VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

Item no:3451554

Unavailable

Conrad Electronic

This article

500 W

Manufacturer's standards (no certificate)

0 - 300

100 V AC

Bench PSU (adjustable voltage)

0 - 5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSP-3005 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W USB 2.0 connector A remote controlled No. of outputs 1 x

Item no:2446362

Fast track dispatch on Wed 14 Oct

277 Piece(s)Conrad Electronic

150 W

Manufacturer's standards (no certificate)

0 - 30

230 V AC

Bench PSU (adjustable voltage)

0 - 5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

VOLTCRAFT DSP-3008 F Bench PSU (adjustable voltage) 0 - 30 0 - 8 A 120 W USB fanless No. of outputs 1 x

Item no:3376589

Fast track dispatch on Wed 14 Oct

323 Piece(s)Conrad Electronic

120 W

Manufacturer's standards (no certificate)

0 - 30

100 V

Bench PSU (adjustable voltage)

0 - 8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

VOLTCRAFT DSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 300 W USB 2.0 port A remote controlled No. of outputs 1 x

Item no:2446363

Fast track dispatch on Wed 14 Oct

319 Piece(s)Conrad Electronic

300 W

Manufacturer's standards (no certificate)

0 - 30

230 V AC

Bench PSU (adjustable voltage)

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

VOLTCRAFT DSP-6010 Bench PSU (adjustable voltage) 0 - 60 0 - 10 A 300 W USB 2.0 port A remote controlled No. of outputs 1 x

Item no:2446087

Fast track dispatch on Wed 14 Oct

455 Piece(s)Conrad Electronic

300 W

Manufacturer's standards (no certificate)

0 - 60

230 V AC

Bench PSU (adjustable voltage)

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Item no:3368776

Dispatches on Thu 15 Oct

Conrad Electronic

500 W

Manufacturer's standards (no certificate)

0 - 80

100 V

Bench PSU (adjustable voltage)

0 - 20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 325.00^*

VOLTCRAFT DSP-15010 Bench PSU (adjustable voltage) 0 - 150 10 A (max.) 500 W USB No. of outputs 1 x

Item no:3451553

Unavailable

Conrad Electronic

500 W

Manufacturer's standards (no certificate)

0 - 150

100 V AC

Bench PSU (adjustable voltage)

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSP-3008 F Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 30 0 - 8 A 120 W USB fanless No. of outputs 1 x

Item no:3768324

Unavailable

Conrad Electronic

120 W

DAkkS standards

0 - 30

100 V

Bench PSU (adjustable voltage)

0 - 8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSP-3008 F Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 30 0 - 8 A 120 W USB fanless No. of outputs 1 x

Item no:3768283

Unavailable

Conrad Electronic

120 W

ISO standards

0 - 30

100 V

Bench PSU (adjustable voltage)

0 - 8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSP-8020 Bench PSU (fixed voltage) Calibrated to (DAkkS standards) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Item no:3768313

Unavailable

Conrad Electronic

500 W

DAkkS standards

0 - 80

100 V

Bench PSU (fixed voltage)

0 - 20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3451554 VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3451554 VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

Warranty Terms

Warranty Terms 3451554 VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

Download

Download 3451554 VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

Features

Ultra-thin body with portable and easy-to-use design
500 W constant power for multiple applications
Overvoltage/overcurrent/Over-temperature protection
Power-on automatic output setting
Intelligent temperature control fan for optimal cooling and minimal noise
4 groups of memory shortcut parameters for quick output
USB device communication port, supports SCPI
Constant voltage CV/constant current CC mode for effective circuit protection
LCD display

Scope of delivery

DC power supply
Power cord
USB cable
Fuse
User manual
Safety hint sheet

Description

Features

Ultra-thin body with portable and easy-to-use design
500 W constant power for multiple applications
Overvoltage/overcurrent/Over-temperature protection
Power-on automatic output setting
Intelligent temperature control fan for optimal cooling and minimal noise
4 groups of memory shortcut parameters for quick output
USB device communication port, supports SCPI
Constant voltage CV/constant current CC mode for effective circuit protection
LCD display

Scope of delivery

DC power supply
Power cord
USB cable
Fuse
User manual
Safety hint sheet
