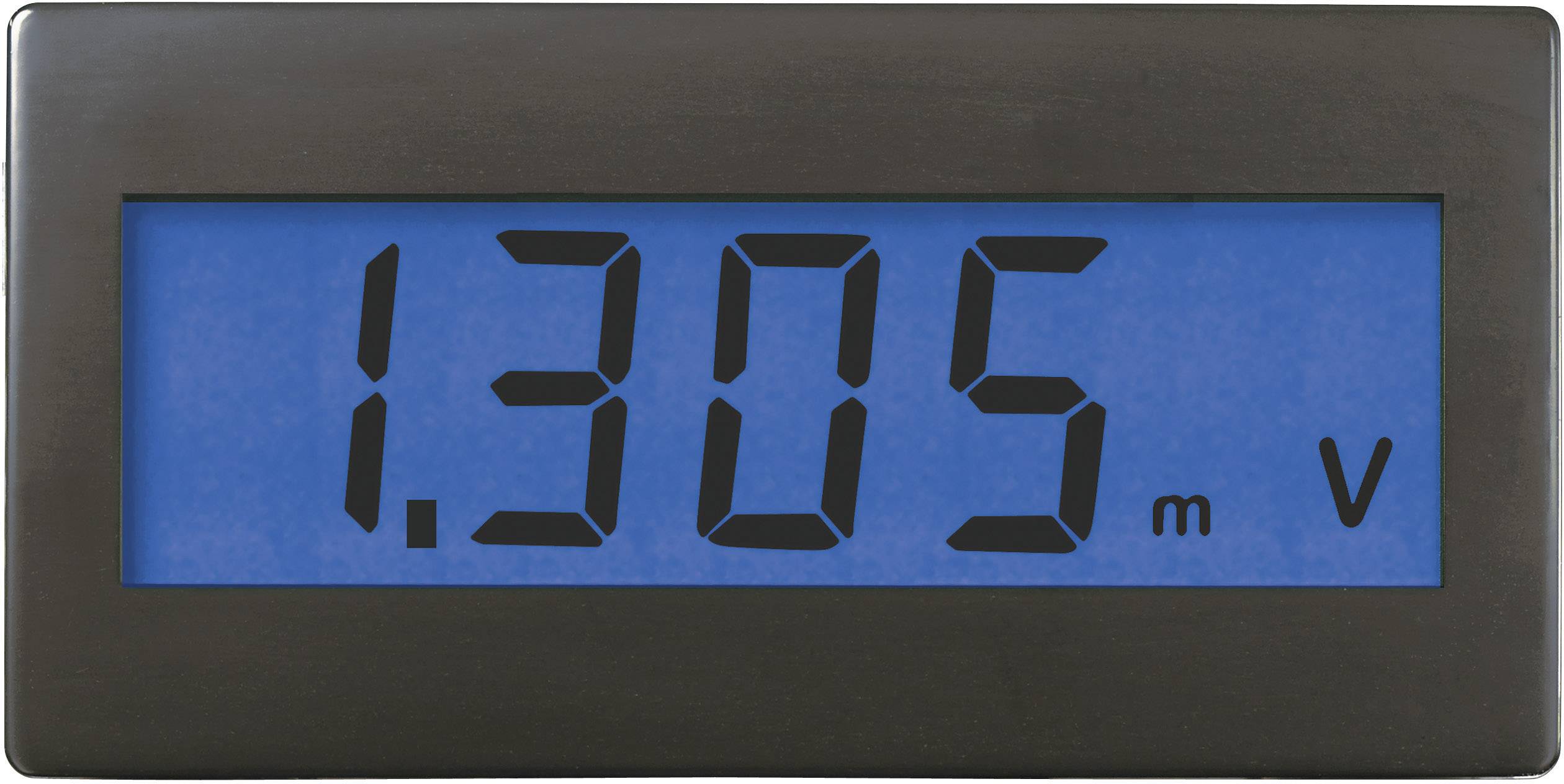

VOLTCRAFT DVM230B Digital rack-mount meter ±199.9 mV
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details
DVM module DVM 230 B
- Assembly dimensions 45 x 22 mm
- Factory colour Blue
Technical specifications
- Product type
Digital rack-mount meter
- Type
DVM230B
- Dim
(W x H x D) 48 x 24 x 14 mm
- Factory colour
Blue
- Width
48 mm
- Height
24 mm
- Digit height
10 mm
- Depth
14 mm
- Digits
1999
- Display (details)
LCD
- Assembly dimensions
45 x 22 mm
- Power supply (details)
9 V DC
- Current consumption
2 mA (with background lighting 50mA)
- Tolerance
±0.5% + 10 digits
- Display range
0 - 1999
- Reading range
±199.9 mV
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 126562 VOLTCRAFT DVM230B Digital rack-mount meter ±199.9 mV
Information
Information 126562 VOLTCRAFT DVM230B Digital rack-mount meter ±199.9 mV
Conformity certificate
Conformity certificate 126562 VOLTCRAFT DVM230B Digital rack-mount meter ±199.9 mV
Warranty Terms
Warranty Terms 126562 VOLTCRAFT DVM230B Digital rack-mount meter ±199.9 mV
Description
Module series of DIN-size modules for installation in power supplies, lab equipment, control panels, etc. There are two different series.
Standard modules with DIN dimension 48 x 24 mm and 10 mm digit height.
Standard modules with DIN dimension 72 x 36 mm and 14 mm digit height. Includes a LED backlight for dark conditions, with an additional current consumption of about 50 mA
Standard modules with DIN dimension 48 x 24 mm and 10 mm digit height.
Standard modules with DIN dimension 72 x 36 mm and 14 mm digit height. Includes a LED backlight for dark conditions, with an additional current consumption of about 50 mA
Features
- Input resistance 100 megaohms
- 100 MO
- Virtually any measuring range may be achieved by simply adding resistors (voltage divider, shunt), example: It is connected to pin headers, setting the units and decimals via solder tags.
