Buy VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary

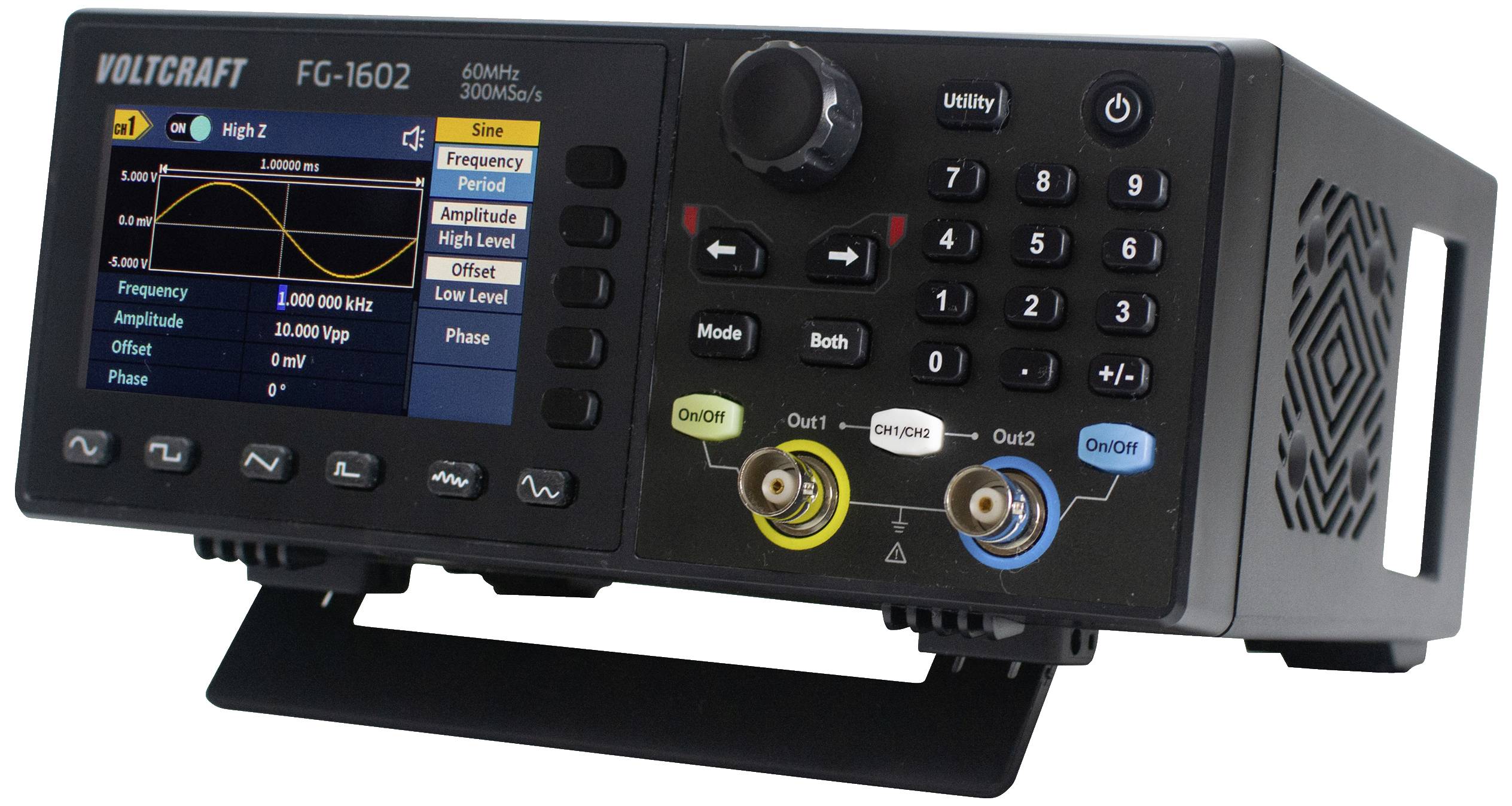

A function generator with a display shows a frequency curve. Controls for frequency, amplitude, and offset are visible.

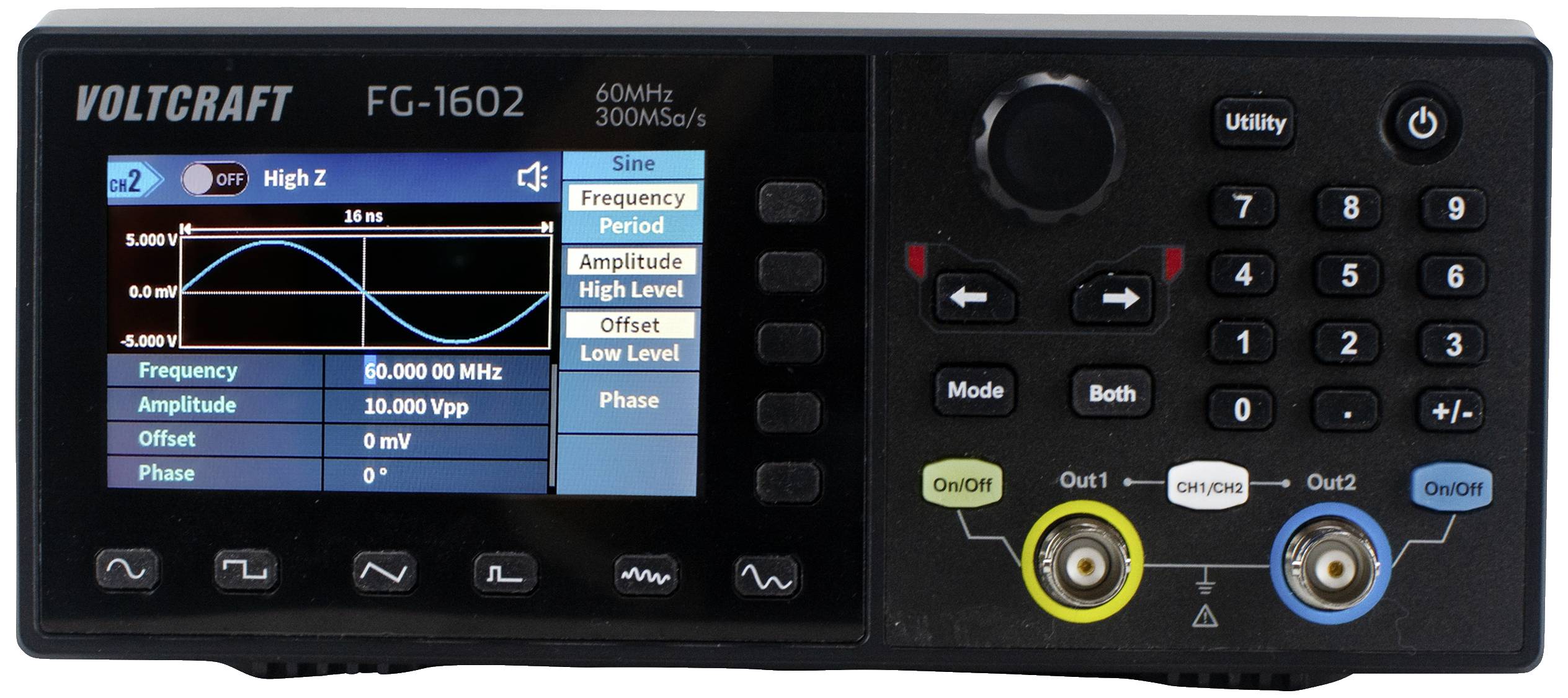

A function generator with display showing a sine wave. Buttons and rotary controls for operation, along with frequency and amplitude values.

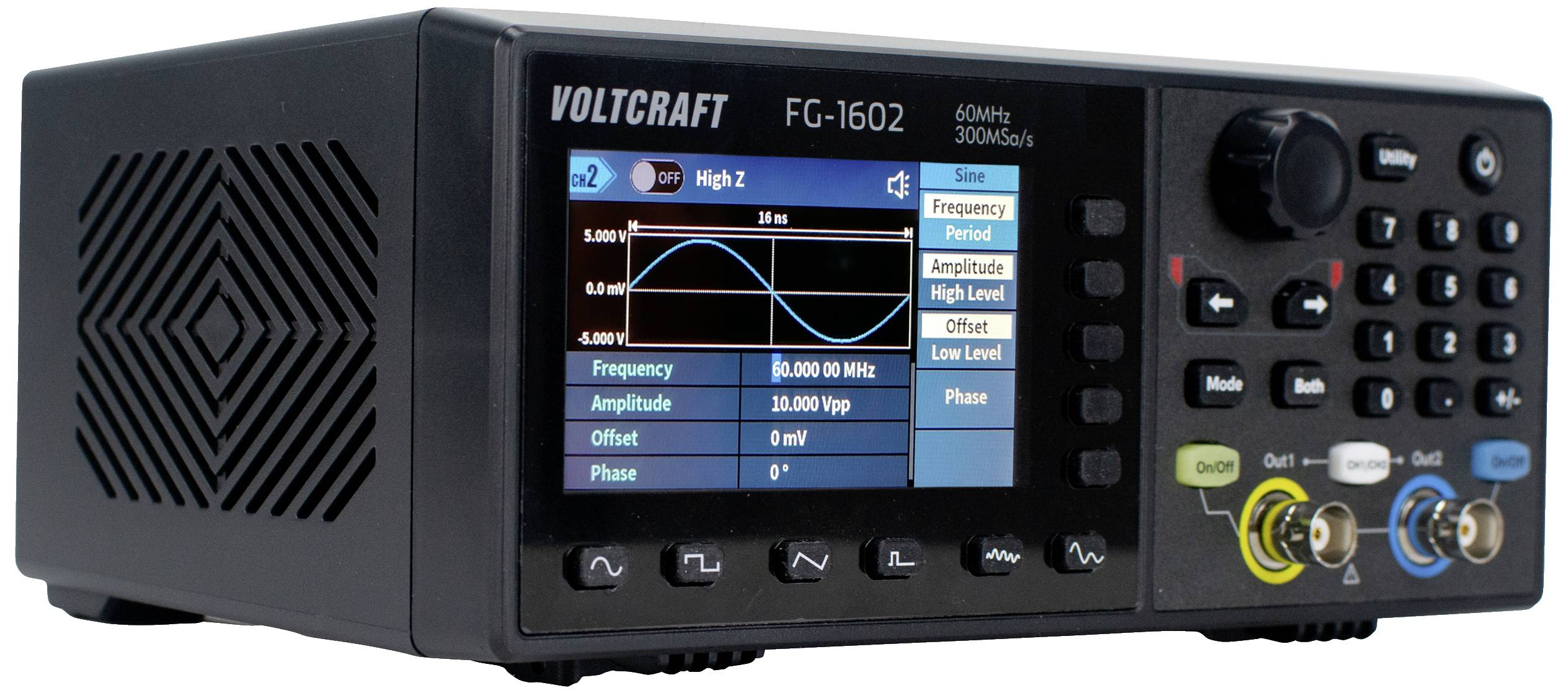

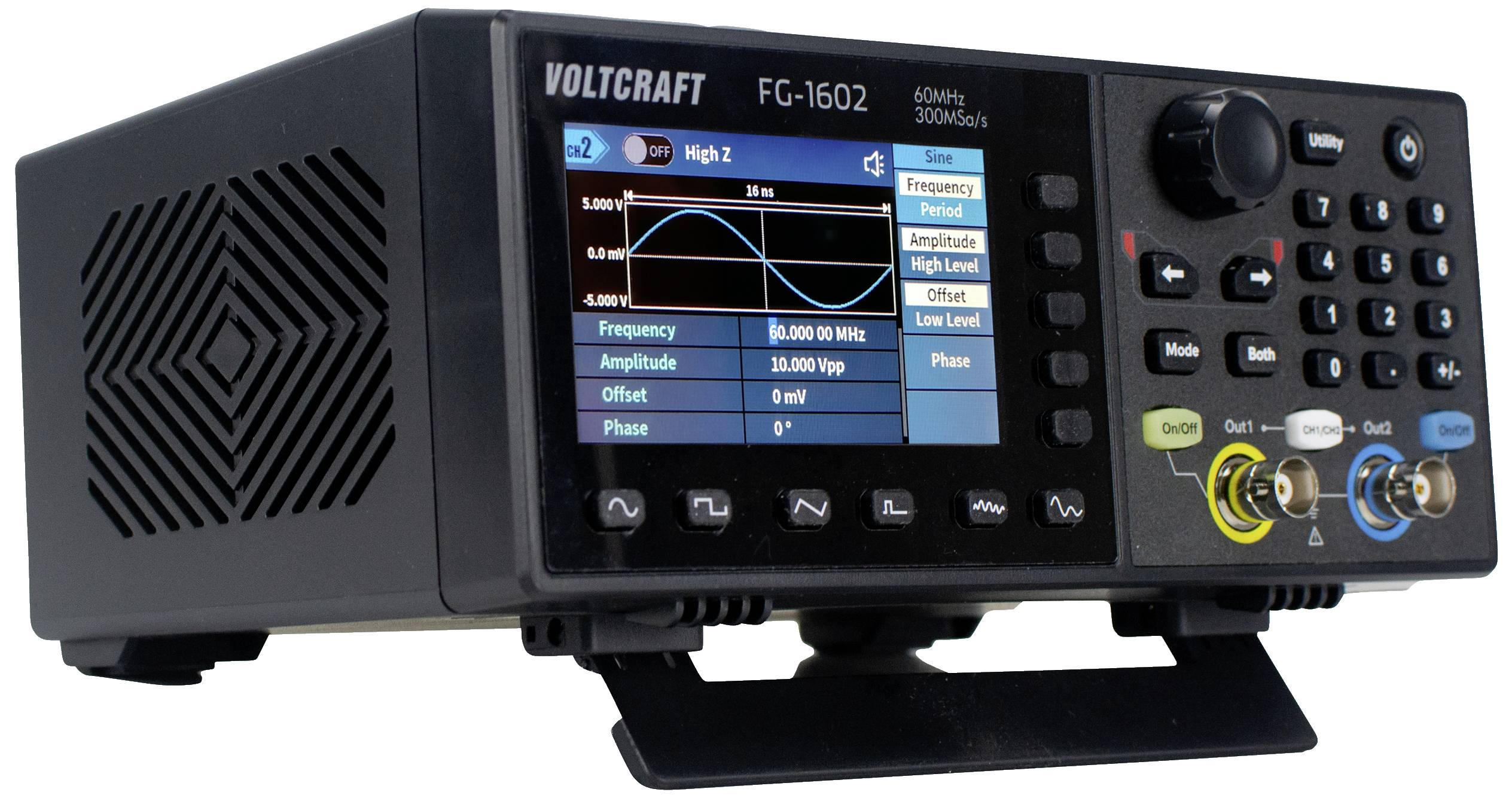

'Voltcraft FG-1602 Function Generator with Screen for Frequency and Voltage Control, Operating Buttons and Connections.'

Frequency generator with digital display, showing a sine wave and settings such as frequency, amplitude, and phase.

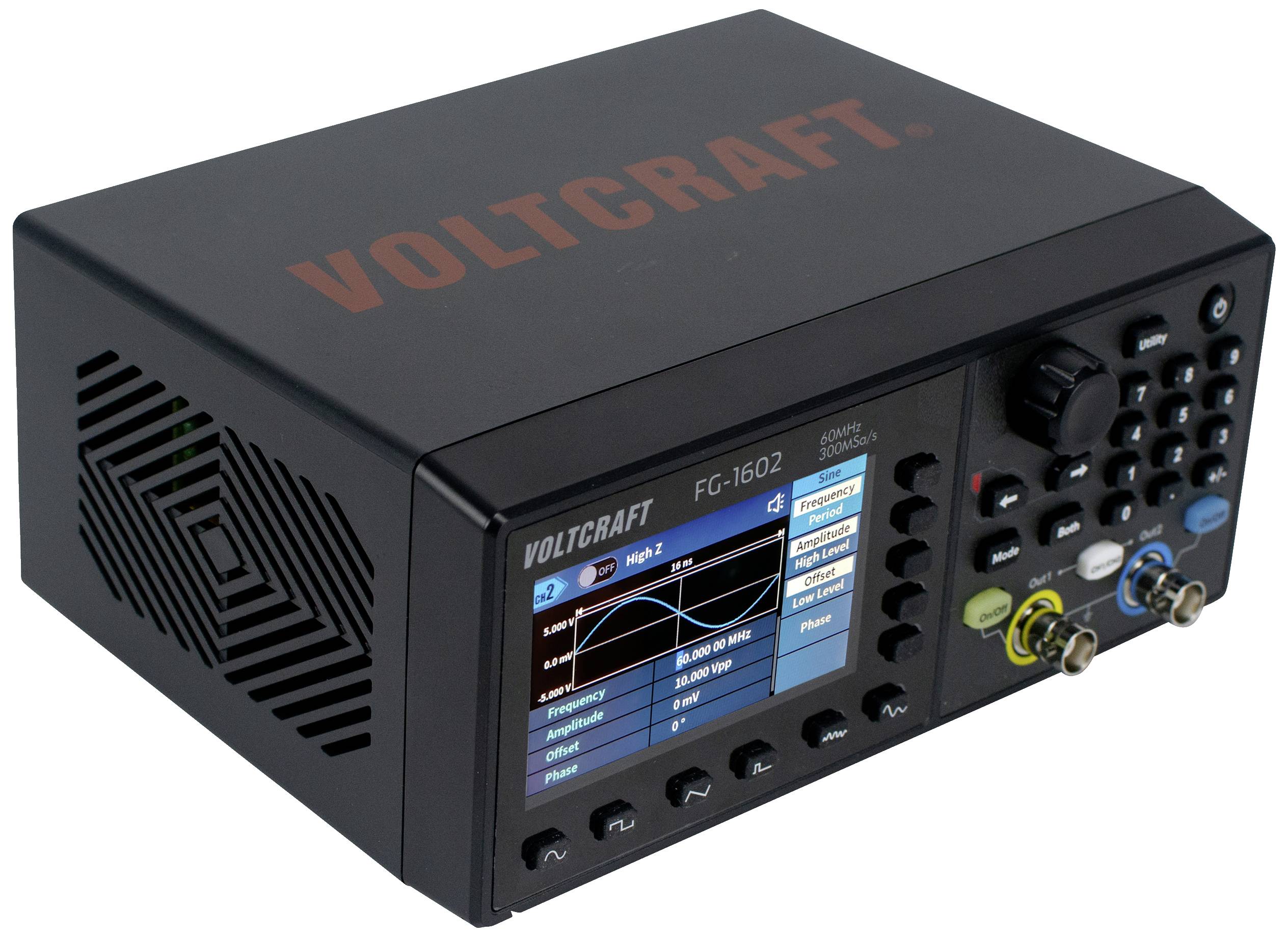

A Voltcraft electronic measuring instrument, model FG-1602. It features a digital display, toggle switches, and control buttons on the front panel.

Black rectangular electronic device with ventilation grille and ports.

Black, rectangular computer case with geometric ventilation openings on the side.

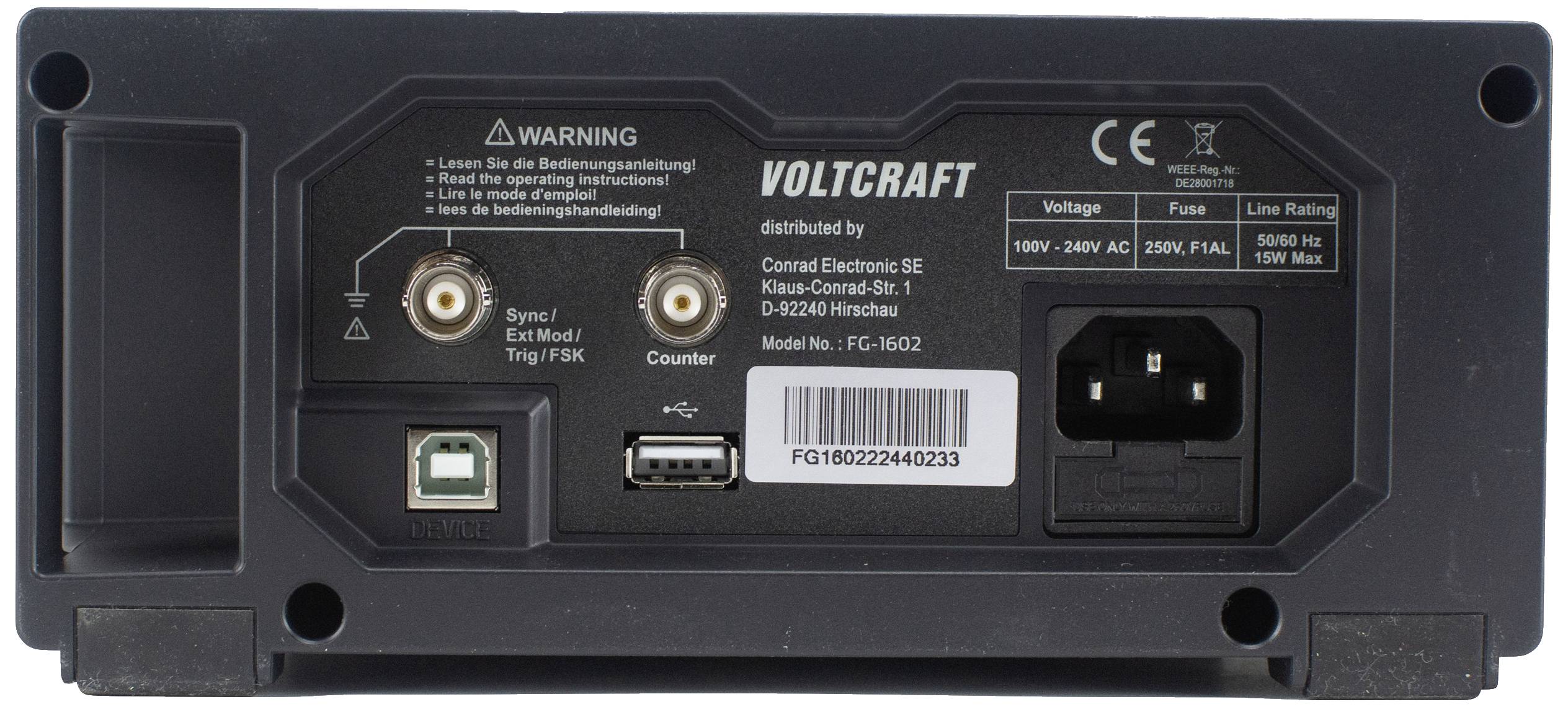

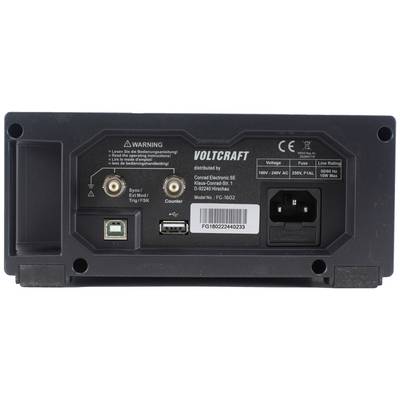

Rear view of a Voltcraft device with various connections and an AC power plug. Contains warning notices and model number.

An electronic universal control and power supply unit with a display, surrounded by various connection cables and an adapter plug.

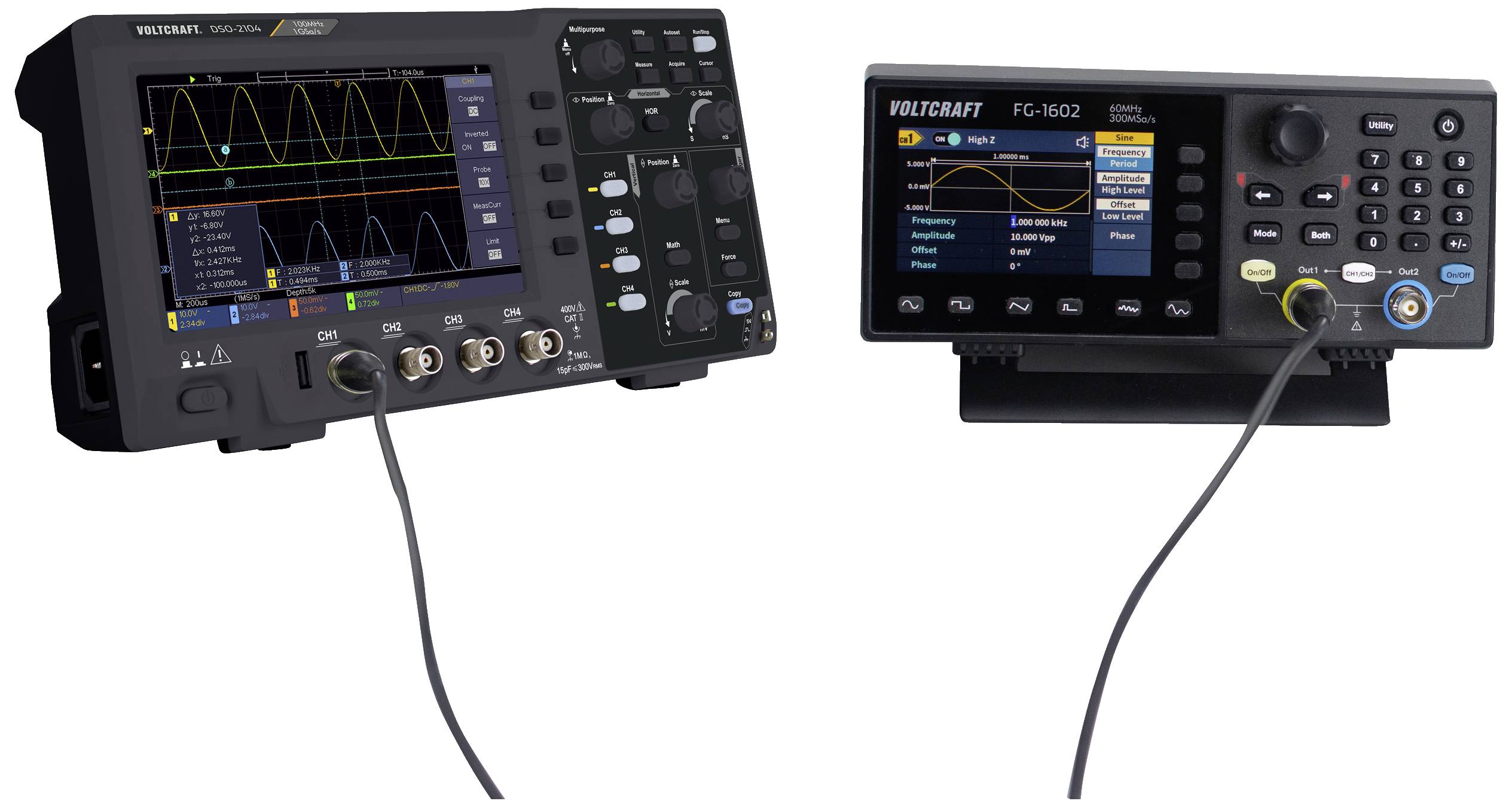

Two electronic devices with screens and multiple buttons. On the left, an oscilloscope with a waveform display, on the right a function generator.

Oscilloscope display shows 3FSK modulation with yellow waveform and red markings. Frequencies: Rate 100 Hz, Hop Freq 1/2: 100 Hz.

'4FSK Modulation on an oscilloscope. The screen displays waveforms and frequency settings: Rate, HopFreq1, HopFreq2, HopFreq3.'

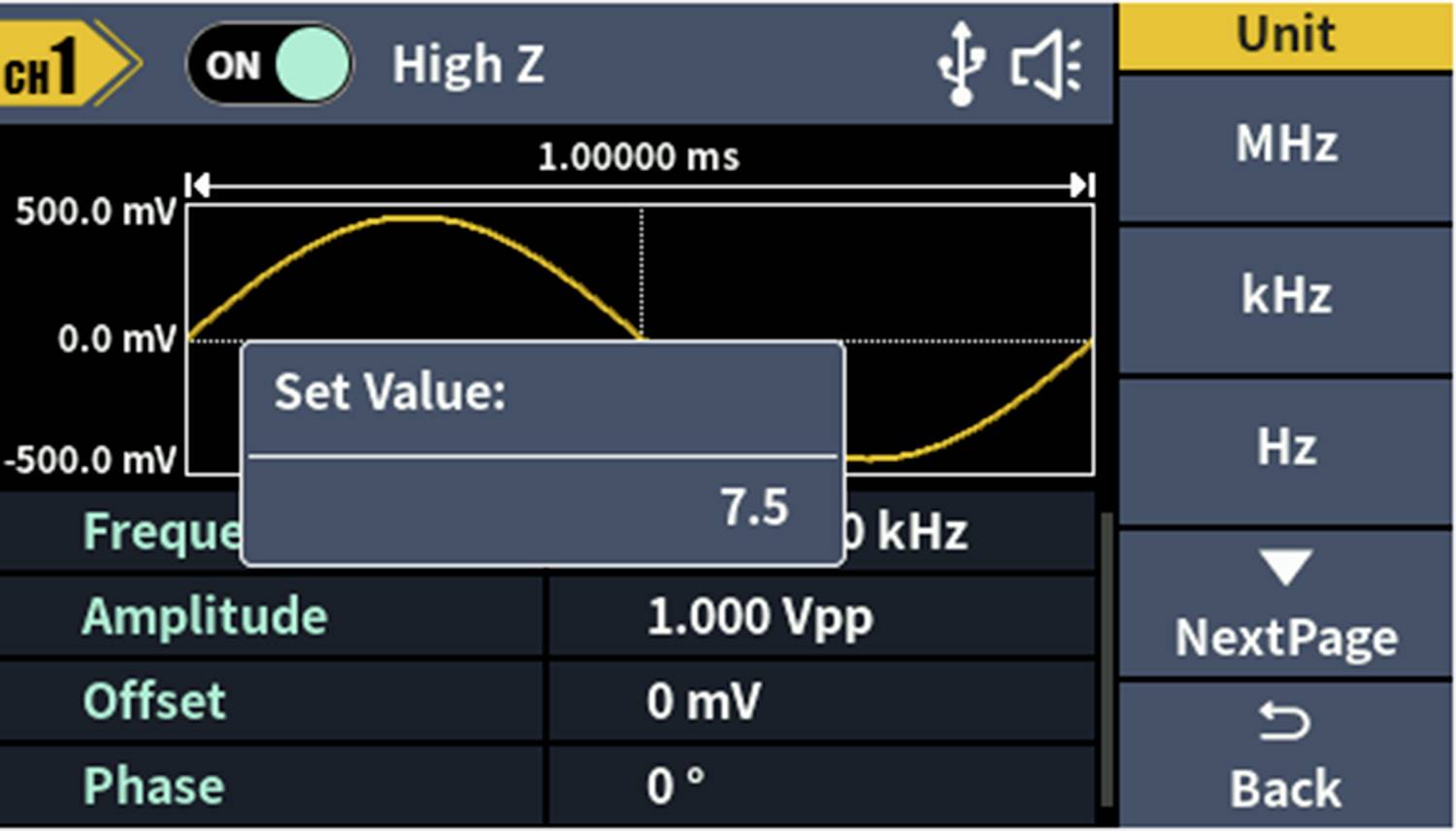

Oscilloscope display shows a sine wave with 1.00000 ms and 500.0 mV. Input field "Set Value: 7.5". Units: MHz, kHz, Hz.

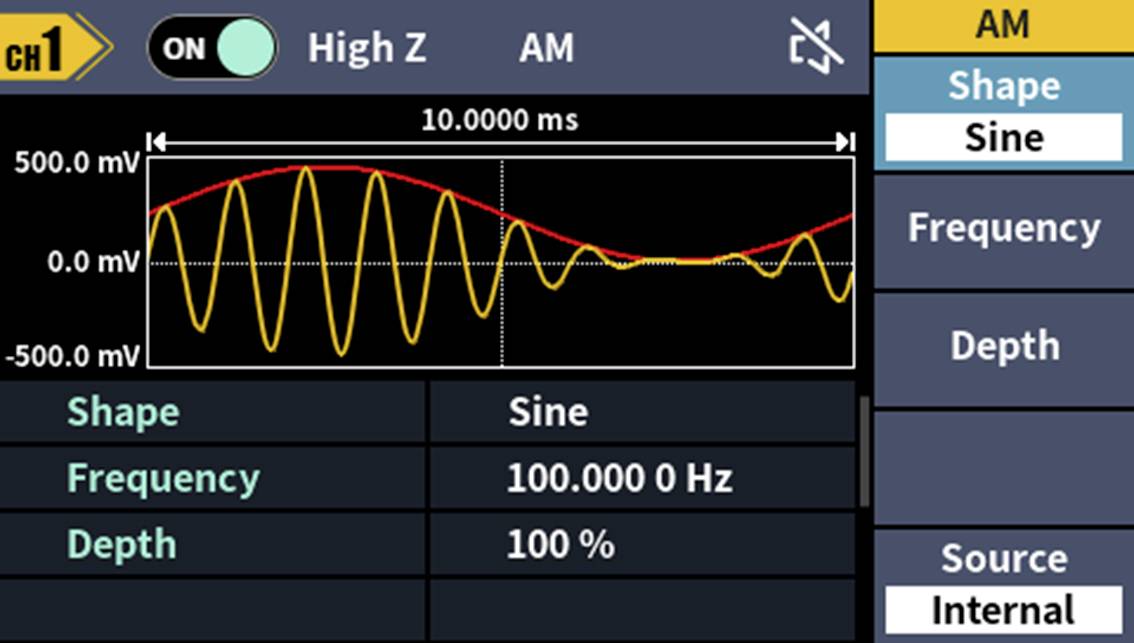

Diagram of an Amplitude Modulation: Yellow sine wave and red envelope curve; parameters are Wave Form 'Sine', Frequency 100,000 Hz, Depth 100%.

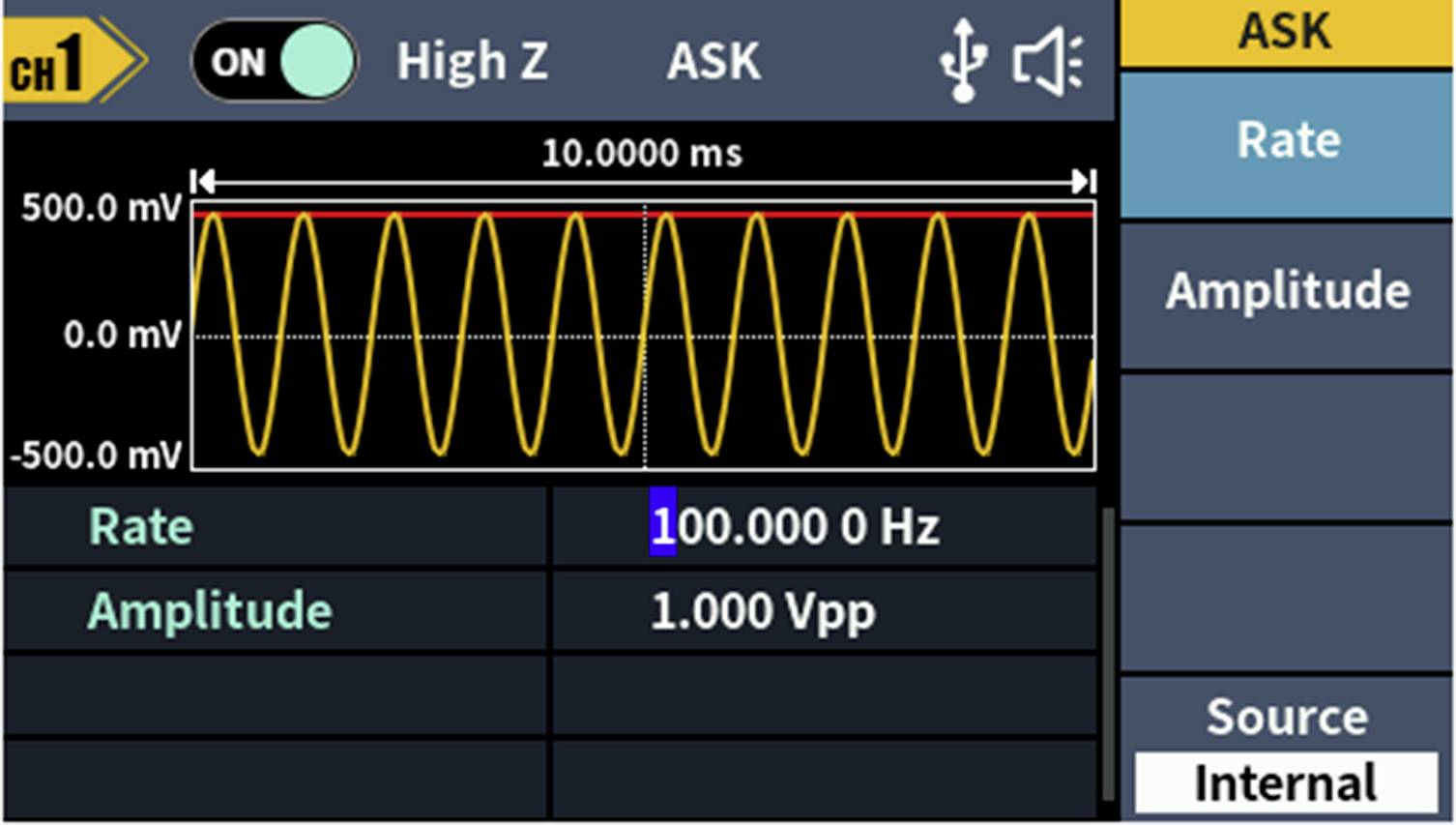

VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary-14

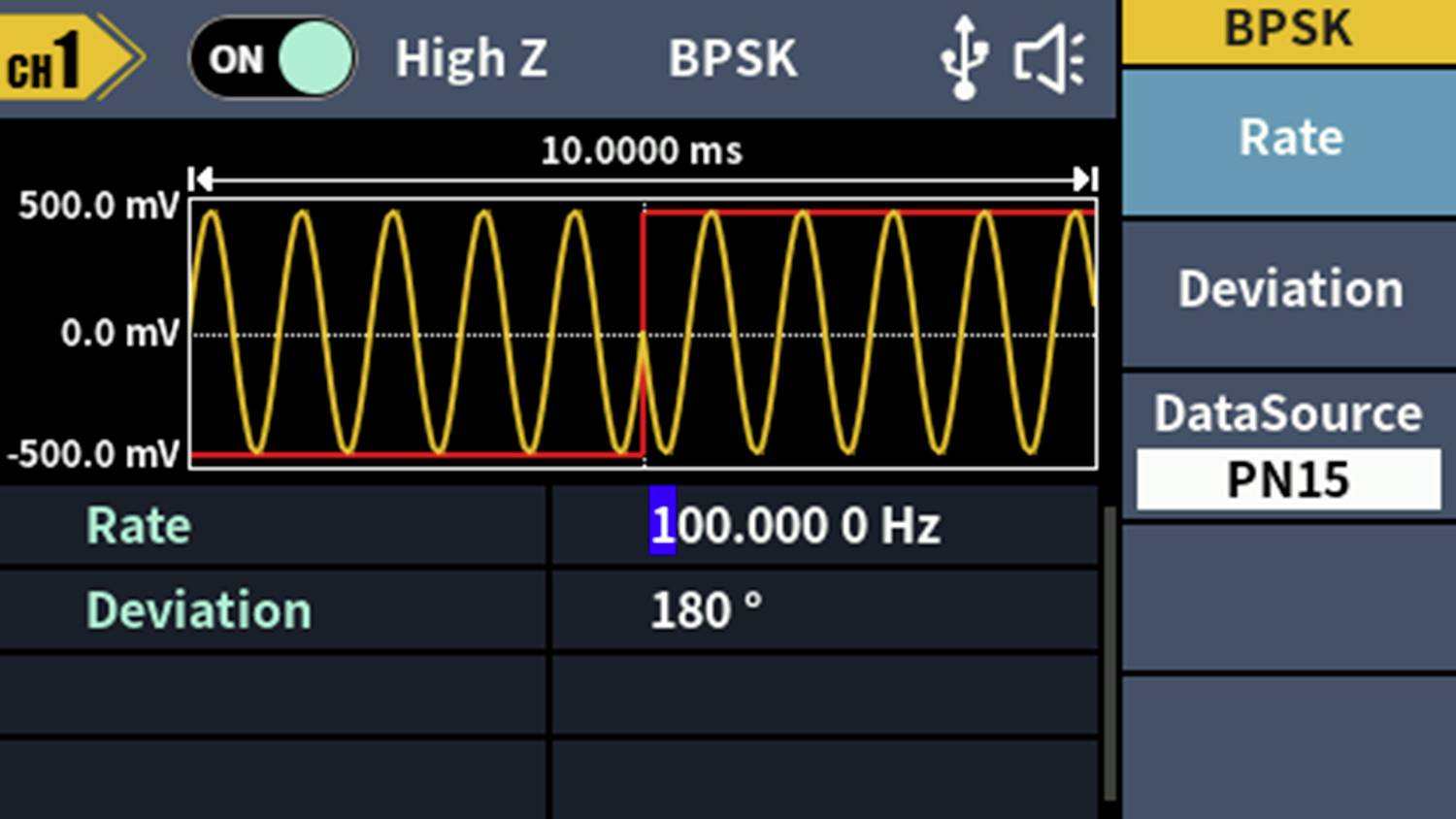

'Oscilloscope screen with a waveform display. Yellow sine wave between -500.0 and 500.0 mV. BPSK mode, frequency: 100.0000 Hz.'

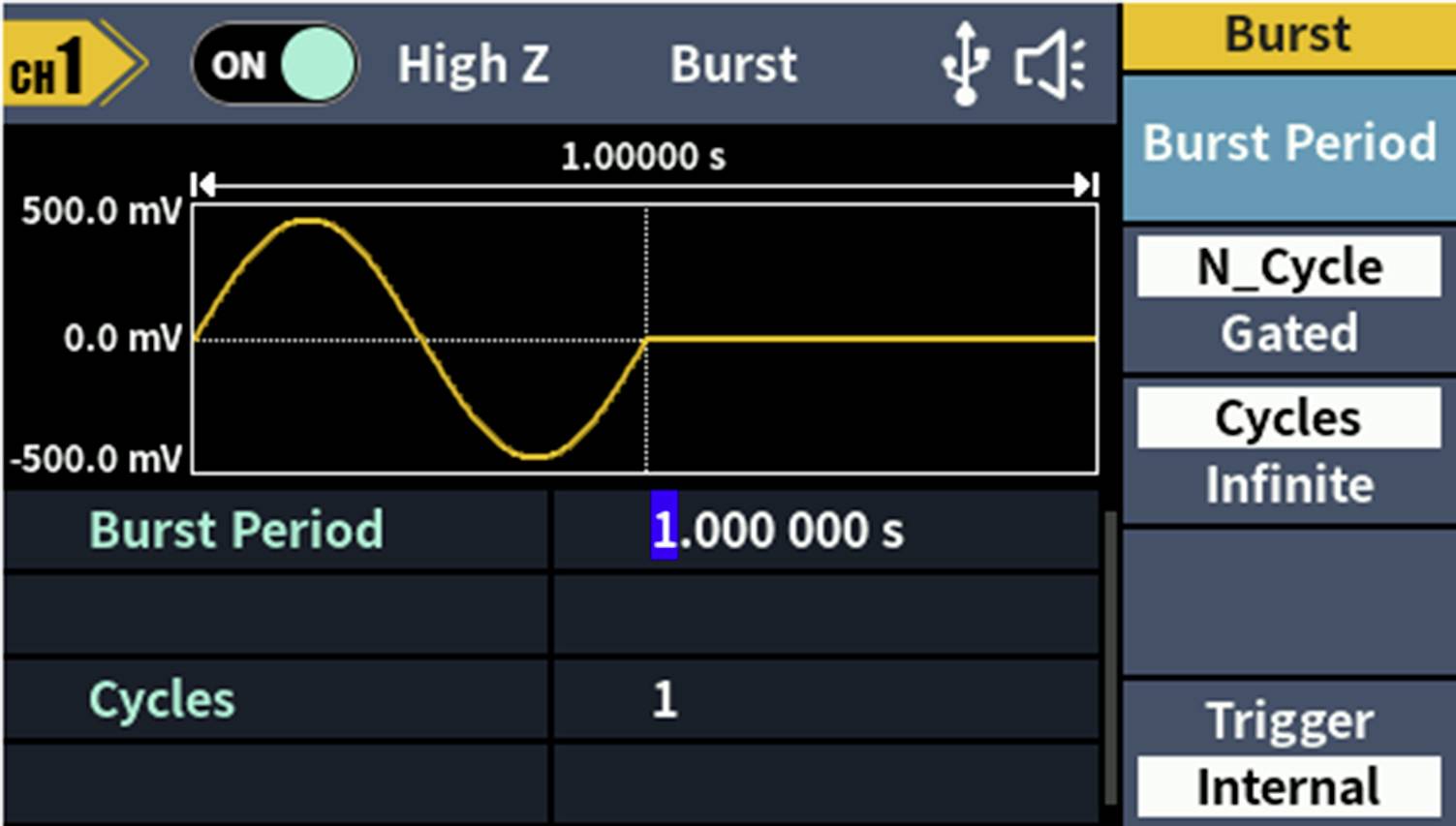

'Oscilloscope screen displays a sinusoidal wave with 1.000000 s duration and 1 cycle in burst mode.'

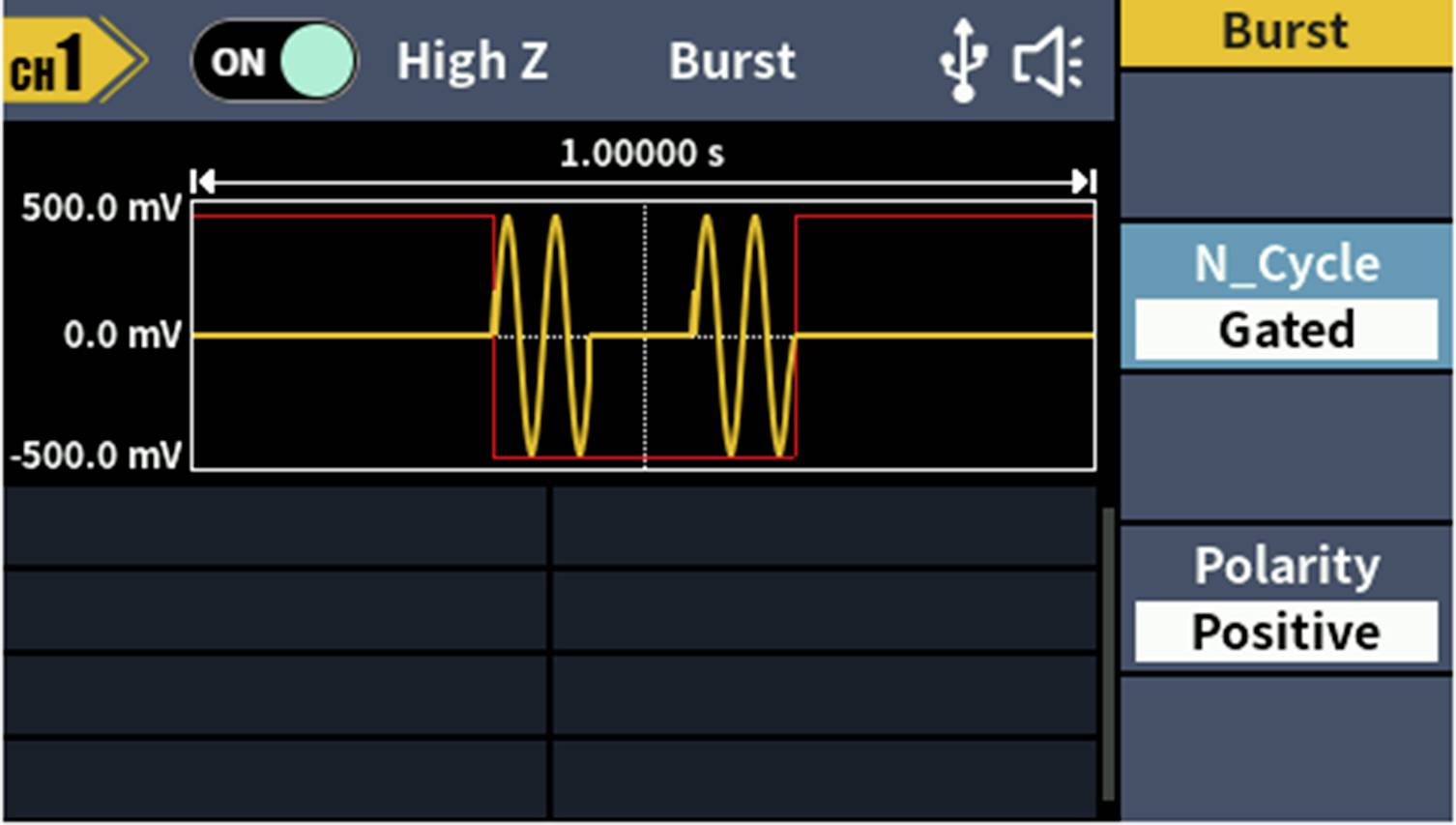

'Oscilloscope display with burst mode: Signal with 500 mV and -500 mV amplitude, duration 1.00000 s, N_Cycle Gated, positive polarity.'

'Oscilloscope screen shows an AM waveform.' Primary waveform: Sine; Frequency: 100 Hz; Depth: 100%; Source: Internal.

An oscilloscope display shows a yellow sine wave and a red line. Settings: 'Waveform: Sine', 'Frequency: 100,000 Hz'.

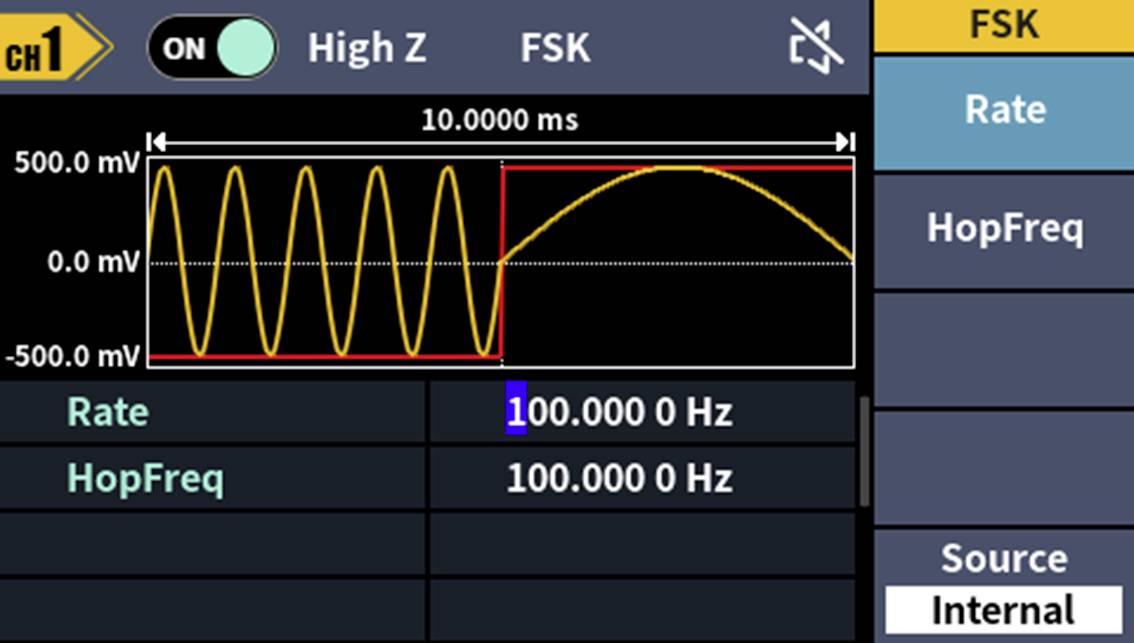

Diagram of an oscilloscope showing an FSK signal with yellow waveform. Top: 'High Z', 'FSK'. Values: 'Rate' 100,000 Hz, 'Hop Freq' 100,000 Hz.

Oscilloscope display shows a sine wave with 1 MHz frequency and 100 µs duration. Frequency and oscillation time are highlighted.

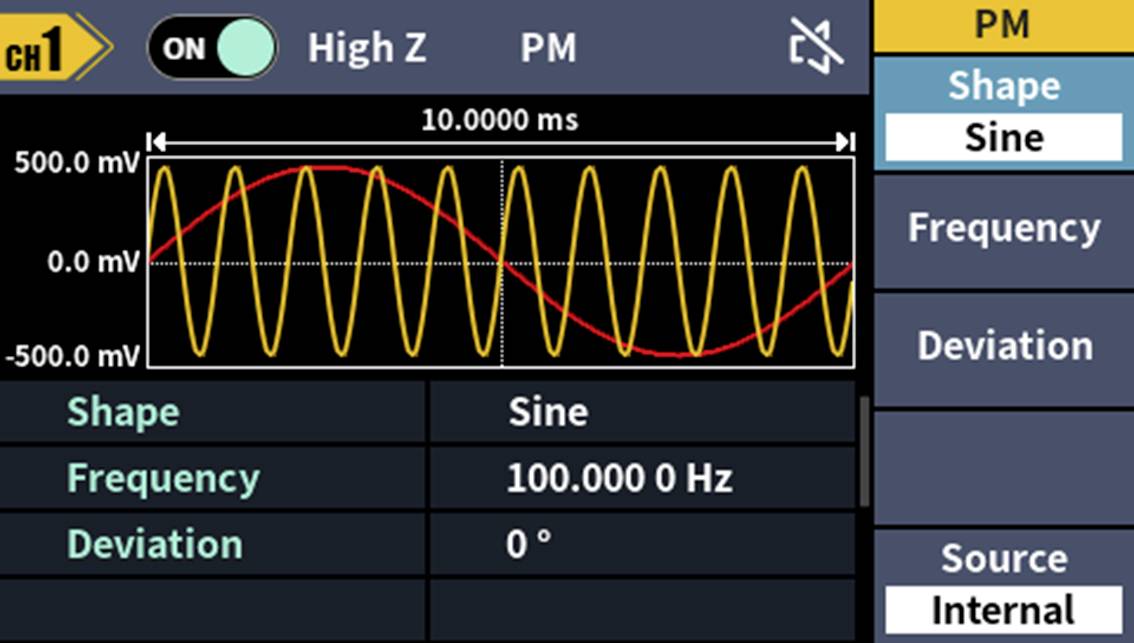

Oscilloscope display shows a sine wave with 100 Hz frequency and 0° deviation. Right side: Settings for waveform, frequency, and source.

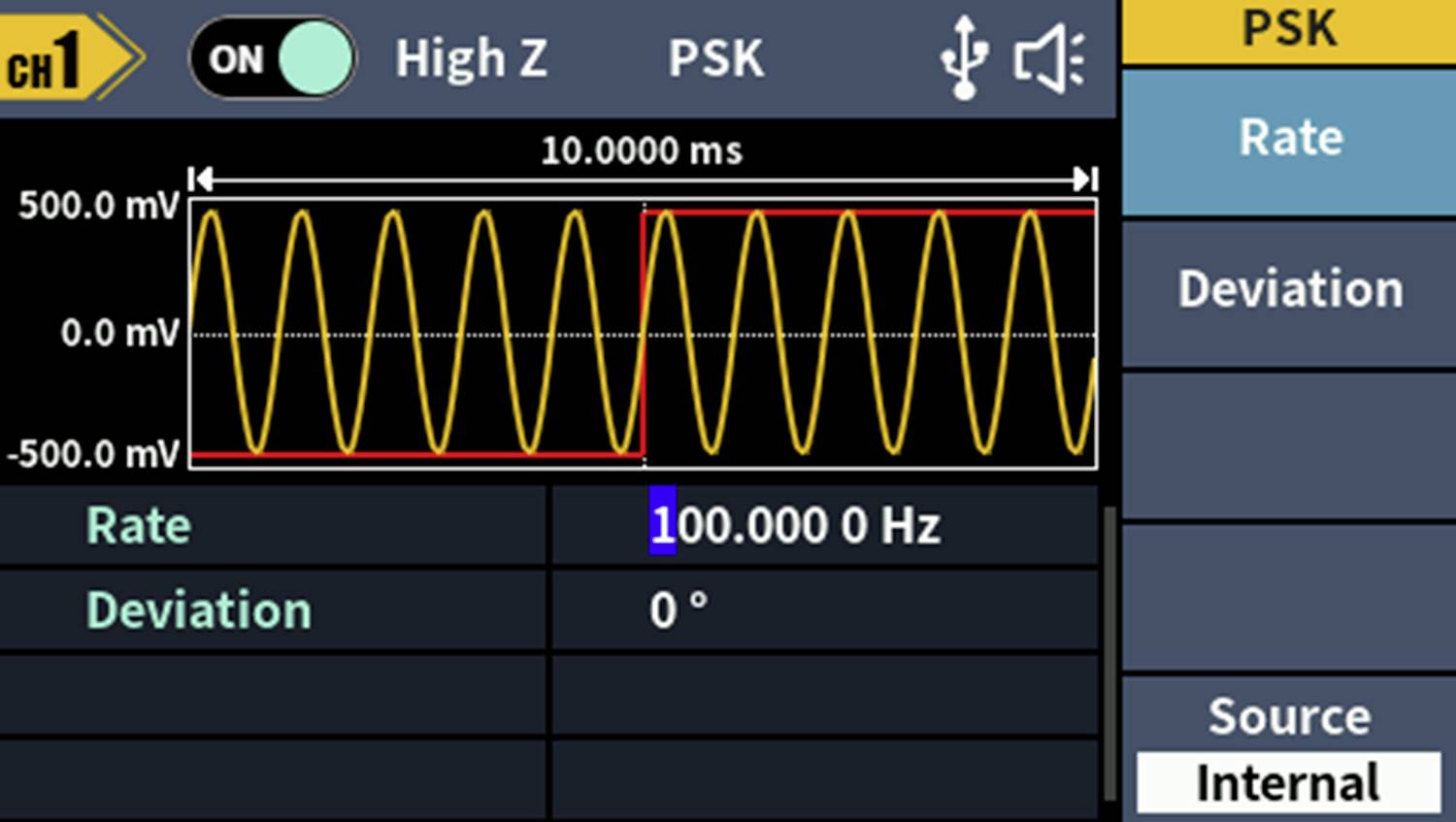

Oscilloscope Display: Yellow sine wave with 10.0000 ms period, 500 mV amplitude. Settings: Rate 100 Hz, phase deviation 0°, source internal.

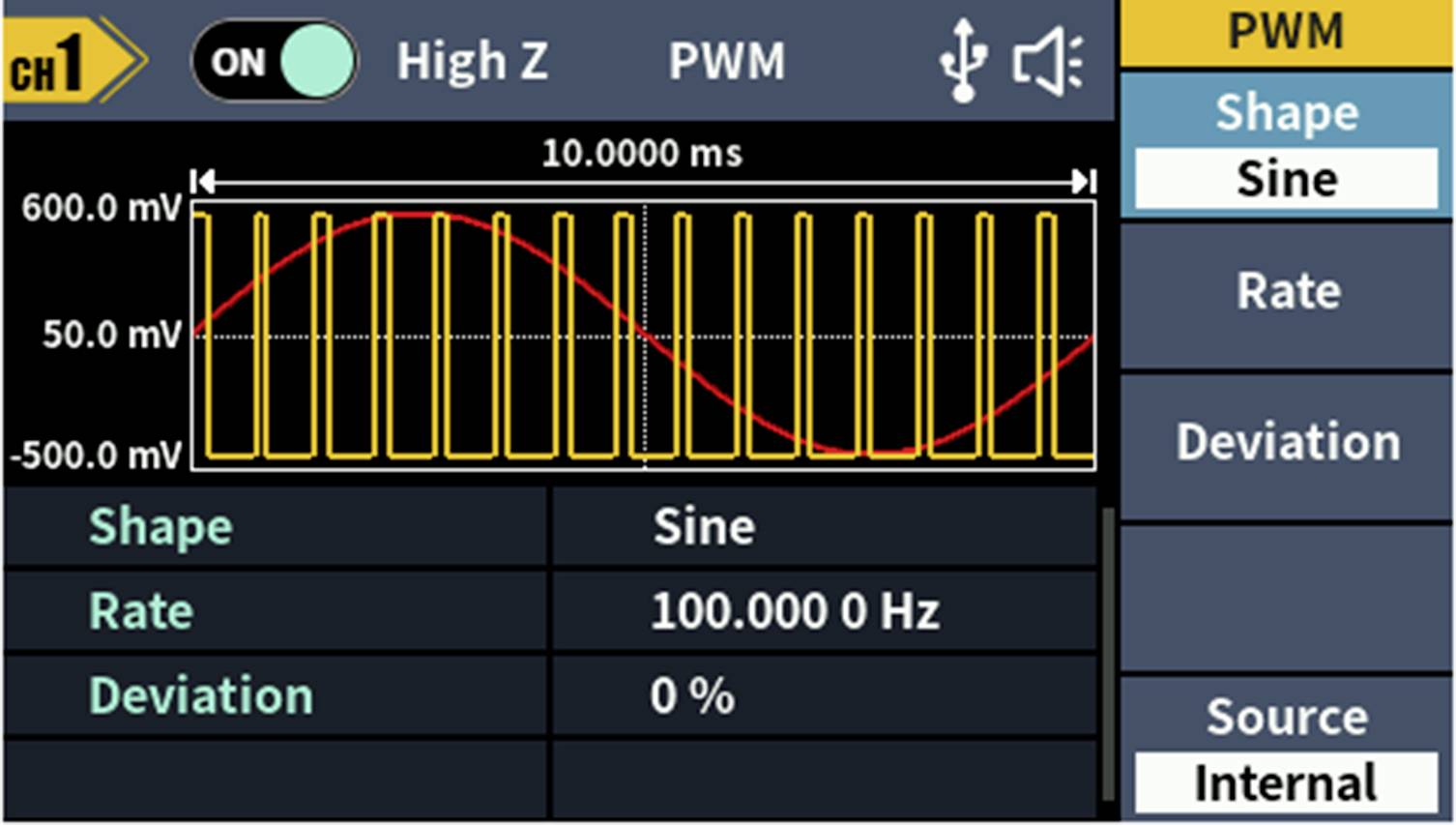

'Oscilloscope screen shows pulse width modulation (PWM) with sine wave. Key parameters: Waveform - Sine, Frequency - 100 Hz, Deviation - 0%.'

Oscilloscope display with QPSK signal. Yellow sine wave with red peaks. Settings: Rate 100,000.0 Hz, Phase angle all 0°.

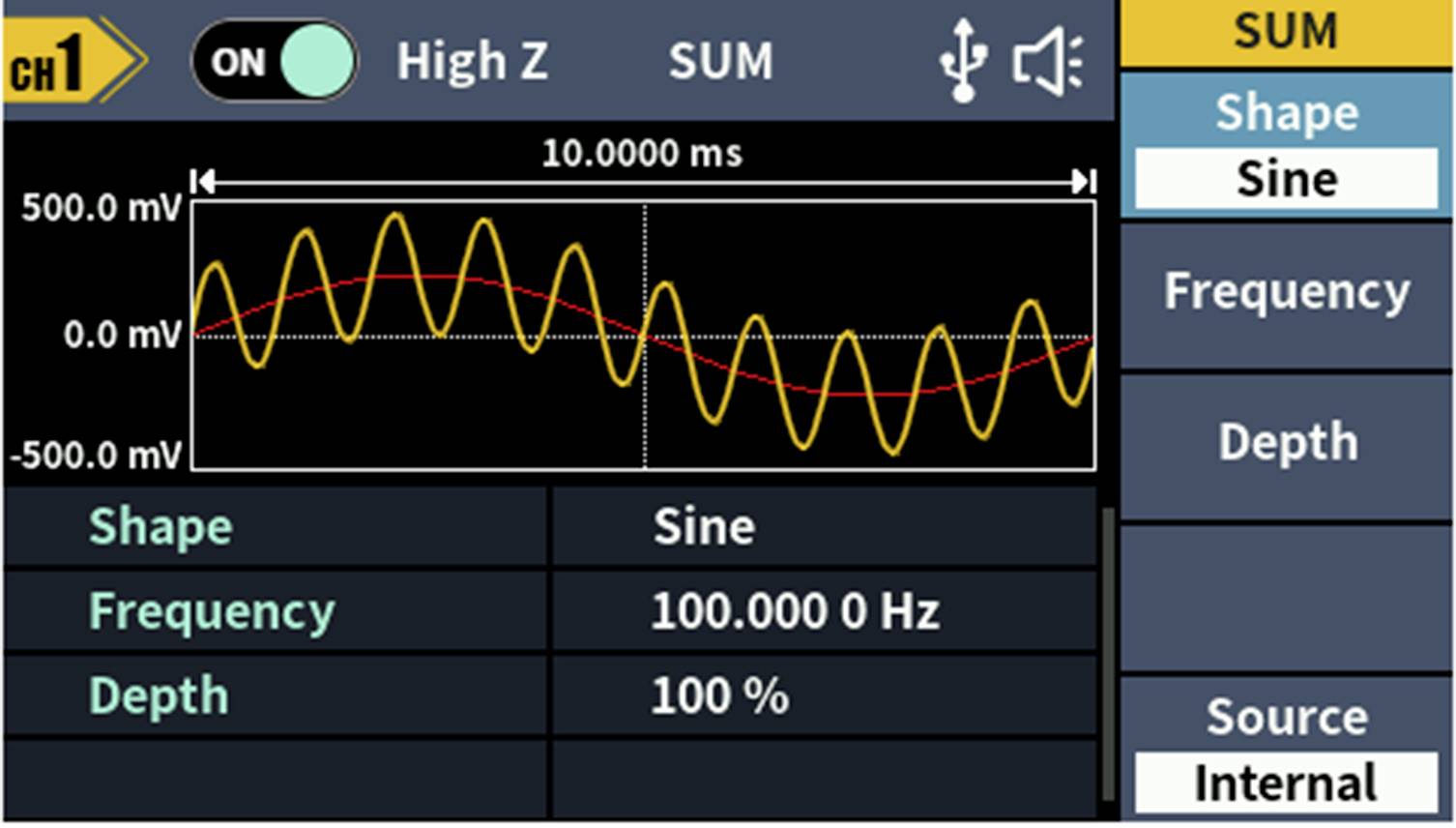

'Oscilloscope shows a sine wave at 100 Hz. Yellow line indicates voltage fluctuations. Settings: Waveform: Sine, Frequency: 100 Hz, Depth: 100%.'

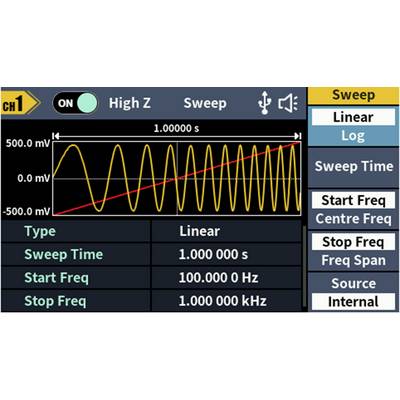

'Oscilloscope display shows yellow sine wave. X-axis: 1 microsecond, Y-axis: 500 mV per division. Settings: Linear, Sweep Time: 1 second, Start frequency: 100 kHz, Stop frequency: 1 MHz.'

1/28

Our service for you

Datasheet (PDF)

Unavailable

67 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

FG-1602 Waveform generator

60 MHz frequency output
1 µHz frequency resolution
2 channels
9.14 cm (3.6 inch) TFT LCD display (480 x 272 pixels)
Supports SCPI
300 MSa/s maximum sampling rate
14-bit vertical resolution

Technical specifications

Signal output type: square, ramp, pulse, noise, arb

Product type: Mains-powered

Frequency range: 1 µHz - 60 MHz

Signal output types: Arbitrary

Frequency range (sine): 1 µHz - 60 MHz

Distortion factor (sine): 0.2 %

Frequency range square wave: 1 μHz - 20 MHz

Square wave slew rate: 15 ns

Display: LCD

Frequency range triangle: 1 μHz - 2 MHz

ARB frequency range: 1 μHz - 10 MHz

: Manufacturer's standards (no certificate)

Internal modulation: yes

External modulation: yes

Trigger (synchronous): yes

Frequency reading (external): yes

Dim: (W x H) 200 mm x 92 mm

Weight: 1 kg

No. of channels: 2-channel

Max. frequency: 60 MHz

Min. frequency: 1 µHz

Features: Modulation

Reading category: CAT II 250 V

Width: 200 mm

Height: 92 mm

Interfaces: USB 2.0 connector B

Voltage supply: 230 V/AC

Type: FG-1602

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2616563 VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary

User & Safety Instructions

User & Safety Instructions 2616563 VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary

Warranty Terms

Warranty Terms 2616563 VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary

Download

Download 2616563 VOLTCRAFT FG-1602 Mains-powered 1 µHz - 60 MHz 2-channel Arbitrary

Description

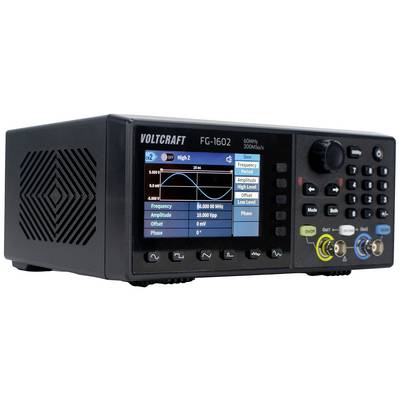

The VOLTCRAFT FG-1602 DDS function generator with 60 MHz, 300 MSa/s sampling rate and 14-bit vertical resolution provides two independent channels. The extensive waveform output offers sine, square, pulse, ramp, noise as well as 150 built-in arbitrary waveforms.

This text is machine translated.

Features

Comprehensive waveform output: sine, square, pulse, ramp, noise, and 150 built-in arbitrary waveforms
Waveform length: 2 pts to 100 k

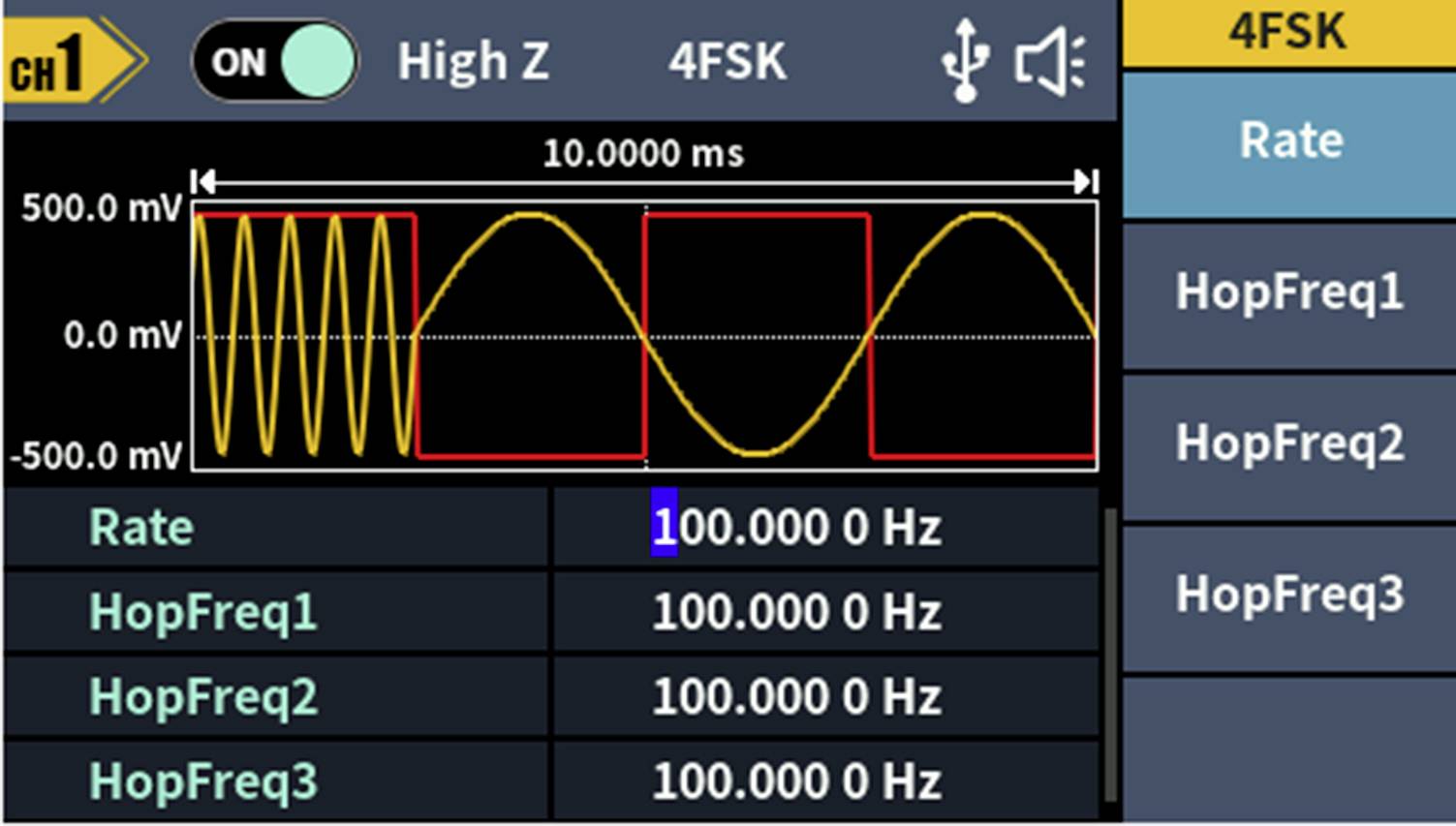

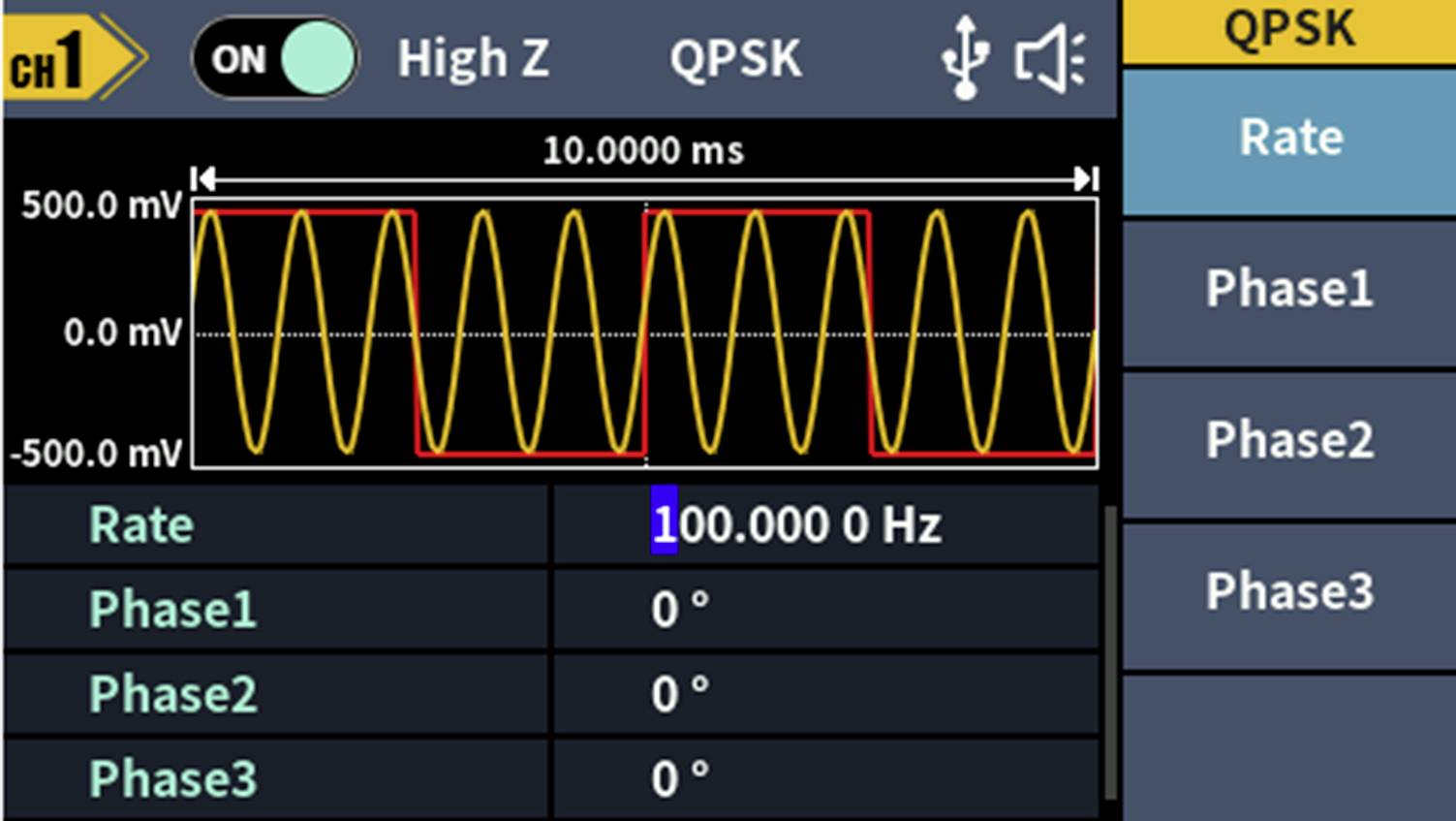

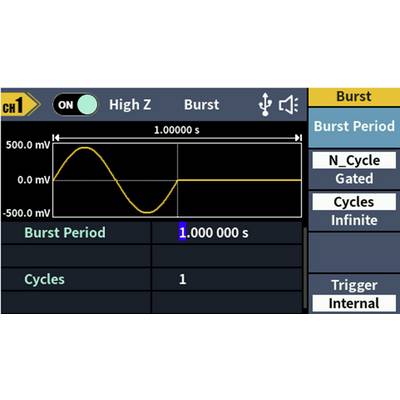

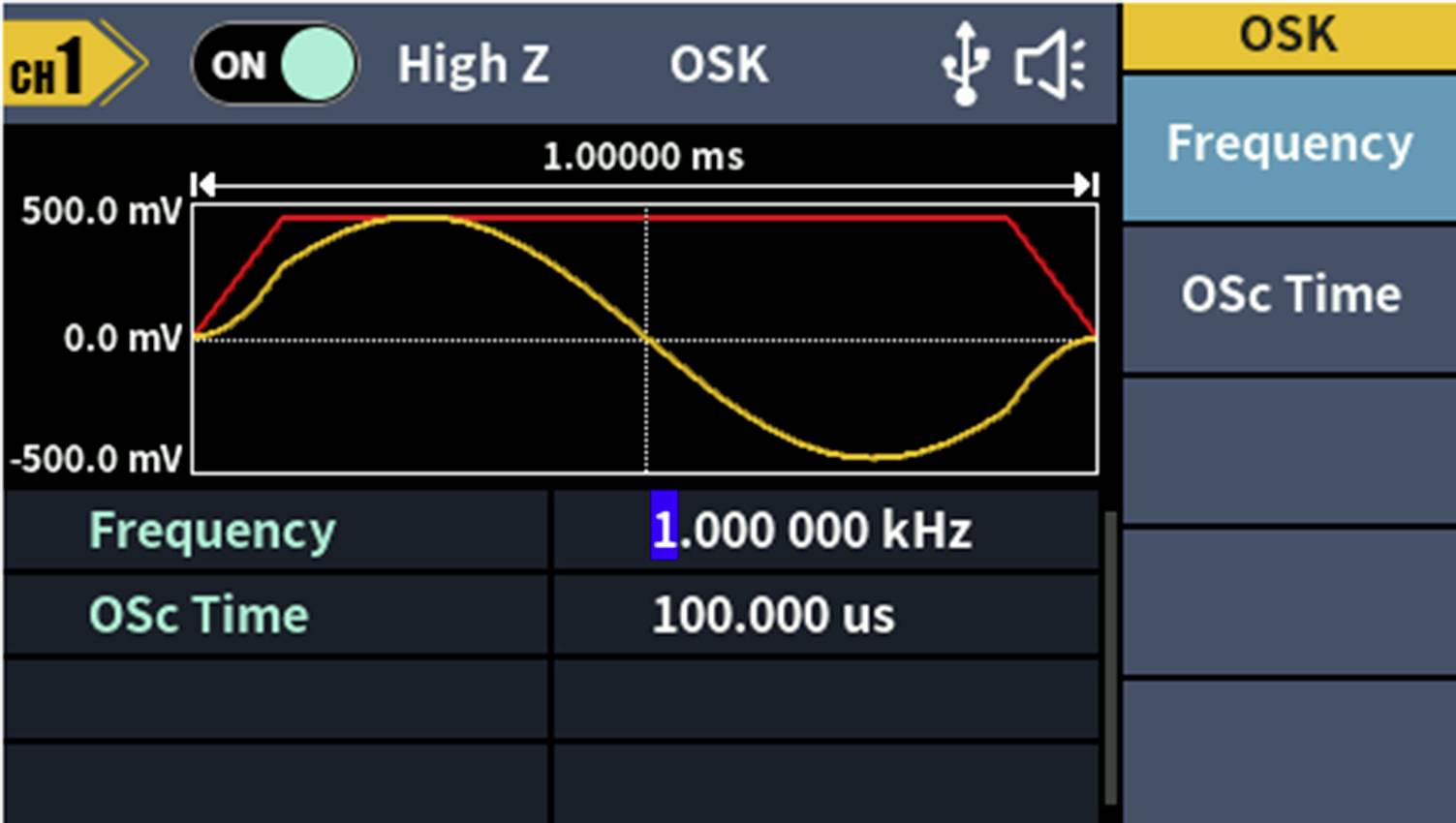

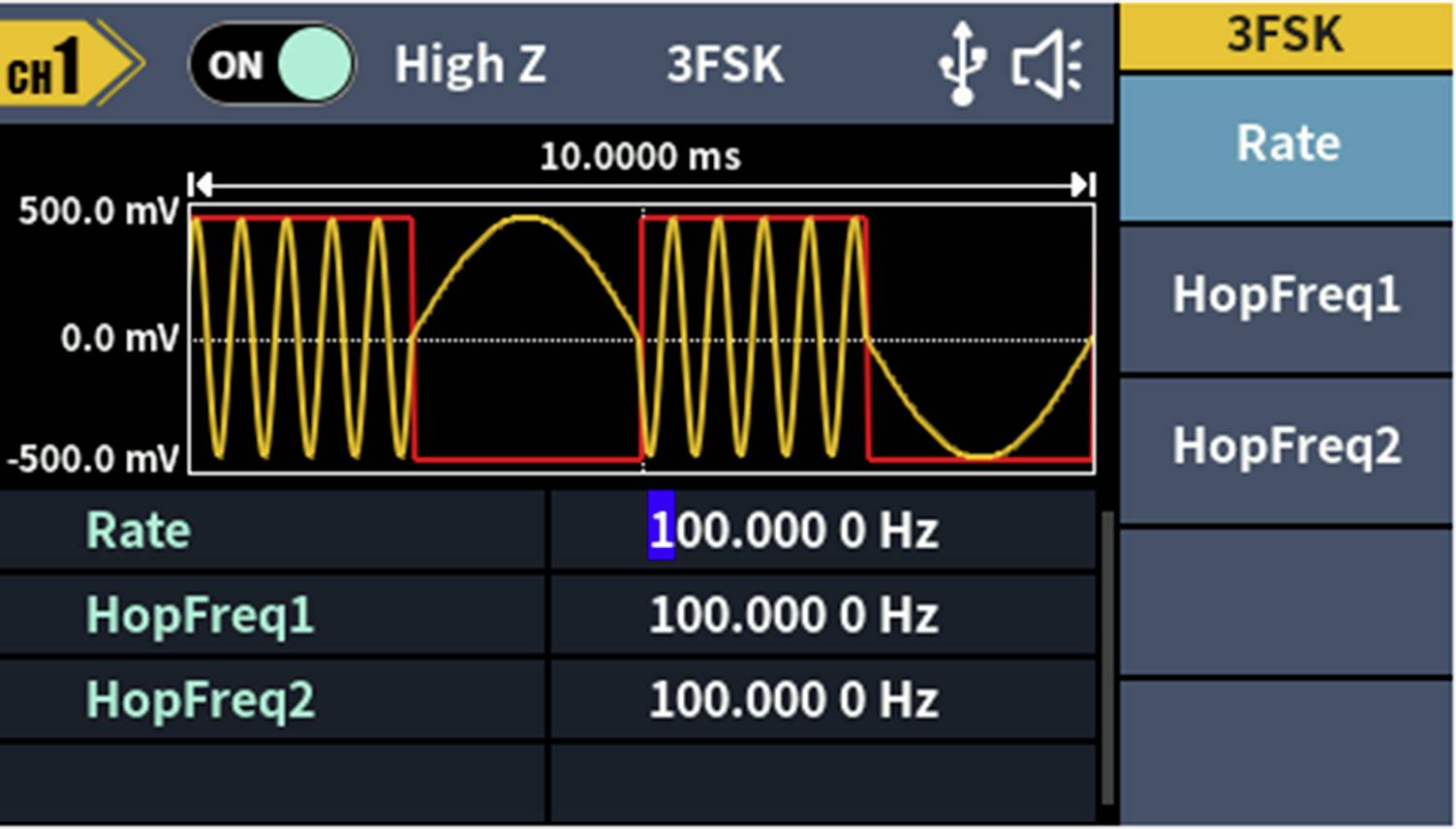

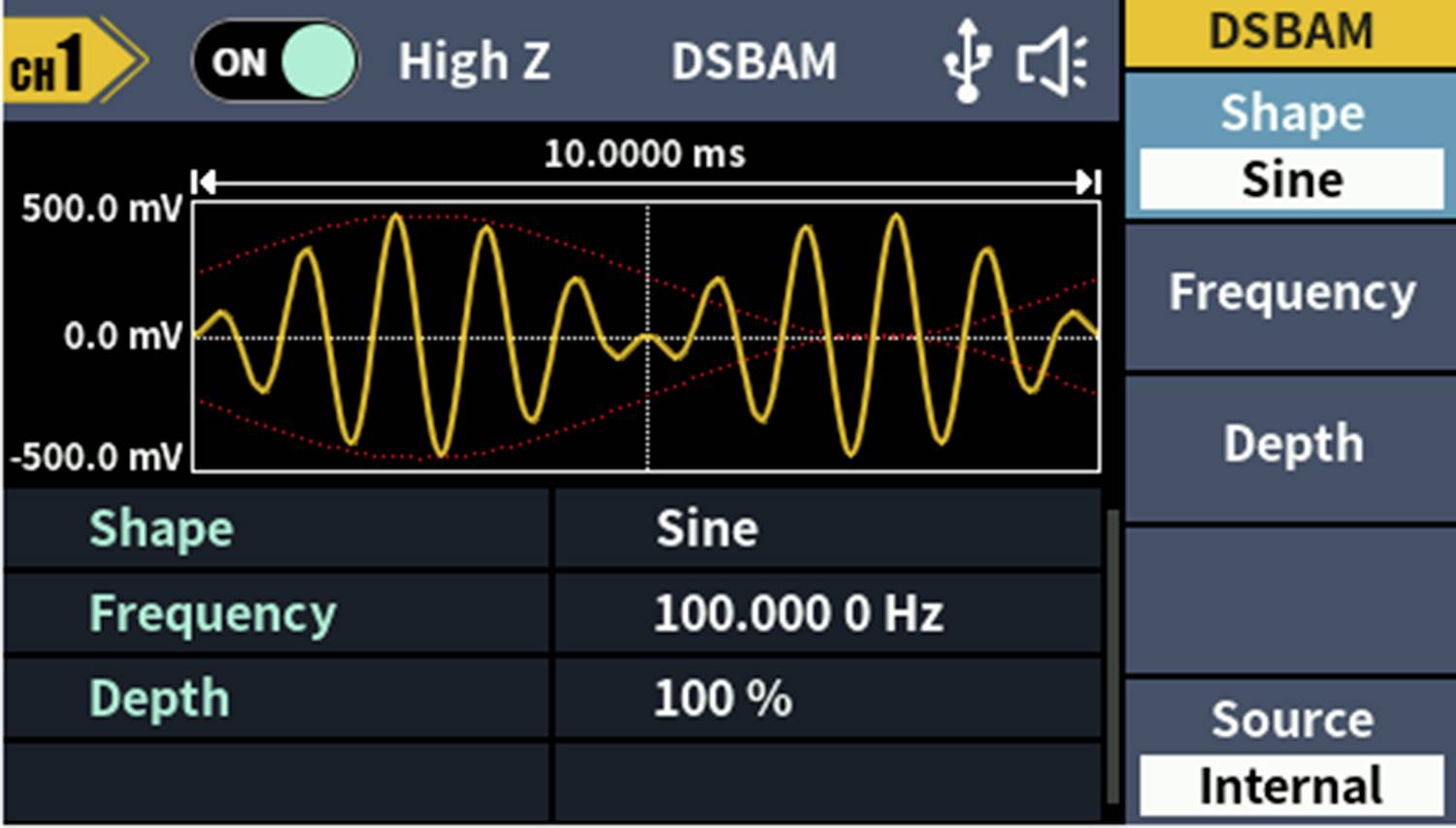

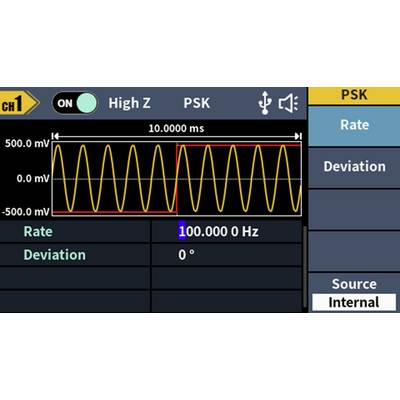

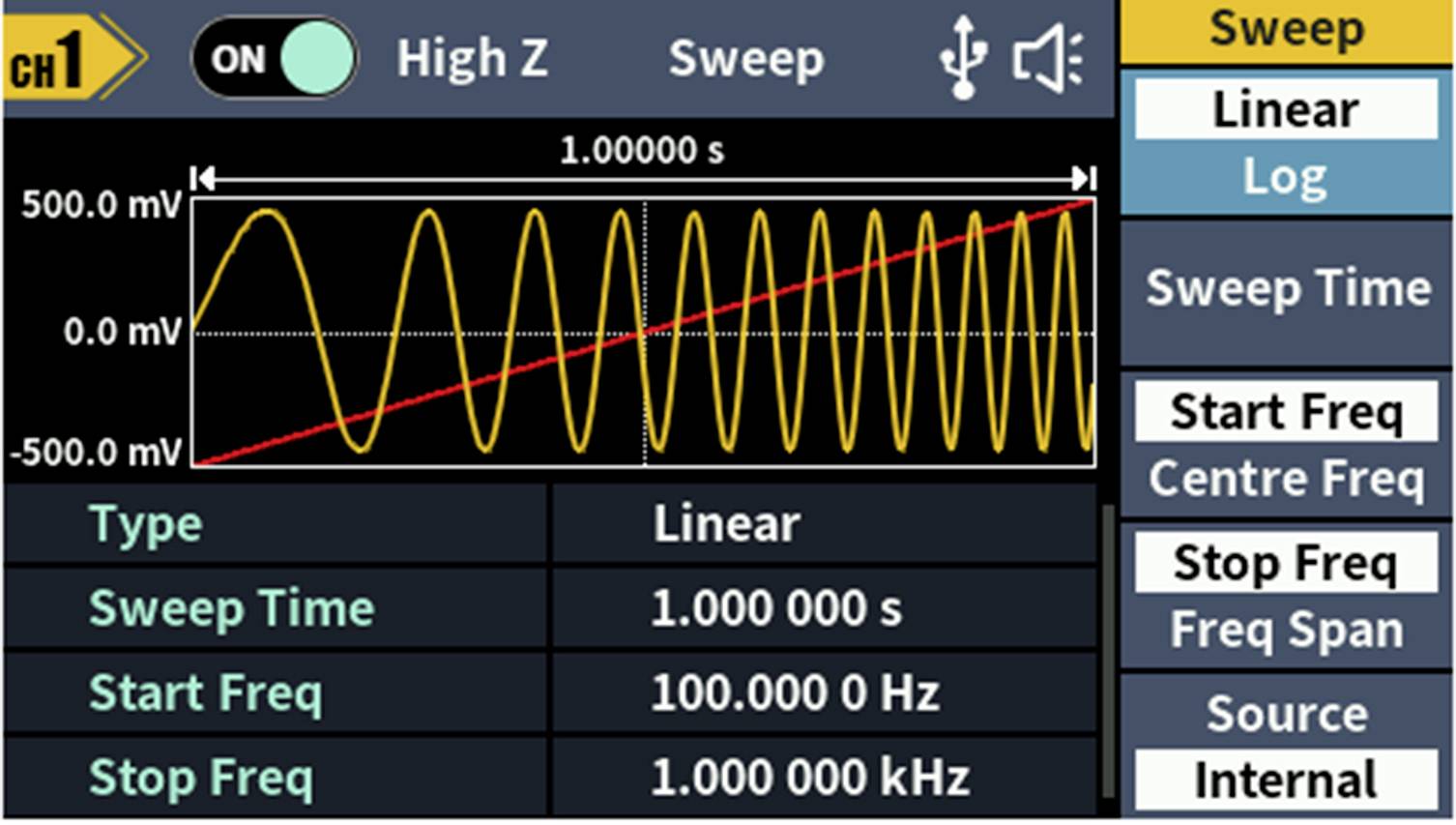

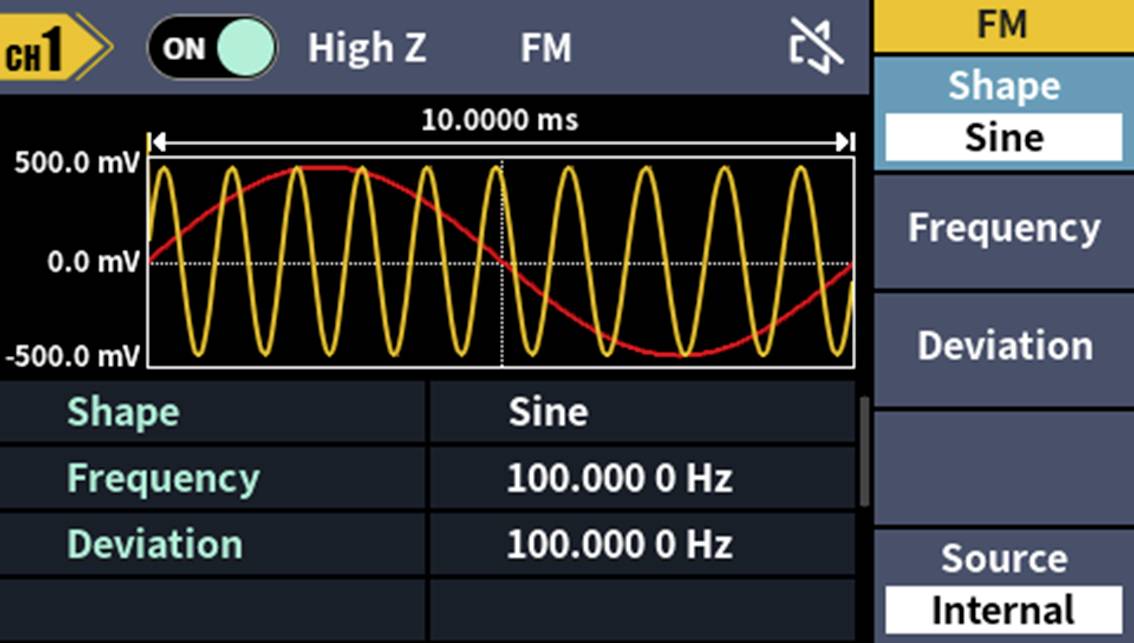

Modulation waveform: AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM, SWEEP, BURST
Frequency counter range: 100 mHz - 100 MHz
Frequency counter resolution: 7 digits
Input: Frequency counter input, External modulation input, External trigger input
Output: Sync output
Communication interface: USB host, USB device

Scope of delivery

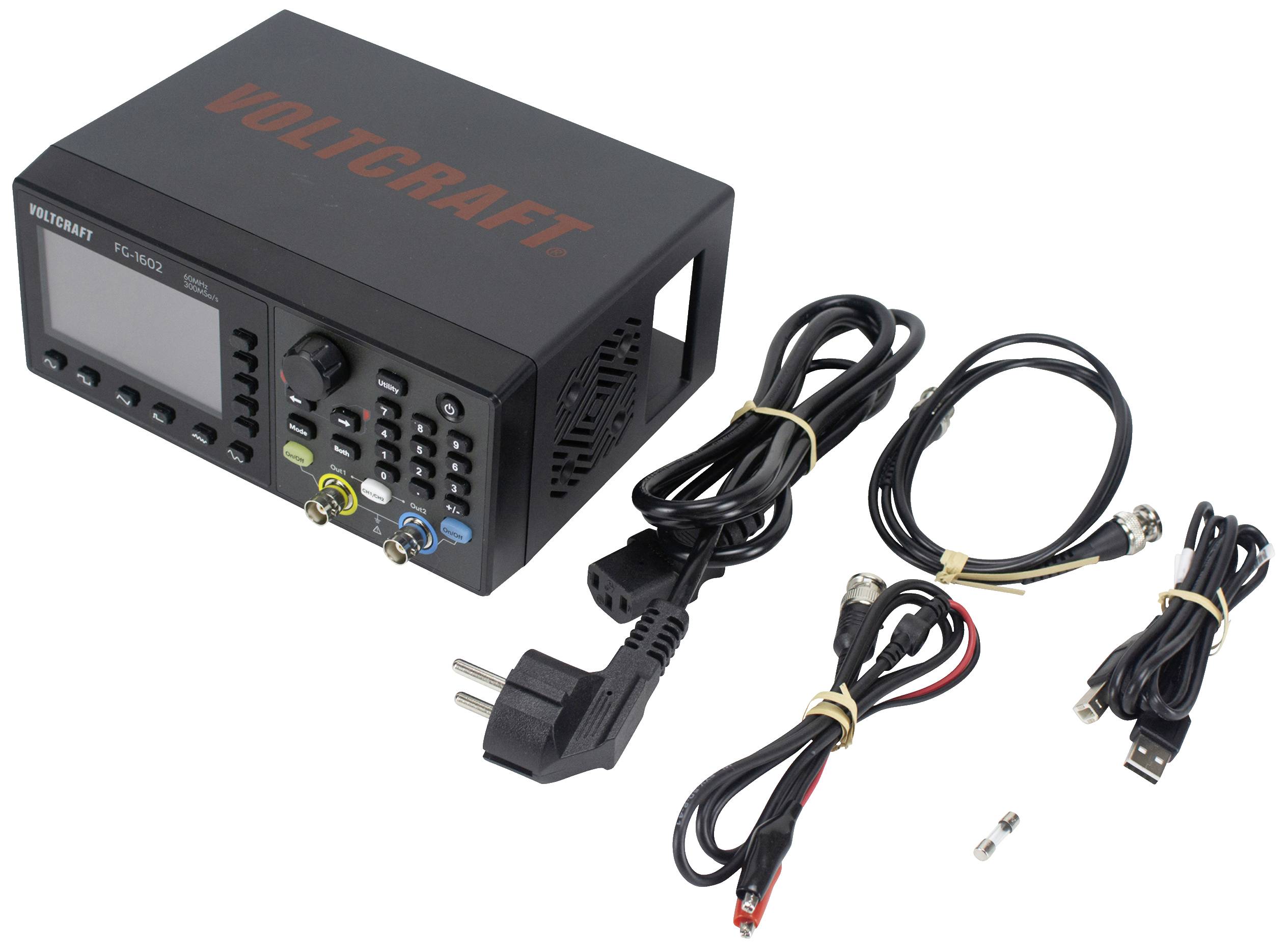

Function generator
Power cord
USB cable
Q9 BNC cable
BNC to alligator cable
1x spare fuse (250 V. F1AL)
Software + English manual on CD
Safety hint sheet
Quick guide
