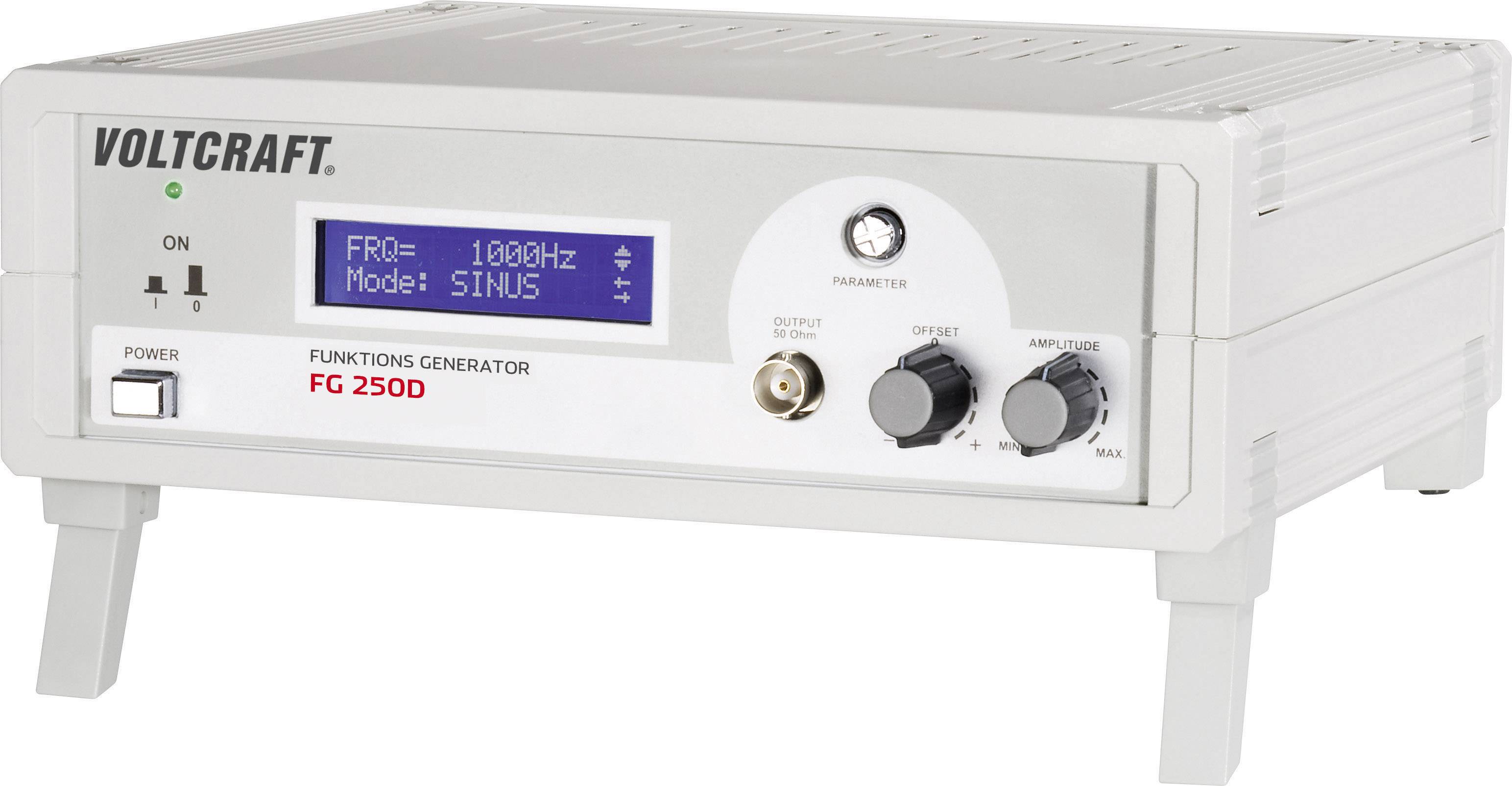

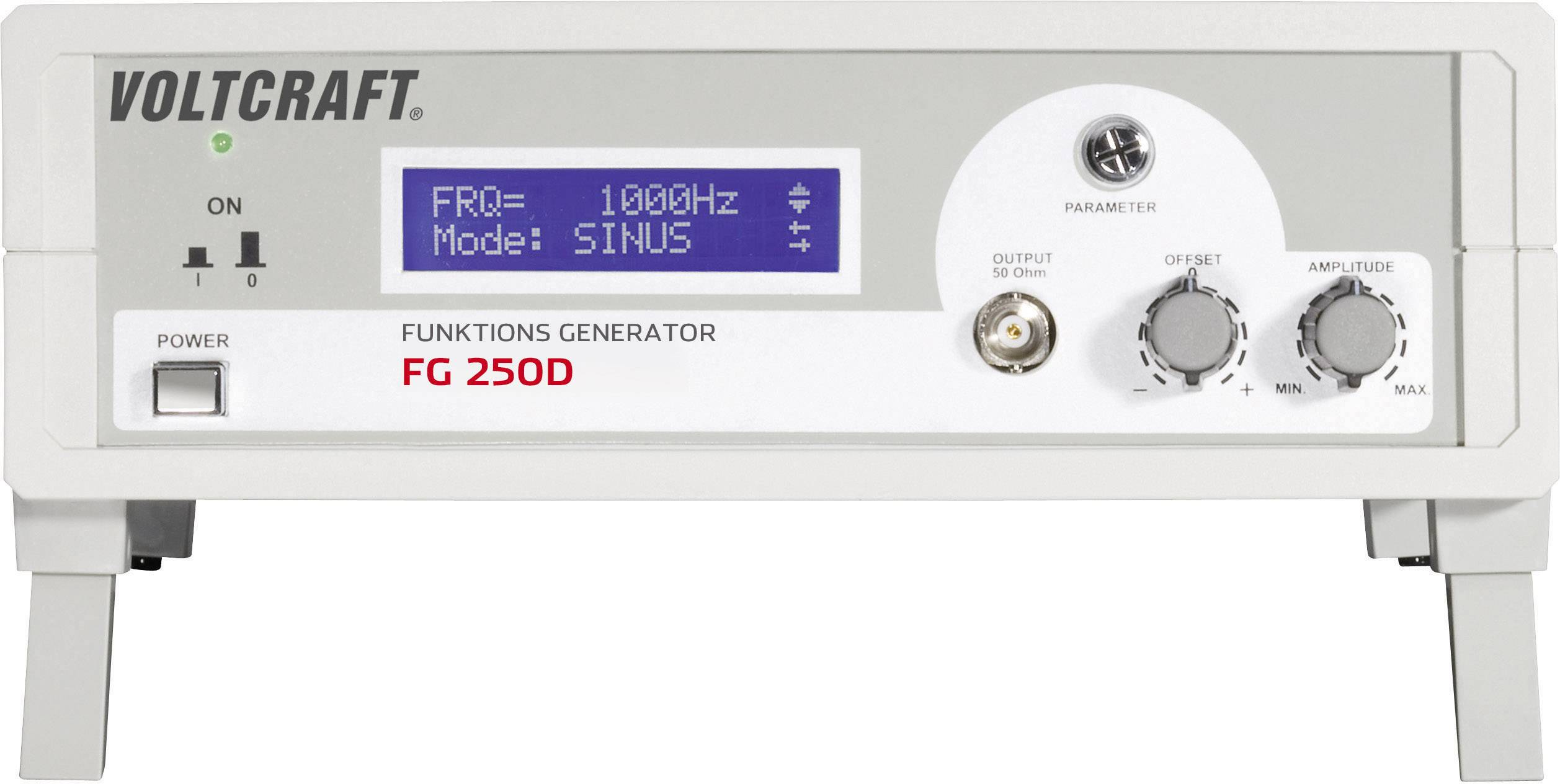

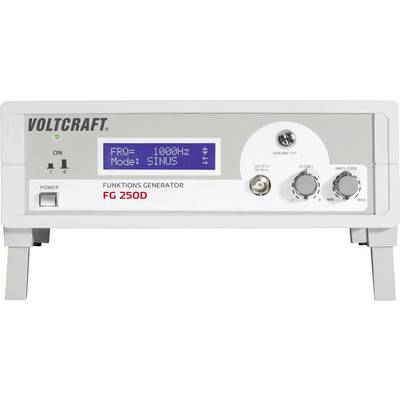

VOLTCRAFT FG 250D Mains-powered 250 kHz (max) 1-channel
EAN:
Part number:
Item no:
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Highlights & Details
Function generator FG 250D
- Frequency range 1Hz to 250kHz in 1Hz steps
- LCD display
- Sine, triangle, rectangle (TTL)
Technical specifications
- Basic accuracy: 0.01% ± 0.1Hz
- Signal output type
Sine, triangle, rectangle (TTL)
- Product type
Mains-powered
- Frequency range
250 kHz (max)
- Frequency range (sine)
1 Hz - 250 kHz
- Distortion factor (sine)
< 0.1 %
- Frequency range square wave
1 Hz - 250 kHz
- Square wave slew rate
< 10 ns
- Display
LCD
- Frequency range triangle
1 Hz - 250 kHz
Manufacturer's standards (no certificate)
- Output
0.1 to 5Vpp
- Dim
(L x W x H) 212 x 225 x 73 mm
- No. of channels
1-channel
- Max. frequency
250 kHz
- Width
225 mm
- Height
73 mm
- Voltage supply
230 V/AC
- Type
FG 250D
- Length
212 mm
- Display (details)
LCD
- Resolution
1 Hz
- Frequency range
1Hz -250 kHz
- Interfaces
-
- Power supply (details)
230 V AC
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123800 VOLTCRAFT FG 250D Mains-powered 250 kHz (max) 1-channel
Conformity certificate
Conformity certificate 123800 VOLTCRAFT FG 250D Mains-powered 250 kHz (max) 1-channel
Warranty Terms
Warranty Terms 123800 VOLTCRAFT FG 250D Mains-powered 250 kHz (max) 1-channel
Description
Easy to use and reliable function generator for applications in the NF-range up to 250kHz. The FG250D is excellently suitable for testing control circuits, analogue and digital circuits, or for measuring the frequency response of LF amplifiers, filters and speakers. The amplitude of sine and triangular signals can be modified in the range from 100mV to 5Vpp. The amplitude of the rectangular signal corresponds to the TTL-level (+5V). A DC-voltage coupled output (DC) opens up many usage possibilities in digital circuits through the continuous offset setting.
