VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
- Linear technology
- Electronically regulated
- 25W max power
- 12Vdc output voltage
- 2A output current
- Guaranteed for 3 years
Technical specifications
- Type
FSP-1122
- Product type
Bench PSU (fixed voltage)
- No. of outputs
1 x
25 W
- Technology
Linear regulated PSU
- Dim
(W x H x D) 120 x 85 x 195 mm
Manufacturer's standards (no certificate)
- Weight
1.8 kg
- Connections
4 mm sockets
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
2 A
- Output current (min.)
2 A
- Inputs
Rubber connector IEC C14
- Type
Linear
- Width
120 mm
- Height
85 mm
- Residual ripple
<2.5 mV
- Depth
195 mm
25 W
- Output voltage
12 V DC
- Output current (details)
2 A
- Input voltage
230 V AC
- Output current (high)
4 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 511410 VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
Information
Information 511410 VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
Conformity certificate
Conformity certificate 511410 VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
Warranty Terms
Warranty Terms 511410 VOLTCRAFT FSP-1122 Bench PSU (fixed voltage) 12 2 A 25 W No. of outputs 1 x
Description

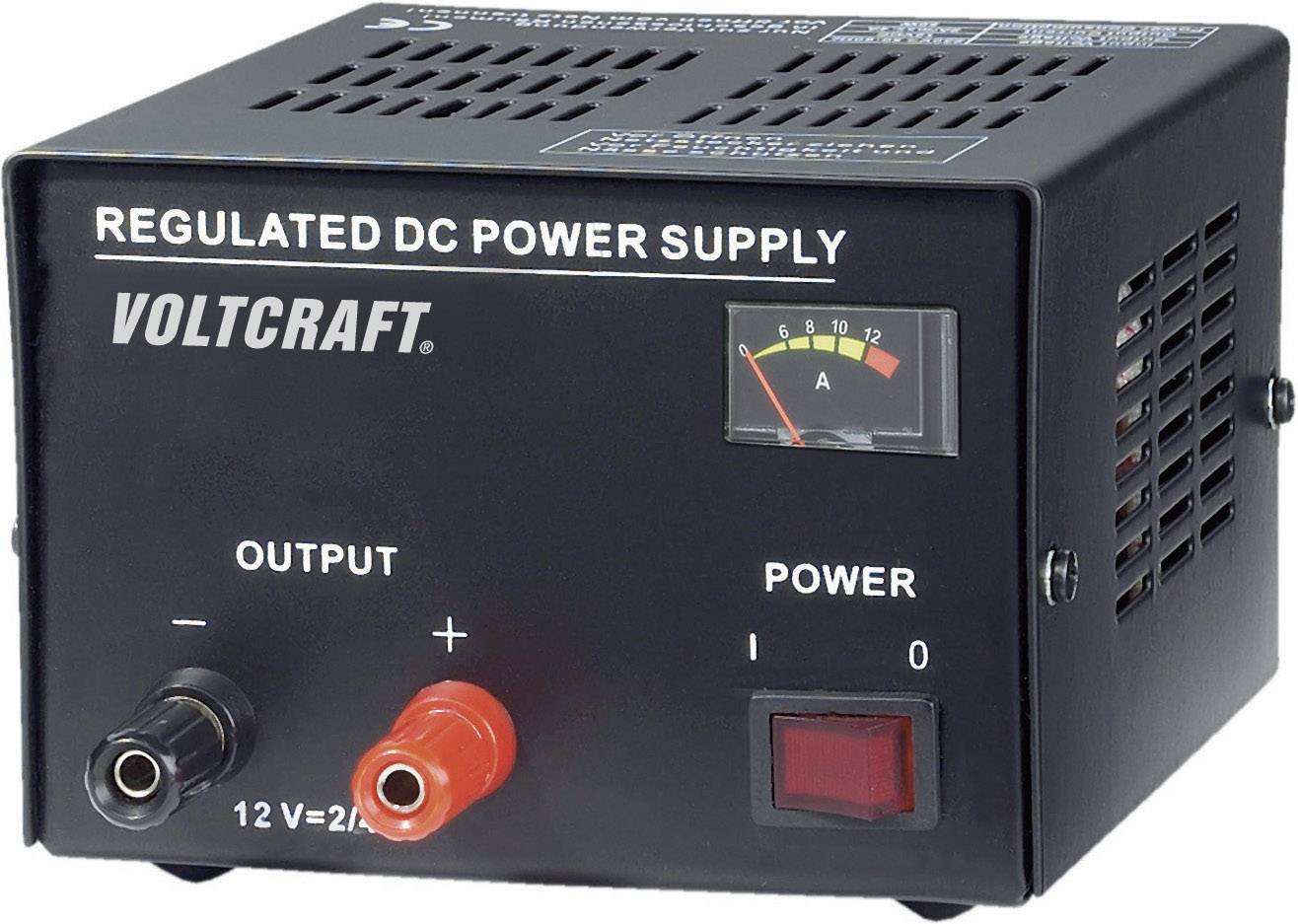

The Voltcraft FSP-1122 is a 25W fixed voltage linear power supply suitable for use in laboratories, workshops and industry. The FSP-1122 is electronically regulated and produces 12Vdc and 2A with a current limiter. Its steel plate enclosure makes the FSP-1122 suitable for use even in demanding industrial conditions.
Features
- Robust steel plate housing
- Screwable 4 mm output sockets
- Power switches
- Power indicator.
Hints
Power cable is not included
