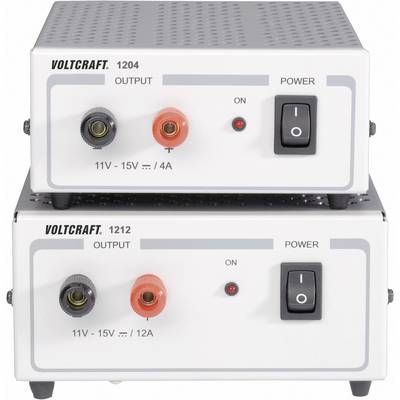

Voltage Source Voltcraft 1204, showing output terminals, switch and power range '11V-15V, 4A'.

1/2

Our service for you

Datasheet (PDF)

17 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 60.50 / piece)

€

Report legal concerns

Highlights & Details

VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

60W max power
11 - 15Vdc output voltage
4A output current
3 year warranty

Technical specifications

Type: FSP 1204

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 60 W

Technology: SMPSU

Dim: (W x H x D) 118 x 50 x 150 mm

: Manufacturer's standards (no certificate)

Weight: 0.6 kg

Connections: 4 mm sockets

Output voltage (max.): 15 V DC

Output voltage (min.): 11 V DC

Max. output current: 4 A

Output current (min.): 4 A

Type: Switch Mode

Width: 118 mm

Height: 50 mm

Depth: 150 mm

: 60 W

Output rating: 60 W

Output voltage: 11 - 15 V DC

Output current (details): 4 A

Input voltage: 230 V/AC

Documents & Downloads

Datasheet

Datasheet 512014 VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 512014 VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

Information

Information 512014 VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

Conformity certificate

Conformity certificate 512014 VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

Warranty Terms

Warranty Terms 512014 VOLTCRAFT FSP 1204 Bench PSU (fixed voltage) 11 - 15 V DC 4 A 60 W No. of outputs 1 x

Description

The Voltcraft FSP 1204 is a 60W fixed voltage switch mode power supply suitable for use in laboratories, workshops and industry. The FSP 1204 is highly efficient and produces 11 - 15Vdc and 4A with a current limiter. The output voltage can be adjusted via the potentiometer on the PSU's underside. Its steel plate enclosure makes the FSP 1204 suitable for use even in demanding industrial conditions."
