Buy VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

A power supply unit labelled 'VOLTCRAFT FSP 1225'. It has connectors for 'OUTPUT' and a switch for 'POWER'.

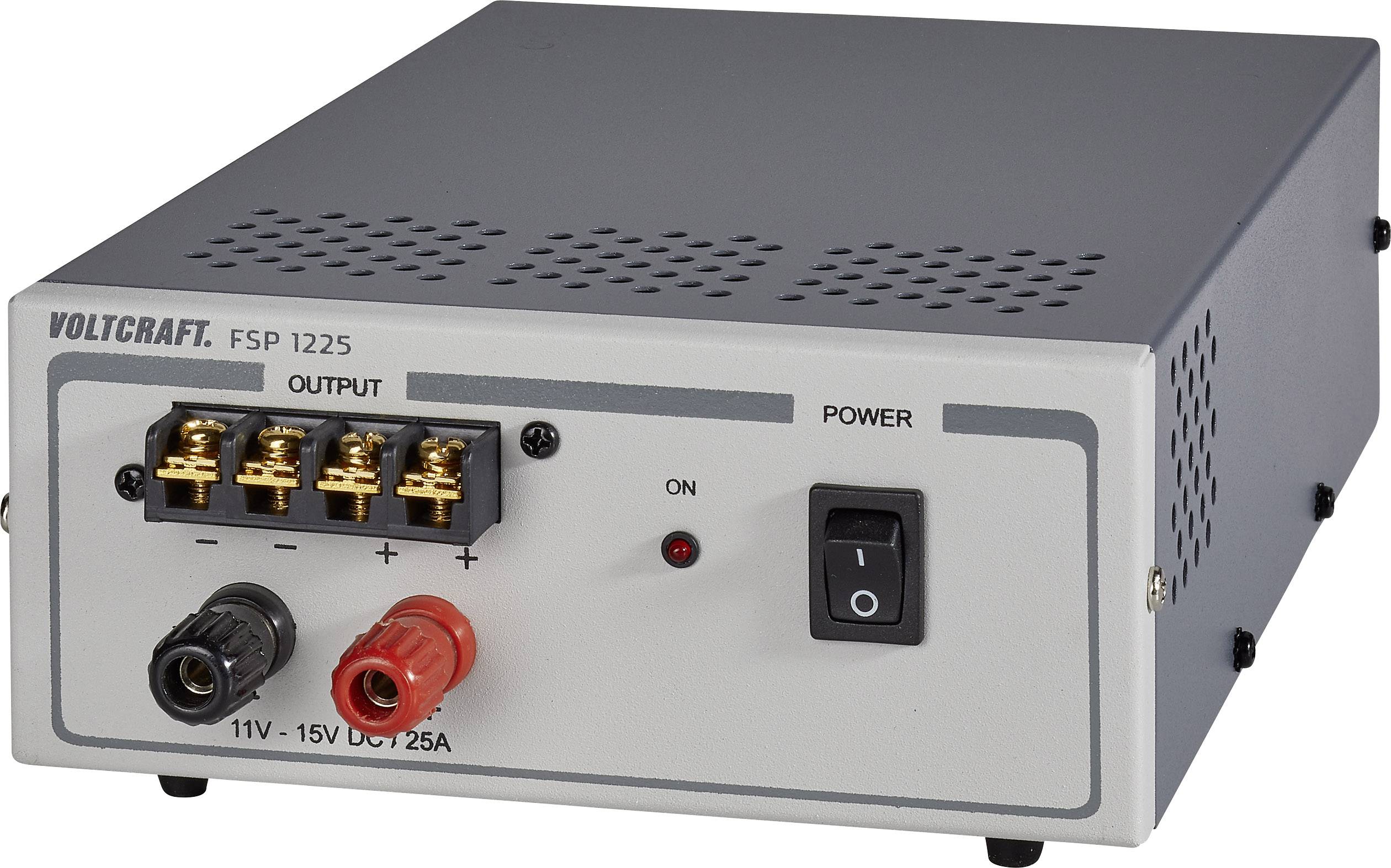

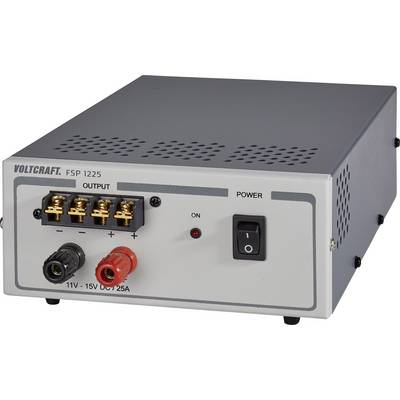

'Voltcraft FSP 1225' DC power supply with on/off switch, ventilation slots, and electrical connection outputs, 11V-15V DC, 25A.

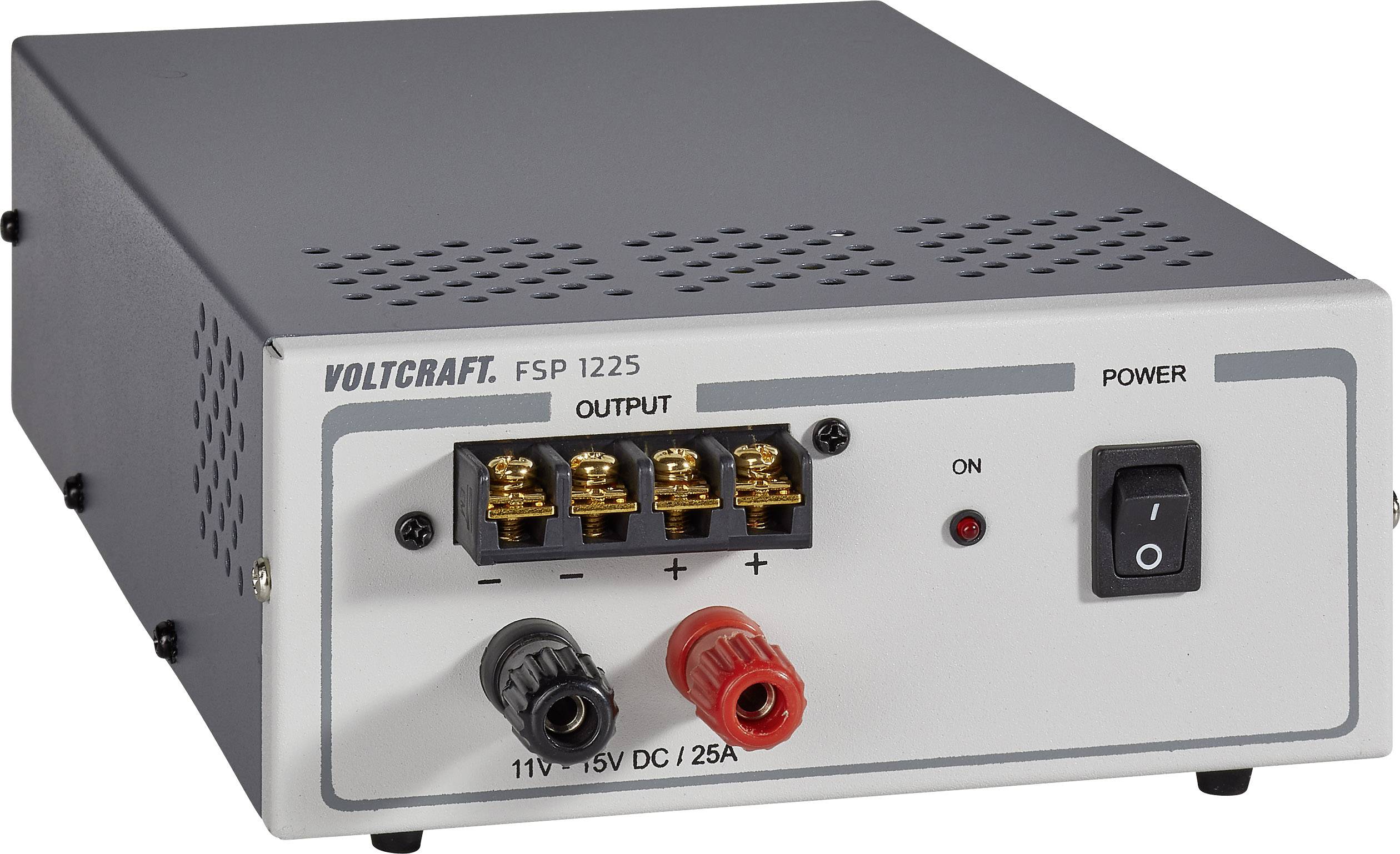

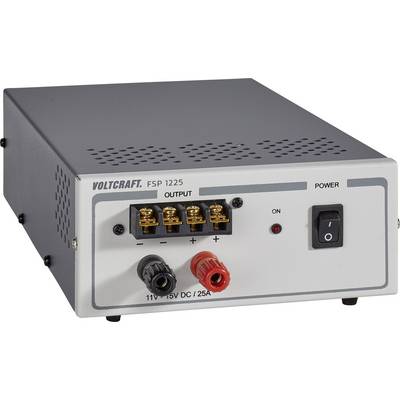

A grey Voltcraft power supply model FSP 1225 with four output terminals and a power on/off switch on the front panel.

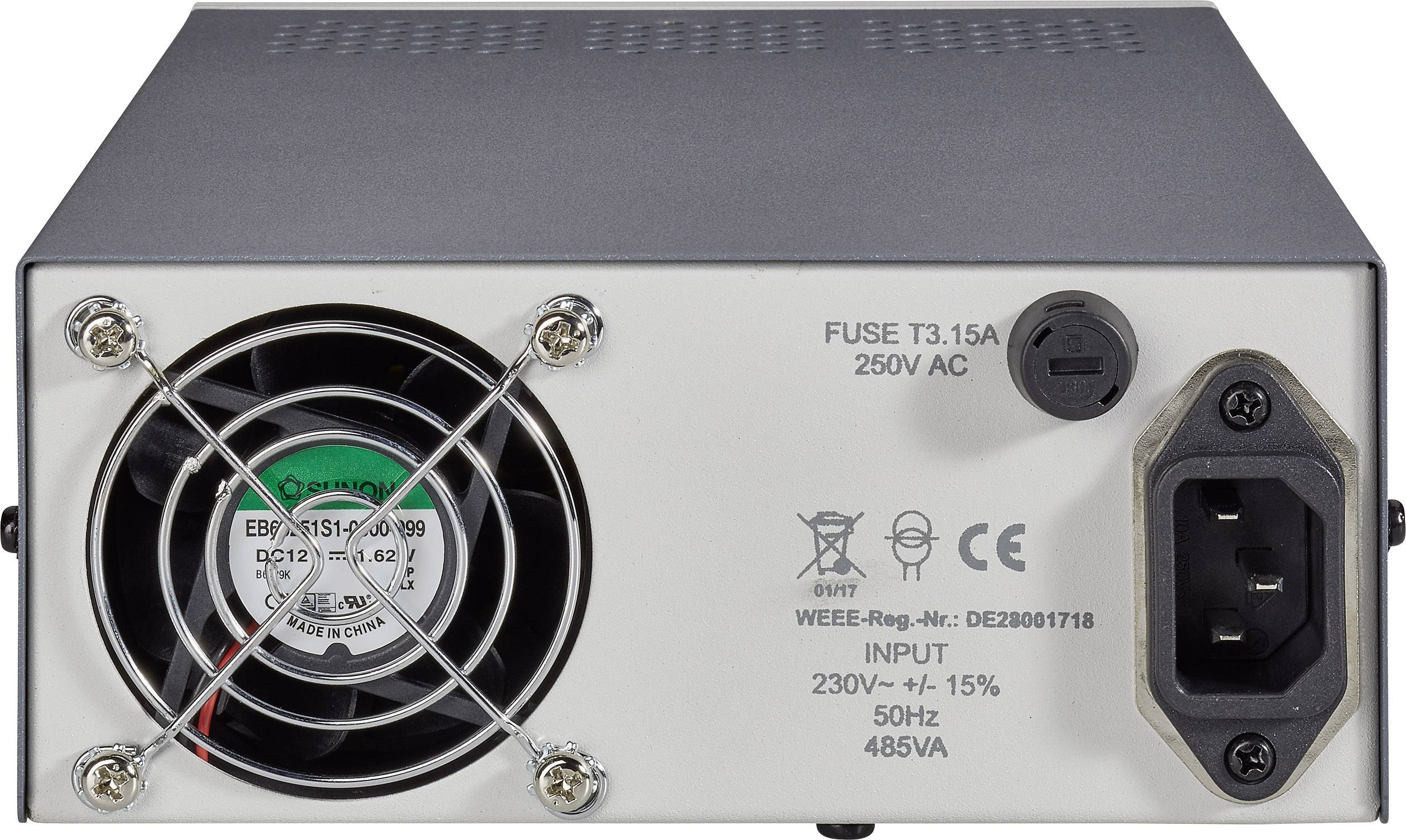

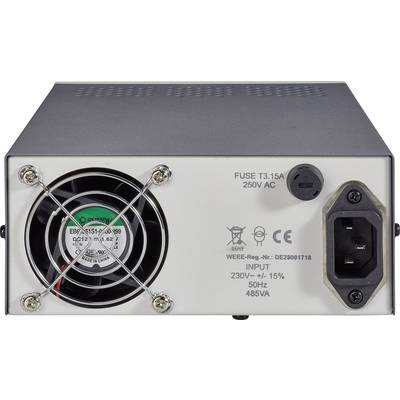

Power supply with fan and socket. Label reads: 'INPUT 230V~ ±15% 50Hz 485VA'. Fuse T3.15A, 250V AC.

1/4

Our service for you

104 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 134.45 / piece)

€

Report legal concerns

Highlights & Details

VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

375W max power
11 - 15Vdc output voltage
25A output current
3 year warranty

Technical specifications

Type: FSP 1225

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 375 W

Technology: SMPSU

Dim: (W x H x D) 155 x 66 x 240 mm

: Manufacturer's standards (no certificate)

Weight: 2 kg

Connections: 4 mm sockets + screw terminals

Output voltage (max.): 15 V DC

Output voltage (min.): 11 V DC

Max. output current: 25 A

Output current (min.): 25 A

Type: Switch Mode

Width: 155 mm

Height: 66 mm

Depth: 240 mm

: 375 W

Output rating: 375 W

Output voltage: 11 - 15 V DC

Output current (details): 25 A

Input voltage: 230 V/AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 512055 VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

Information

Information 512055 VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

Conformity certificate

Conformity certificate 512055 VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

Warranty Terms

Warranty Terms 512055 VOLTCRAFT FSP 1225 Bench PSU (fixed voltage) 11 - 15 V DC 25 A 375 W No. of outputs 1 x

Description

The Voltcraft FSP 1225 is a 375W fixed voltage switch mode power supply suitable for use in laboratories, workshops and industry. The FSP 1225 is highly efficient and produces 11 - 15Vdc and 25A with a current limiter. The output voltage can be adjusted via the potentiometer on the PSU's underside. Its steel plate enclosure makes the FSP 1225 suitable for use even in demanding industrial conditions."
