Buy VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

The Voltkraft FSP 1235 power supply shows outputs for 11V-15V DC at 35A, with terminals for positive and negative poles, and a mains power switch.

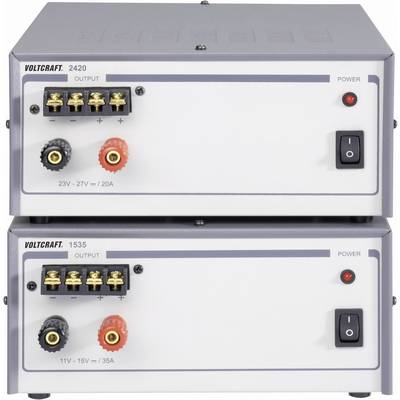

Two stacked power supplies with switches and connections. Top unit: 23V-27V/20A. Bottom unit: 11V-15V/35A.

'VOLKRAFT FSP 1235' Power Supply Unit with 11V-15V DC output and 35A current rating. Multiple connections and power switch on the front panel.

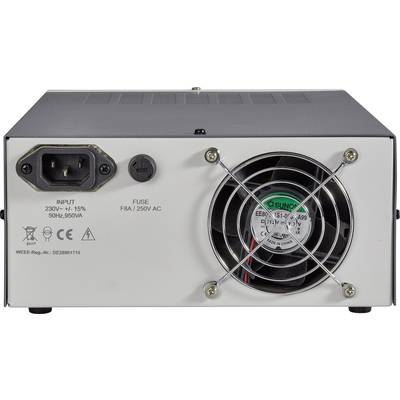

A rectangular power supply unit with a fan and input socket on the back. Labelling shows 230V input and 250V output.

1/5

Our service for you

Fast track dispatch on Mon, 10 Aug

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 189.07 / piece)

€ 189.07

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

525W max power
11 - 15Vdc output voltage
35A output current
3 year warranty

Technical specifications

Type: FSP 1235

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 525 W

Technology: SMPSU

Dim: (W x H x D) 202 x 91 x 252 mm

: Manufacturer's standards (no certificate)

Weight: 3.2 kg

Connections: 4 mm sockets + screw terminals

Output voltage (max.): 15 V DC

Output voltage (min.): 11 V DC

Max. output current: 35 A

Output current (min.): 35 A

Type: Switch Mode

Width: 202 mm

Height: 91 mm

Depth: 252 mm

: 525 W

Output rating: 525 W

Output voltage: 11 - 15 V DC

Output current (details): 35 A

Input voltage: 230 V/AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 512068 VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

Information

Information 512068 VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

Conformity certificate

Conformity certificate 512068 VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

Warranty Terms

Warranty Terms 512068 VOLTCRAFT FSP 1235 Bench PSU (fixed voltage) 11 - 15 V DC 35 A 525 W No. of outputs 1 x

Description

The Voltcraft FSP 1235 is a 525W fixed voltage switch mode power supply suitable for use in laboratories, workshops and industry. The FSP 1235 is highly efficient and produces 11 - 15Vdc and 35A with a current limiter. The output voltage can be adjusted via the potentiometer on the PSU's underside. Its steel plate enclosure makes the FSP 1235 suitable for use even in demanding industrial conditions."
