Buy VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

'VOLTCRAFT 2420 power supply, with 23V-27V output and 20A, red and black sockets, power switch on the right.'

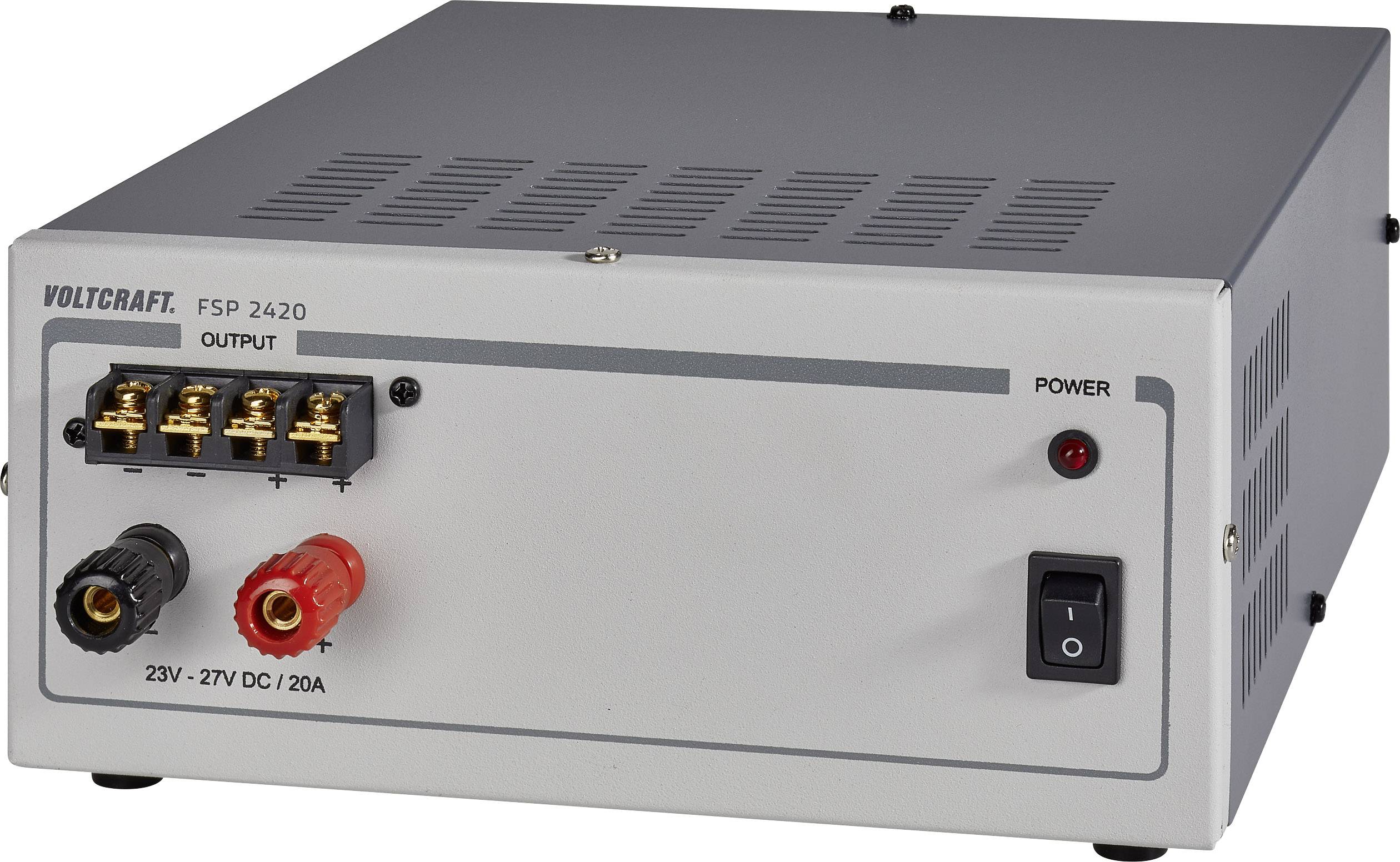

A grey power supply unit with the label 'Voltcraft FSP 2420'. It displays inputs and outputs with a switch panel and a power indicator.

DC power supply unit with two rotary controls and a display for voltage and current. Marking 'Voltcraft FSP 2420'.

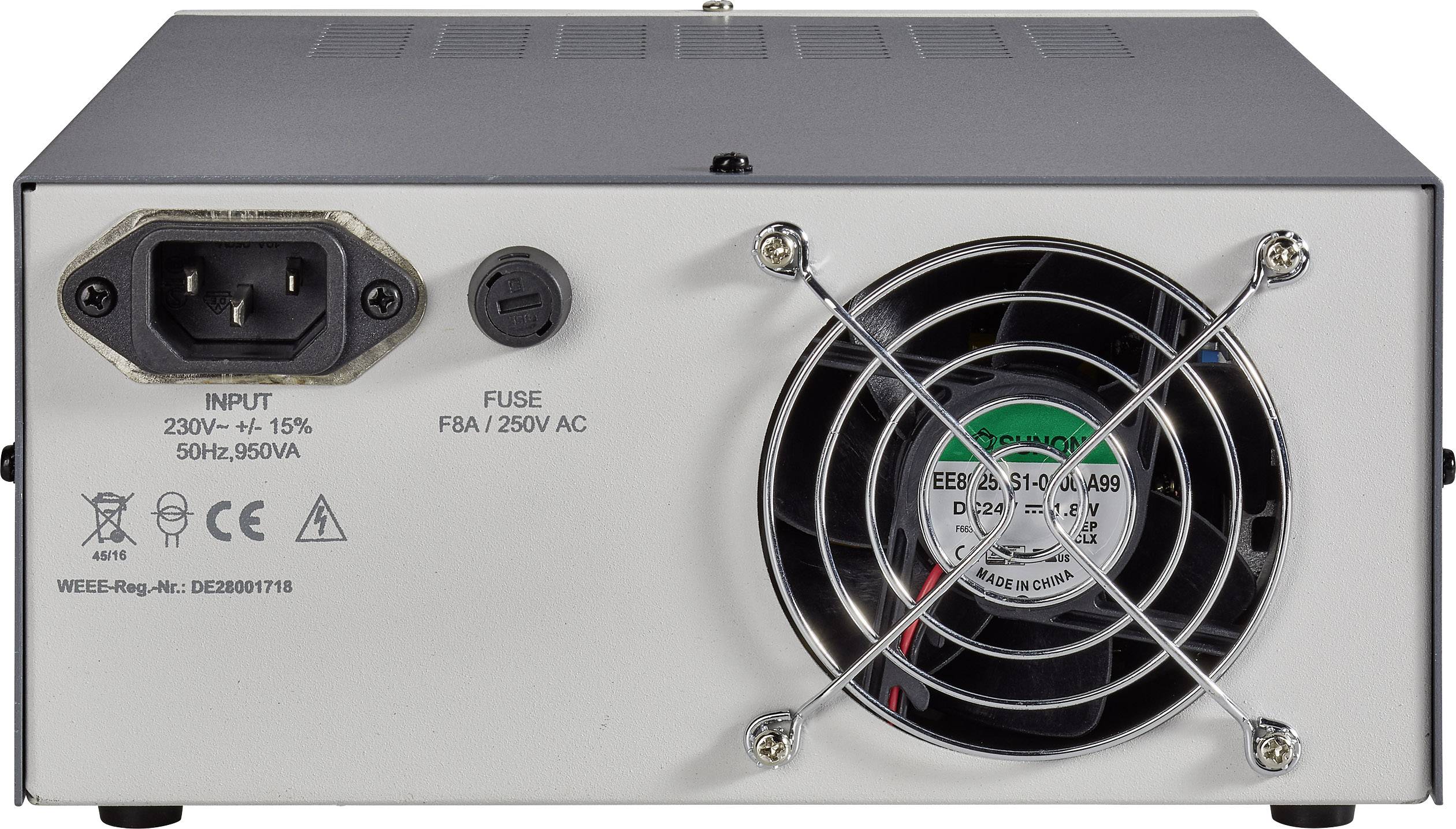

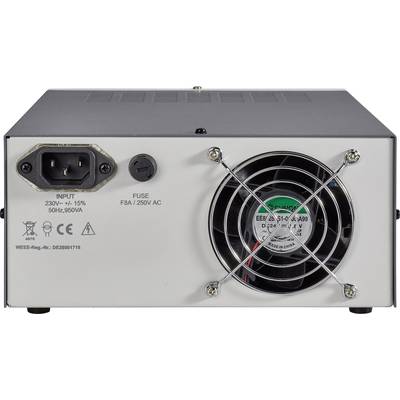

A power cable connection and a fan at the back of an electronic device, labelled with specifications: 'INPUT 230V ± 15%, 50Hz, 950VA'.

1/4

Our service for you

63 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 197.47 / piece)

€

Report legal concerns

Highlights & Details

VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

540W max power
24 - 29Vdc output voltage
20A output current
3 year warranty

Technical specifications

Type: FSP 2420

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 540 W

Technology: SMPSU

Dim: (W x H x D) 202 x 91 x 252 mm

: Manufacturer's standards (no certificate)

Weight: 3.2 kg

Connections: 4 mm sockets + screw terminals

Output voltage (max.): 29 V DC

Output voltage (min.): 24 V DC

Max. output current: 20 A

Output current (min.): 20 A

Type: Switch Mode

Width: 202 mm

Height: 91 mm

Depth: 252 mm

: 540 W

Output rating: 540 W

Output voltage: 24 - 29 V DC

Output current (details): 20 A

Input voltage: 230 V/AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 512169 VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

Information

Information 512169 VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

Conformity certificate

Conformity certificate 512169 VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

Warranty Terms

Warranty Terms 512169 VOLTCRAFT FSP 2420 Bench PSU (fixed voltage) 24 - 29 V DC 20 A 540 W No. of outputs 1 x

Description

The Voltcraft FSP 2420 is a 540W fixed voltage switch mode power supply suitable for use in laboratories, workshops and industry. The FSP 2420 is highly efficient and produces 24 - 29Vdc and 20A with a current limiter. The output voltage can be adjusted via the potentiometer on the PSU's underside. Its steel plate enclosure makes the FSP 2420 suitable for use even in demanding industrial conditions."
