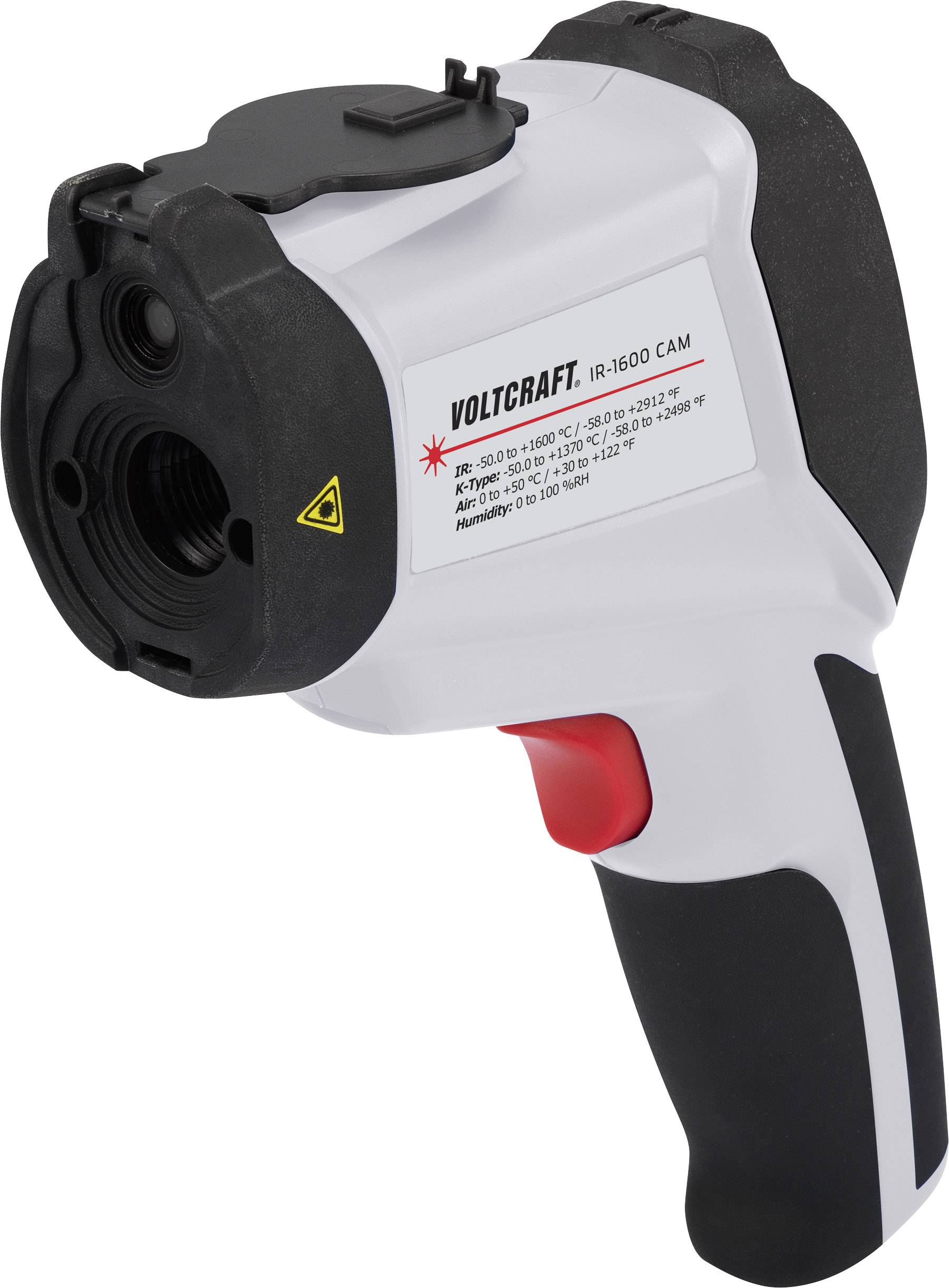

VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
EAN:
Part number:
Item no:
Datasheet (PDF)
9 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 315.13 / piece)
€
Only 9 Piece(s) available
Highlights & Details
IR-1600 CAM Infrared Thermometer
- Optics 50:1 with built-in digital color camera
- Reading range: -50 to +350 °C
- IR temperature, air temperature, humidity, dew point
- Displays visible-light image superimposed with all readings
- This text is machine translated.
Technical specifications
- Dew point/air temperature reading range: 0 to 50 °C
- RH measurement range: 0 - 100%
- K-type probe reading range: -50 to +1370 °C
- Display resolution: 320 x 240 pixels
- Emissivity
0.10 - 1.00
- Dim
(L x W x H) 155 x 62 x 205 mm
- Height
205 mm
- Length
155 mm
- Width
62 mm
- Emission level (max.)
1.0
- Emission level (min.)
0.1
Manufacturer's standards (no certificate)
- Features
Pyrometer
Displays normal picture
- Display
50:1
- Basic accuracy
1 %
- Accuracy ± °C
1 °C
- Resolution (temperature)
0.1 °C
- Pick-up time (details)
150 ms
- Optics
50:1
- Power supply (details)
Li-ion battery (18500), MiniUSB / USB
- Max. temperature
+1600 °C
- Min. temperature
-50 °C
- Weight
410 g
- Product type
IR thermometer
Documents & Downloads
Datasheet
Datasheet 1274960 VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
User & Safety Instructions
User & Safety Instructions 1274960 VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
Conformity certificate
Conformity certificate 1274960 VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
Security datasheet
Security datasheet 1274960 VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
Warranty Terms
Warranty Terms 1274960 VOLTCRAFT IR-1600 CAM IR thermometer Display (thermometer) 50:1 -50 - +1600 °C Pyrometer, Displays normal picture
Description

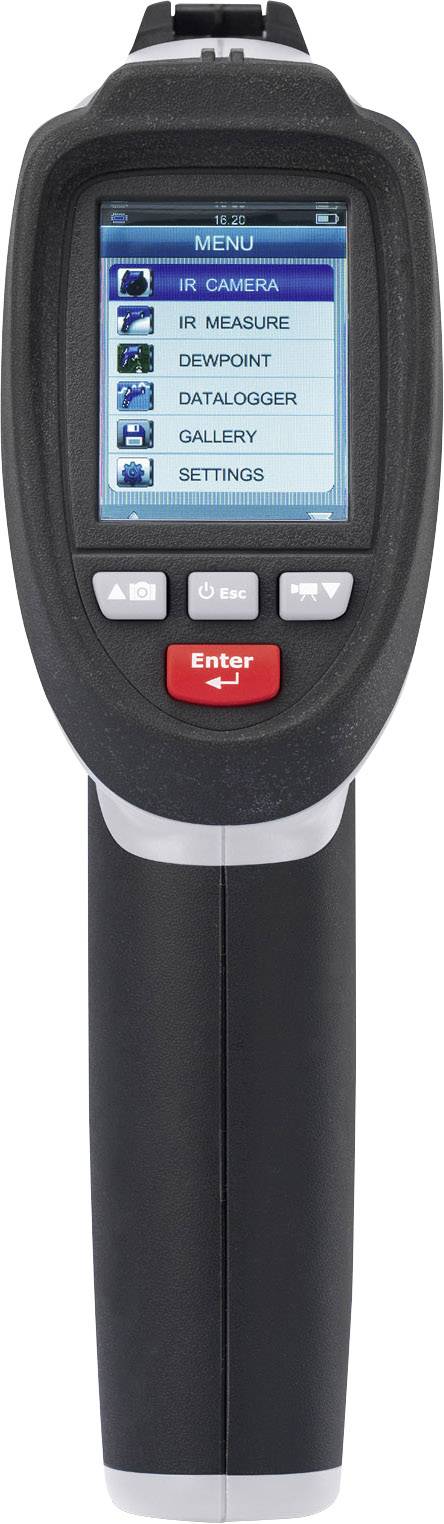

The IR-1600 CAM is a non-contact IR thermometer and comes with a built-in digital colour camera. A visible-light image containing temperature and all other readings is displayed on the 2.1" (5.5. cm) TFT screen. Images can be stored as JPGs or MP5 video on the device or exported via microSD card. Dual laser technology enables easy and accurate spot measurements. The wide range of features make the IR 1600 the ideal tool for diagnostics, maintenance, and documentation including construction, electrical wiring, plumbing, and building climate control.
Features
- Function menu
- Displays RH and air temperature
- Dew point temperature calculation
- Contact measurement via K-type probe
- Adjustable emission levels enable reading correction in case of reflective surfaces etc
- Quick sampling rate allows effective serial measurments
- Hi/Lo alarm function
- Min/Max/Avg/Difference readings
- Multi-language menu
- Data Loggers
- Single and continuous measurement
- Image and video playback mode
- Exchangeable Li-ion battery
- Auto power-off
- Backlit TFT colour display
- Lens cap.

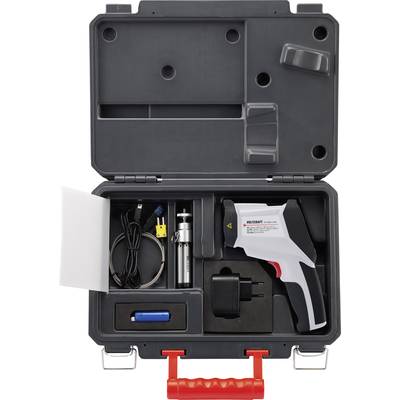

Scope of delivery
- Tripod
- USB cable (MiniUSB - USB)
- Mains adaptor
- Li-ion battery
- Hard case
- Temperature sensor (contact-type)
- 8GB microSDXC-Card
- User manual.
Hints
Include microSD card.
