VOLTCRAFT K102 + TP 208 Thermometer Sensor type K
EAN:
Part number:
Item no:
Highlights & Details

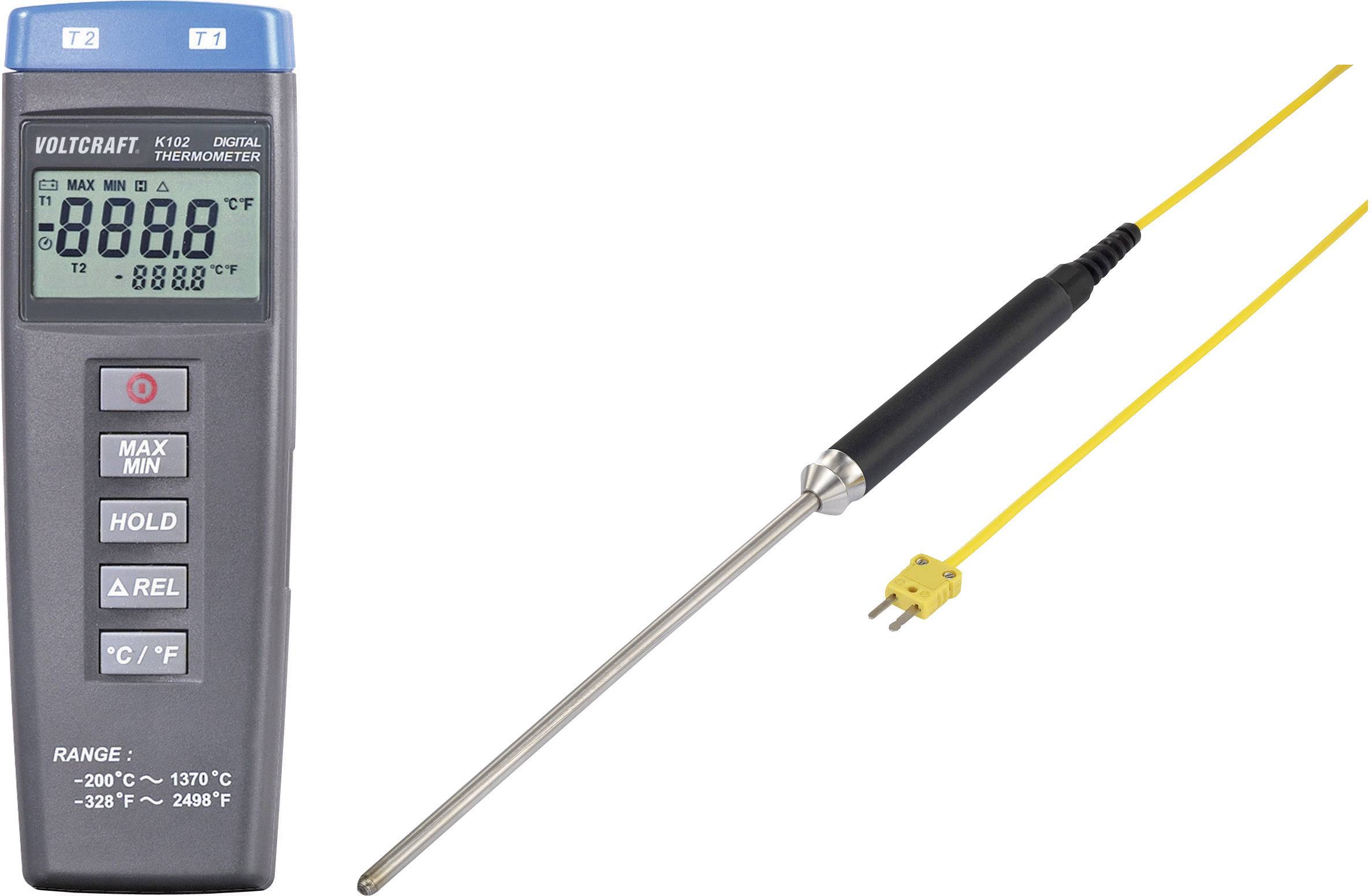

Digital thermometer + immersion probe
- All K-type temperature sensors with miniature thermocouple plug can be connected
- 2 channels
Technical specifications
- Sensor measuring range: -100 to 1000 °C.
- Sensor measurement accuracy 2.5 °C.
- Product type
Thermometer
- Max. temperature
+1370 °C
- Basic accuracy
0.3 %
- Accuracy ± °C
1 °C
- Sensor type
K
Manufacturer's standards (no certificate)
- Sensor version
detachable
- Dim
(L x W x H) 164 x 54 x 34 mm
- Response time
2 s
- Resolution (temperature)
0.1 °C
- Type
2-channel
- Features
incl. immersion probe
- Probe length
225 mm
- Weight
180 g
- Calibration range
2 channels
- Width
54 mm
- Height
34 mm
- Length
164 mm
- Power supply
9 V battery (1x)
- Min. temperature
-200 °C
- Type
K102 + TP 208
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2100929 VOLTCRAFT K102 + TP 208 Thermometer Sensor type K
User & Safety Instructions 2100929 VOLTCRAFT K102 + TP 208 Thermometer Sensor type K
Conformity certificate
Conformity certificate 2100929 VOLTCRAFT K102 + TP 208 Thermometer Sensor type K
Warranty Terms
Warranty Terms 2100929 VOLTCRAFT K102 + TP 208 Thermometer Sensor type K
Description
Professional temperature measurement at low cost. The K102 is a high-quality and robust thermometer at a great price. The immersion sensor (type K) TP-208 from VOLTCRAFT is particularly well suited for the temperature measurement of liquids, liquid metals or gel-like substances. The sensor is suitable for a temperature range of -100 to 1000 °C, making it perfect for all applications in laboratories, pharmaceuticals, food processing, schools or universities.
This text is machine translated.
This text is machine translated.
Features
- Min./max./data hold and relative measurement function
- Can be balanced
- °C/°F switching.
- Auto switch-off
- For all K-type temperature sensors with miniature thermocouple plug
- Tolerance class for thermocouple sensor IEC584
- Type K Class II.
Scope of delivery
- Battery (9 V block)
- User manual
- TP-208 DIVE SENSOR
Hints
With the K-type sensor element of class II a measurement up to +1200°C is possible. For safety reasons and for your protection during the measurement, however, only one application up to a maximum of only 1000 °C is recommended!
