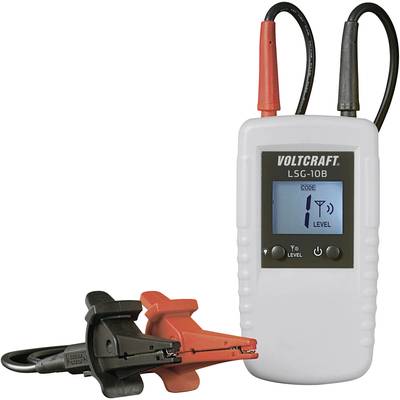

VOLTCRAFT LSG-10B LSG-10B Transmitter unit 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Highlights & Details
LSG-10B TRANSMITTER FOR LSG-10
- Suitable for LSG-10
- Adjustable transmitter codes
- Supports simultaneous use of up to 7 transmitters
Technical specifications
- Operating voltage: 9V block battery
- Measuring category: CAT III 300 V
- Current consumption: max. 18 mA
- Output signal: 125 KHz
- External voltage detection: 12 – 400 V AC/DC
- Frequency range: 0 – 60 Hz
- Dimensions (L x W x H): 130 x 69 x 32 mm
- Weight: approx. 130 g
- Product type
Transmitter unit
- Weight
130 g
- Reading category
CAT III 300 V
- Width
69 mm
- Height
32 mm
- Length
130 mm
- Type
LSG-10B
- Compatible with (details)
LSG 10
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1289380 VOLTCRAFT LSG-10B LSG-10B Transmitter unit 1 pc(s)
Information
Information 1289380 VOLTCRAFT LSG-10B LSG-10B Transmitter unit 1 pc(s)
Description
In extensive installations, this additional transmitter provides for reliable cable localization with broader search signals, allowing for convenient and time-efficient scanning without the need of repositioning the transmitter all the time. The search signals can be coded (1 - 7) and be identified with the receiver of the cable-searching device LSG-10.
Features
- For voltage-free and live wires.
Scope of delivery
- Transmitter LSG-10B
- 1x 9V block battery
- 2 safety test leads
- 2 pluggable measuring tips
- 2 safety alligator clips
- Operating instructions
